DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV1224P4G01FAN AXIAL 120X25.4MM 24VDC WIRE |
290 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 170.9 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 25.40mm | Tubeaxial | Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 20.16 W | 5100 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.573 lb (260.00 g) |
|

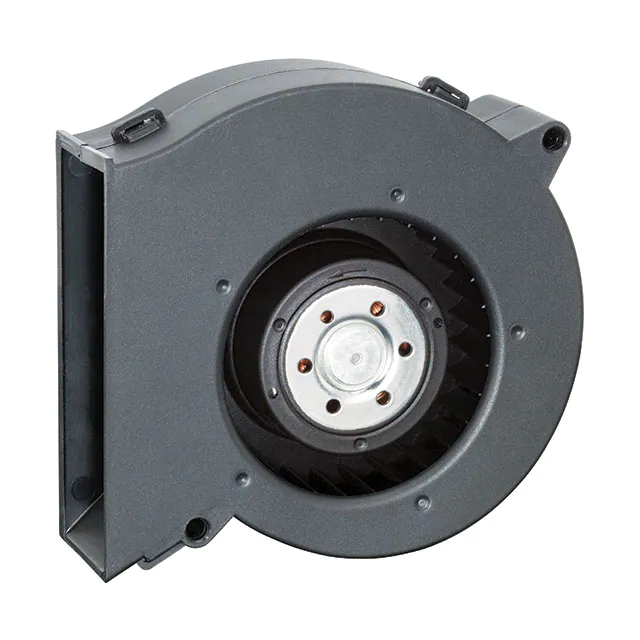

RL65-21/12FAN BLOWER 97X33MM 12VDC WIRE |
129 |
|
Datasheet |
RL65 | Box | Active | 12VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 32.9 CFM (0.921m³/min) | - | Ball | 33.00mm | Blower | - | 62.0dB(A) | 15 W | 4500 RPM | - | 2 Wire Leads | - | - | 0.37 lb (167.83 g) |
|

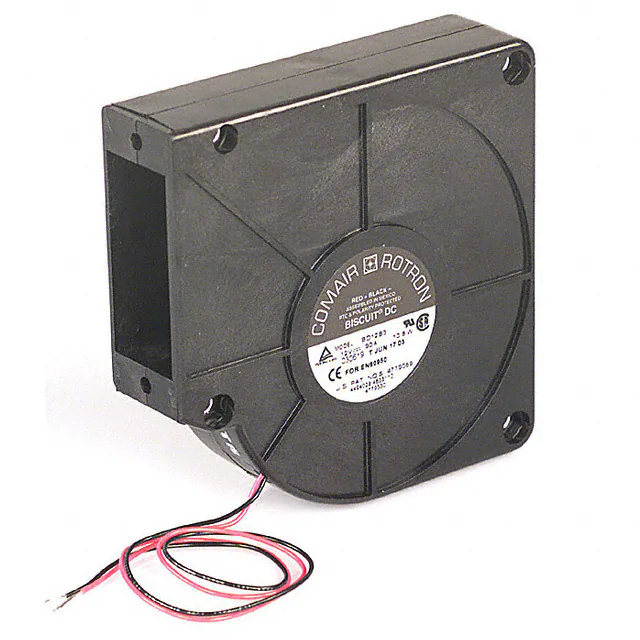

19030619AFAN BLOWER 120.7X31MM 12V BD12B3 |
271 |
|
Datasheet |
Biscuit | Bulk | Active | 12VDC | Square/Rounded - 120.7mm L x 120.7mm H | 25.0 CFM (0.700m³/min) | 0.870 in H2O (216.7 Pa) | Ball | 31.00mm | Blower | Auto Restart, Locked Rotor Protection | 51.2dB(A) | 10.8 W | 3040 RPM | CE, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.619 lb (280.77 g) |
|
RL48-19/12/2FAN BLOWER 75X27MM 12VDC WIRE |
325 |
|
Datasheet |
RL48 | Box | Active | 12VDC | Square/Rounded - 75mm L x 75mm H | 16.5 CFM (0.462m³/min) | - | Ball | 27.00mm | Blower | Speed Sensor (Tach) | 51.0dB(A) | 5 W | 4400 RPM | - | 3 Wire Leads | - | - | 0.165 lb (74.84 g) |
|

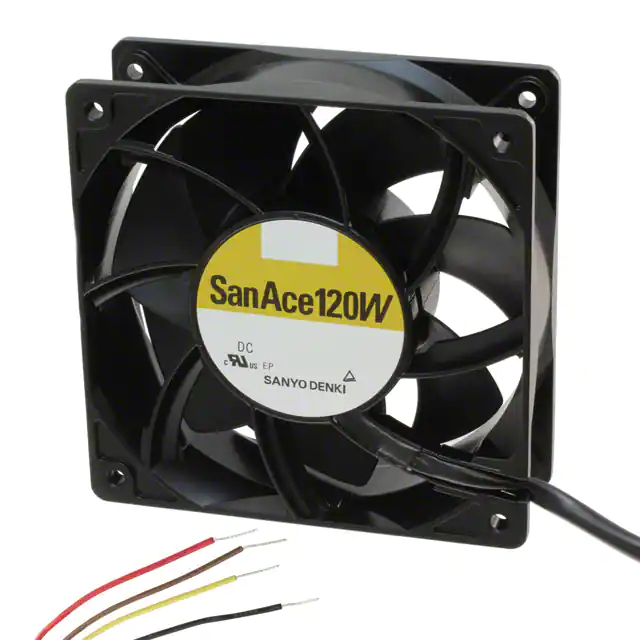

9GV1212P1J01FAN AXIAL 120X38MM 12VDC WIRE |
139 |
|
Datasheet |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 36 W | 6400 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.794 lb (360.15 g) |
|
614NHHU-286FAN AXIAL 60X25.4MM 24VDC WIRE |
1,177 |
|
Datasheet |
600NU | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | - | Ball | 25.40mm | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 2.9 W | 6850 RPM | UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.146 lb (66.22 g) |
|
|
RL65-21/14HFAN BLOWER 97X33MM 24VDC WIRE |
366 |
|
Datasheet |
RL65 | Box | Active | 24VDC | Rectangular/Rounded - 97mm L x 93.5mm H | 35.8 CFM (1.00m³/min) | - | Ball | 33.00mm | Blower | - | 69.0dB(A) | 18 W | 4900 RPM | - | 2 Wire Leads | - | - | 0.37 lb (167.83 g) |
|
MS1751H48B-FHR-2EMFAN AXIAL 171X51.5MM 48VDC WIRE |
3,695 |
|
Datasheet |
MS1751-H | Bulk | Active | 48VDC | Rectangular/Rounded - 171mm L x 153mm H | 418.0 CFM (11.70m³/min) | 1.640 in H2O (408.5 Pa) | Ball | 51.50mm | Tubeaxial | Auto Restart | 71.0dB(A) | - | 5500 RPM | - | 2 Wire Leads | - | IP68 - Dust Tight, Waterproof | 1.5 lbs (670.0 g) |
|

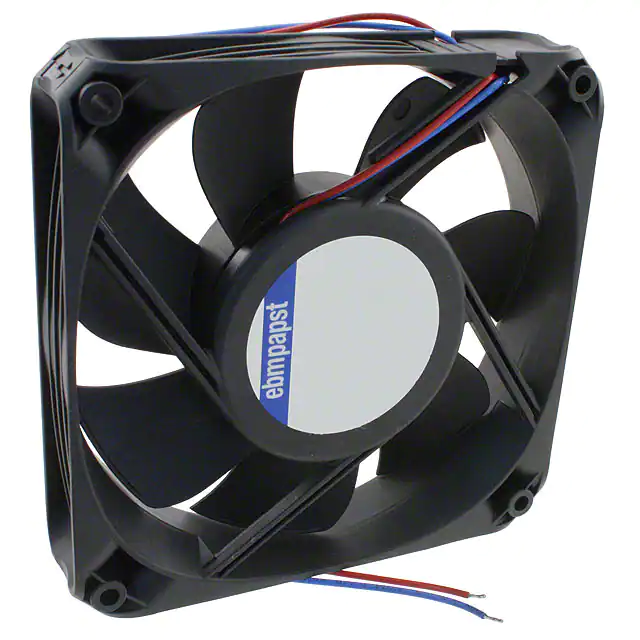

4414FNHFAN AXIAL 119X25.4MM 24VDC WIRE |
229 |
|
Datasheet |
4400FN | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 132.4 CFM (3.71m³/min) | - | Ball | 25.40mm | Tubeaxial | - | 55.0dB(A) | 12 W | 5400 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.529 lb (239.95 g) |
|
9HVB0812P1G0011FAN AXIAL 80X38MM 12VDC WIRE |
1,311 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 141.3 CFM (3.96m³/min) | 6.420 in H2O (1599.2 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 57.6 W | 18300 RPM | - | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.508 lb (230.42 g) |
|

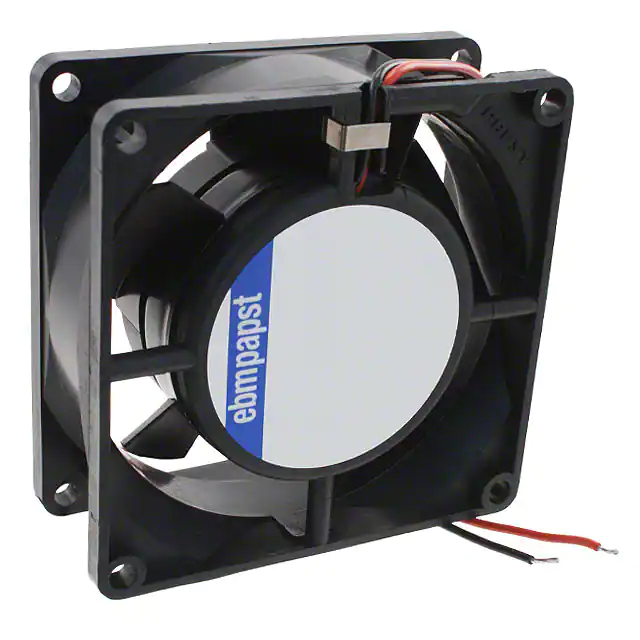

8314HUFAN AXIAL 80X32MM 24VDC WIRE |
474 |
|
Datasheet |
8300U | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 47.1 CFM (1.32m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 48.0dB(A) | 6 W | 5000 RPM | UL | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP68 - Dust Tight, Waterproof | 0.375 lb (170.1 g) |
|
9LG0624P4S001FAN AXIAL 60X25MM 24VDC WIRE |
1,187 |
|
Datasheet |
San Ace 60L | Box | Active | 24VDC | Square - 60mm L x 60mm H | 49.4 CFM (1.38m³/min) | 1.204 in H2O (299.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 53.0dB(A) | 8.16 W | 11000 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.222 lb (100.7 g) |
|

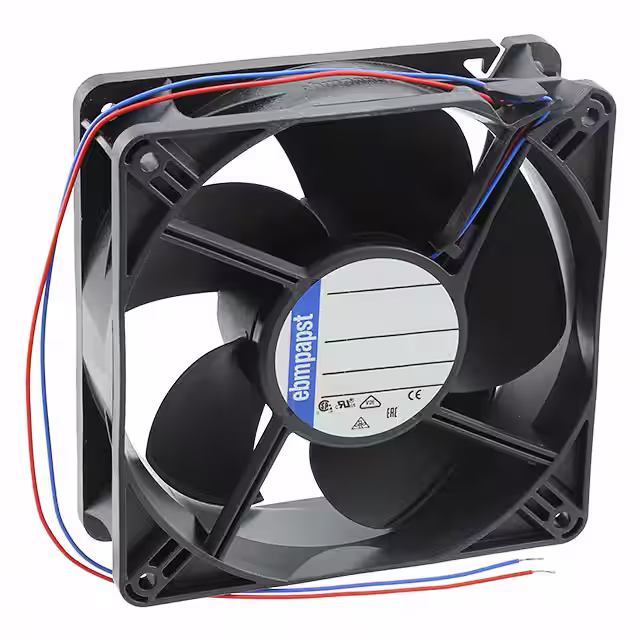

4416MFAN AXIAL 119X38MM 36VDC WIRE |
4,890 |
|
Datasheet |
- | Bulk | Active | 36VDC | Square - 119mm L x 119mm H | 108.4 CFM (3.03m³/min) | 0.414 in H2O (102.9 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 43.0dB(A) | 2.9 W | 2850 RPM | - | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.604 lb (273.97 g) |
|

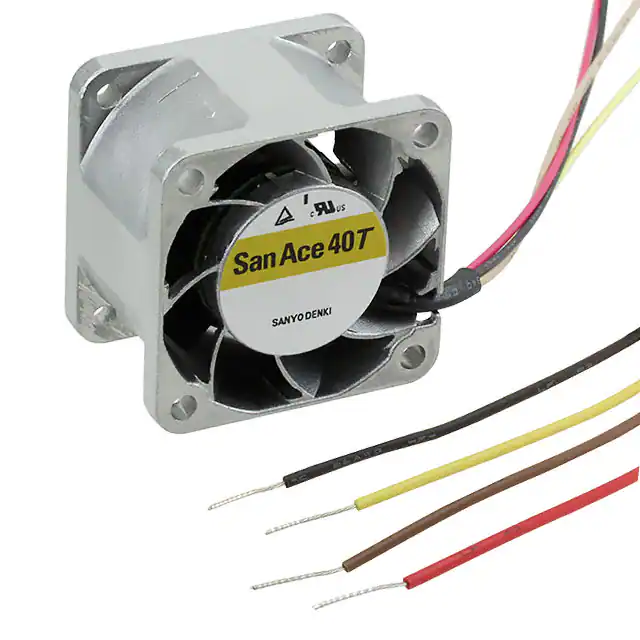

9GT0424P3J001FAN AXIAL 40X28MM 24VDC WIRE |
633 |
|
Datasheet |
San Ace 40T | Box | Active | 24VDC | Square - 40mm L x 40mm H | 18.4 CFM (0.515m³/min) | 0.827 in H2O (206.0 Pa) | Ball | 28.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 3.6 W | 11700 RPM | CSA, TUV, UL | 4 Wire Leads | -40 ~ 185°F (-40 ~ 85°C) | - | 0.121 lb (54.88 g) |
|
19032105AFAN AXIAL 119.1X39.1MM MD28B5 |
415 |
|
Datasheet |
Muffin XL | Box | Active | 28VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 39.12mm | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | - | 6.5 W | 3100 RPM | CE, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 1.3 lbs (589.7 g) |
|
QG030-148/14FAN BLOWER CF 201X47.5MM 24VDC |
688 |
|
Datasheet |
QG030 | Box | Active | 24VDC | Rectangular - 201mm L x 50mm H | 44.0 CFM (1.23m³/min) | - | Ball | 47.50mm | Blower, Cross Flow | - | 49.0dB(A) | 6.2 W | - | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.518 lb (234.96 g) |
|
|
9GV1224P1J01FAN AXIAL 119X38MM 24VDC WIRE |
494 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 36 W | 6400 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.794 lb (360.15 g) |
|
|
9GV1224P1H01FAN AXIAL 119X38MM 24VDC WIRE |
2,627 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 182.3 CFM (5.10m³/min) | 0.950 in H2O (237.0 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 19.2 W | 5200 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.794 lb (360.15 g) |
|
19028869AFAN AXIAL 119.1X39.1MM MD24B2 |
470 |
|
Datasheet |
Muffin XL | Bulk | Active | 24VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 39.12mm | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.0dB(A) | 6 W | 3100 RPM | CE, CSA, TUV, UL | 2 Terminals | 14 ~ 158°F (-10 ~ 70°C) | - | 1.4 lbs (635.0 g) |
|
4314UFAN AXIAL 119X32MM 24VDC WIRE |
131 |
|
Datasheet |
4300U | Box | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Ball | 32.00mm | Tubeaxial | - | 45.0dB(A) | 5 W | 2800 RPM | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | IP68 - Dust Tight, Waterproof | 0.5 lb (226.8 g) |
