DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GT0912P1M001FAN AXIAL 92X38MM 12VDC WIRE |
284 |
|
Datasheet |
San Ace 92T | Box | Active | 12VDC | Square - 92mm L x 92mm H | 116.5 CFM (3.26m³/min) | 1.260 in H2O (313.9 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 18 W | 8100 RPM | CSA, TUV, UL | 4 Wire Leads | -40 ~ 185°F (-40 ~ 85°C) | - | 0.595 lb (269.89 g) |
|

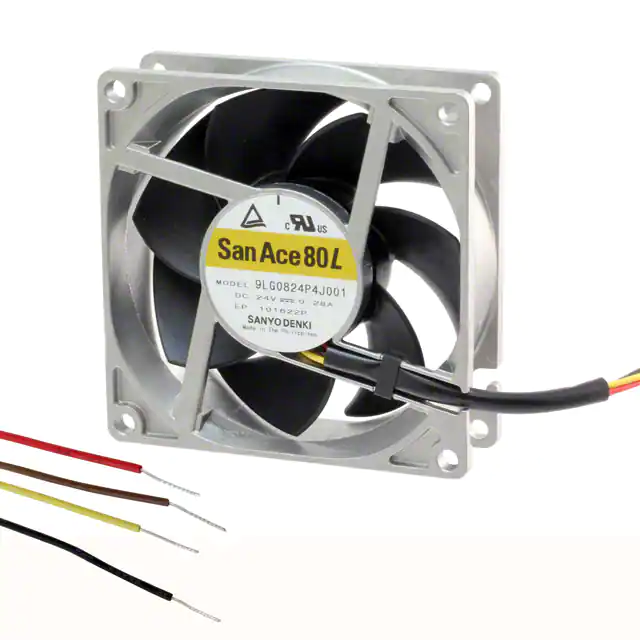

9LG0824P4J001FAN AXIAL 80X25MM 24VDC WIRE |
463 |
|
Datasheet |
San Ace 80L | Box | Active | 24VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.710 in H2O (176.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 6.72 W | 7400 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.287 lb (130.18 g) |
|
|
9LG0812P4J001FAN AXIAL 80X25MM 12VDC WIRE |
2,717 |
|
Datasheet |
San Ace 80L | Box | Active | 12VDC | Square - 80mm L x 80mm H | 73.0 CFM (2.04m³/min) | 0.710 in H2O (176.9 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 7.2 W | 7400 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.287 lb (130.18 g) |
|

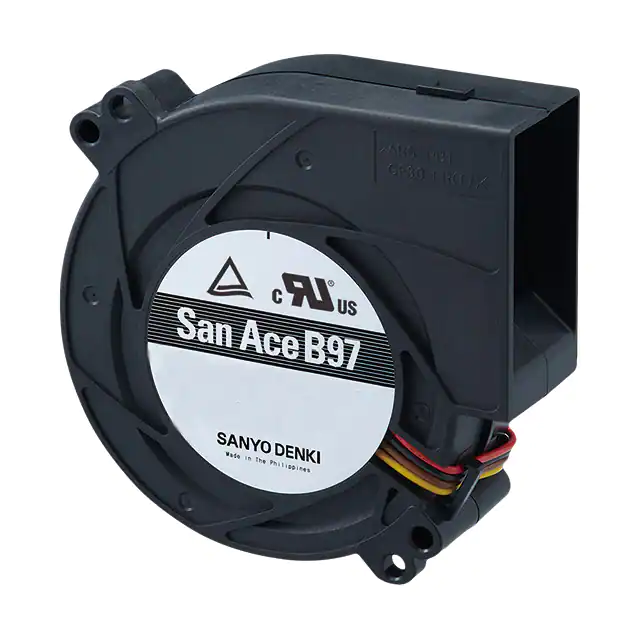

9BMC24P2G001FAN BLOWER 97.1X33MM 24VDC WIRE |
1,111 |
|
Datasheet |
San Ace B97 | Box | Active | 24VDC | Rectangular/Rounded - 97.1mm L x 95mm H | 65.3 CFM (1.83m³/min) | 7.830 in H2O (1950.3 Pa) | Ball | 33.00mm | Blower | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.0dB(A) | 74.4 W | 8200 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.441 lb (200.00 g) |
|

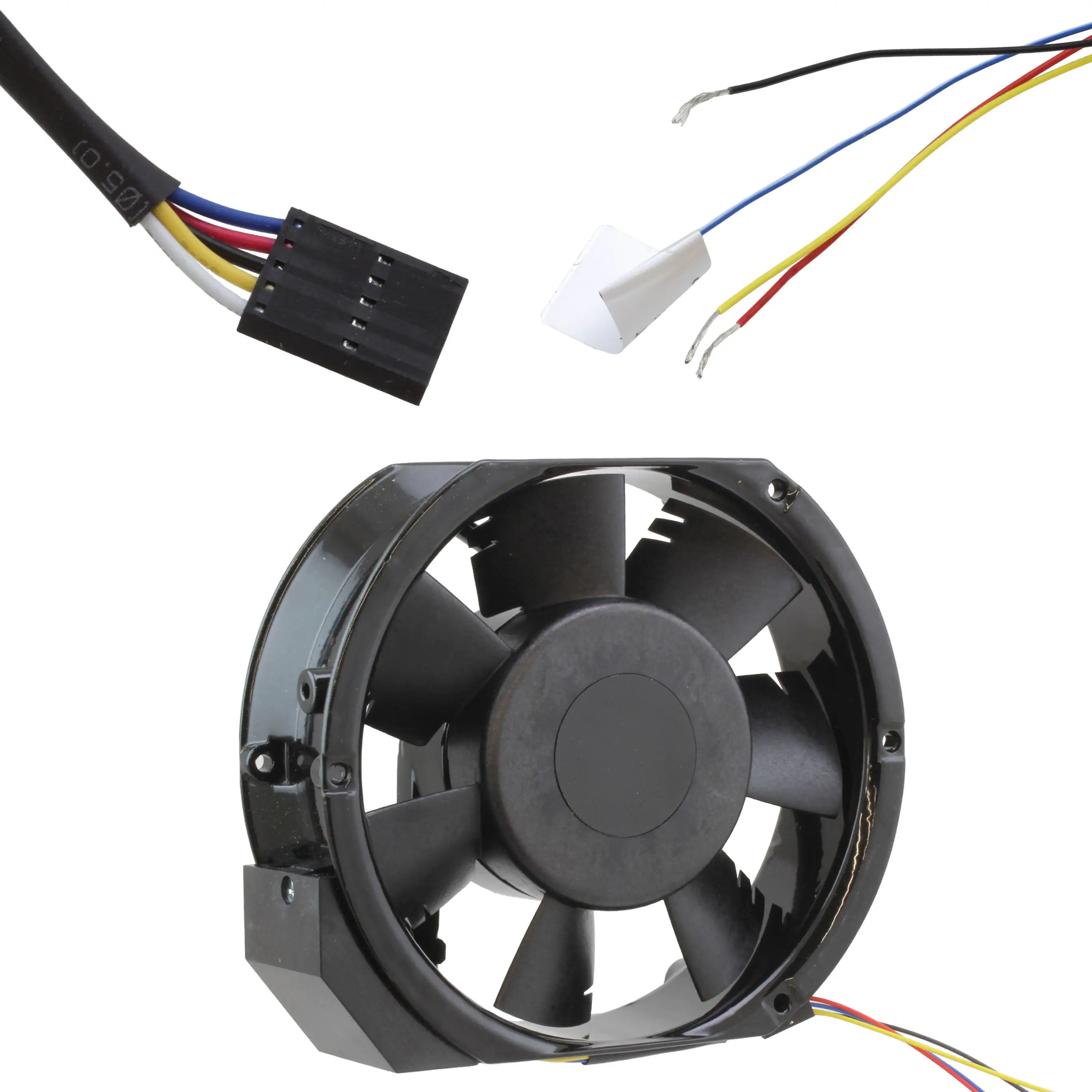

19039693AFAN AXIAL 171.4X50.8MM JQD48Z3A2 |
317 |
|
Datasheet |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 300.0 CFM (8.40m³/min) | 1.300 in H2O (323.6 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 60.2dB(A) | 35 W | 4450 RPM | CE, UL | 5 Position Rectangular Connector | -40 ~ 185°F (-40 ~ 85°C) | - | - |
|

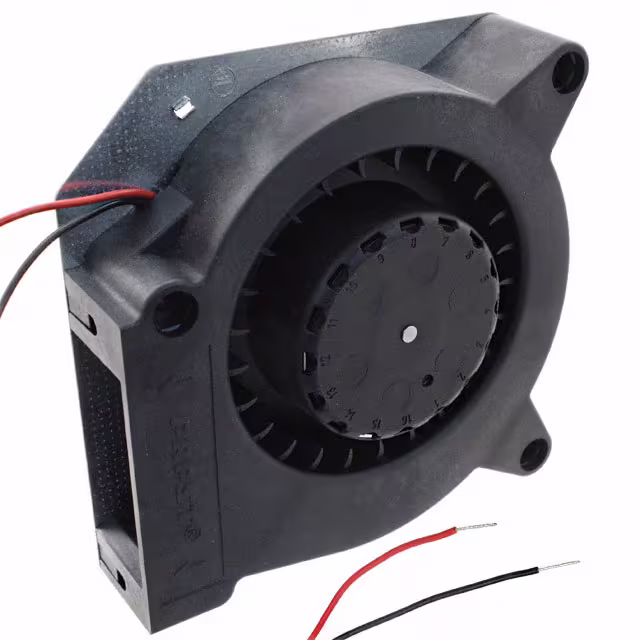

RL90-18/14NFAN BLOWER 121X37MM 24VDC WIRE |
197 |
|
Datasheet |
RL90N | Bulk | Active | 24VDC | Square/Rounded - 121mm L x 121mm H | 23.5 CFM (0.658m³/min) | - | Ball | 37.00mm | Blower | - | 58.0dB(A) | 5 W | 2500 RPM | - | 2 Wire Leads | -22 ~ 167°F (-30 ~ 75°C) | - | 0.926 lb (420.03 g) |
|

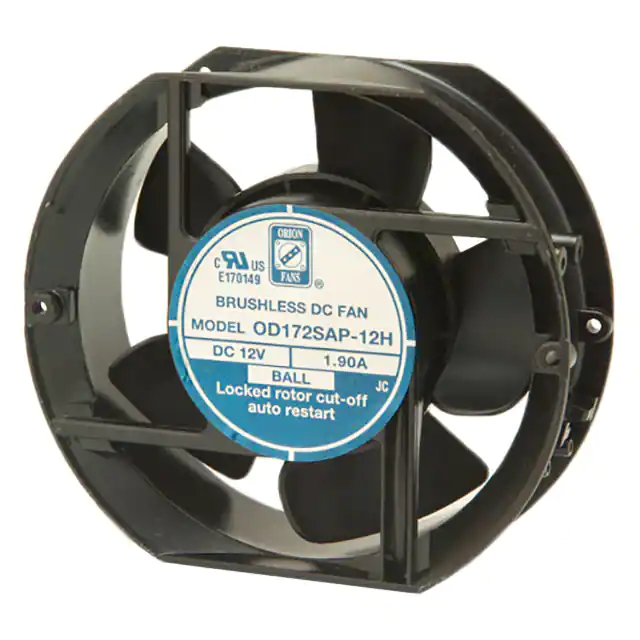

OD172SAP-24HHBFAN AXIAL 172X51MM 24VDC WIRE |
329 |
|
Datasheet |
OD172S | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 300.0 CFM (8.40m³/min) | 0.980 in H2O (244.0 Pa) | Ball | 51.00mm | Tubeaxial | Auto Restart | 57.0dB | - | 3900 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

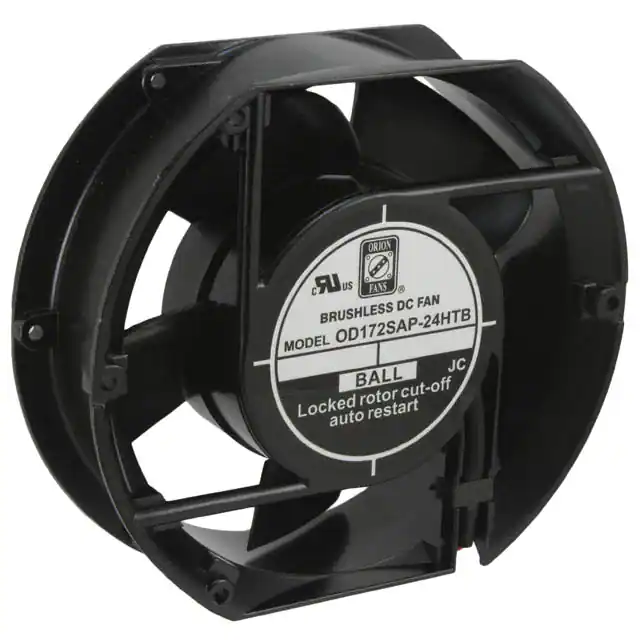

OD172SAP-24HTBFAN AXIAL 172X50.8MM 24VDC TERM |
2,040 |
|
Datasheet |
OD172S | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 235.0 CFM (6.58m³/min) | 0.790 in H2O (196.8 Pa) | Ball | 50.80mm | Tubeaxial | Auto Restart | 52.0dB | - | 3300 RPM | cURus, TUV | 2 Terminals | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|

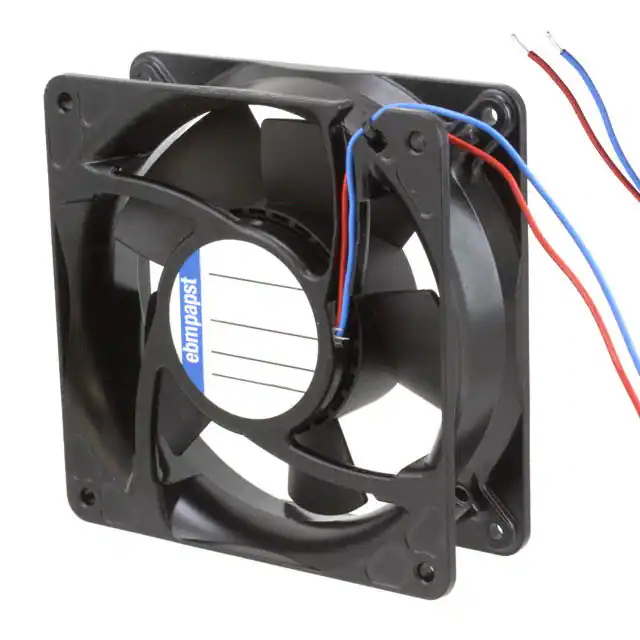

4114NHU-295FAN AXIAL 119X38MM 24VDC WIRE |
233 |
|
Datasheet |
4100NU | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 140.0 CFM (3.92m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 57.0dB(A) | 11 W | 4400 RPM | UL | 2 Wire Leads | -4 ~ 131°F (-20 ~ 55°C) | IP68 - Dust Tight, Waterproof | 0.882 lb (400.07 g) |
|
8214J/2H4PFAN AXIAL 80MM BALL 24VDC WIRE |
4,041 |
|
Datasheet |
8200J | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 129.4 CFM (3.62m³/min) | 2.850 in H2O (709.9 Pa) | Ball | - | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 37 W | 14000 RPM | CE, CSA, UL, VDE | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

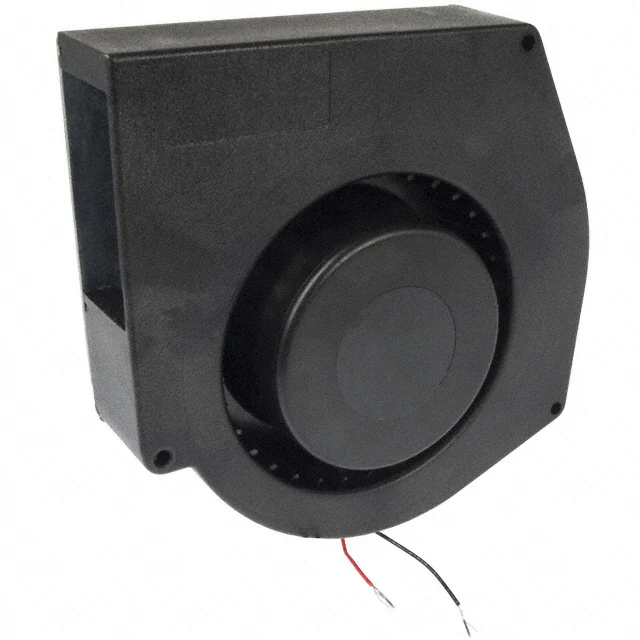

19032183AFAN BLOWER 160.7X50.2MM SPD24B1 |
2,295 |
|
Datasheet |
Spinnaker | Bulk | Active | 24VDC | Rectangular/Rounded - 160.7mm L x 161.3mm H | 60.0 CFM (1.68m³/min) | 1.100 in H2O (274.0 Pa) | Ball | 50.20mm | Blower | Auto Restart, Locked Rotor Protection | 57.0dB(A) | 30 W | 2500 RPM | UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 2.1 lbs (952.5 g) |
|

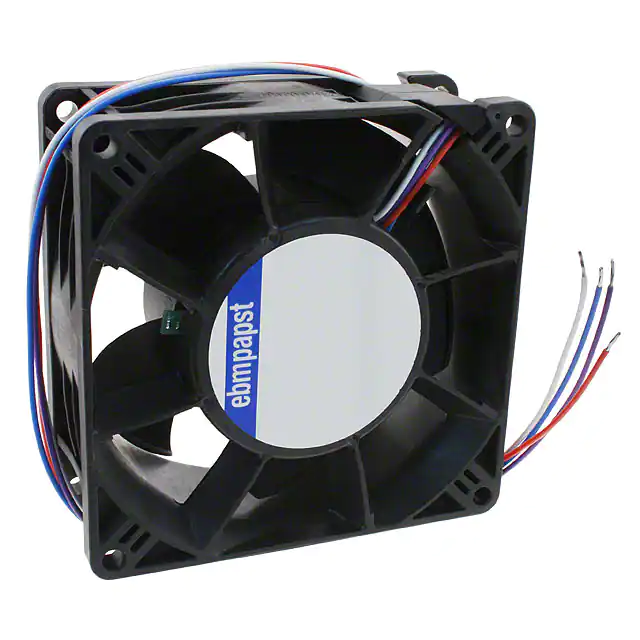

3214J/2H4PFAN AXIAL 92X38MM 24VDC WIRE |
4,136 |
|
Datasheet |
3200J | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 165.0 CFM (4.62m³/min) | - | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 50 W | 13000 RPM | CE, CSA, EAC, UL, VDE | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.62 lb (281.23 g) |
|
QG030-303/14FAN BLOWER CF 363X47.5MM 24VDC |
258 |
|
Datasheet |
QG030 | Box | Active | 24VDC | Rectangular - 363mm L x 50mm H | 82.2 CFM (2.30m³/min) | - | Ball | 47.50mm | Blower, Cross Flow | - | 51.0dB(A) | 8.7 W | - | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.838 lb (380.11 g) |
|
|
3212J/2H4PFAN AXIAL 92X38MM 12VDC WIRE |
365 |
|
Datasheet |
3200J | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 165.0 CFM (4.62m³/min) | - | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 50 W | 13000 RPM | CSA, UL, VDE | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.62 lb (281.23 g) |
|
3214JH3FAN AXIAL 92X38MM 24VDC WIRE |
592 |
|
Datasheet |
3200J | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 139.5 CFM (3.91m³/min) | - | Ball | 38.00mm | Tubeaxial | - | 69.0dB(A) | 30 W | 11000 RPM | CSA, UL, VDE | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.617 lb (279.87 g) |
|
|
QG030-198/14FAN BLOWER CF 258X47.5MM 24VDC |
809 |
|
Datasheet |
QG030 | Box | Active | 24VDC | Rectangular - 258mm L x 50mm H | 59.0 CFM (1.65m³/min) | - | Ball | 47.50mm | Blower, Cross Flow | - | 51.0dB(A) | 8 W | - | CE, CSA, UL, VDE | 2 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.639 lb (289.85 g) |
|
9WL0912P1H001FAN AXIAL 92X38MM 12VDC WIRE |
4,154 |
|
Datasheet |
San Ace 92W | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 130.6 CFM (3.66m³/min) | 1.726 in H2O (429.9 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 22.8 W | 9000 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.661 lb (299.82 g) |
|
|
9WL0924P1H001FAN AXIAL 92X38MM 24VDC WIRE |
1,348 |
|
Datasheet |
San Ace 92W | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 130.6 CFM (3.66m³/min) | 1.726 in H2O (429.9 Pa) | Ball | 38.00mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 22.8 W | 9000 RPM | cURus, TUV | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | IP68 - Dust Tight, Waterproof | 0.661 lb (299.82 g) |
|
RG125-19/12N/12FAN BLOWER CF 180X40MM 12VDC |
2,886 |
|
Datasheet |
RG125N | Bulk | Active | 12VDC | Square - 180mm L x 180mm H | 51.5 CFM (1.44m³/min) | - | Ball | 40.00mm | Blower, Centrifugal | Speed Sensor (Tach) | - | 5.2 W | 2550 RPM | - | 3 Wire Leads | -22 ~ 167°F (-30 ~ 75°C) | IP54 - Dust Protected, Water Resistant | 1.6 lbs (725.7 g) |
|
9HV1224P1A001FAN AXIAL 120X38MM 24VDC WIRE |
3,243 |
|
Datasheet |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 247.0 CFM (6.92m³/min) | 3.827 in H2O (953.3 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 57.6 W | 9600 RPM | CSA, TUV, UL | 4 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 1 lb (453.6 g) |
