| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0803212M2B-3T3FAN 80X32MM 12VDC TACH MOLEX 22- |
2,024 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 60.4 CFM (1.69m³/min) | 0.450 in H2O (112.1 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 4.2 W | 4800 RPM | CE, cURus, TUV | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0803212H2B-3T3FAN 80X32MM 12VDC TACH MOLEX 22- |
2,422 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 69.0 CFM (1.93m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 6 W | 5500 RPM | CE, cURus, TUV | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0401524M2B-3T1FAN 40X15MM 24VDC TACH COMPUTER |
1,042 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.3 CFM (0.232m³/min) | 0.290 in H2O (72.2 Pa) | Ball | 15.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 2.88 W | 7300 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
DC0803212L2B-3T3FAN 80X32MM 12VDC TACH MOLEX 22- |
4,944 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 49.5 CFM (1.39m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 32.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.4 W | 4000 RPM | CE, cURus, TUV | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
.jpg)
|

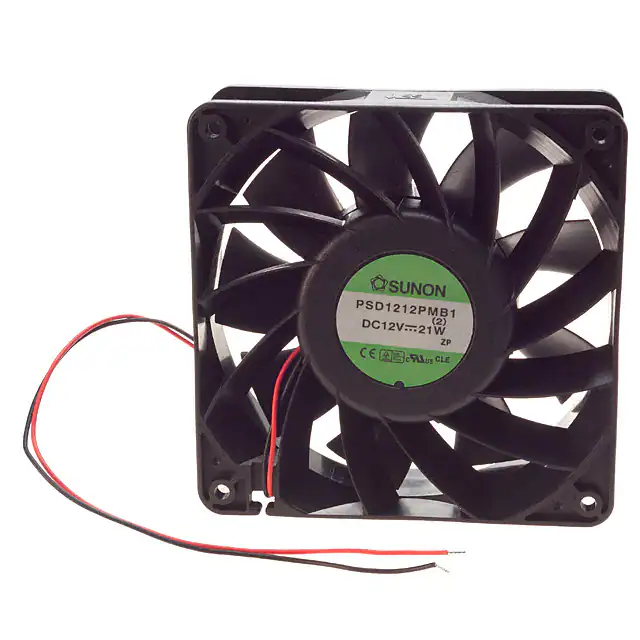

PSD1212PMB1 (2)FAN AXIAL 120X38MM 12VDC WIRE |
4,596 |
|
Datasheet |
PSD | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.720 in H2O (179.3 Pa) | Ball | 38.00mm | Tubeaxial | - | 63.0dB(A) | 21 W | 4000 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
OD8025-12MBXEFAN AXIAL 80X25MM 12VDC WIRE |
3,146 |
|
Datasheet |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 76.5 CFM (2.14m³/min) | 0.820 in H2O (204.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 55.7dB(A) | 9.6 W | 6975 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
OD8025-24HHBXEFAN AXIAL 80X25MM 24VDC WIRE |
4,941 |
|
Datasheet |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 104.6 CFM (2.93m³/min) | 1.600 in H2O (398.6 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 65.2dB(A) | 24 W | 9450 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
OD8025-12HHBXEFAN AXIAL 80X25MM 12VDC WIRE |
2,271 |
|
Datasheet |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 104.6 CFM (2.93m³/min) | 1.600 in H2O (398.6 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 65.2dB(A) | 20.5 W | 9450 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
OD8025-12LBXEFAN AXIAL 80X25MM 12VDC WIRE |
3,530 |
|
Datasheet |
OD8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 64.6 CFM (1.81m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 50.3dB(A) | 7.2 W | 5990 RPM | CE, cURus, TUV, UR | 2 Wire Leads | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
MR9238M24B11-FSRFAN AXIAL 92X38MM 24VDC WIRE |
1,838 |
|
Datasheet |
MR9238 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 131.0 CFM (3.67m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 55.4dB(A) | - | 6000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.437 lb (198.00 g) |
|
|
MR9238M24B21-FSRFAN AXIAL 92X38MM 24VDC WIRE |
1,601 |
|
Datasheet |
MR9238 | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 131.0 CFM (3.67m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 38.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 55.4dB(A) | - | 6000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.437 lb (198.00 g) |
|
|
109P0424H90240X10MM 24V DC 0 |
1,492 |
|
Datasheet |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection | - | - | - | CSA, TUV, UR | 2 Wire Leads | - | - | - |
|
|
9BD24FA6-1FAN BLOWER 76X20MM 24VDC WIRE |
1,659 |
|
Datasheet |
San Ace B76 | Box | Active | 24VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 8.8 CFM (0.246m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 20.00mm | Blower | Locked Rotor Protection | 39.0dB(A) | 2.4 W | 3900 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.128 lb (58.06 g) |
|
|
9BD12FA6-1FAN BLOWER 76X20MM 12VDC WIRE |
2,816 |
|
Datasheet |
San Ace B76 | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 8.8 CFM (0.246m³/min) | 0.800 in H2O (199.3 Pa) | Ball | 20.00mm | Blower | Locked Rotor Protection | 39.0dB(A) | 2.16 W | 3900 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.128 lb (58.06 g) |
|
|
9BD12HA6-1FAN BLOWER 76X20MM 12VDC WIRE |
4,106 |
|
Datasheet |
San Ace B76 | Box | Active | 12VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 9.5 CFM (0.266m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 20.00mm | Blower | Locked Rotor Protection | 41.0dB(A) | 2.52 W | 4200 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.128 lb (58.06 g) |
|
|
9BD24HA6-1FAN BLOWER 76X20MM 24VDC WIRE |
3,083 |
|
Datasheet |
San Ace B76 | Box | Active | 24VDC | Rectangular/Rounded - 76mm L x 69.7mm H | 9.5 CFM (0.266m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 20.00mm | Blower | Locked Rotor Protection | 41.0dB(A) | 2.88 W | 4200 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.128 lb (58.06 g) |
|
MS2507M05D1+6-RSRFAN AXIAL 25X7.4MM 5VDC WIRE |
2,095 |
|
Datasheet |
MS2507 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.6 CFM (0.045m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | 7.40mm | Tubeaxial | PWM Control, Speed Sensor (Tach) | 24.0dB(A) | - | 10000 RPM | CE, cUL, TUV, UL | 4 Wire Leads | - | - | 0.011 lb (4.99 g) |
|
|
AFB0812EHEFAN AXIAL 80X38MM 12VDC WIRE |
4,228 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 85.5 CFM (2.39m³/min) | 0.749 in H2O (186.6 Pa) | Ball | 38.00mm | Tubeaxial | Locked Rotor Protection | 50.5dB(A) | 12 W | 5900 RPM | CE, CSA, UL, VDE | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.344 lb (156.04 g) |
|
OD8032-48MBFAN AXIAL 80.5X32MM 48VDC WIRE |
1,855 |
|
Datasheet |
OD8032 | Bulk | Active | 48VDC | Square - 80.5mm L x 80.5mm H | 44.0 CFM (1.23m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 32.00mm | Tubeaxial | - | 36.0dB | - | 3400 RPM | cURus, TUV | 2 Wire Leads | -4 ~ 176°F (-20 ~ 80°C) | - | - |
|
|
DC0501005M2B-3T1FAN 50X10MM 5VDC TACH COMPUTER |
3,591 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 30.0dB(A) | 400 mW | 5500 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
