| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0501005H2B-3T1FAN 50X10MM 5VDC TACH COMPUTER |
3,391 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 10.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 35.0dB(A) | 500 mW | 6500 RPM | CE, cURus | 3 Position Rectangular Connector | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
PF80251B2-1000U-S9912VDC FAN 80X25MM TACH/PWM |
1,182 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 56.0 CFM (1.6m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 3.06 W | 4500 RPM | CCC, CE, cURus, TUV, UKCA | 4 Wire Leads | - | - | - |
|
|
PF80251B3-1000U-S9912VDC FAN 80X25MM TACH/PWM |
2,739 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 42.5dB(A) | 2.34 W | 4200 RPM | CCC, CE, cURus, TUV, UKCA | 4 Wire Leads | - | - | - |
|
|
PF80251B1-1000U-S9912VDC FAN 80X25MM TACH/PWM |
1,148 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.5dB(A) | 3.54 W | 4800 RPM | CCC, CE, cURus, TUV, UKCA | 4 Wire Leads | - | - | - |
|
E1225E12B1-FSR-TTLFAN AXIAL 120X25MM 12VDC WIRE |
4,522 |
|
Datasheet |
E1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 25.00mm | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 44.0dB(A) | - | 3000 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.434 lb (196.86 g) |
|
|
E1225M24B2-FSRFAN AXIAL 120X25MM 24VDC WIRE |
2,168 |
|
Datasheet |
E1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 67.0 CFM (1.88m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 36.0dB(A) | - | 2200 RPM | CE, cUL, TUV, UL | 3 Wire Leads | - | - | 0.434 lb (196.86 g) |
|
|
MEC0252V2-000U-F9924VDC FAN 120X25MM TACH |
4,275 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 93.0 CFM (2.60m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.5dB(A) | 3.5 W | 2700 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
MEC0252V3-000U-F9924VDC FAN 120X25MM TACH |
1,871 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 2 W | 2200 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
MEC0252V1-000U-F9924VDC FAN 120X25MM TACH |
3,532 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | 25.00mm | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.5dB(A) | 5 W | 3100 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
109BC12FA7-1FAN BLOWER 51X15MM 12VDC WIRE |
3,046 |
|
Datasheet |
San Ace B52 | Box | Active | 12VDC | Square/Rounded - 51mm L x 52.6mm H | 3.6 CFM (0.101m³/min) | 0.520 in H2O (129.5 Pa) | Ball | 15.00mm | Blower | Locked Rotor Protection | 38.0dB(A) | 960 mW | 5100 RPM | CSA, TUV, UL | 2 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.073 lb (33.11 g) |
|
|
9A0948S4D01FAN AXIAL 92X25MM 48VDC WIRE |
3,637 |
|
Datasheet |
San Cooler 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 3.84 W | 3550 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.222 lb (100.7 g) |
|
|
9A0948S401FAN AXIAL 92X25MM 48VDC WIRE |
4,045 |
|
Datasheet |
San Cooler 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.84 W | 3550 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.222 lb (100.7 g) |
|
|
9A0948S4011FAN AXIAL 92X25MM 48VDC WIRE |
4,317 |
|
Datasheet |
San Cooler 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.84 W | 3550 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 140°F (-20 ~ 60°C) | - | 0.222 lb (100.7 g) |
|
|
PF92251B1-1000U-H9912VDC FAN 92X25MM PWM |
4,450 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control | 46.1dB(A) | 4.32 W | 4500 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
PF92251B1-1000U-G9912VDC FAN 92X25MM ALARM |
4,300 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.1dB(A) | 4.32 W | 4500 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
PF92251B3-1000U-G9912VDC FAN 92X25MM ALARM |
3,151 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.8dB(A) | 2.7 W | 3900 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
PF92251B3-1000U-H9912VDC FAN 92X25MM PWM |
1,855 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control | 41.8dB(A) | 2.7 W | 3900 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
PF92251B2-1000U-G9912VDC FAN 92X25MM ALARM |
2,821 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 3.3 W | 4200 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|
|
PF92251B2-1000U-H9912VDC FAN 92X25MM PWM |
3,541 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart, PWM Control | 44.0dB(A) | 3.3 W | 4200 RPM | CCC, CE, cURus, TUV, UKCA | 3 Wire Leads | - | - | - |
|

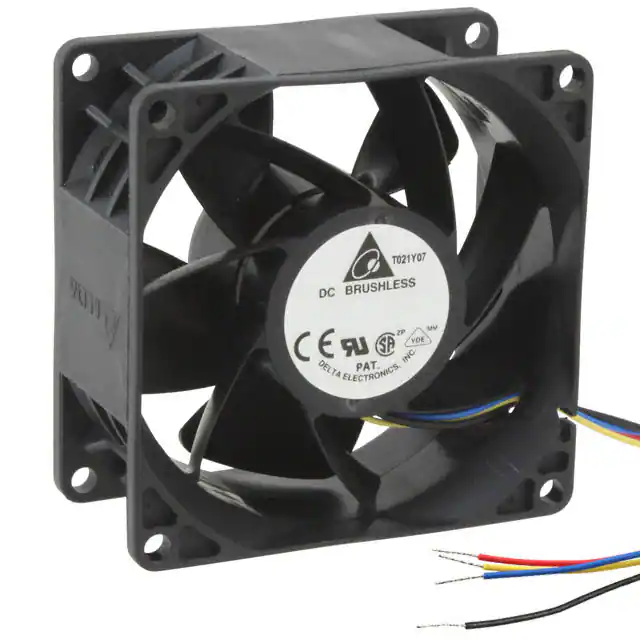

QFR0812UHE-SP01FAN AXIAL 80X38MM BALL 12VDC |
4,243 |
|
Datasheet |
QFR | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | - | - | Ball | 38.00mm | Tubeaxial | - | - | - | - | - | - | - | - | - |
