| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Voltage - Rated | Size / Dimension | Air Flow | Static Pressure | Bearing Type | Width | Fan Type | Features | Noise | Power (Watts) | RPM | Approval Agency | Termination | Operating Temperature | Ingress Protection | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G1225S24B-FSRFAN AXIAL 120X25MM 24VDC WIRE |
3,951 |
|
Datasheet |
G1225 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 54.0 CFM (1.51m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 25.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 26.0dB(A) | - | 1500 RPM | CE, cUL, TUV, UL | 2 Wire Leads | - | - | 0.434 lb (196.86 g) |
|
MC8038H48B-FSRFAN AXIAL 80X38MM 48VDC WIRE |
3,583 |
|
Datasheet |
MC8038 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 69.9 CFM (1.96m³/min) | 0.610 in H2O (151.9 Pa) | Ball | 38.00mm | Tubeaxial | Thermal Overload Protector (TOP) | 48.2dB(A) | - | 5000 RPM | cUL, TUV, UL | 2 Wire Leads | - | - | 0.397 lb (180.08 g) |
|
CFM-8025BG-250-444-22FAN AXIAL 80X25.4MM 24VDC WIRE |
1,062 |
|
Datasheet |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 51.7 CFM (1.45m³/min) | 0.430 in H2O (107.0 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 44.5dB(A) | 4.8 W | 5000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-8025BG-140-396-22FAN AXIAL 80X25.4MM 12VDC WIRE |
1,565 |
|
Datasheet |
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.6dB(A) | 3.24 W | 4000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
CFM-8025BG-240-396-22FAN AXIAL 80X25.4MM 24VDC WIRE |
3,636 |
|
Datasheet |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 25.40mm | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 39.6dB(A) | 3.6 W | 4000 RPM | CE, cURus, TUV | 4 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
BFB1012M-R00FAN BLOWER 97.2X33MM 12VDC WIRE |
4,489 |
|
Datasheet |
BFB | Tray | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 22.6 CFM (0.633m³/min) | 0.748 in H2O (186.3 Pa) | Ball | 33.00mm | Blower | Locked Rotor Sensor | 49.0dB(A) | 6.84 W | 3200 RPM | CE, CSA, UL, VDE | 3 Wire Leads | 14 ~ 140°F (-10 ~ 60°C) | - | 0.353 lb (160.12 g) |
|
PE80252B1-000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
2,534 |
|
Datasheet |
PE | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | 25.00mm | Tubeaxial | Auto Restart | 47.5dB(A) | 4.8 W | 4800 RPM | CE, CUR, TUV, UL | 2 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.201 lb (91.17 g) |
-F.jpg)
|

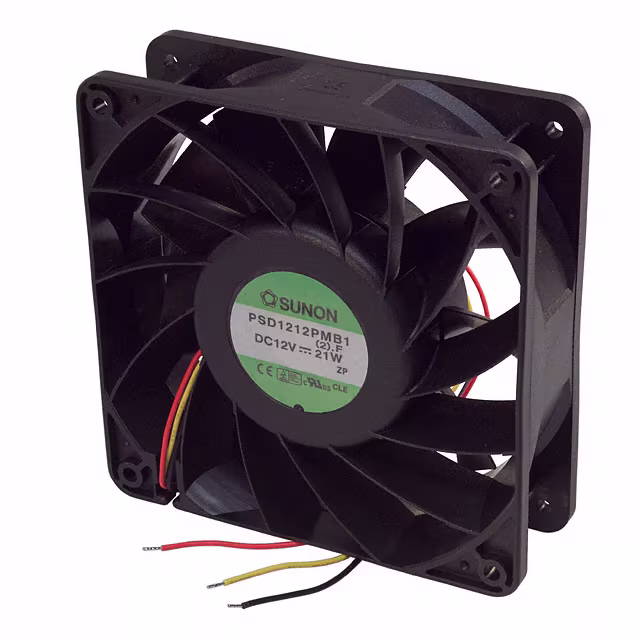

PSD1212PMB1 (2) FFAN AXIAL 120X38MM 12VDC WIRE |
2,205 |
|
Datasheet |
PSD | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | 38.00mm | Tubeaxial | Speed Sensor (Tach) | 63.0dB(A) | 21 W | 4000 RPM | CE, CUR, TUV, UL | 3 Wire Leads | 14 ~ 158°F (-10 ~ 70°C) | - | 0.882 lb (400.07 g) |
|
|
109R0605M4011FAN AXIAL 60X25MM BALL 5VDC WIRE |
2,422 |
|
Datasheet |
San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 650 mW | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612D401FAN AXIAL 60X25MM 12VDC WIRE |
4,495 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.52 W | 5150 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612D4D011FAN AXIAL 60X25MM 12VDC WIRE |
2,211 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 37.0dB(A) | 2.52 W | 5150 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612M4011FAN AXIAL 60X25MM 12VDC WIRE |
4,568 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 720 mW | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0624F4011FAN AXIAL 60X25MM 24VDC WIRE |
3,211 |
|
Datasheet |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 1.2 W | 3200 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612F4D01FAN AXIAL 60X25MM 12VDC WIRE |
1,348 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 24.0dB(A) | 1.08 W | 3200 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612F4D011FAN AXIAL 60X25MM 12VDC WIRE |
4,111 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 24.0dB(A) | 1.08 W | 3200 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612G4D011FAN AXIAL 60X25MM 12VDC WIRE |
3,510 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.351 in H2O (87.3 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 39.0dB(A) | 2.88 W | 5600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612H4D01FAN AXIAL 60X25MM 12VDC WIRE |
4,218 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.32 W | 3800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612H4D011FAN AXIAL 60X25MM 12VDC WIRE |
1,559 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 18.7 CFM (0.524m³/min) | 0.161 in H2O (40.2 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 28.0dB(A) | 1.32 W | 3800 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612M4D01FAN AXIAL 60X25MM 12VDC WIRE |
2,143 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | 720 mW | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
|
|
109R0612M4D011FAN AXIAL 60X25MM 12VDC WIRE |
1,036 |
|
Datasheet |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | 25.00mm | Tubeaxial | Locked Rotor Sensor | 20.0dB(A) | 720 mW | 2600 RPM | CSA, TUV, UL | 3 Wire Leads | -4 ~ 158°F (-20 ~ 70°C) | - | 0.199 lb (90.26 g) |
