| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.JPG)
|
B82442H1222K000FIXED IND 2.2UH 1.8A 48 MOHM SMD |
4,988 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.8 A | - | 2.2 µH | Unshielded | 48mOhm Max | 10 @ 7.96MHz | 42MHz | AEC-Q200 | Surface Mount | -55°C ~ 150°C | - | 7.96 MHz | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1223K000FIXED IND 22UH 670MA 350MOHM SMD |
2,575 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 670 mA | - | 22 µH | Unshielded | 350mOhm Max | 10 @ 2.52MHz | 13MHz | AEC-Q200 | Surface Mount | -55°C ~ 150°C | - | 2.52 MHz | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1224K000FIXED IND 220UH 240MA 2.72OHM SM |
4,910 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 240 mA | - | 220 µH | Unshielded | 2.72Ohm Max | 20 @ 796kHz | 3.9MHz | AEC-Q200 | Surface Mount | -55°C ~ 150°C | - | 796 kHz | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1472K000FIXED IND 4.7UH 1.35A 88MOHM SMD |
3,827 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 1.35 A | - | 4.7 µH | Unshielded | 88mOhm Max | 10 @ 7.96MHz | 29MHz | AEC-Q200 | Surface Mount | -55°C ~ 150°C | - | 7.96 MHz | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82442H1473K000FIXED IND 47UH 480MA 680MOHM SMD |
3,405 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 480 mA | - | 47 µH | Unshielded | 680mOhm Max | 10 @ 2.52MHz | 8.5MHz | AEC-Q200 | Surface Mount | -55°C ~ 150°C | - | 2.52 MHz | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

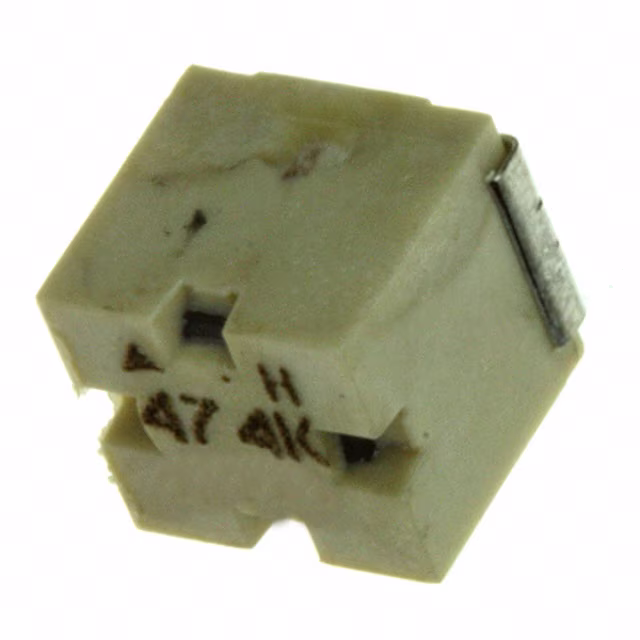

B82442H1474K000FIXED IND 470UH 170MA 5.6OHM SMD |
4,544 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 170 mA | - | 470 µH | Unshielded | 5.6Ohm Max | 20 @ 796kHz | 2.6MHz | AEC-Q200 | Surface Mount | -55°C ~ 150°C | - | 796 kHz | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82442H1475K000FIXED IND 4.7MH 50MA 62.4OHM SMD |
3,508 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 50 mA | - | 4.7 mH | Unshielded | 62.4Ohm Max | 30 @ 252kHz | 900kHz | AEC-Q200 | Surface Mount | -55°C ~ 150°C | - | 252 kHz | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
CEP125-5R6MC-HFIXED IND 5.6UH 8.2A 11.4MOHM SM |
2,905 |
|
Datasheet |
CEP125 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 8.2 A | 8.8A | 5.6 µH | Shielded | 11.4mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
CDR105NP-270MCFIXED IND 27UH 1.54A 110MOHM SMD |
3,002 |
|
Datasheet |
CDR105 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -15%, +20% | 1.54 A | - | 27 µH | Shielded | 110mOhm Max | - | 18MHz | - | Surface Mount | -40°C ~ 100°C | - | 2.52 MHz | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|

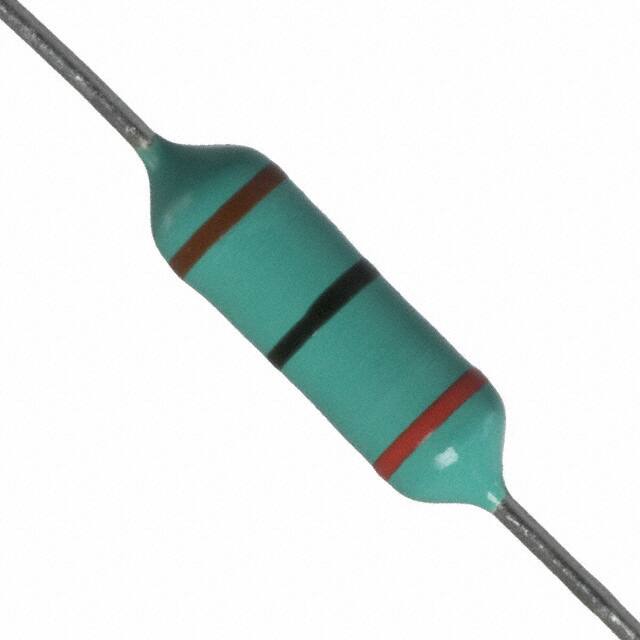

08450FIXED INDUCTOR TH |
1,298 |
|
Datasheet |
- | Axial | Bulk | Obsolete | - | - | - | - | - | - | Unshielded | - | - | - | - | Through Hole | - | - | - | - | - | - |
|
NLFC201614T-100K-PFFIXED IND 10UH 120MA 700MOHM SMD |
4,483 |
|
Datasheet |
NLFC | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±10% | 120 mA | - | 10 µH | Shielded | 700mOhm | 10 @ 2.52MHz | 32MHz | - | Surface Mount | -40°C ~ 85°C | - | 2.52 MHz | 0806 (2016 Metric) | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.063" (1.60mm) |
|
|
NLFC201614T-1R0M-PFFIXED IND 1UH 300MA 160 MOHM SMD |
1,523 |
|
Datasheet |
NLFC | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 300 mA | - | 1 µH | Shielded | 160mOhm | 5 @ 7.96MHz | 100MHz | - | Surface Mount | -40°C ~ 85°C | - | 7.96 MHz | 0806 (2016 Metric) | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.063" (1.60mm) |
|
|
NLFC201614T-4R7M-PFFIXED IND 4.7UH 150MA 400MOHM SM |
1,167 |
|
Datasheet |
NLFC | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | - | - | ±20% | 150 mA | - | 4.7 µH | Shielded | 400mOhm | 5 @ 7.96MHz | 45MHz | - | Surface Mount | -40°C ~ 85°C | - | 7.96 MHz | 0806 (2016 Metric) | 0.083" L x 0.063" W (2.10mm x 1.60mm) | 0.063" (1.60mm) |
|

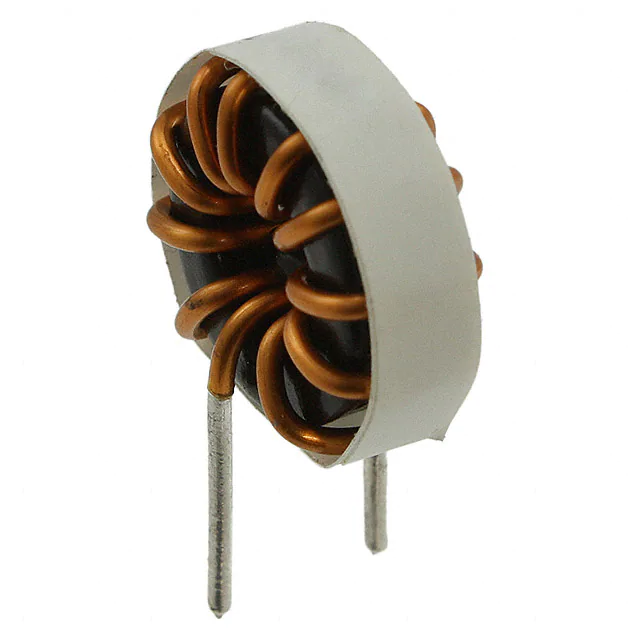

2100LL-4R7-V-RCFIXED IND 4.7UH 14A 3 MOHM TH |
4,264 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±20% | 14 A | - | 4.7 µH | Shielded | 3mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-680-V-RCFIXED IND 68UH 4.7A 30 MOHM TH |
4,820 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 4.7 A | - | 68 µH | Shielded | 30mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-820-V-RCFIXED IND 82UH 4.6A 32 MOHM TH |
2,308 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 4.6 A | - | 82 µH | Shielded | 32mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-181-V-RCFIXED IND 180UH 3.7A 48 MOHM TH |
4,083 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 3.7 A | - | 180 µH | Shielded | 48mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-471-V-RCFIXED IND 470UH 2.3A 124 MOHM TH |
4,490 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 2.3 A | - | 470 µH | Shielded | 124mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
|
2100LL-102-V-RCFIXED IND 1MH 1.5A 284 MOHM TH |
1,204 |
|
Datasheet |
2100LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 1.5 A | - | 1 mH | Shielded | 284mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 0.860" Dia x 0.450" W (21.84mm x 11.43mm) | - |
|
2200LL-1R8-V-RCFIXED IND 1.8UH 22.6A 2 MOHM TH |
3,548 |
|
Datasheet |
2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±20% | 22.6 A | - | 1.8 µH | Unshielded | 2mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
