| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1967LFIXED IND 1.44UH 23.8A 3.8 MOHM |
1,777 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | ±20% | 23.8 A | - | 1.44 µH | Unshielded | 3.8mOhm Max | - | - | - | Through Hole | -40°C ~ 130°C | - | - | - | 0.906" Dia x 0.492" W (23.00mm x 12.50mm) | - |
|

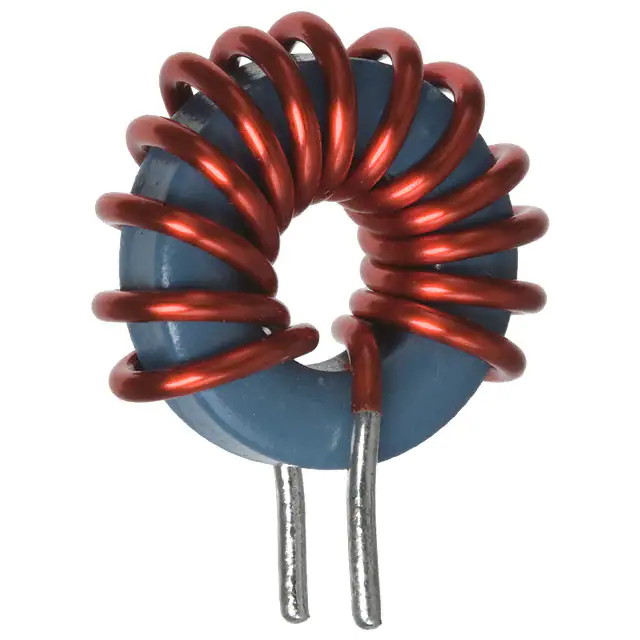

PA0431LFIXED IND 7.8UH 20.5A 5.5MOHM TH |
3,860 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Bag | Active | Toroidal | - | ±20% | 20.5 A | - | 7.8 µH | Unshielded | 5.5mOhm Max | - | - | - | Through Hole | -40°C ~ 130°C | - | - | - | 0.874" Dia x 0.374" W (22.20mm x 9.50mm) | - |
|

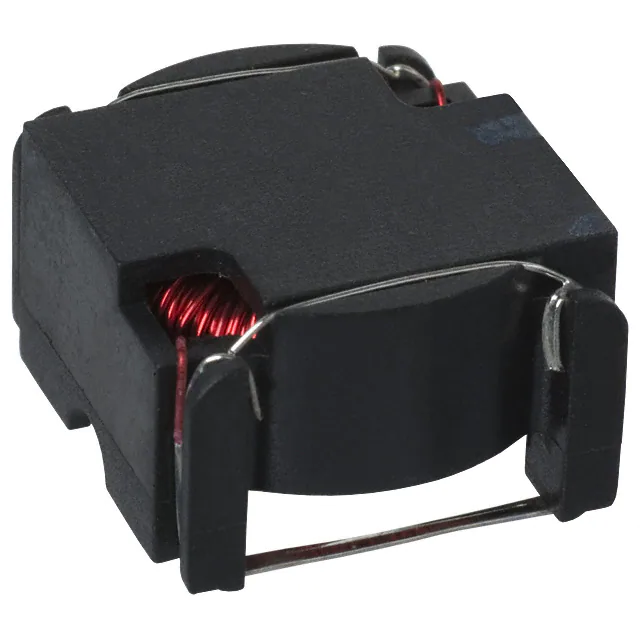

PE-53662FIXED IND 4.9UH 7.8A 12.4MOHM SM |
4,968 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | - | 7.8 A | - | 4.9 µH | Unshielded | 12.4mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|

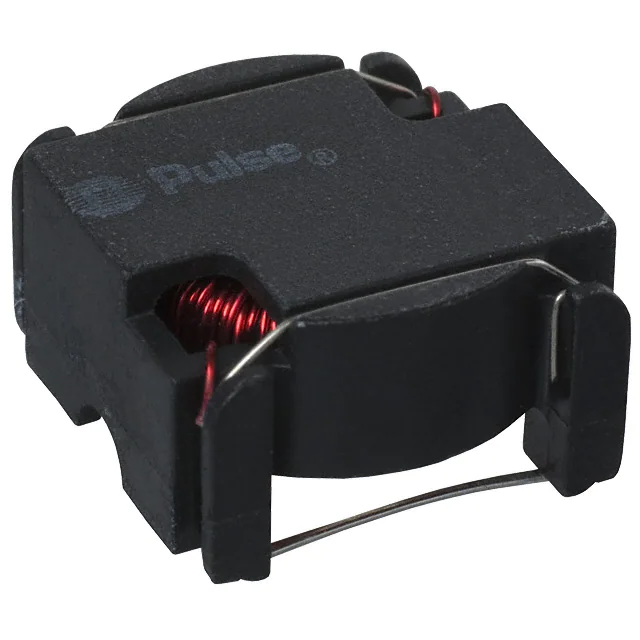

PE-53651FIXED IND 5.1UH 5.4A 17.7MOHM SM |
4,260 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | - | 5.4 A | - | 5.1 µH | Unshielded | 17.7mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
|
PE-53652FIXED IND 9UH 5.5A 28 MOHM SMD |
1,395 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | - | 5.5 A | - | 9 µH | Unshielded | 28mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
PE-53634FIXED IND 50UH 2.6A 133 MOHM SMD |
1,199 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | - | 2.6 A | - | 50 µH | Unshielded | 133mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
PE-53604FIXED IND 58.1UH 1.3A 290MOHM SM |
4,810 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | - | 1.3 A | - | 58.1 µH | Unshielded | 290mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

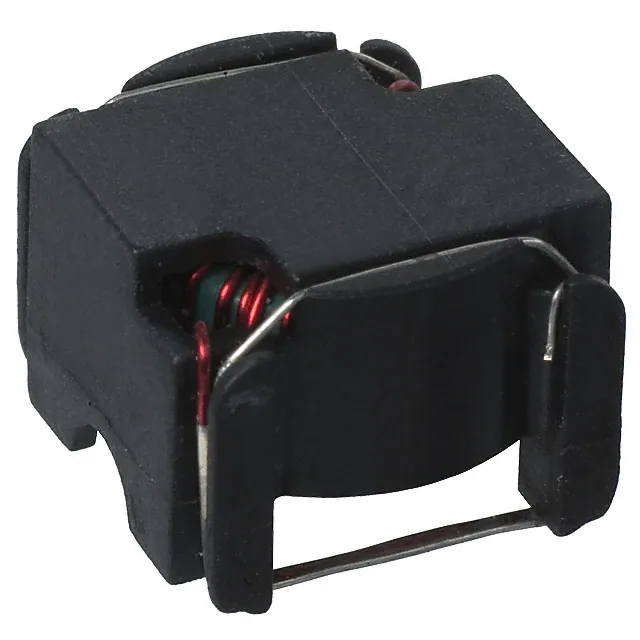

PE-53606FIXED IND 114UH 940MA 405MOHM SM |
3,454 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | - | 940 mA | - | 114 µH | Unshielded | 405mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
PE-53611FIXED IND 383UH 720MA 862MOHM SM |
1,838 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Obsolete | Toroidal | - | - | 720 mA | - | 383 µH | Unshielded | 862mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
PE-53820SFIXED IND 115UH 670MA 400MOHM SM |
1,828 |
|
Datasheet |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | ±20% | 670 mA | - | 115 µH | Shielded | 400mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

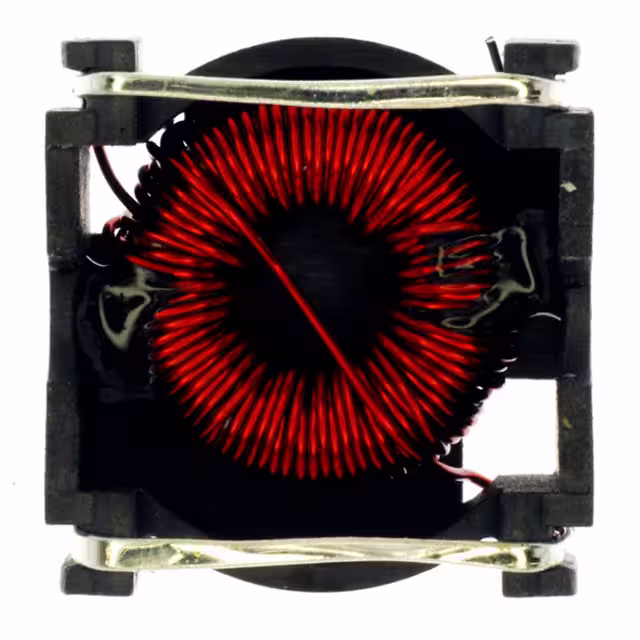

PE-53821SFIXED IND 78UH 820MA 300MOHM SMD |
2,629 |
|
Datasheet |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | ±20% | 820 mA | - | 78 µH | Shielded | 300mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|

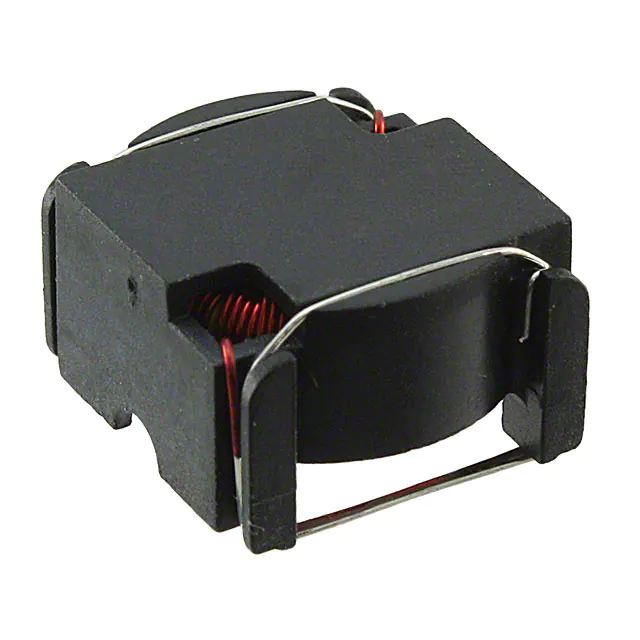

PE-53932SFIXED IND 37UH 2.24A 100MOHM SMD |
2,660 |
|
Datasheet |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | ±20% | 2.24 A | - | 37 µH | Shielded | 100mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53933SFIXED IND 24UH 2.74A 70 MOHM SMD |
4,413 |
|
Datasheet |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | ±20% | 2.74 A | - | 24 µH | Shielded | 70mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.620" L x 0.600" W (15.75mm x 15.24mm) | 0.390" (9.91mm) |
|
|
PE-53935SFIXED IND 250UH 1.5A 230MOHM SMD |
1,088 |
|
Datasheet |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | ±20% | 1.5 A | - | 250 µH | Shielded | 230mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
PE-54036SFIXED IND 168UH 1.81A 180MOHM SM |
3,199 |
|
Datasheet |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | ±20% | 1.81 A | - | 168 µH | Shielded | 180mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
PE-54039SFIXED IND 53UH 3A 80 MOHM SMD |
3,733 |
|
Datasheet |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | ±20% | 3 A | - | 53 µH | Shielded | 80mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
|
PE-54041SFIXED IND 25UH 3A 40 MOHM SMD |
4,068 |
|
Datasheet |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | ±20% | 3 A | - | 25 µH | Shielded | 40mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
PE-54044SFIXED IND 77UH 3A 80 MOHM SMD |
4,140 |
|
Datasheet |
- | Nonstandard | Bulk | Obsolete | Toroidal | - | ±20% | 3 A | - | 77 µH | Shielded | 80mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
SLF7028T-6R8M1R3-PFFIXED IND 6.8UH 1.3A 59 MOHM SMD |
3,498 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | - | 6.8 µH | Shielded | 59mOhm | - | - | - | Surface Mount | -20°C ~ 85°C | - | 100 kHz | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
SLF7028T-100M1R1-PFFIXED IND 10UH 1.1A 83 MOHM SMD |
4,070 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.1 A | - | 10 µH | Shielded | 83mOhm | - | - | - | Surface Mount | -20°C ~ 85°C | - | 100 kHz | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
