| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

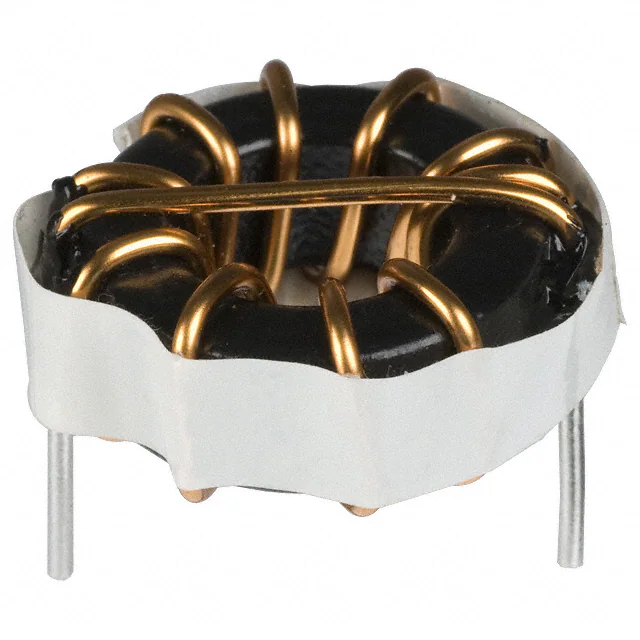

2200LL-3R9-V-RCFIXED IND 3.9UH 18.5A 4 MOHM TH |
1,127 |
|
Datasheet |
2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±20% | 18.5 A | - | 3.9 µH | Unshielded | 4mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
2200LL-4R7-V-RCFIXED IND 4.7UH 17.1A 4 MOHM TH |
1,994 |
|
Datasheet |
2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±20% | 17.1 A | - | 4.7 µH | Unshielded | 4mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
2200LL-270-V-RCFIXED IND 27UH 11.8A 9 MOHM TH |
1,590 |
|
Datasheet |
2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 11.8 A | - | 27 µH | Unshielded | 9mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
2300LL-331-H-RCFIXED IND 330UH 4.6A 79 MOHM TH |
4,969 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 4.6 A | - | 330 µH | Shielded | 79mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|

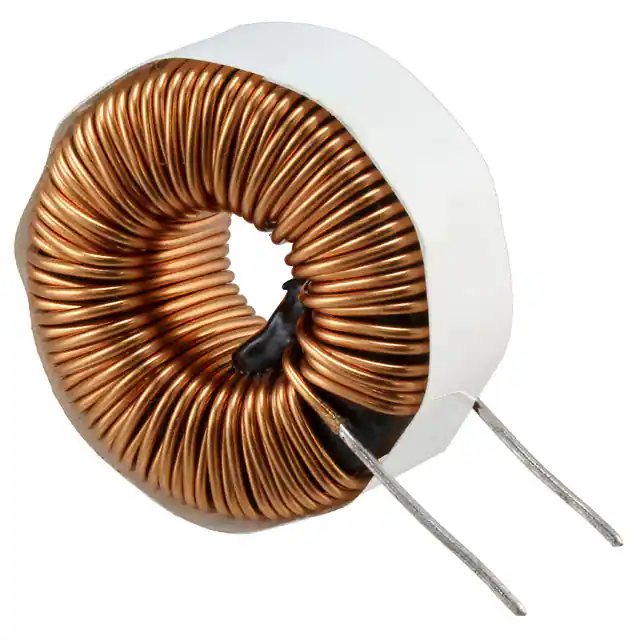

2300LL-2R7-V-RCFIXED IND 2.7UH 29.4A 2 MOHM TH |
3,074 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±20% | 29.4 A | - | 2.7 µH | Shielded | 2mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-331-V-RCFIXED IND 330UH 4.6A 79 MOHM TH |
3,465 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 4.6 A | - | 330 µH | Shielded | 79mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-391-V-RCFIXED IND 390UH 4.4A 85 MOHM TH |
3,102 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 4.4 A | - | 390 µH | Shielded | 85mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-681-V-RCFIXED IND 680UH 3.8A 113 MOHM TH |
4,114 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | ±15% | 3.8 A | - | 680 µH | Shielded | 113mOhm Max | - | - | - | Through Hole | -55°C ~ 125°C | - | 1 kHz | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
NLC453232T-3R9K-PFFIXED IND 3.9UH 700MA 240MOHM SM |
2,266 |
|
Datasheet |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 700 mA | - | 3.9 µH | Unshielded | 240mOhm Max | 10 @ 7.96MHz | 40MHz | - | Surface Mount | -40°C ~ 105°C | - | 7.96 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
NLC453232T-820K-PFFIXED IND 82UH 200MA 3.5 OHM SMD |
1,989 |
|
Datasheet |
NLC | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 200 mA | - | 82 µH | Unshielded | 3.5Ohm Max | 10 @ 2.52MHz | 9MHz | - | Surface Mount | -40°C ~ 105°C | - | 2.52 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
PE-0402CD3N3JTGFIXED IND 3.3NH 840MA 66MOHM SMD |
2,146 |
|
Datasheet |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 840 mA | - | 3.3 nH | Unshielded | 66mOhm Max | 20 @ 250MHz | 6GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0402 (1005 Metric) | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.61mm) |
|
|
PE-0402CD6N8JTGFIXED IND 6.8NH 680MA 83 MOHM |
3,765 |
|
Datasheet |
0402CD | 0402 (1005 Metric) | Cut Tape (CT) | Obsolete | Wirewound | Ceramic | ±5% | 680 mA | - | 6.8 nH | Unshielded | 83mOhm Max | 20 @ 250MHz | 5.8GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0402 (1005 Metric) | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.61mm) |
|
|
PE-0402CD8N2JTGFIXED IND 8.2NH 680MA 104MOHM SM |
3,386 |
|
Datasheet |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 680 mA | - | 8.2 nH | Unshielded | 104mOhm Max | 25 @ 250MHz | 4.4GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0402 (1005 Metric) | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.61mm) |
|
|
PE-0402CD100JTGFIXED IND 10NH 480MA 195MOHM SMD |
4,634 |
|
Datasheet |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 480 mA | - | 10 nH | Unshielded | 195mOhm Max | 21 @ 250MHz | 3.9GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0402 (1005 Metric) | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.61mm) |
|
|
PE-0402CD270JTGFIXED IND 27NH 400MA 298MOHM SMD |
4,016 |
|
Datasheet |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 27 nH | Unshielded | 298mOhm Max | 26 @ 250MHz | 2.48GHz | - | Surface Mount | -40°C ~ 125°C | - | 250 MHz | 0402 (1005 Metric) | 0.047" L x 0.026" W (1.19mm x 0.66mm) | 0.024" (0.61mm) |
|
PE-0603CDR12JTTFIXED IND 120NH 300MA 650MOHM SM |
1,175 |
|
Datasheet |
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 300 mA | - | 120 nH | Unshielded | 650mOhm Max | 32 @ 150MHz | 1.3GHz | - | Surface Mount | -40°C ~ 125°C | - | 150 MHz | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
P1167.394NLTFIXED IND 390UH 320MA 1.57 OHM |
4,831 |
|
Datasheet |
P1167NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 320 mA | 320mA | 390 µH | Shielded | 1.57Ohm Max | - | 2.8MHz | - | Surface Mount | -40°C ~ 130°C | - | 100 kHz | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | 0.177" (4.50mm) |
|

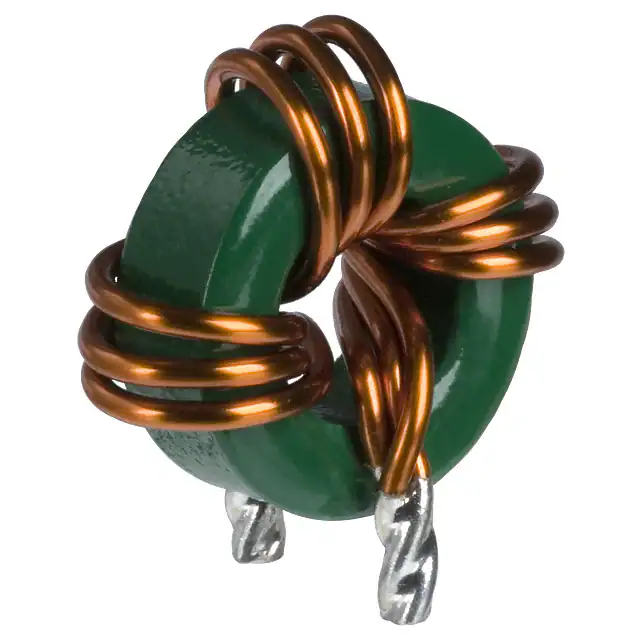

PG0122FIXED IND 480NH 30.5A 2 MOHM TH |
3,627 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | - | 30.5 A | - | 480 nH | Unshielded | 2mOhm Max | - | - | - | Through Hole | -40°C ~ 130°C | - | - | - | 0.807" Dia x 0.374" W (20.50mm x 9.50mm) | - |
|
PA0690FIXED IND 880NH 22.5A 1.5MOHM TH |
2,645 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | ±20% | 22.5 A | - | 880 nH | Unshielded | 1.5mOhm Max | - | - | - | Through Hole | -40°C ~ 130°C | - | - | - | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) | - |
|
PA0689FIXED IND 1.7UH 21.5A 2 MOHM TH |
1,342 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | ±20% | 21.5 A | - | 1.7 µH | Unshielded | 2mOhm Max | - | - | - | Through Hole | -40°C ~ 130°C | - | - | - | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) | - |
