| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-0,95mm.jpg)
|
HK160868NK-TFIXED IND 68NH 300MA 850MOHM SMD |
4,159 |
|
Datasheet |
HK | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±10% | 300 mA | - | 68 nH | Unshielded | 850mOhm Max | 12 @ 100MHz | 700MHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
9250A-106-RCFIXED IND 10MH 24MA 137 OHM TH |
2,203 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 24 mA | 14mA | 10 mH | Shielded | 137Ohm Max | 40 @ 250kHz | 470kHz | - | Through Hole | -55°C ~ 125°C | - | 250 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-107-RCFIXED IND 100MH 11MA 678 OHM TH |
1,541 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 11 mA | 3mA | 100 mH | Shielded | 678Ohm Max | 18 @ 79kHz | 110kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|

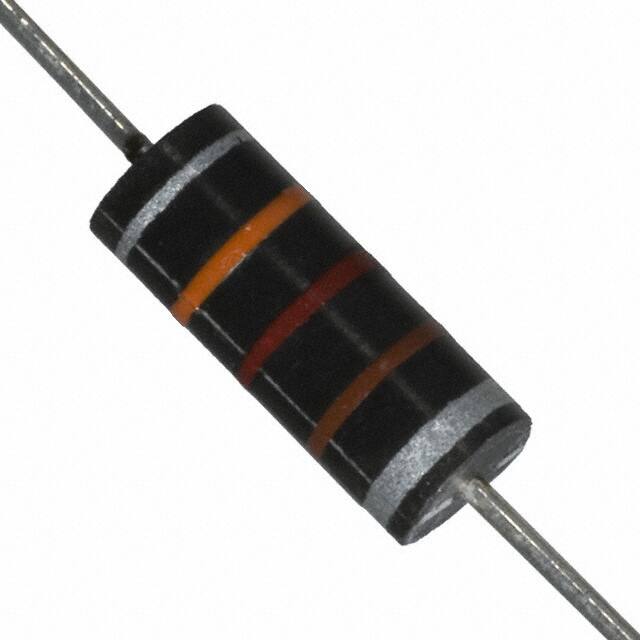

9250A-126-RCFIXED IND 12MH 23MA 143 OHM TH |
4,094 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 23 mA | 13mA | 12 mH | Shielded | 143Ohm Max | 30 @ 79kHz | 330kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-226-RCFIXED IND 22MH 17MA 274 OHM TH |
2,849 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 17 mA | 9mA | 22 mH | Shielded | 274Ohm Max | 27 @ 79kHz | 250kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-276-RCFIXED IND 27MH 16MA 308 OHM TH |
4,963 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 16 mA | 8mA | 27 mH | Shielded | 308Ohm Max | 27 @ 79kHz | 210kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-336-RCFIXED IND 33MH 15MA 343 OHM TH |
3,268 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 15 mA | 7.5mA | 33 mH | Shielded | 343Ohm Max | 27 @ 79kHz | 190kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-476-RCFIXED IND 47MH 13MA 473 OHM TH |
4,453 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 13 mA | 5.5mA | 47 mH | Shielded | 473Ohm Max | 23 @ 79kHz | 160kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-566-RCFIXED IND 56MH 13MA 512 OHM TH |
3,460 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 13 mA | 5mA | 56 mH | Shielded | 512Ohm Max | 23 @ 79kHz | 140kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-686-RCFIXED IND 68MH 12MA 580 OHM TH |
2,943 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 12 mA | 4mA | 68 mH | Shielded | 580Ohm Max | 23 @ 79kHz | 130kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
9250A-156-RCFIXED IND 15MH 22MA 157 OHM TH |
3,334 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 22 mA | 12mA | 15 mH | Shielded | 157Ohm Max | 30 @ 79kHz | 290kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
9250A-186-RCFIXED IND 18MH 21MA 175 OHM TH |
2,843 |
|
Datasheet |
9250A | Axial | Bulk | Obsolete | Molded | Ferrite | ±10% | 21 mA | 10mA | 18 mH | Shielded | 175Ohm Max | 30 @ 79kHz | 280kHz | - | Through Hole | -55°C ~ 125°C | - | 79 kHz | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
CDRH127/LD-100MCFIXED IND 10UH 6.7A 19.5MOHM SMD |
3,211 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 6.7 A | - | 10 µH | Shielded | 19.5mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LD-101MCFIXED IND 100UH 2.1A 151MOHM SMD |
2,527 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.1 A | - | 100 µH | Shielded | 151mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LD-102MCFIXED IND 1MH 700MA 1.5 OHM SMD |
2,004 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 700 mA | - | 1 mH | Shielded | 1.5Ohm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LD-120MCFIXED IND 12UH 6.45A 21.3MOHM SM |
1,437 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 6.45 A | - | 12 µH | Shielded | 21.3mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LD-121MCFIXED IND 120UH 1.9A 169MOHM SMD |
4,176 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.9 A | - | 120 µH | Shielded | 169mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LD-150MCFIXED IND 15UH 5.65A 26.4MOHM SM |
3,568 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 5.65 A | - | 15 µH | Shielded | 26.4mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LD-151MCFIXED IND 150UH 1.8A 227MOHM SMD |
4,315 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.8 A | - | 150 µH | Shielded | 227mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LD-180MCFIXED IND 18UH 5.1A 28 MOHM SMD |
1,870 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 5.1 A | - | 18 µH | Shielded | 28mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
