| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH127/LD-820MCFIXED IND 82UH 2.4A 119 MOHM SMD |
3,957 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 2.4 A | - | 82 µH | Shielded | 119mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
CDRH127/LD-821MCFIXED IND 820UH 750MA 1.24OHM SM |
4,312 |
|
Datasheet |
CDRH127/LD | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 750 mA | - | 820 µH | Shielded | 1.24Ohm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
-1,45mm.jpg)
|
CK2125R22M-TFIXED IND 220NH 400MA 230MOHM SM |
4,690 |
|
Datasheet |
CK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±20% | 400 mA | - | 220 nH | Unshielded | 230mOhm Max | 15 @ 25MHz | 170MHz | - | Surface Mount | -40°C ~ 85°C | - | 25 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CK2125R47M-TFIXED IND 470NH 400MA 320MOHM SM |
1,513 |
|
Datasheet |
CK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±20% | 400 mA | - | 470 nH | Unshielded | 320mOhm Max | 15 @ 25MHz | 125MHz | - | Surface Mount | -40°C ~ 85°C | - | 25 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CK21251R0M-TFIXED IND 1UH 220MA 260 MOHM SMD |
4,498 |
|
Datasheet |
CK | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | ±20% | 220 mA | - | 1 µH | Unshielded | 260mOhm Max | 20 @ 10MHz | 75MHz | - | Surface Mount | -40°C ~ 85°C | - | 10 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
ETQ-A17B330FIXED IND 33UH 6A 17 MOHM TH |
4,949 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 6 A | - | 33 µH | Unshielded | 17mOhm Max | - | - | - | Through Hole | - | - | 10 kHz | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.709" (18.00mm) |
|
|
ETQ-A17B220FIXED IND 22UH 8A 17 MOHM TH |
2,253 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 8 A | - | 22 µH | Unshielded | 17mOhm Max | - | - | - | Through Hole | - | - | 10 kHz | - | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.709" (18.00mm) |
|

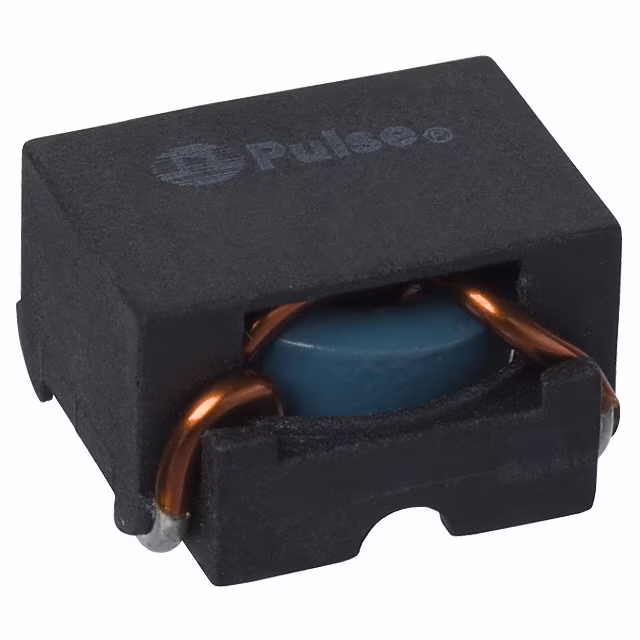

PE-53691NLFIXED IND 1.68UH 13.9A 3.6 MOHM |
3,419 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | - | 13.9 A | - | 1.68 µH | Unshielded | 3.6mOhm Max | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.670" L x 0.670" W (17.02mm x 17.02mm) | 0.390" (9.91mm) |
|
|
PE-53815SNLFIXED IND 26UH 840MA 200MOHM SMD |
1,336 |
|
Datasheet |
- | Nonstandard | Bulk | Active | Toroidal | - | ±20% | 840 mA | - | 26 µH | Shielded | 200mOhm | - | - | - | Surface Mount | -40°C ~ 130°C | - | - | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
ETQ-A15B220FIXED IND 22UH 7A 15 MOHM TH |
3,424 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 7 A | - | 22 µH | Unshielded | 15mOhm Max | - | - | - | Through Hole | - | - | 10 kHz | - | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.630" (16.00mm) |
|
|
ETQ-A15B330FIXED IND 33UH 4A 15 MOHM TH |
4,112 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 4 A | - | 33 µH | Unshielded | 15mOhm Max | - | - | - | Through Hole | - | - | 10 kHz | - | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.630" (16.00mm) |
|

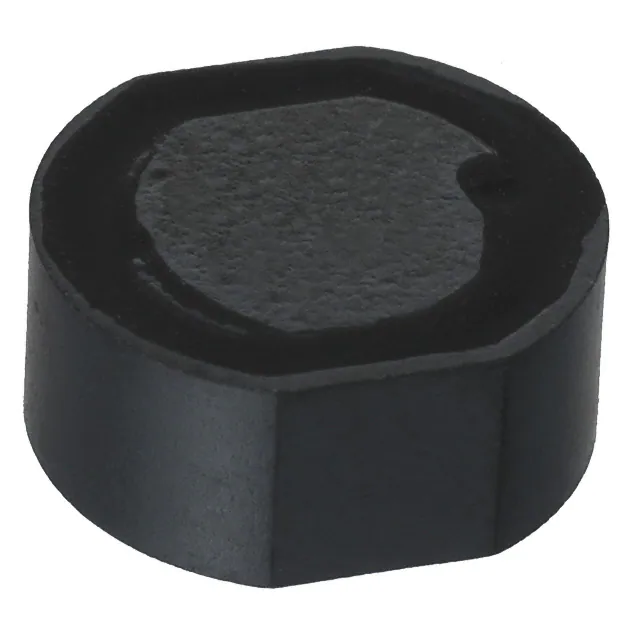

CDR105NP-120MCFIXED IND 12UH 2.31A 60 MOHM SMD |
1,290 |
|
Datasheet |
CDR105 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -15%, +20% | 2.31 A | - | 12 µH | Shielded | 60mOhm Max | - | 27MHz | - | Surface Mount | -40°C ~ 100°C | - | 2.52 MHz | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
|
CDR105NP-331MCFIXED IND 330UH 440MA 1.03OHM SM |
1,114 |
|
Datasheet |
CDR105 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -15%, +20% | 440 mA | - | 330 µH | Shielded | 1.03Ohm Max | - | 4.2MHz | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
|
CDR125NP-121MCFIXED IND 120UH 950MA 280MOHM SM |
4,699 |
|
Datasheet |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -15%, +20% | 950 mA | - | 120 µH | Shielded | 280mOhm Max | - | 6.34MHz | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125NP-221MCFIXED IND 220UH 700MA 520MOHM SM |
3,153 |
|
Datasheet |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -15%, +20% | 700 mA | - | 220 µH | Shielded | 520mOhm Max | - | 4.51MHz | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125NP-331MCFIXED IND 330UH 570MA 800MOHM SM |
4,669 |
|
Datasheet |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -15%, +20% | 570 mA | - | 330 µH | Shielded | 800mOhm Max | - | 3.9MHz | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125NP-470MCFIXED IND 47UH 1.5A 120 MOHM SMD |
4,888 |
|
Datasheet |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -15%, +20% | 1.5 A | - | 47 µH | Shielded | 120mOhm Max | - | 10.4MHz | - | Surface Mount | -40°C ~ 100°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125NP-471MCFIXED IND 470UH 480MA 1.2OHM SMD |
1,432 |
|
Datasheet |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -15%, +20% | 480 mA | - | 470 µH | Shielded | 1.2Ohm Max | - | 3.25MHz | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
|
CDR125NP-680MCFIXED IND 68UH 1.26A 170MOHM SMD |
3,498 |
|
Datasheet |
CDR125 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | -15%, +20% | 1.26 A | - | 68 µH | Shielded | 170mOhm Max | - | 8.5MHz | - | Surface Mount | -40°C ~ 100°C | - | 2.52 MHz | - | 0.496" L x 0.457" W (12.60mm x 11.60mm) | 0.232" (5.90mm) |
|
CEP125NP-0R3NC-UDFIXED IND 350NH 18.5A 1.8MOHM SM |
4,193 |
|
Datasheet |
CEP125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 18.5 A | 35A | 350 nH | Shielded | 1.8mOhm Max | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
