| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

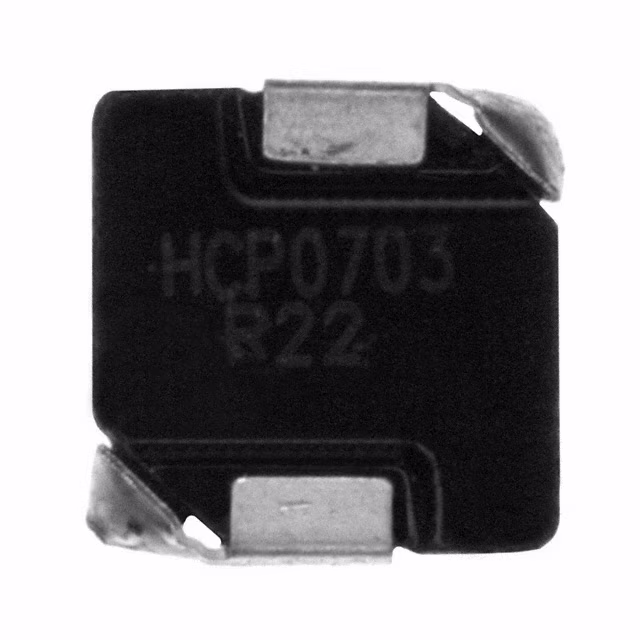

HCP0703-R22-RFIXED IND 220NH 23A 2.8 MOHM SMD |
1,089 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 23 A | 40A | 220 nH | Shielded | 2.8mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

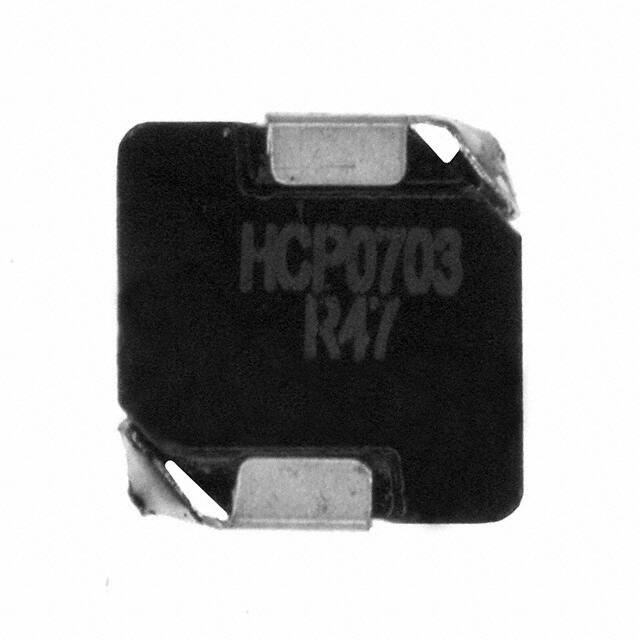

HCP0703-R47-RFIXED IND 470NH 17A 4.2 MOHM SMD |
4,922 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 17 A | 26A | 470 nH | Shielded | 4.2mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

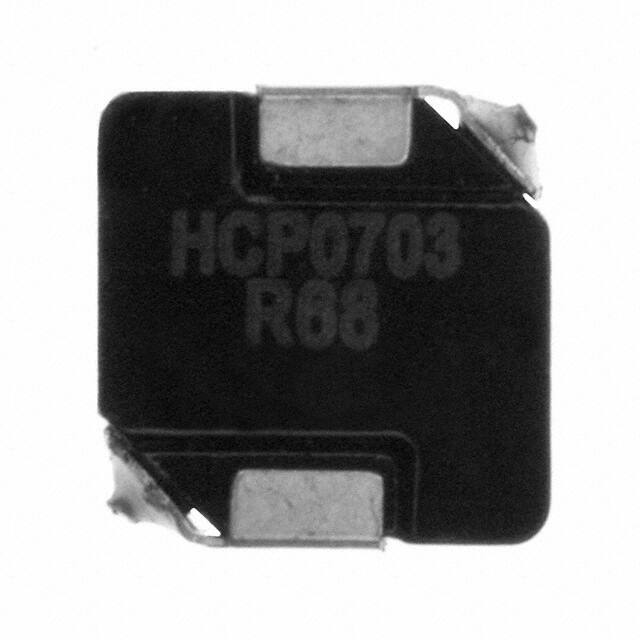

HCP0703-R68-RFIXED IND 680NH 15A 5.5 MOHM SMD |
4,344 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 15 A | 25A | 680 nH | Shielded | 5.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|
HCP0703-R82-RFIXED IND 820NH 13A 8 MOHM SMD |
1,955 |
|
Datasheet |
HCP0703 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 13 A | 24A | 820 nH | Shielded | 8mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.287" L x 0.276" W (7.30mm x 7.00mm) | 0.118" (3.00mm) |
|

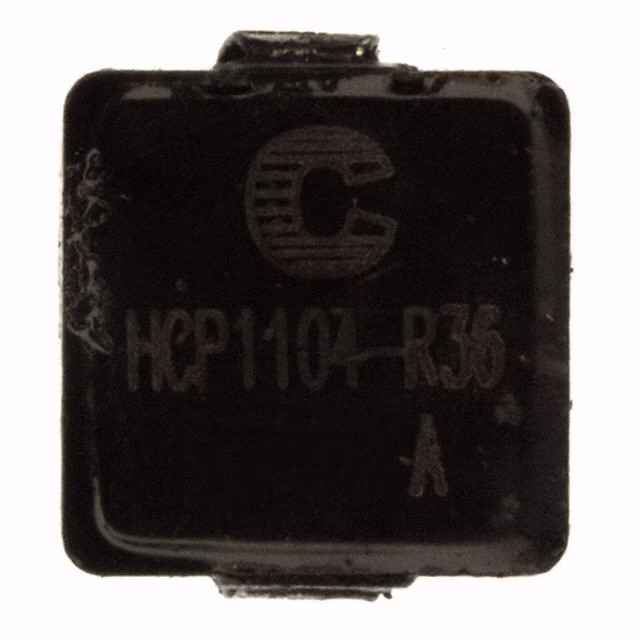

HCP1104-R36-RFIXED IND 360NH 30A 1.2 MOHM SMD |
3,742 |
|
Datasheet |
HCP1104 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 30 A | 40A | 360 nH | Unshielded | 1.2mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

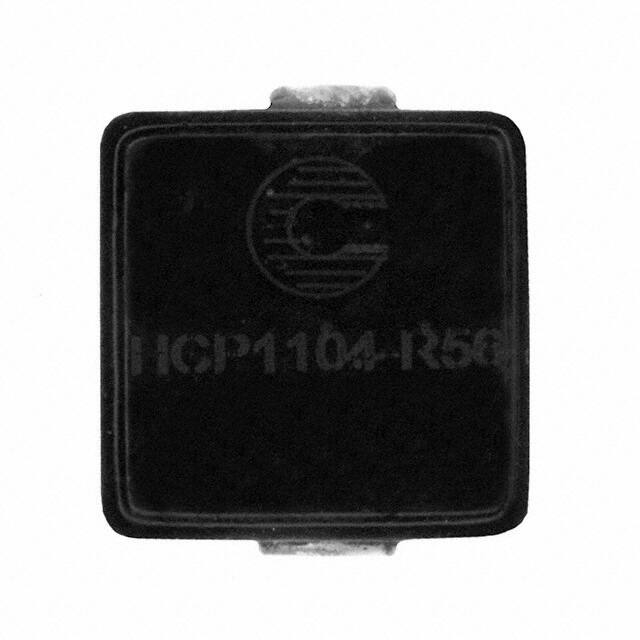

HCP1104-R56-RFIXED IND 560NH 25A 1.8 MOHM SMD |
3,845 |
|
Datasheet |
HCP1104 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 25 A | 32A | 560 nH | Unshielded | 1.8mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
HCP1305-1R0-RFIXED IND 1UH 29A 2.5 MOHM SMD |
3,000 |
|
Datasheet |
HCP1305 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 29 A | 50A | 1 µH | Unshielded | 2.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.197" (5.00mm) |
|

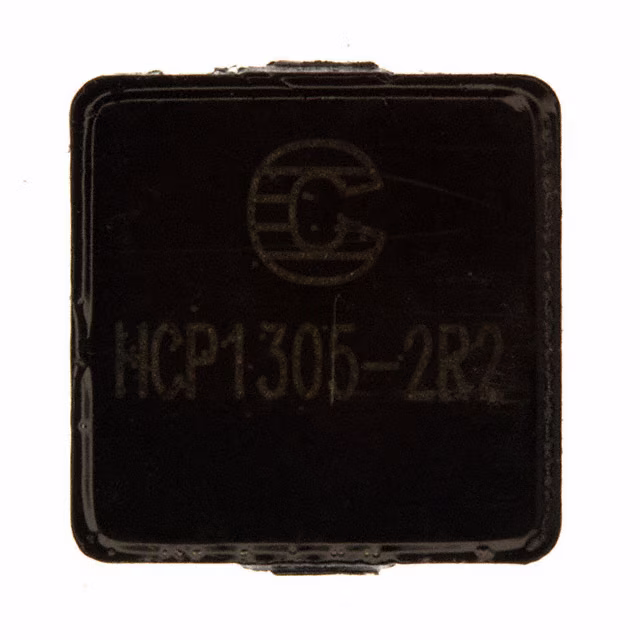

HCP1305-2R2-RFIXED IND 2.2UH 20A 5.5 MOHM SMD |
2,464 |
|
Datasheet |
HCP1305 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 20 A | 32A | 2.2 µH | Unshielded | 5.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.197" (5.00mm) |
|

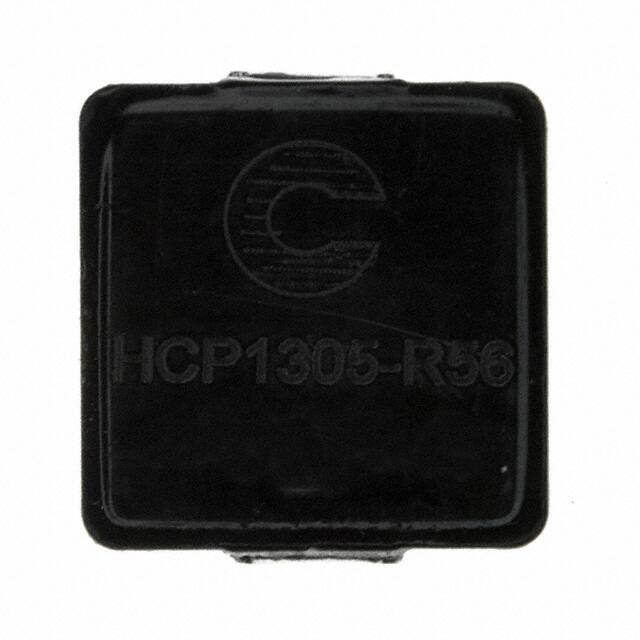

HCP1305-R56-RFIXED IND 560NH 36A 1.5 MOHM SMD |
2,320 |
|
Datasheet |
HCP1305 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 36 A | 55A | 560 nH | Unshielded | 1.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.197" (5.00mm) |
|
HCP1305-R82-RFIXED IND 820NH 31A 2.3 MOHM SMD |
3,211 |
|
Datasheet |
HCP1305 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron Powder | ±20% | 31 A | 52A | 820 nH | Unshielded | 2.3mOhm Max | - | - | - | Surface Mount | -55°C ~ 125°C | - | 100 kHz | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.197" (5.00mm) |
|
MLG0603Q0N8CFIXED IND 0.8NH 600MA 100MOHM SM |
4,095 |
|
Datasheet |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.2nH | 600 mA | - | 0.8 nH | Unshielded | 100mOhm Max | - | 10GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q1N8SFIXED IND 1.8NH 500MA 200MOHM SM |
1,841 |
|
Datasheet |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.3nH | 500 mA | - | 1.8 nH | Unshielded | 200mOhm Max | 5 @ 100MHz | 8.5GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q3N3SFIXED IND 3.3NH 300MA 300MOHM SM |
3,920 |
|
Datasheet |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.3nH | 300 mA | - | 3.3 nH | Unshielded | 300mOhm Max | 5 @ 100MHz | 5.8GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q5N1SFIXED IND 5.1NH 250MA 500MOHM SM |
1,078 |
|
Datasheet |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.3nH | 250 mA | - | 5.1 nH | Unshielded | 500mOhm Max | 5 @ 100MHz | 5GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q6N2SFIXED IND 6.2NH 250MA 550MOHM SM |
4,629 |
|
Datasheet |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±0.3nH | 250 mA | - | 6.2 nH | Unshielded | 550mOhm Max | 5 @ 100MHz | 4.2GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q6N8JFIXED IND 6.8NH 250MA 600MOHM SM |
2,911 |
|
Datasheet |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 250 mA | - | 6.8 nH | Unshielded | 600mOhm Max | 5 @ 100MHz | 4.2GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603Q15NJFIXED IND 15NH 180MA 1.1 OHM SMD |
3,672 |
|
Datasheet |
MLG-Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | ±5% | 180 mA | - | 15 nH | Unshielded | 1.1Ohm Max | 6 @ 100MHz | 3GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
SD3112-150-RFIXED IND 15UH 450MA 654MOHM SMD |
4,625 |
|
Datasheet |
SD3112 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±20% | 450 mA | 440mA | 15 µH | Shielded | 654mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.047" (1.20mm) |
|
|
SD3112-1R0-RFIXED IND 1UH 1.39A 69 MOHM SMD |
3,109 |
|
Datasheet |
SD3112 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 1.39 A | 1.65A | 1 µH | Shielded | 69mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.047" (1.20mm) |
|
|
SD3112-4R7-RFIXED IND 4.7UH 740MA 246MOHM SM |
4,669 |
|
Datasheet |
SD3112 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±30% | 740 mA | 800mA | 4.7 µH | Shielded | 246mOhm | - | - | - | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.047" (1.20mm) |
