| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLC5020T-100MFIXED IND 10UH 1.3A 186 MOHM SMD |
2,838 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.3 A | 1.3A | 10 µH | Shielded | 186mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
VLC5020T-1R2NFIXED IND 1.2UH 3.8A 30 MOHM SMD |
3,819 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 3.8 A | 3.8A | 1.2 µH | Shielded | 30mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
VLC5020T-1R5NFIXED IND 1.5UH 3.3A 38 MOHM SMD |
1,582 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 3.3 A | 3.3A | 1.5 µH | Shielded | 38mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|

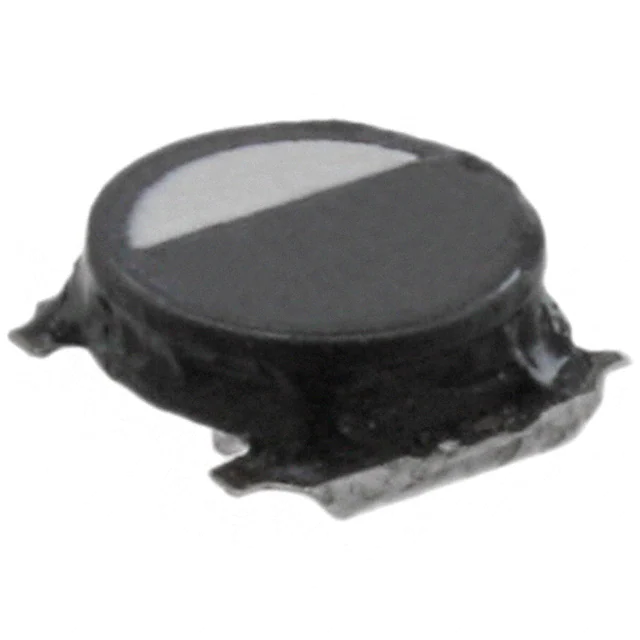

VLC5020T-2R2NFIXED IND 2.2UH 3A 45 MOHM SMD |
3,455 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 3 A | 3A | 2.2 µH | Shielded | 45mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
VLC5020T-3R3NFIXED IND 3.3UH 2.4A 71 MOHM SMD |
3,526 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 2.4 A | 2.4A | 3.3 µH | Shielded | 71mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
VLC5020T-4R7NFIXED IND 4.7UH 2A 97 MOHM SMD |
2,268 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 2 A | 2A | 4.7 µH | Shielded | 97mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
VLC5020T-R47NFIXED IND 470NH 5.6A 18 MOHM SMD |
3,760 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 5.6 A | 5.6A | 470 nH | Shielded | 18mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
VLC5045T-100MFIXED IND 10UH 2.1A 66 MOHM SMD |
2,998 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 2.1 A | 2.1A | 10 µH | Shielded | 66mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-150MFIXED IND 15UH 1.8A 100 MOHM SMD |
2,710 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.8 A | 1.8A | 15 µH | Shielded | 100mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-1R5NFIXED IND 1.5UH 5.5A 18 MOHM SMD |
3,559 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 5.5 A | 5.5A | 1.5 µH | Shielded | 18mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-2R2NFIXED IND 2.2UH 5A 22 MOHM SMD |
4,662 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 5 A | 5A | 2.2 µH | Shielded | 22mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-330MFIXED IND 33UH 1.2A 230 MOHM SMD |
3,635 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.2 A | 1.2A | 33 µH | Shielded | 230mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
VLC5045T-3R3NFIXED IND 3.3UH 4A 29 MOHM SMD |
3,189 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 4 A | 4A | 3.3 µH | Shielded | 29mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-4R7MFIXED IND 4.7UH 3.3A 34 MOHM SMD |
4,041 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 3.3 A | 3.3A | 4.7 µH | Shielded | 34mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLC5045T-6R8MFIXED IND 6.8UH 2.7A 46 MOHM SMD |
1,639 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 2.7 A | 2.7A | 6.8 µH | Shielded | 46mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|

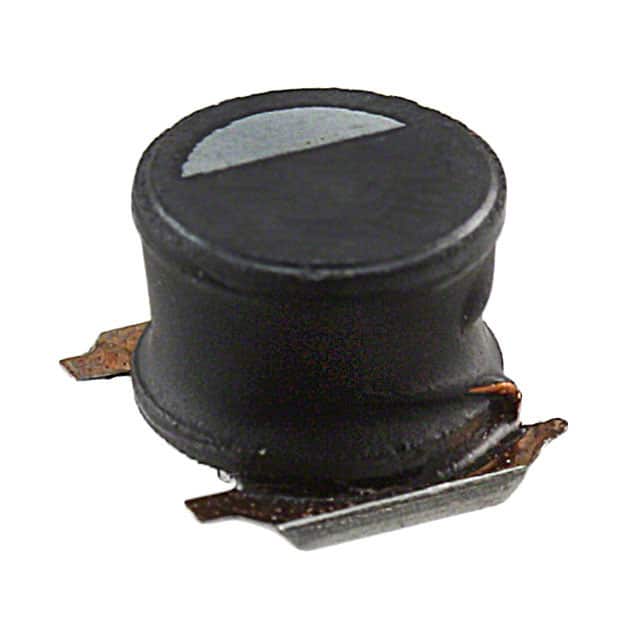

VLC6045T-101MFIXED IND 100UH 800MA 590MOHM SM |
3,074 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 800 mA | 800mA | 100 µH | Shielded | 590mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-150MFIXED IND 15UH 2.1A 91 MOHM SMD |
1,451 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 2.1 A | 2.1A | 15 µH | Shielded | 91mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-151MFIXED IND 150UH 600MA 750MOHM SM |
1,033 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 600 mA | 600mA | 150 µH | Shielded | 750mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-1R5NFIXED IND 1.5UH 5.7A 15 MOHM SMD |
3,811 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 5.7 A | 5.7A | 1.5 µH | Shielded | 15mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-220MFIXED IND 22UH 1.7A 130 MOHM SMD |
2,960 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.7 A | 1.7A | 22 µH | Shielded | 130mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
