| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLC6045T-2R2NFIXED IND 2.2UH 5.5A 17 MOHM SMD |
2,367 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 5.5 A | 5.5A | 2.2 µH | Shielded | 17mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-330MFIXED IND 33UH 1.4A 180 MOHM SMD |
1,953 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.4 A | 1.4A | 33 µH | Shielded | 180mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-3R3NFIXED IND 3.3UH 4.7A 20 MOHM SMD |
1,667 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±30% | 4.7 A | 4.7A | 3.3 µH | Shielded | 20mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-470MFIXED IND 47UH 1.2A 260 MOHM SMD |
1,477 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 1.2 A | 1.2A | 47 µH | Shielded | 260mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-4R7MFIXED IND 4.7UH 3.8A 27 MOHM SMD |
1,383 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 3.8 A | 3.8A | 4.7 µH | Shielded | 27mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-680MFIXED IND 68UH 900MA 410MOHM SMD |
1,484 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 900 mA | 900mA | 68 µH | Shielded | 410mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLC6045T-6R8MFIXED IND 6.8UH 3A 41 MOHM SMD |
2,272 |
|
Datasheet |
VLC | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 3 A | 3A | 6.8 µH | Shielded | 41mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLP8040T-331MFIXED IND 330UH 500MA 1.1OHM SMD |
1,911 |
|
Datasheet |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 500 mA | 500mA | 330 µH | Shielded | 1.1Ohm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.343" L x 0.339" W (8.70mm x 8.60mm) | 0.157" (4.00mm) |
|
|
VLP8040T-681MFIXED IND 680UH 300MA 2.2OHM SMD |
1,737 |
|
Datasheet |
VLP | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 300 mA | 300mA | 680 µH | Shielded | 2.2Ohm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.343" L x 0.339" W (8.70mm x 8.60mm) | 0.157" (4.00mm) |
|
TPL1183427-722Y-720NFIXED IND 7.2MH 50 OHM SMD |
1,951 |
|
Datasheet |
TPL | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±4% | - | - | 7.2 mH | Unshielded | 50Ohm | 66 @ 125kHz | - | - | Surface Mount | -40°C ~ 125°C | - | 125 kHz | - | 0.465" L x 0.134" W (11.80mm x 3.40mm) | 0.120" (3.05mm) |
|
TPL1183525-242Y-236NFIXED IND 2.36MH 24 OHM SMD |
3,547 |
|
Datasheet |
TPL | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±3% | - | - | 2.36 mH | Unshielded | 24Ohm | 53 @ 125kHz | - | AEC-Q200 | Surface Mount | -40°C ~ 125°C | - | 125 kHz | - | 0.465" L x 0.138" W (11.80mm x 3.50mm) | 0.106" (2.70mm) |
|
744902012FIXED IND 1.2NH 800MA 200MOHM SM |
2,882 |
|
Datasheet |
WE-TCI | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | ±0.1nH | 800 mA | - | 1.2 nH | Unshielded | 200mOhm Max | 15 @ 300MHz | 13GHz | - | Surface Mount | -40°C ~ 125°C | - | 300 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
744902015FIXED IND 1.5NH 800MA 200MOHM SM |
2,770 |
|
Datasheet |
WE-TCI | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | ±0.1nH | 800 mA | - | 1.5 nH | Unshielded | 200mOhm Max | 15 @ 300MHz | 10GHz | - | Surface Mount | -40°C ~ 125°C | - | 300 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
744902127FIXED IND 27NH 250MA 2 OHM SMD |
4,202 |
|
Datasheet |
WE-TCI | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | ±2% | 250 mA | - | 27 nH | Unshielded | 2Ohm Max | 15 @ 300MHz | 2GHz | - | Surface Mount | -40°C ~ 125°C | - | 300 MHz | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
74479776222FIXED IND 2.2UH 1.2A 110MOHM SMD |
3,704 |
|
Datasheet |
WE-PMI | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±20% | 1.2 A | 400mA | 2.2 µH | Shielded | 110mOhm | 10 @ 1MHz | 75MHz | - | Surface Mount | -40°C ~ 125°C | - | 1 MHz | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
ELJ-QF12NGFFIXED IND 12NH 320MA 450MOHM SMD |
4,913 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±2% | 320 mA | - | 12 nH | Unshielded | 450mOhm Max | 10 @ 100MHz | 2.8GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-QF18NGFFIXED IND 18NH 240MA 700MOHM SMD |
4,455 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±2% | 240 mA | - | 18 nH | Unshielded | 700mOhm Max | 10 @ 100MHz | 2.2GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-QF22NGFFIXED IND 22NH 200MA 800MOHM SMD |
2,534 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±2% | 200 mA | - | 22 nH | Unshielded | 800mOhm Max | 10 @ 100MHz | 2GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
ELJ-QF33NGFFIXED IND 33NH 170MA 1.4 OHM SMD |
2,305 |
|
Datasheet |
QF | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | ±2% | 170 mA | - | 33 nH | Unshielded | 1.4Ohm Max | 10 @ 100MHz | 1.8GHz | - | Surface Mount | -40°C ~ 85°C | - | 100 MHz | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

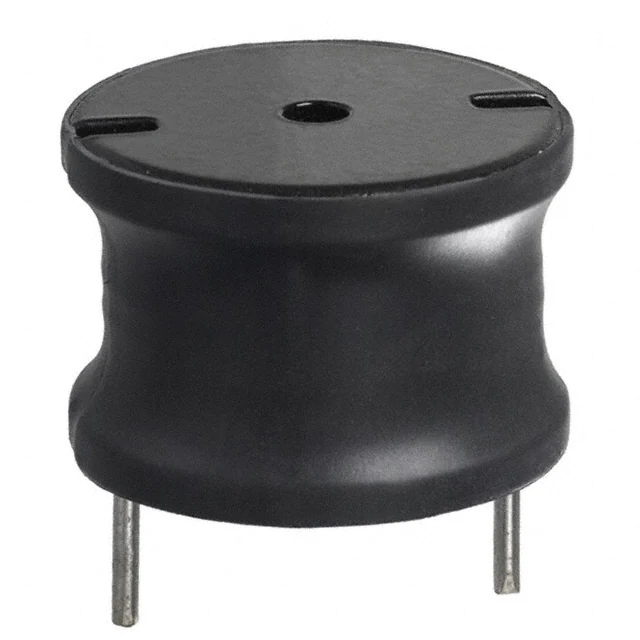

1140-271K-1-RCFIXED IND 270UH 7A 56 MOHM TH |
2,923 |
|
Datasheet |
1140 | Radial | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 7 A | 12.4A | 270 µH | Unshielded | 56mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
