| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2000-2R0-V-RCFIXED IND 2UH 15.6A 2.7 MOHM TH |
2,700 |
|
Datasheet |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | ±20% | 15.6 A | - | 2 µH | Unshielded | 2.7mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
|
|
2000-2R7-V-RCFIXED IND 2.7UH 14.7A 3 MOHM TH |
3,731 |
|
Datasheet |
2000 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | - | ±20% | 14.7 A | - | 2.7 µH | Unshielded | 3mOhm Max | - | - | - | Through Hole | -55°C ~ 105°C | - | 1 kHz | - | 0.680" Dia x 0.410" W (17.27mm x 10.41mm) | - |
|
ELJ-FA1R0MF2FIXED IND 1UH 230MA 690 MOHM SMD |
1,556 |
|
Datasheet |
FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 230 mA | - | 1 µH | Unshielded | 690mOhm Max | 30 @ 7.96MHz | 115MHz | - | Surface Mount | -20°C ~ 85°C | - | 7.96 MHz | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

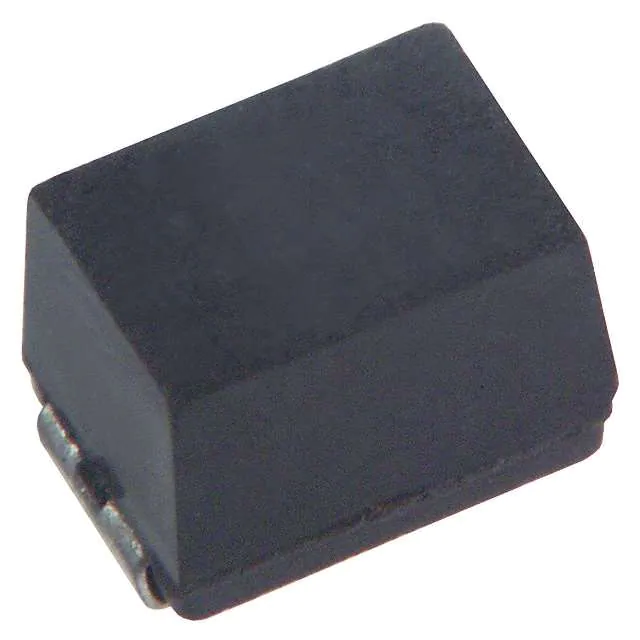

ELJ-FB100KFFIXED IND 10UH 235MA 1.8 OHM SMD |
3,589 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 235 mA | - | 10 µH | Unshielded | 1.8Ohm Max | 50 @ 5MHz | 22MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB101KFFIXED IND 100UH 105MA 8.8OHM SMD |
4,277 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 105 mA | - | 100 µH | Unshielded | 8.8Ohm Max | 40 @ 2.52MHz | 6.7MHz | - | Surface Mount | -20°C ~ 85°C | - | 100 kHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB102KFFIXED IND 1MH 40MA 53 OHM SMD |
1,618 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 40 mA | - | 1 mH | Unshielded | 53Ohm Max | 30 @ 796kHz | 2.1MHz | - | Surface Mount | -20°C ~ 85°C | - | 100 kHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB121KFFIXED IND 120UH 100MA 10 OHM SMD |
2,261 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 100 mA | - | 120 µH | Unshielded | 10Ohm Max | 40 @ 1.5MHz | 6.1MHz | - | Surface Mount | -20°C ~ 85°C | - | 100 kHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB151KFFIXED IND 150UH 95MA 11 OHM SMD |
1,449 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 95 mA | - | 150 µH | Unshielded | 11Ohm Max | 40 @ 1.5MHz | 5.5MHz | - | Surface Mount | -20°C ~ 85°C | - | 100 kHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB180KFFIXED IND 18UH 205MA 2.3 OHM SMD |
3,466 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 205 mA | - | 18 µH | Unshielded | 2.3Ohm Max | 50 @ 5MHz | 16MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB181KFFIXED IND 180UH 85MA 13 OHM SMD |
3,981 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 85 mA | - | 180 µH | Unshielded | 13Ohm Max | 40 @ 1.5MHz | 5.1MHz | - | Surface Mount | -20°C ~ 85°C | - | 100 kHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB1R0MFFIXED IND 1UH 470MA 520 MOHM SMD |
4,507 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 470 mA | - | 1 µH | Unshielded | 520mOhm Max | 30 @ 25.2MHz | 80MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB1R2MFFIXED IND 1.2UH 460MA 550MOHM SM |
1,592 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 460 mA | - | 1.2 µH | Unshielded | 550mOhm Max | 30 @ 25.2MHz | 70MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB1R5MFFIXED IND 1.5UH 430MA 610MOHM SM |
1,442 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 430 mA | - | 1.5 µH | Unshielded | 610mOhm Max | 30 @ 25.2MHz | 60MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB1R8MFFIXED IND 1.8UH 410MA 610MOHM SM |
1,431 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 410 mA | - | 1.8 µH | Unshielded | 610mOhm Max | 30 @ 25.2MHz | 50MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB221KFFIXED IND 220UH 85MA 13 OHM SMD |
1,832 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 85 mA | - | 220 µH | Unshielded | 13Ohm Max | 40 @ 796kHz | 4.5MHz | - | Surface Mount | -20°C ~ 85°C | - | 100 kHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB270KFFIXED IND 27UH 185MA 2.9 OHM SMD |
3,869 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 185 mA | - | 27 µH | Unshielded | 2.9Ohm Max | 50 @ 2.52MHz | 13MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB271KFFIXED IND 270UH 80MA 14 OHM SMD |
4,846 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 80 mA | - | 270 µH | Unshielded | 14Ohm Max | 40 @ 796kHz | 4.1MHz | - | Surface Mount | -20°C ~ 85°C | - | 100 kHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB2R2MFFIXED IND 2.2UH 410MA 610MOHM SM |
3,626 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 410 mA | - | 2.2 µH | Unshielded | 610mOhm Max | 30 @ 7.96MHz | 45MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB2R7MFFIXED IND 2.7UH 400MA 610MOHM SM |
2,594 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 400 mA | - | 2.7 µH | Unshielded | 610mOhm Max | 50 @ 7.96MHz | 43MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
ELJ-FB330KFFIXED IND 33UH 175MA 3.1 OHM SMD |
1,090 |
|
Datasheet |
FB | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±10% | 175 mA | - | 33 µH | Unshielded | 3.1Ohm Max | 50 @ 2.52MHz | 12MHz | - | Surface Mount | -20°C ~ 85°C | - | 1 MHz | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
