| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

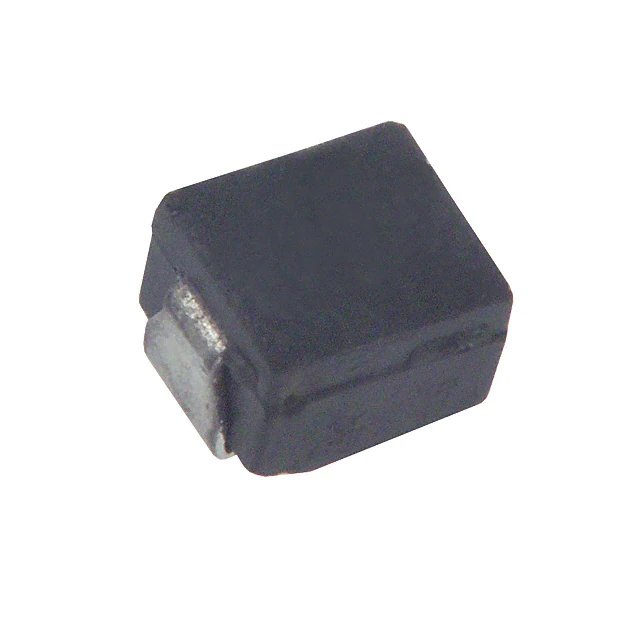

ELJ-FCR82JFFIXED IND 820NH 130MA 1.4OHM SMD |
2,060 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | ±5% | 130 mA | - | 820 nH | Unshielded | 1.4Ohm Max | 25 @ 25.2MHz | 125MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-NCR22KFFIXED IND 220NH 145MA 1.15OHM SM |
1,094 |
|
Datasheet |
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 145 mA | - | 220 nH | Unshielded | 1.15Ohm Max | 10 @ 25.2MHz | 260MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-NCR27KFFIXED IND 270NH 140MA 1.25OHM SM |
2,290 |
|
Datasheet |
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 140 mA | - | 270 nH | Unshielded | 1.25Ohm Max | 10 @ 25.2MHz | 230MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-NCR33KFFIXED IND 330NH 135MA 1.37OHM SM |
3,168 |
|
Datasheet |
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 135 mA | - | 330 nH | Unshielded | 1.37Ohm Max | 10 @ 25.2MHz | 200MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-NCR39KFFIXED IND 390NH 130MA 1.47OHM SM |
3,969 |
|
Datasheet |
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 130 mA | - | 390 nH | Unshielded | 1.47Ohm Max | 10 @ 25.2MHz | 180MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-NCR47KFFIXED IND 470NH 125MA 1.58OHM SM |
1,345 |
|
Datasheet |
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 125 mA | - | 470 nH | Unshielded | 1.58Ohm Max | 10 @ 25.2MHz | 160MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-NCR56KFFIXED IND 560NH 120MA 1.7OHM SMD |
1,815 |
|
Datasheet |
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 120 mA | - | 560 nH | Unshielded | 1.7Ohm Max | 10 @ 25.2MHz | 145MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-NCR68KFFIXED IND 680NH 110MA 1.85OHM SM |
4,043 |
|
Datasheet |
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 110 mA | - | 680 nH | Unshielded | 1.85Ohm Max | 10 @ 25.2MHz | 130MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-NCR82KFFIXED IND 820NH 100MA 2.1OHM SMD |
1,769 |
|
Datasheet |
NC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 100 mA | - | 820 nH | Unshielded | 2.1Ohm Max | 10 @ 25.2MHz | 100MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-ND1R0KFFIXED IND 1UH 120MA 3.88 OHM SMD |
3,717 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 120 mA | - | 1 µH | Unshielded | 3.88Ohm Max | 8 @ 7.96MHz | 80MHz | - | Surface Mount | -20°C ~ 85°C | - | 7.96 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-ND39NKFFIXED IND 39NH 390MA 410MOHM SMD |
4,278 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 390 mA | - | 39 nH | Unshielded | 410mOhm Max | 15 @ 100MHz | 2GHz | - | Surface Mount | -20°C ~ 85°C | - | 100 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-ND47NKFFIXED IND 47NH 385MA 460MOHM SMD |
1,240 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 385 mA | - | 47 nH | Unshielded | 460mOhm Max | 15 @ 100MHz | 1.65GHz | - | Surface Mount | -20°C ~ 85°C | - | 100 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-ND68NKFFIXED IND 68NH 340MA 570MOHM SMD |
4,366 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 340 mA | - | 68 nH | Unshielded | 570mOhm Max | 15 @ 100MHz | 1.45GHz | - | Surface Mount | -20°C ~ 85°C | - | 100 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-ND82NKFFIXED IND 82NH 330MA 630MOHM SMD |
1,110 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 330 mA | - | 82 nH | Unshielded | 630mOhm Max | 15 @ 100MHz | 1.1GHz | - | Surface Mount | -20°C ~ 85°C | - | 100 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR10KFFIXED IND 100NH 285MA 860MOHM SM |
3,453 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 285 mA | - | 100 nH | Unshielded | 860mOhm Max | 8 @ 25.2MHz | 800MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR12KFFIXED IND 120NH 275MA 990MOHM SM |
4,935 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 275 mA | - | 120 nH | Unshielded | 990mOhm Max | 8 @ 25.2MHz | 600MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR18KFFIXED IND 180NH 195MA 1.61OHM SM |
1,318 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 195 mA | - | 180 nH | Unshielded | 1.61Ohm Max | 10 @ 25.2MHz | 600MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR22KFFIXED IND 220NH 170MA 1.84OHM SM |
2,785 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 170 mA | - | 220 nH | Unshielded | 1.84Ohm Max | 10 @ 25.2MHz | 500MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR27KFFIXED IND 270NH 165MA 1.95OHM SM |
4,971 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 165 mA | - | 270 nH | Unshielded | 1.95Ohm Max | 10 @ 25.2MHz | 300MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
ELJ-NDR33KFFIXED IND 330NH 160MA 2.16OHM SM |
3,501 |
|
Datasheet |
ND | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | ±10% | 160 mA | - | 330 nH | Unshielded | 2.16Ohm Max | 10 @ 25.2MHz | 200MHz | - | Surface Mount | -20°C ~ 85°C | - | 25.2 MHz | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
