| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1045-R36YFIXED IND 360NH 23A 1.7 MOHM SMD |
2,099 |
|
Datasheet |
SRP1045 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±30% | 23 A | 26A | 360 nH | Shielded | 1.7mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.189" (4.80mm) |
|

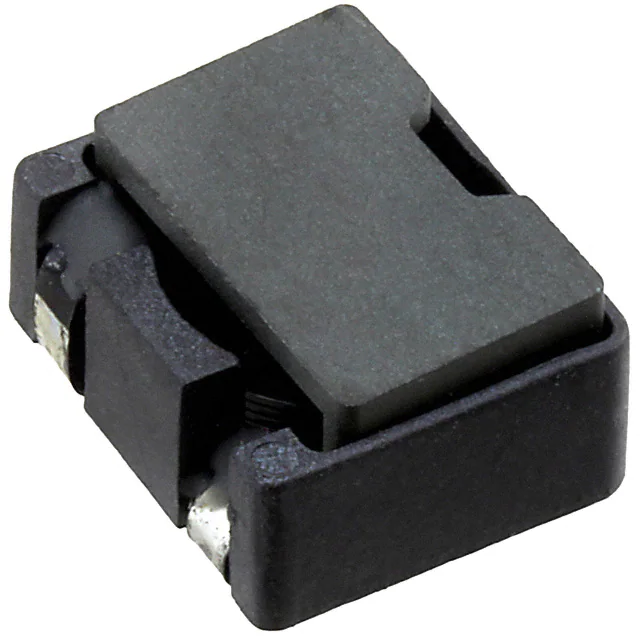

SRP1055-4R3MFIXED IND 4.3UH 10A 8.5 MOHM SMD |
2,472 |
|
Datasheet |
SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 8A | 4.3 µH | Shielded | 8.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.228" (5.80mm) |
|
|
SRP1055-7R2MFIXED IND 7.2UH 7A 15.5 MOHM SMD |
1,061 |
|
Datasheet |
SRP1055 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 7 A | 6.2A | 7.2 µH | Shielded | 15.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.433" L x 0.368" W (11.00mm x 9.35mm) | 0.228" (5.80mm) |
|

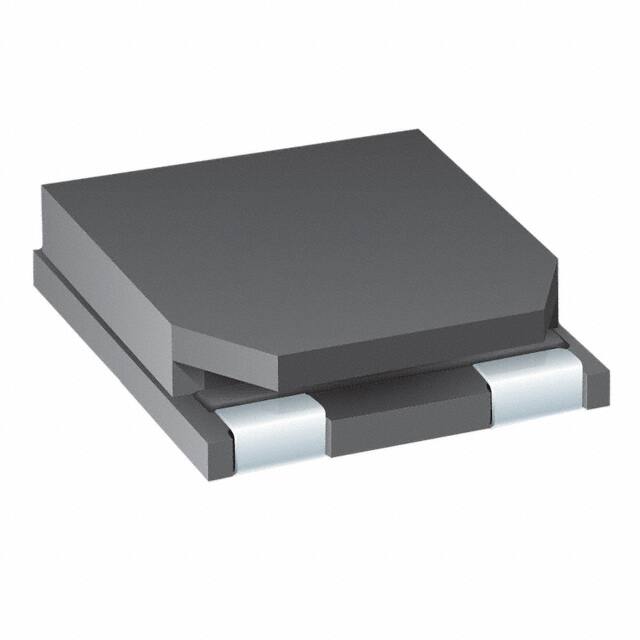

SRP1204-1R1MFIXED IND 1.1UH 12A 4.5 MOHM SMD |
4,890 |
|
Datasheet |
SRP1204 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 12 A | 13A | 1.1 µH | Shielded | 4.5mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
|
|
SRP1204-R50MFIXED IND 550NH 13A 3 MOHM SMD |
4,270 |
|
Datasheet |
SRP1204 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 13 A | 14A | 550 nH | Shielded | 3mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.157" (4.00mm) |
|

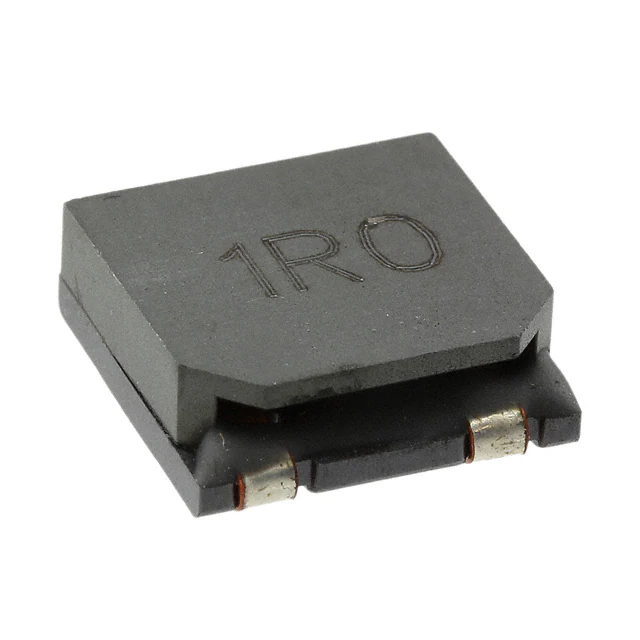

SRP1205-1R0YFIXED IND 1UH 14A 3.4 MOHM SMD |
1,678 |
|
Datasheet |
SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±25% | 14 A | 22A | 1 µH | Shielded | 3.4mOhm Max | - | 75MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
|
SRP1205-2R5YFIXED IND 2.5UH 11.5A 3.4MOHM SM |
2,583 |
|
Datasheet |
SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±25% | 11.5 A | 12A | 2.5 µH | Shielded | 3.4mOhm Max | - | 40MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
SRP1205-4R0YFIXED IND 4UH 10.5A 5.4 MOHM SMD |
2,882 |
|
Datasheet |
SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±25% | 10.5 A | 8.3A | 4 µH | Shielded | 5.4mOhm Max | - | 35MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.220" (5.60mm) |
|
|
SRP1205-R60YFIXED IND 600NH 16A 2.5 MOHM SMD |
1,659 |
|
Datasheet |
SRP1205 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±25% | 16 A | 27A | 600 nH | Shielded | 2.5mOhm Max | - | 95MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|

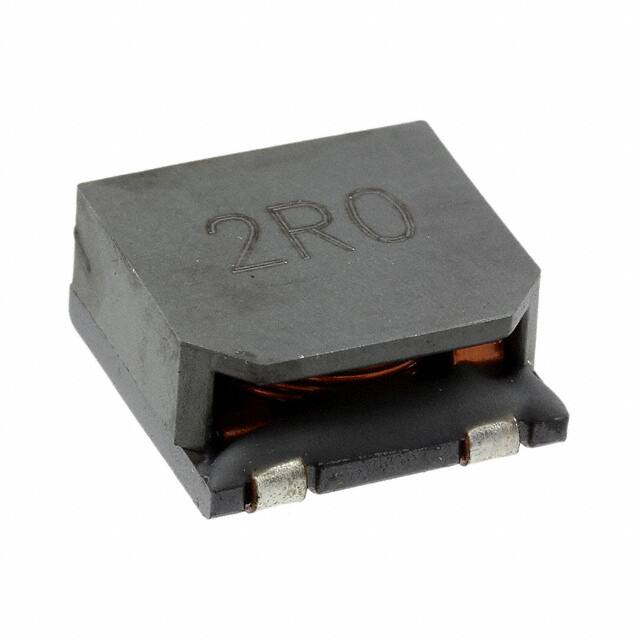

SRP1206-2R0YFIXED IND 2UH 17A 6 MOHM SMD |
2,649 |
|
Datasheet |
SRP1206 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±25% | 17 A | 15A | 2 µH | Shielded | 6mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
SRP1206-3R3ZFIXED IND 3.3UH 14A 7 MOHM SMD |
3,271 |
|
Datasheet |
SRP1206 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±25% | 14 A | 12A | 3.3 µH | Shielded | 7mOhm Max | - | - | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRP1235-100MFIXED IND 10UH 7A 34 MOHM SMD |
3,407 |
|
Datasheet |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 7 A | 9.5A | 10 µH | Shielded | 34mOhm Max | - | 11MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-1R8MFIXED IND 1.8UH 16.5A 7 MOHM SMD |
2,221 |
|
Datasheet |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 16.5 A | 24A | 1.8 µH | Shielded | 7mOhm Max | - | 32MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-5R6MFIXED IND 5.6UH 10A 18 MOHM SMD |
3,885 |
|
Datasheet |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 10 A | 14A | 5.6 µH | Shielded | 18mOhm Max | - | 15MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-8R2MFIXED IND 8.2UH 8.5A 28 MOHM SMD |
3,763 |
|
Datasheet |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 8.5 A | 12A | 8.2 µH | Shielded | 28mOhm Max | - | 12MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-R10MFIXED IND 100NH 43A 960 MOHM SMD |
2,162 |
|
Datasheet |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 43 A | 56A | 100 nH | Shielded | 960mOhm Max | - | 105MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-R15MFIXED IND 150NH 41A 1.2 MOHM SMD |
2,522 |
|
Datasheet |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 41 A | 50A | 150 nH | Shielded | 1.2mOhm Max | - | 100MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-R22MFIXED IND 220NH 38.5A 1.3MOHM SM |
1,123 |
|
Datasheet |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 38.5 A | 50A | 220 nH | Shielded | 1.3mOhm Max | - | 94MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-R60MFIXED IND 600NH 29A 2.5 MOHM SMD |
1,051 |
|
Datasheet |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 29 A | 42A | 600 nH | Shielded | 2.5mOhm Max | - | 73MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
|
|
SRP1235-R82MFIXED IND 820NH 25A 3 MOHM SMD |
4,884 |
|
Datasheet |
SRP1235 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Iron | ±20% | 25 A | 38A | 820 nH | Shielded | 3mOhm Max | - | 65MHz | - | Surface Mount | -55°C ~ 150°C | - | 100 kHz | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.146" (3.70mm) |
