| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CIH10T6N8JNCFIXED IND 6.8NH 700MA 220MOHM SM |
1,958 |
|
Datasheet |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 700 mA | - | 6.8 nH | Unshielded | 220mOhm Max | 10 @ 100MHz | 4GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10T33NJNCFIXED IND 33NH 500MA 550MOHM SMD |
1,981 |
|
Datasheet |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 500 mA | - | 33 nH | Unshielded | 550mOhm Max | 12 @ 100MHz | 1.2GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10T39NJNCFIXED IND 39NH 400MA 600MOHM SMD |
3,031 |
|
Datasheet |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 400 mA | - | 39 nH | Unshielded | 600mOhm Max | 12 @ 100MHz | 1.1GHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10T56NJNCFIXED IND 56NH 400MA 750MOHM SMD |
4,215 |
|
Datasheet |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 400 mA | - | 56 nH | Unshielded | 750mOhm Max | 12 @ 100MHz | 900MHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10TR12JNCFIXED IND 120NH 300MA 1.2OHM SMD |
2,979 |
|
Datasheet |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 300 mA | - | 120 nH | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 500MHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10TR27JNCFIXED IND 270NH 200MA 1.5OHM SMD |
1,253 |
|
Datasheet |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | ±5% | 200 mA | - | 270 nH | Unshielded | 1.5Ohm Max | 8 @ 100MHz | 400MHz | - | Surface Mount | -55°C ~ 125°C | - | 100 MHz | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
LGJ7045TS-680MR75-HFIXED IND 68UH 760MA 270MOHM SMD |
4,326 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 760 mA | 750mA | 68 µH | Shielded | 270mOhm | - | - | AEC-Q200 | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|
|
LGJ7045TS-6R8M1R9-HFIXED IND 6.8UH 2.04A 39MOHM SMD |
4,872 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 2.04 A | 1.9A | 6.8 µH | Shielded | 39mOhm | - | - | AEC-Q200 | Surface Mount | -40°C ~ 125°C | - | 100 kHz | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.189" (4.80mm) |
|

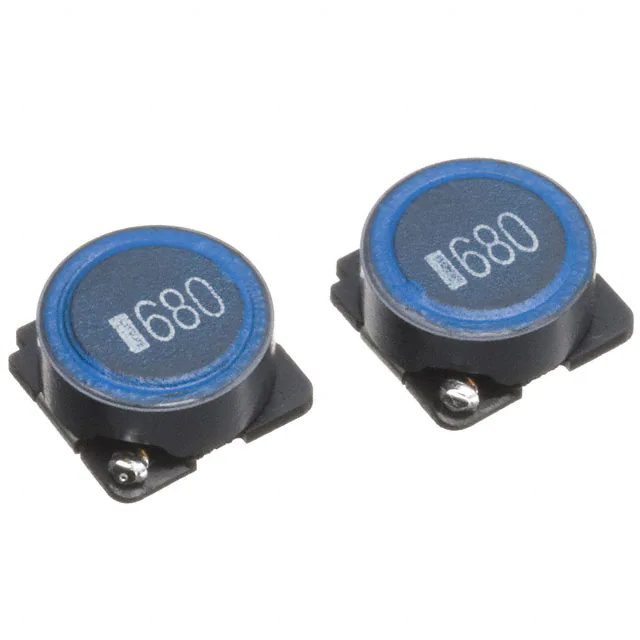

LGJ10145TS-680M1R2-HFIXED IND 68UH 1.3A 140 MOHM SMD |
2,384 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.3 A | 1.2A | 68 µH | Shielded | 140mOhm | - | - | AEC-Q200 | Surface Mount | -40°C ~ 125°C | - | 1 kHz | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.177" (4.50mm) |
|
LGJ12565TS-101M1R6-HFIXED IND 100UH 1.9A 123MOHM SMD |
4,302 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 1.6A | 100 µH | Shielded | 123mOhm | - | - | AEC-Q200 | Surface Mount | -40°C ~ 125°C | - | 1 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
LGJ12565TS-150M4R2-HFIXED IND 15UH 4.4A 23.7MOHM SMD |
1,359 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 4.4 A | 4.2A | 15 µH | Shielded | 23.7mOhm | - | - | AEC-Q200 | Surface Mount | -40°C ~ 125°C | - | 1 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|

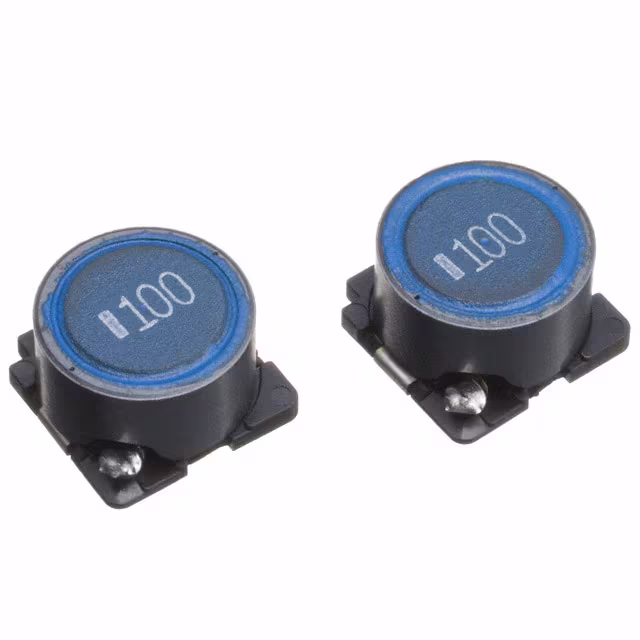

LGJ12575TS-101M1R9-HFIXED IND 100UH 1.9A 125MOHM SMD |
4,890 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 1.9 A | 1.9A | 100 µH | Shielded | 125mOhm | - | - | AEC-Q200 | Surface Mount | -40°C ~ 125°C | - | 1 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
|
LGJ12575TS-330M3R2-HFIXED IND 33UH 3.4A 39.5MOHM SMD |
3,372 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 3.4 A | 3.2A | 33 µH | Shielded | 39.5mOhm | - | - | AEC-Q200 | Surface Mount | -40°C ~ 125°C | - | 1 kHz | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
ETQ-P2H0R3BFAFIXED IND 290NH 36A 540 MOHM SMD |
1,192 |
|
Datasheet |
PCC-D125H (NX2) | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | - | - | ±20% | 36 A | - | 290 nH | Shielded | 540mOhm Max | - | - | - | Surface Mount | - | - | 100 kHz | - | 0.512" L x 0.508" W (13.00mm x 12.90mm) | 0.193" (4.90mm) |
|
|
55014722400FIXED IND 4.7UH 180MA 2.6 OHM |
2,843 |
|
Datasheet |
5501 | - | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | ±10% | 180 mA | - | 4.7 µH | Unshielded | 2.6Ohm Max | 20 @ 7.9MHz | 140MHz | - | - | - | - | 7.9 MHz | - | - | - |
|
|
55031024400FIXED IND 1UH 230MA 2.7 OHM |
1,642 |
|
Datasheet |
5503 | - | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 230 mA | - | 1 µH | Unshielded | 2.7Ohm Max | - | 450MHz | - | - | - | - | 35 MHz | - | - | - |
|
|
CDEP106NP-100MC-88FIXED IND 10UH 6.5A 15.9MOHM SMD |
2,679 |
|
Datasheet |
CDEP106 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 6.5 A | 4.3A | 10 µH | Shielded | 15.9mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.256" (6.50mm) |
|
|
CDEP106NP-1R2MC-50FIXED IND 1.2UH 13.5A 3.44 MOHM |
3,470 |
|
Datasheet |
CDEP106 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 13.5 A | 19.2A | 1.2 µH | Shielded | 3.44mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.256" (6.50mm) |
|
|
CDEP106NP-1R4MC-88FIXED IND 1.4UH 17.5A 2.3MOHM SM |
4,313 |
|
Datasheet |
CDEP106 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 17.5 A | 12A | 1.4 µH | Shielded | 2.3mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.256" (6.50mm) |
|
|
CDEP106NP-1R8MC-50FIXED IND 1.8UH 11.5A 5.04 MOHM |
2,155 |
|
Datasheet |
CDEP106 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 11.5 A | 16A | 1.8 µH | Shielded | 5.04mOhm Max | - | - | - | Surface Mount | -40°C ~ 105°C | - | 100 kHz | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.256" (6.50mm) |
