| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Type | Material - Core | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Inductance | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Mounting Style | Operating Temperature | Features | Inductance Frequency - Test | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDR105BNP-101KCFIXED IND 100UH 720MA 340MOHM SM |
3,492 |
|
Datasheet |
CDR105B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±10% | 720 mA | - | 100 µH | Shielded | 340mOhm Max | - | 8.1MHz | - | Surface Mount | -40°C ~ 100°C | - | 1 kHz | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.217" (5.50mm) |
|
|
CDR105BNP-270MCFIXED IND 27UH 1.32A 100MOHM SMD |
1,174 |
|
Datasheet |
CDR105B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.32 A | - | 27 µH | Shielded | 100mOhm Max | - | 17.1MHz | - | Surface Mount | -40°C ~ 100°C | - | 2.52 MHz | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.217" (5.50mm) |
|
|
CDR105BNP-470LCFIXED IND 47UH 1A 140 MOHM SMD |
2,394 |
|
Datasheet |
CDR105B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±15% | 1 A | - | 47 µH | Shielded | 140mOhm Max | - | 11.5MHz | - | Surface Mount | -40°C ~ 100°C | - | 2.52 MHz | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.217" (5.50mm) |
|
|
CDR156NP-100LCFIXED IND 10UH 5.5A 25 MOHM SMD |
3,448 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 5.5 A | 9.6A | 10 µH | Unshielded | 25mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-101LCFIXED IND 100UH 1.6A 220MOHM SMD |
1,059 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 1.6 A | 2.9A | 100 µH | Unshielded | 220mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-102LCFIXED IND 1MH 480MA 2.1 OHM SMD |
1,953 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 480 mA | 900mA | 1 mH | Unshielded | 2.1Ohm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-1R0MCFIXED IND 1UH 10A 5.3 MOHM SMD |
1,585 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 10 A | 28A | 1 µH | Unshielded | 5.3mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-220LCFIXED IND 22UH 4A 43.5 MOHM SMD |
1,070 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 4 A | 6.4A | 22 µH | Unshielded | 43.5mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-221LCFIXED IND 220UH 1.1A 466.3 MOHM |
3,596 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 1.1 A | 2A | 220 µH | Unshielded | 466.3mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-330LCFIXED IND 33UH 3A 68 MOHM SMD |
1,769 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 3 A | 5.2A | 33 µH | Unshielded | 68mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-331LCFIXED IND 330UH 900MA 646MOHM SM |
1,056 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 900 mA | 1.6A | 330 µH | Unshielded | 646mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-3R3MCFIXED IND 3.3UH 7.5A 9.8MOHM SMD |
2,975 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 7.5 A | 16.4A | 3.3 µH | Unshielded | 9.8mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-470LCFIXED IND 47UH 2.5A 97.8MOHM SMD |
2,705 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 2.5 A | 4.2A | 47 µH | Unshielded | 97.8mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-471LCFIXED IND 470UH 750MA 933.3 MOHM |
3,604 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 750 mA | 1.4A | 470 µH | Unshielded | 933.3mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-5R6MCFIXED IND 5.6UH 7A 13.5 MOHM SMD |
4,904 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±20% | 7 A | 12.8A | 5.6 µH | Unshielded | 13.5mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-680LCFIXED IND 68UH 2A 144.6 MOHM SMD |
4,709 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 2 A | 3.6A | 68 µH | Unshielded | 144.6mOhm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|
|
CDR156NP-681LCFIXED IND 680UH 550MA 1.67OHM SM |
3,835 |
|
Datasheet |
CDR156 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±15% | 550 mA | 1.1A | 680 µH | Unshielded | 1.67Ohm Max | - | - | - | Surface Mount | -40°C ~ 100°C | - | 100 kHz | - | 0.728" L x 0.591" W (18.50mm x 15.00mm) | 0.276" (7.00mm) |
|

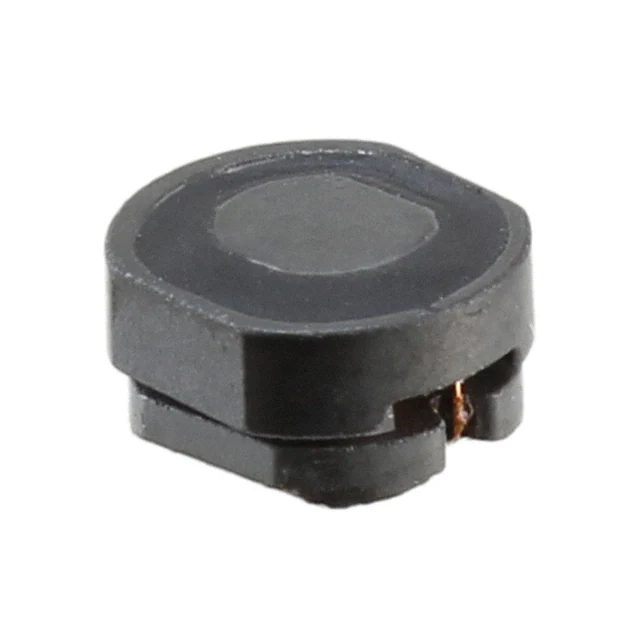

CDR63BNP-120MCFIXED IND 12UH 940MA 160MOHM SMD |
4,047 |
|
Datasheet |
CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 940 mA | - | 12 µH | Shielded | 160mOhm Max | - | 32.2MHz | - | Surface Mount | -40°C ~ 100°C | - | - | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-150MCFIXED IND 15UH 860MA 180MOHM SMD |
3,730 |
|
Datasheet |
CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 860 mA | - | 15 µH | Shielded | 180mOhm Max | - | 29.3MHz | - | Surface Mount | -40°C ~ 100°C | - | - | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
|
|
CDR63BNP-180MCFIXED IND 18UH 780MA 250MOHM SMD |
1,508 |
|
Datasheet |
CDR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 780 mA | - | 18 µH | Shielded | 250mOhm Max | - | 26.7MHz | - | Surface Mount | -40°C ~ 100°C | - | - | - | 0.244" L x 0.220" W (6.20mm x 5.60mm) | 0.138" (3.50mm) |
