Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-RFPT-HP5INTERLOCK SWITCH RFID |
240 |
|
Datasheet |
SI-RF | Box | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|
|
SI-RFPT-LP5INTERLOCK SWITCH RFID |
2,797 |
|
Datasheet |
SI-RF | Box | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|
|
SI-RFST-LP8INTERLOCK SWITCH RFID |
221 |
|
Datasheet |
SI-RF | Box | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|
|
SI-RFDT-LP8INTERLOCK SWITCH RFID |
3,754 |
|
Datasheet |
SI-RF | Bag | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|

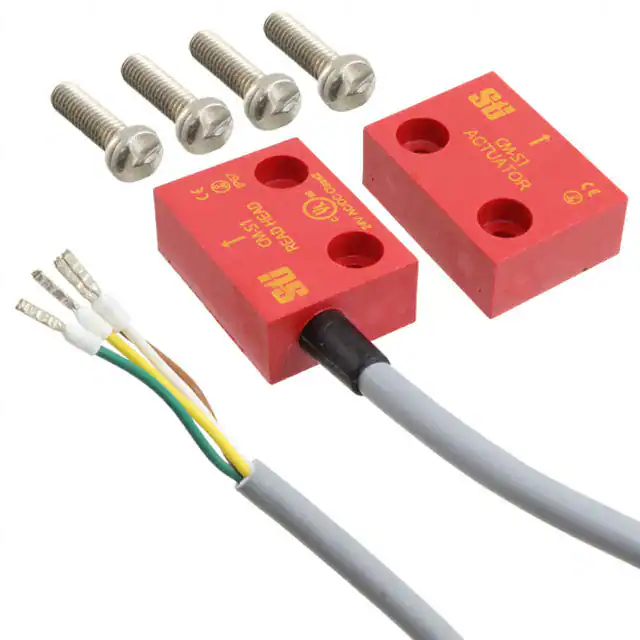

CM-S1PC3INTERLOCK MAGNETIC DPST |
2,181 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 3mm | 8mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

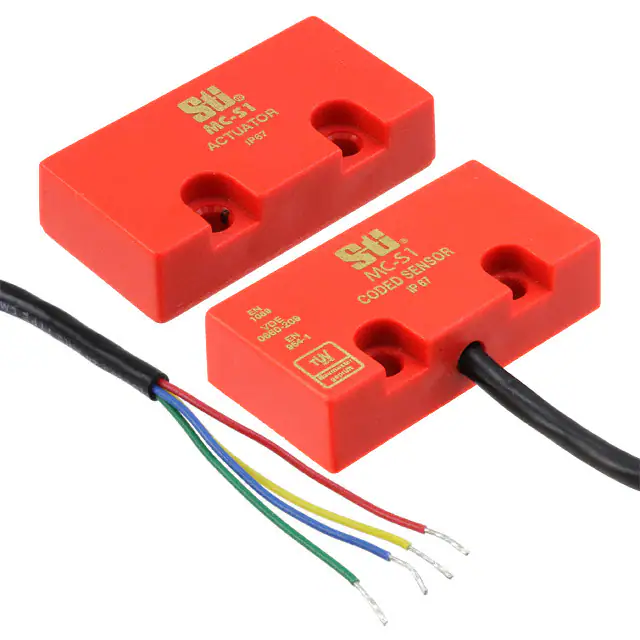

MC-S1PC3INTERLOCK MAGNETIC DPST |
1,712 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | DPST-NO/NC | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable Leads | - | 5mm | 11mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

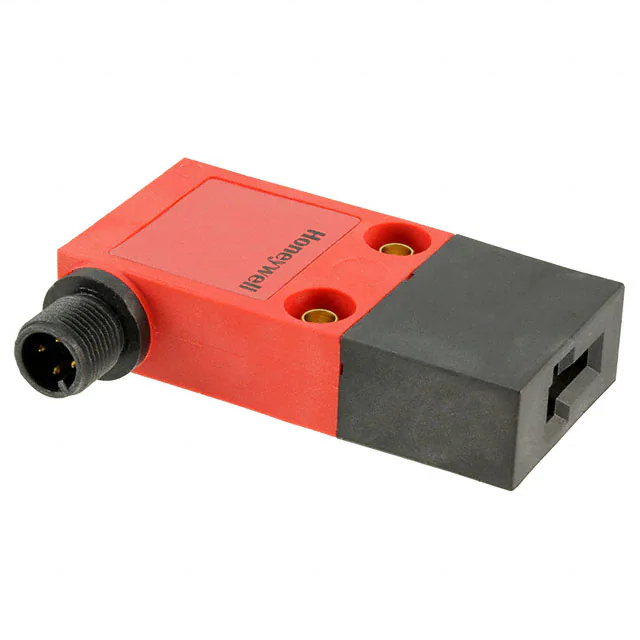

GKMC03INTERLOCK NON-LOCKING DPST |
141 |
|
Datasheet |
GKM | Bulk | Active | Non-Locking | DPST-NO/NC | 120VAC, 125VDC | - | - | 3A (AC), 550mA (DC) | Panel Disconnect | Connector (M12) | - | - | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
HS5L-VA7Y4M-GINTERLOCK SOLENOID LOCKING DPST |
3,655 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|

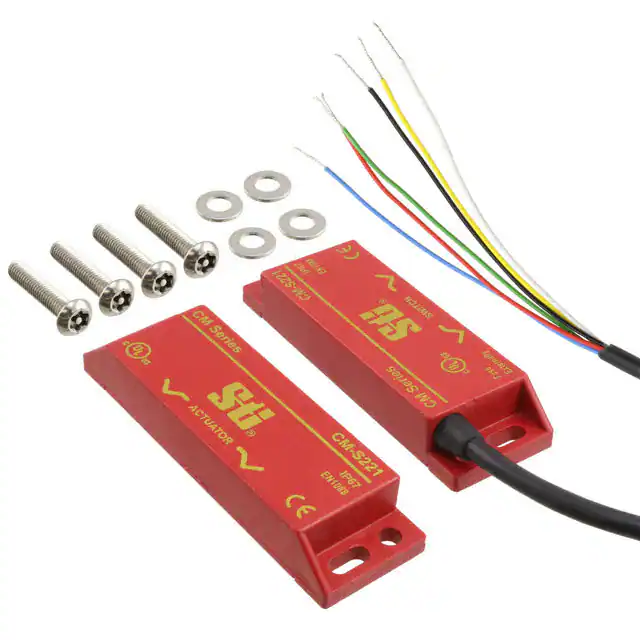

CM-S221PC5INTERLOCK MAGNETIC 3PST |
3,510 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 7mm | 10mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

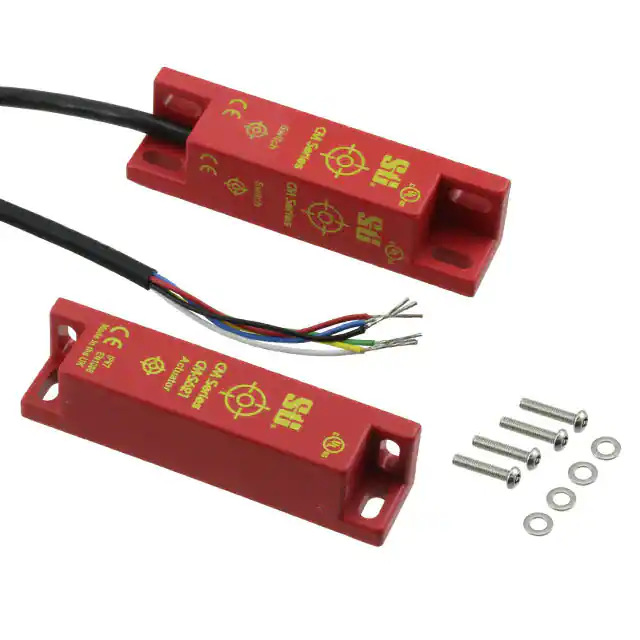

CM-S621PC5INTERLOCK MAGNETIC 3PST |
3,208 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 7mm | 10mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D4NL-4EFG-BINTERLOCK SOLENOID LOCKING 3PST |
157 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + DPST-NO/NC | 240VAC, 250VDC | 24VDC | 133kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D40Z-1C2INTERLOCK MAGNETIC SPST |
2,967 |
|
Datasheet |
D40Z | Bulk | Active | Magnetic | SPST-NO | 24VDC | 24VDC | - | 10mA (DC) | Non-Contact | Cable Leads | - | 5mm | 15mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 65°C |
|

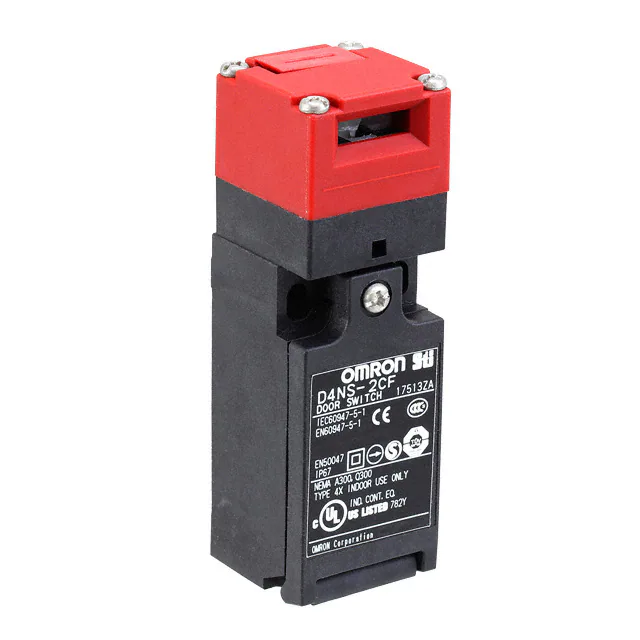

D4NS-2CFINTERLOCK NON-LOCKING 3PST |
846 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NS-4AFINTERLOCK NON-LOCKING DPST |
149 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

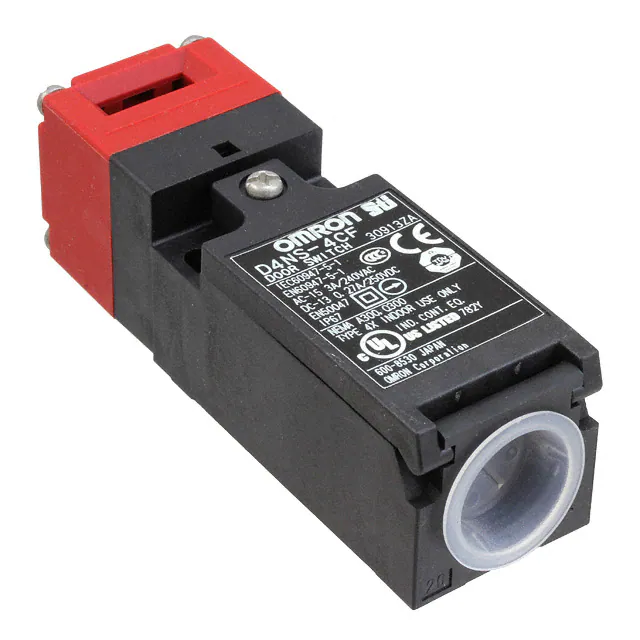

D4NS-4CFINTERLOCK NON-LOCKING 3PST |
142 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
HS6B-12B01INTERLOCK NON-LOCKING 3PST |
1,707 |
|
Datasheet |
HS6B | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
PXS10350INTERLOCK MAGNETIC 3PST 5M |
1,170 |
|
Datasheet |
PXS | Box | Active | Magnetic | 3PST-2NC/1NO | 24VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CE | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|

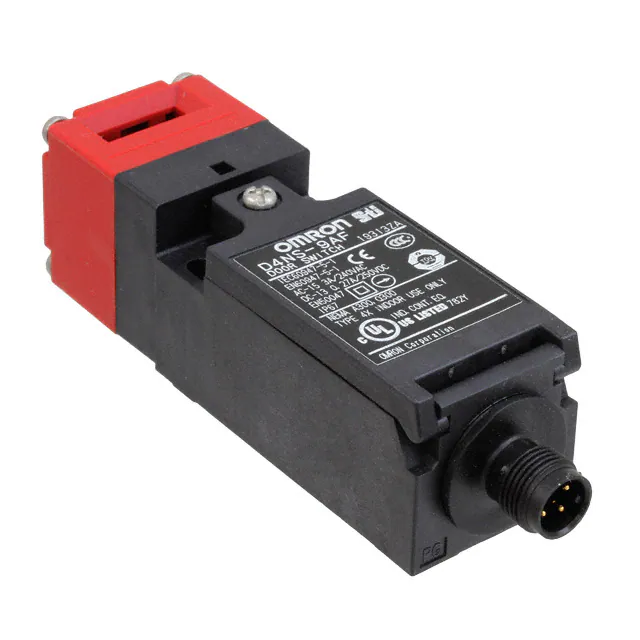

D4NS-9AFINTERLOCK NON-LOCKING DPST |
2,678 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | M12 Connector | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
HS5L-VD44M-GINTERLOCK SOLENOID RELEASE DPST |
128 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NC x 2 | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
HS6E-M7Y4B03-GINTERLOCK SOLENOID LOCKING 3PST |
2,700 |
|
Datasheet |
HS6E | Bulk | Active | Solenoid Locking | 3PST-NC + DPST-NC | 125VAC, 30VDC | 24VDC | 51kgf | 2.5A (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -25°C ~ 50°C |
