Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

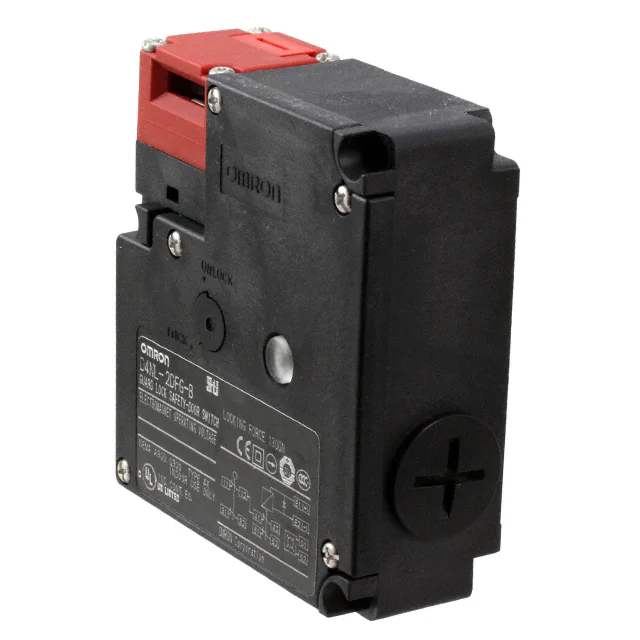

D4NL-2DFG-BINTERLOCK SOLENOID LOCKING DPST |
1,078 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Locking | DPST-NC x 2 | 240VAC, 250VDC | 24VDC | 133kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D4NL-1HFG-BINTERLOCK SOLENOID LOCKING 3PST |
3,240 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Locking | 3PST-NC + DPST-NC | 240VAC, 250VDC | 24VDC | 133kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D4NS-4ADINTERLOCK NON-LOCKING DPST |
1,861 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
PSS79050INTERLOCK MAGNETIC DPST 5M |
3,504 |
|
Datasheet |
PSS | Box | Active | Magnetic | DPST-NC | 24VDC | - | - | 10mA (DC) | Non-Contact | Wire Leads | - | 8mm | 20mm | CE, cURus | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|

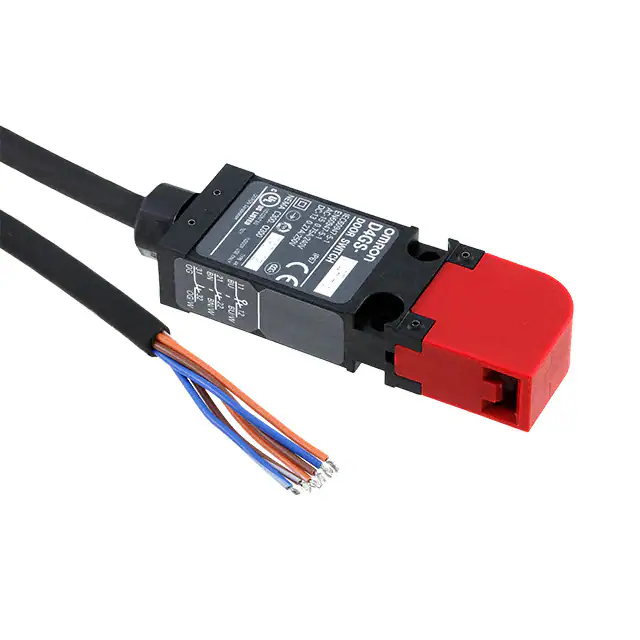

D4GS-N4R-5INTERLOCK NON-LOCKING 3PST |
1,089 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
KSD-2BVINTERLOCK NON-LOCKING DPST |
990 |
|
Datasheet |
KSD | Bulk | Active | Non-Locking | DPST-NC | 250VAC/DC | - | - | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CB, CCC, CE, cURus | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
KS2D-3BHINTERLOCK NON-LOCKING 3PST |
970 |
|
Datasheet |
KS2D | Bulk | Active | Non-Locking | 3PST-NC | 250VAC/DC | - | - | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
MLT-P10INTERLOCK MAGNETIC SPST |
2,206 |
|
Datasheet |
MLT | Bulk | Active | Magnetic | SPST-NO | 120VAC | - | - | 2A (AC) | - | Wire Leads | - | - | - | CSA, UL | - | - | -10°C ~ 60°C |
|
|
GKNC21INTERLOCK NON-LOCKING 3PST |
2,711 |
|
Datasheet |
GKN | Bulk | Active | Non-Locking | 3PST-2NC/1NO (BBM) | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
MLT-H08-SINTERLOCK MAGNETIC SPST |
4,879 |
|
Datasheet |
MLT | Bulk | Active | Magnetic | SPST-NO | 120VAC, 28VDC | - | - | 840mA, 3A | - | Wire Leads | - | - | - | CSA, UL | - | - | -10°C ~ 60°C |
|
|
MLT-P20INTERLOCK MAGNETIC SPST |
4,286 |
|
Datasheet |
MLT | Bulk | Active | Magnetic | SPST-NO | 120VAC | - | - | 2A (AC) | - | Wire Leads | - | - | - | CSA, UL | - | - | -10°C ~ 60°C |
|
|
MLT-P12-SINTERLOCK MAGNETIC SPST |
4,225 |
|
Datasheet |
MLT | Bulk | Active | Magnetic | SPST-NO | 120VAC | - | - | 2A (AC) | - | Wire Leads | - | - | - | CSA, UL | - | - | -10°C ~ 60°C |
|
|
KSD-2BHINTERLOCK NON-LOCKING DPST |
1,000 |
|
Datasheet |
KSD | Bulk | Active | Non-Locking | DPST-NC | 250VAC/DC | - | - | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CB, CCC, CE, cURus | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
KSD-2BCINTERLOCK NON-LOCKING DPST |
1,000 |
|
Datasheet |
KSD | Bulk | Active | Non-Locking | DPST-NC | 250VAC/DC | - | - | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CB, CCC, CE, cURus | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
KSD-ABVINTERLOCK NON-LOCKING DPST |
1,000 |
|
Datasheet |
KSD | Bulk | Active | Non-Locking | DPST-NO/NC | 250VAC/DC | - | - | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CB, CCC, CE, cURus | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
KSD-ABHINTERLOCK NON-LOCKING DPST |
1,000 |
|
Datasheet |
KSD | Bulk | Active | Non-Locking | DPST-NO/NC | 250VAC/DC | - | - | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CB, CCC, CE, cURus | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
KSD-ABCINTERLOCK NON-LOCKING DPST |
1,000 |
|
Datasheet |
KSD | Bulk | Active | Non-Locking | DPST-NO/NC | 250VAC/DC | - | - | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CB, CCC, CE, cURus | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
KS2D-2BVINTERLOCK NON-LOCKING DPST |
1,000 |
|
Datasheet |
KS2D | Bulk | Active | Non-Locking | DPST-NC | 250VAC/DC | - | - | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
KS2D-2BACINTERLOCK NON-LOCKING DPST |
1,000 |
|
Datasheet |
KS2D | Bulk | Active | Non-Locking | DPST-NC | 250VAC/DC | - | - | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
KS2D-2BHINTERLOCK NON-LOCKING DPST |
1,000 |
|
Datasheet |
KS2D | Bulk | Active | Non-Locking | DPST-NC | 250VAC/DC | - | - | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
