Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-LS42DMGINTERLOCK SOLENOID LOCKING DPST |
1,063 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 24VAC | 24VAC/DC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
SI-LS42DSIINTERLOCK SOLENOID RELEASE 3PST |
3,775 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + SPST-NC | 24VAC | 24VAC/DC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
SI-LS42DMIINTERLOCK SOLENOID LOCKING 3PST |
2,561 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + SPST-NC | 24VAC | 24VAC/DC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D4SL-N3NFA-DINTERLOCK SOLENOID RELEASE 3PST |
3,941 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cURus, TUV | 1/2" NPT | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

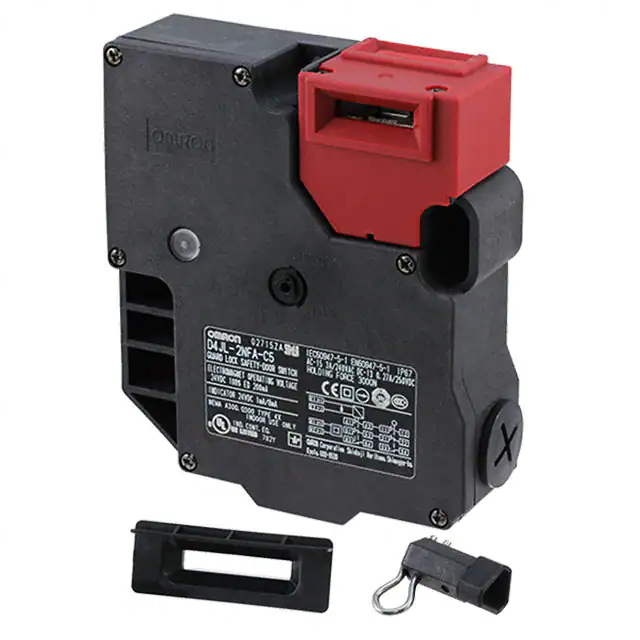

D4JL-2NFA-C5INTERLOCK SOLENOID RELEASE 3PST |
1,890 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

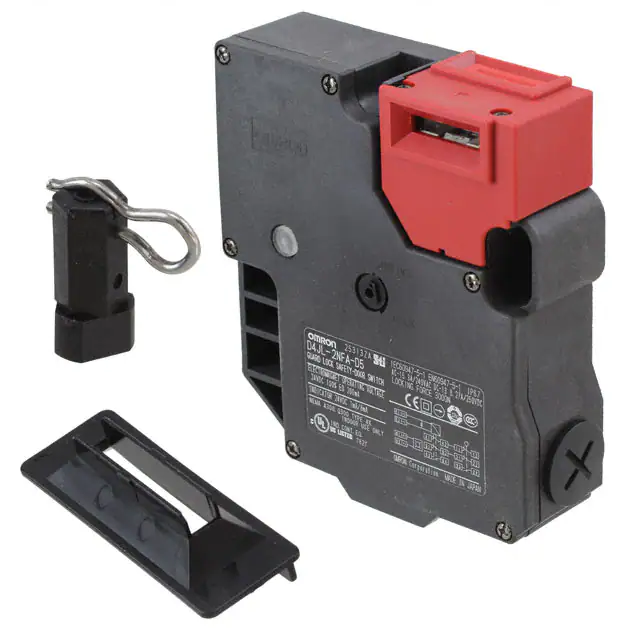

D4JL-2NFA-D5INTERLOCK SOLENOID RELEASE 3PST |
2,868 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
TL4019-30241RRINTERLOCK SOLENOID RELEASE 4PST |
2,498 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
D4BL-2CRAINTERLOCK SOLENOID RELEASE DPST |
1,893 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 250VAC | 24VDC | 71kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, UL | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

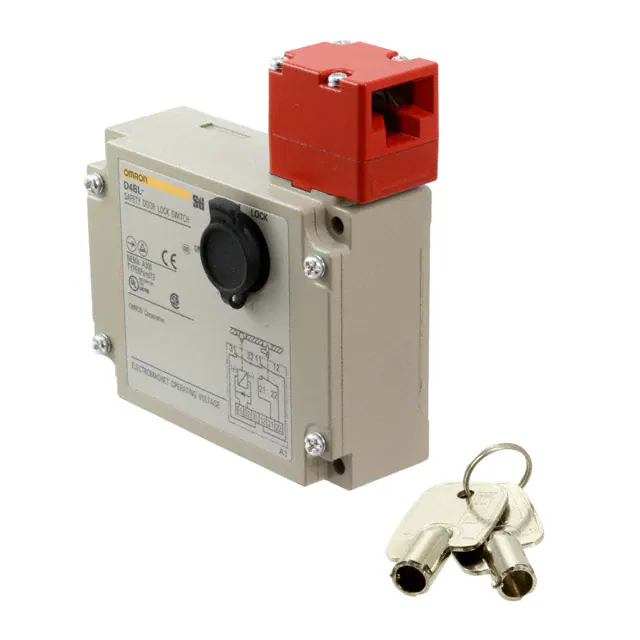

D4BL-2DRGINTERLOCK SOLENOID LOCKING DPST |
1,914 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Locking | DPST-NC (DB) + SPST-NC (DB) | 250VAC | 24VDC | 71kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, UL | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

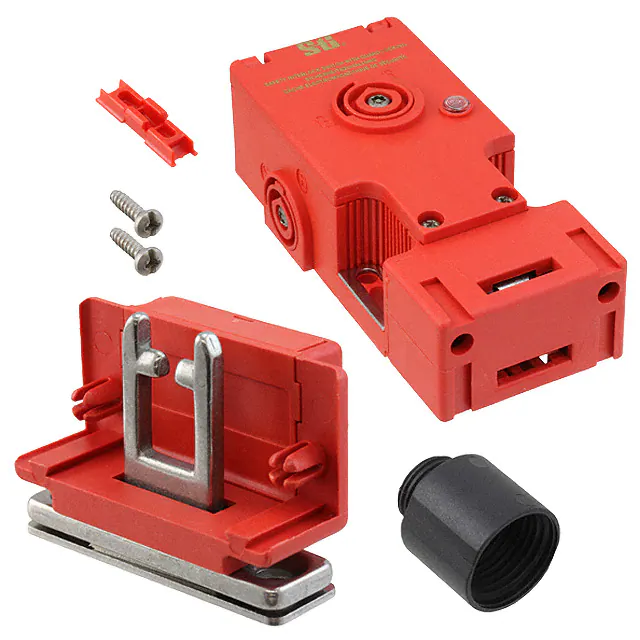

TL5012-1024SMINTERLOCK SOLENOID RELEASE 3PST |
3,167 |
|
Datasheet |
TL5012 | Bulk | Active | Solenoid Release | 3PST-2NC/1NO | 100VAC, 24VDC | 24VAC/DC | 102kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|

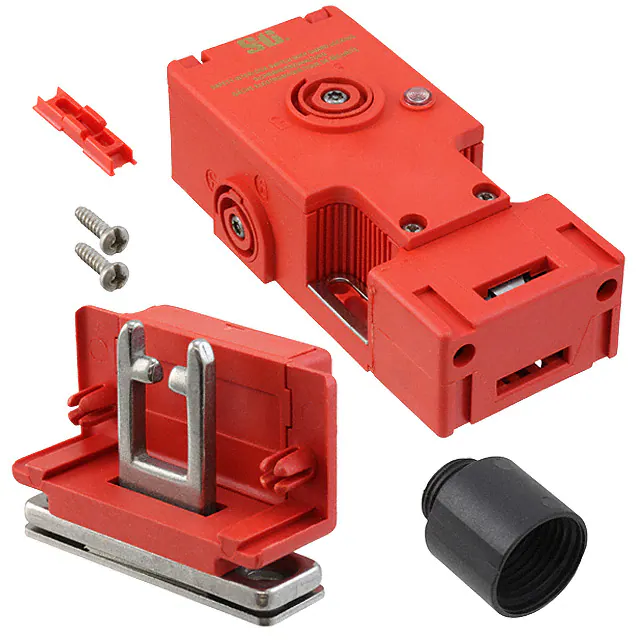

TL5012-1110SMINTERLOCK SOLENOID RELEASE 3PST |
4,342 |
|
Datasheet |
TL5012 | Bulk | Active | Solenoid Release | 3PST-2NC/1NO | 100VAC, 24VDC | 110VAC | 102kgf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -20°C ~ 60°C |
|
D40ML-P2-B-M12INTERLOCK RFID DPST |
4,348 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | 91kgf | 200mA (DC) | Non-Contact | Cable with Connector (M12) | Status Indicator, Magnetic Latching | 1mm | 10mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
GLS-S1INTERLOCK MAGNETIC SPST |
1,646 |
|
Datasheet |
GLS | Bulk | Active | Magnetic | SPST-NO | 100VDC | - | - | 100mA (DC) | Non-Contact | Screw Terminal | - | 15mm | - | CCC, CE | - | IP40 | -20°C ~ 60°C |
|
PSA60015INTERLOCK MAGNETIC SPST |
4,676 |
|
Datasheet |
PSA | Box | Active | Magnetic | SPST-NO | 440VAC | - | - | 3A (AC) | Non-Contact | Cable Leads | - | 15mm | - | CE | - | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
SI-LS83DINTERLOCK NON-LOCKING DPST |
4,495 |
|
Datasheet |
SI-LS83 | Bulk | Active | Non-Locking | DPST-NO/NC | 110VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M16 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
|

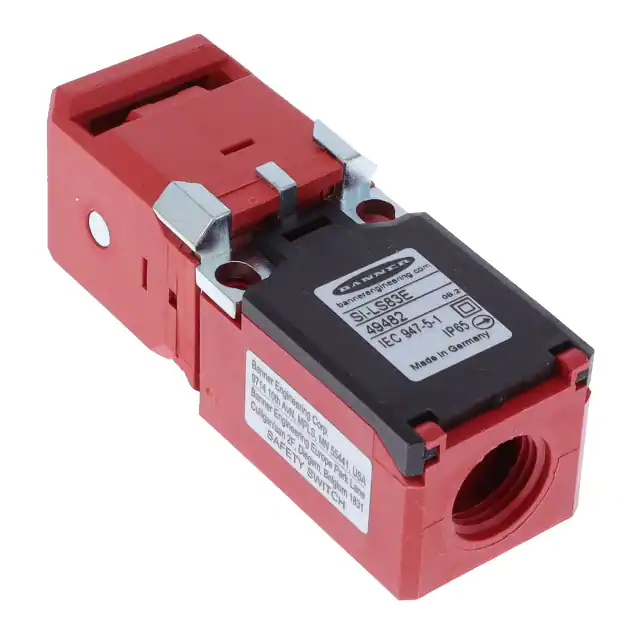

SI-LS83EINTERLOCK SWITCH DPST |
1,253 |
|
Datasheet |
SI-LS83 | Box | Active | - | DPST-NO | 100VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
|

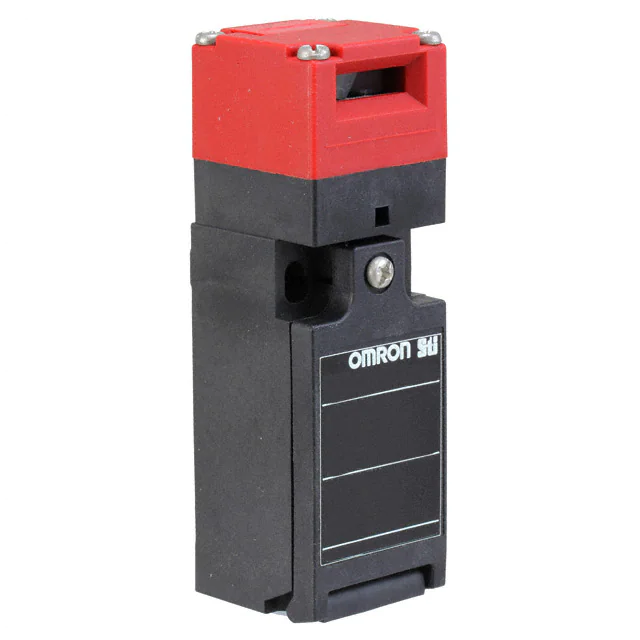

D4NS-1AFINTERLOCK NON-LOCKING DPST |
3,441 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
HS5D-11RNINTERLOCK NON-LOCKING DPST |
2,009 |
|
Datasheet |
HS5D | Bulk | Active | Non-Locking | DPST-NO/NC | 125VAC, 30VDC | - | 6kgf | 2.5A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
HS5D-02RNINTERLOCK NON-LOCKING DPST |
2,611 |
|
Datasheet |
HS5D | Bulk | Active | Non-Locking | DPST-NC | 125VAC, 30VDC | - | 5kgf | 2.5A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NS-2AFINTERLOCK NON-LOCKING DPST |
3,593 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
