Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4NS-1BFINTERLOCK NON-LOCKING DPST |
4,768 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
D4NS-2BFINTERLOCK NON-LOCKING DPST |
1,763 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

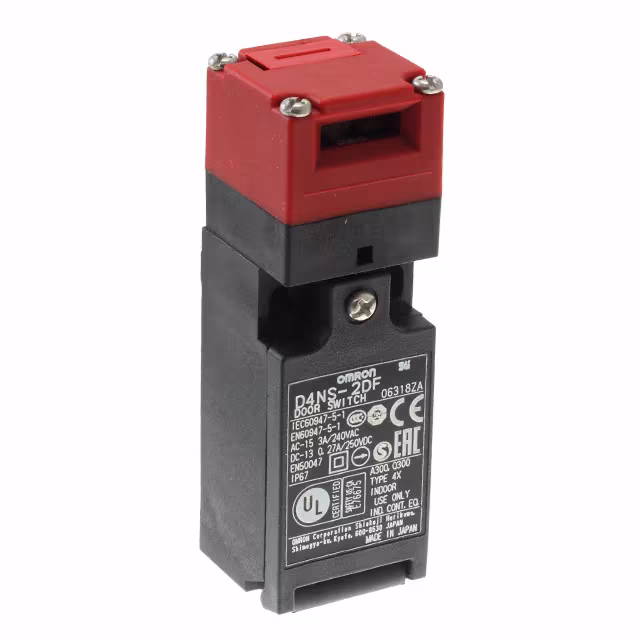

D4NS-2DFINTERLOCK NON-LOCKING 3PST |
1,899 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
GLS-1LINTERLOCK MAGNETIC SPST |
2,996 |
|
Datasheet |
GLS | Box | Active | Magnetic | SPST-NO | 100VDC | - | - | 100mA (DC) | Non-Contact | Wire Leads | - | 15mm | - | CCC, CE | - | IP40 | -20°C ~ 60°C |
|
D4NS-1DFINTERLOCK NON-LOCKING 3PST |
4,936 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
PXS70150INTERLOCK MAGNETIC 3PST 5M |
3,751 |
|
Datasheet |
PXS | Box | Active | Magnetic | 3PST-2NC/1NO | 24VDC | 24VDC | - | 10mA (DC) | Non-Contact | Cable Leads | Status Indicator | 8mm | 20mm | CE, cURus | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
XCSPA793INTERLOCK NON-LOCKING DPST |
1,010 |
|
Datasheet |
XCSPA | Box | Active | Non-Locking | DPST-NC | 120VAC, 125VDC | - | 1kgf | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
6025059INTERLOCK NON-LOCKING 3PST |
2,843 |
|
Datasheet |
i12S | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC, 24VDC | - | 2kgf | 3A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M16 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
XCSPA593INTERLOCK NON-LOCKING DPST |
3,344 |
|
Datasheet |
XCSPA | Box | Active | Non-Locking | DPST-NO/NC | 120VAC, 125VDC | - | 1kgf | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
6025067INTERLOCK NON-LOCKING 3PST |
1,417 |
|
Datasheet |
i17S | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC, 24VDC | - | 1kgf | 3A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|

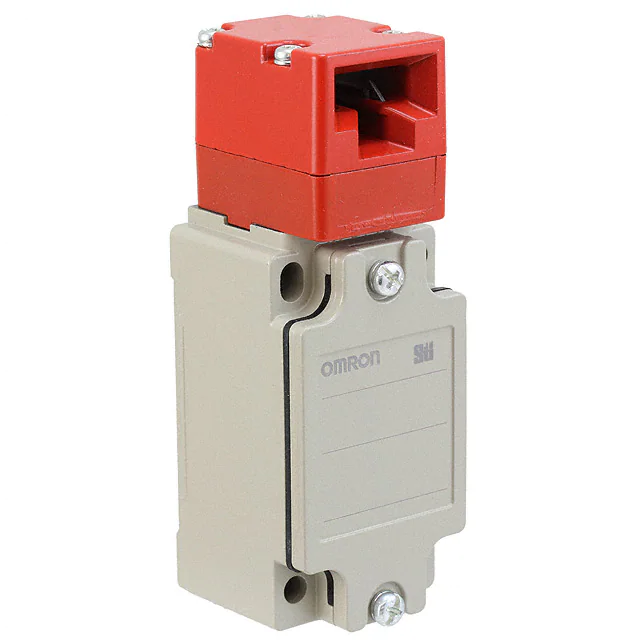

D4BS-4AFSINTERLOCK NON-LOCKING DPST |
2,499 |
|
Datasheet |
D4BS | Bulk | Active | Non-Locking | DPST-NC | 120VAC | - | 2kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 | IP67 - Dust Tight, Waterproof | -40°C ~ 80°C |
|
D4GS-N1TINTERLOCK NON-LOCKING DPST |
4,404 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-4BBC-NPTINTERLOCK HINGE DPST |
4,019 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
XCSDMC7902INTERLOCK MAGNETIC DPST |
1,070 |
|
Datasheet |
XCSD | Box | Active | Magnetic | DPST-NC | 24VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 5mm | 15mm | CSA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
GKEA01LINTERLOCK NON-LOCKING DPST |
3,814 |
|
Datasheet |
GKE | Bulk | Active | Non-Locking | DPST-NO/NC | 120VAC, 24VDC | - | - | 6A (AC), 2.8A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | 1/2" NPT | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|

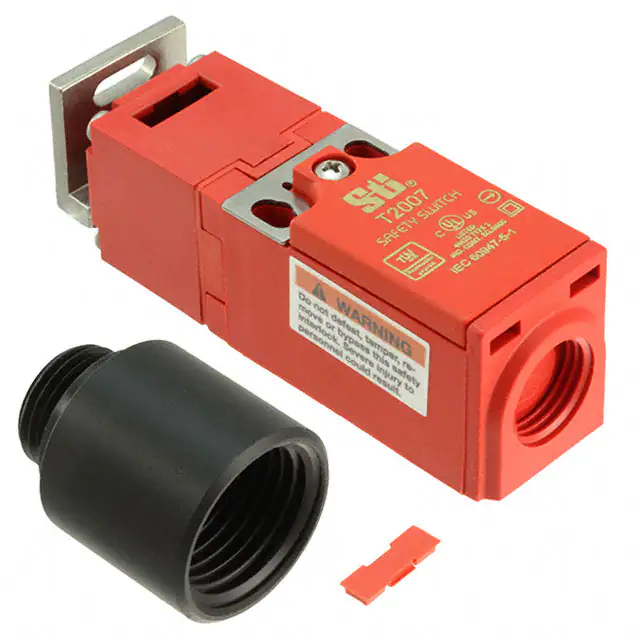

T2007-11SMINTERLOCK NON-LOCKING DPST |
2,570 |
|
Datasheet |
T2007 | Bulk | Active | Non-Locking | DPST-NO/NC | 100VAC, 24VDC | - | 612gf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M16 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
T2007-11TMINTERLOCK NON-LOCKING DPST |
2,691 |
|
Datasheet |
T2007 | Bulk | Active | Non-Locking | DPST-NO/NC | 100VAC, 24VDC | - | 612gf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M16 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
SI-RFPT-UP5INTERLOCK SW RFID UNIQUE CODE |
3,336 |
|
Datasheet |
SI-RF | Bulk | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|
D4GS-N2TINTERLOCK NON-LOCKING DPST |
4,409 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | DPST-NC | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

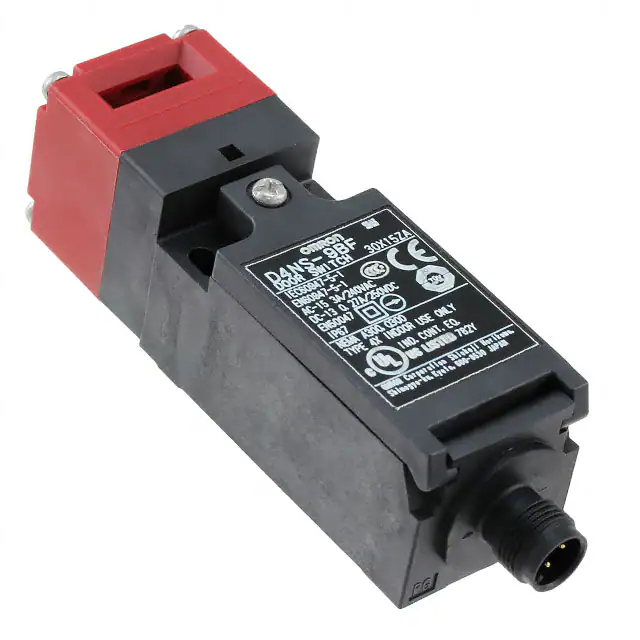

D4NS-9BFINTERLOCK NON-LOCKING DPST |
1,383 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M12 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
