Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM-S11PC5INTERLOCK MAGNETIC |
2,390 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | - | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 5 ~ 7mm | 8 ~ 12mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
SI-RFST-UP8INTERLOCK SW RFID UNIQUE CODE |
1,337 |
|
Datasheet |
SI-RF | Bag | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|
|
SI-RFST-HP8INTERLOCK SWITCH RFID |
4,293 |
|
Datasheet |
SI-RF | Bag | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|
|
SI-RFPT-L2MINTERLOCK SWITCH RFID |
1,650 |
|
Datasheet |
SI-RF | Box | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable Leads | Automatic Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|

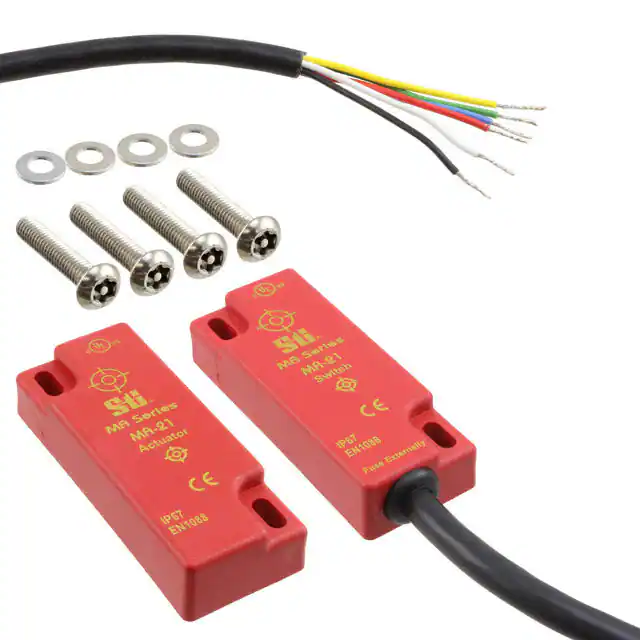

MA-15DP21C3INTERLOCK MAGNETIC 3PST |
4,629 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 30VDC | - | - | 300mA (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SI-RFDT-UP8INTERLOCK SW RFID UNIQUE CODE |
3,177 |
|
Datasheet |
SI-RF | Bag | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|
|
SI-RFDL-HP8INTERLOCK SWITCH RFID |
4,055 |
|
Datasheet |
SI-RF | Box | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Manual Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|
XCSDMP700L01M12INTERLOCK MAGNETIC 3PST |
1,933 |
|
Datasheet |
XCSDMP | Box | Active | Magnetic | 3PST-2NC/1NO | 24VDC | - | - | 100mA (DC) | Non-Contact | Connector (M12) | - | - | - | CSA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|

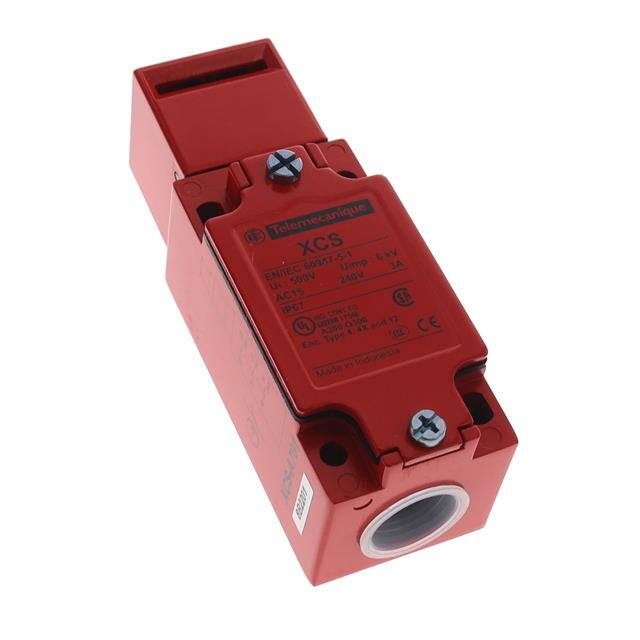

XCSA701INTERLOCK NON-LOCKING 3PST |
3,138 |
|
Datasheet |
XCSA | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|

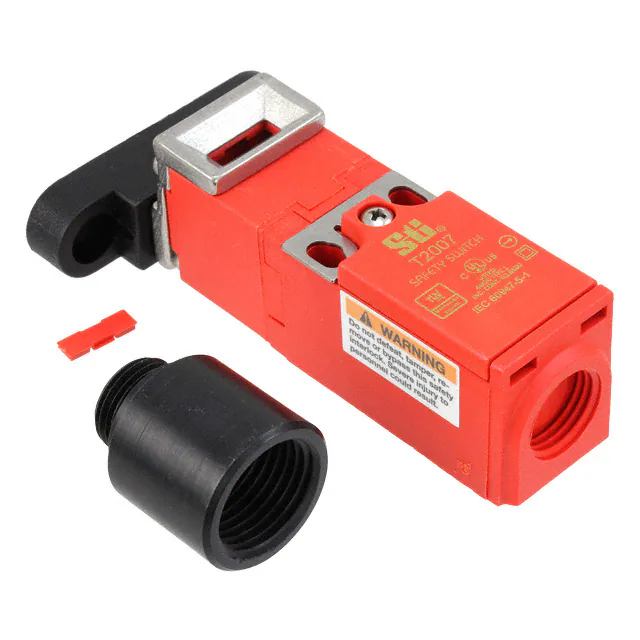

T2007-02F1INTERLOCK NON-LOCKING DPST |
1,384 |
|
Datasheet |
T2007 | Bulk | Active | Non-Locking | DPST-NC | 100VAC, 24VDC | - | 612gf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M16 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|

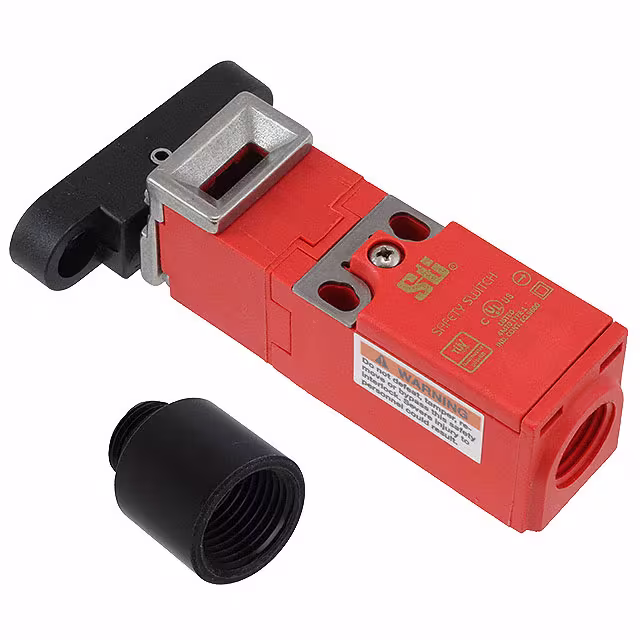

T2007-11F1INTERLOCK NON-LOCKING DPST |
1,254 |
|
Datasheet |
T2007 | Bulk | Active | Non-Locking | DPST-NO/NC | 100VAC, 24VDC | - | 612gf | 5A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M16 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
1202570004INTERLOCK MAGNETIC DPST |
4,889 |
|
Datasheet |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable with Connector (M12) | - | 4mm | 10mm | TUV, UL | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 80°C |
|
CM-S5PC10INTERLOCK MAGNETIC DPST |
3,025 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 7mm | 10mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
XCSA703INTERLOCK NON-LOCKING 3PST |
1,962 |
|
Datasheet |
XCSA | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|

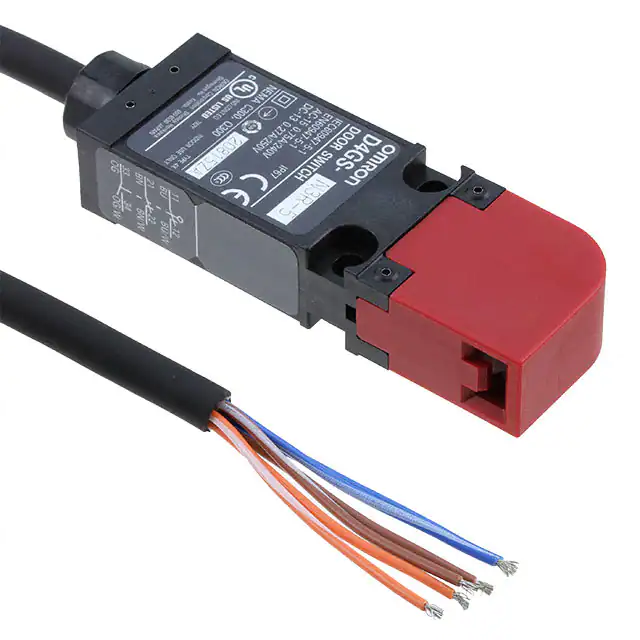

D4GS-N3R-5INTERLOCK NON-LOCKING 3PST |
2,033 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 5m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
HS5L-VC44M-GINTERLOCK SOLENOID RELEASE DPST |
1,774 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
HS5L-VD7Y4M-GINTERLOCK SOLENOID LOCKING DPST |
4,716 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Locking | DPST-NC x 2 | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
|
HS5L-VF7Y4M-GINTERLOCK SOLENOID LOCKING 3PST |
3,892 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Locking | 3PST-NC + SPST-NC | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
|
HS5L-VB44M-GINTERLOCK SOLENOID RELEASE DPST |
1,549 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
|
HS5L-VB7Y4M-GINTERLOCK SOLENOID LOCKING DPST |
3,551 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
