Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4NS-6BFINTERLOCK NON-LOCKING DPST |
3,371 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
PS21S-NT0209-T00INTERLOCK NON-LOCKING DPST |
4,253 |
|
Datasheet |
PS21S | Bulk | Active | Non-Locking | DPST-NC | 130VAC, 24VDC | - | 2kgf | 5.5A (AC), 2.8A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | 1/2" NPT | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C |
|
D4NS-8AFINTERLOCK NON-LOCKING DPST |
3,096 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
XCSTA893INTERLOCK NON-LOCKING 3PST |
3,411 |
|
Datasheet |
XCST | Box | Active | Non-Locking | 3PST-NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D4NS-1FFINTERLOCK NON-LOCKING 3PST |
2,023 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-2NC/1NO (MBB) | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4BS-25FSINTERLOCK NON-LOCKING DPST |
3,124 |
|
Datasheet |
D4BS | Bulk | Active | Non-Locking | DPST-NO/NC | 120VAC | - | 2kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | G1/2 | IP67 - Dust Tight, Waterproof | -40°C ~ 80°C |
|
D4NH-1BBCINTERLOCK HINGE DPST |
3,004 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NS-8DFINTERLOCK NON-LOCKING 3PST |
3,116 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

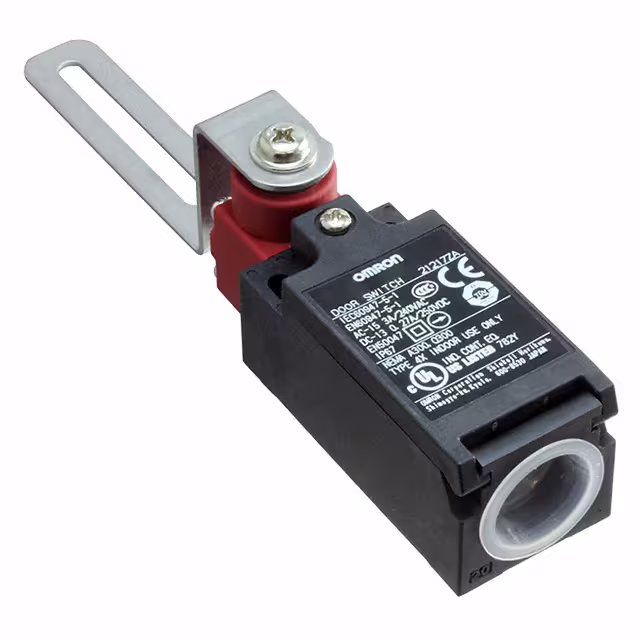

D4NH-4BBCINTERLOCK HINGE DPST |
3,210 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

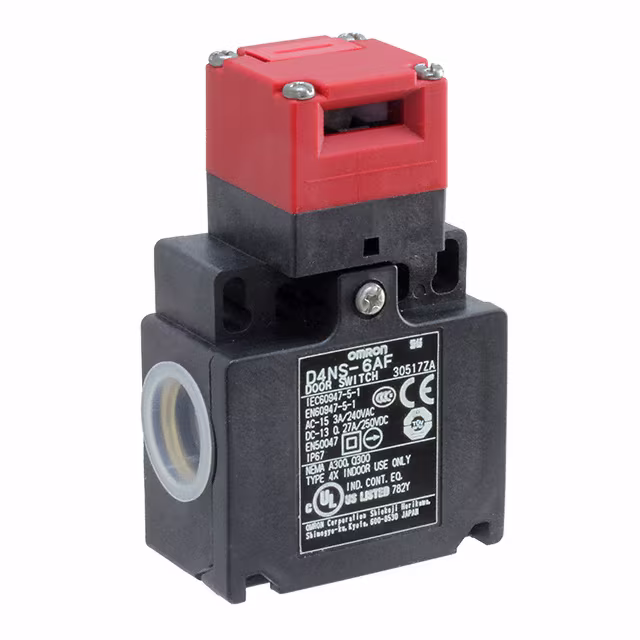

D4NS-6AFINTERLOCK NON-LOCKING DPST |
1,702 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

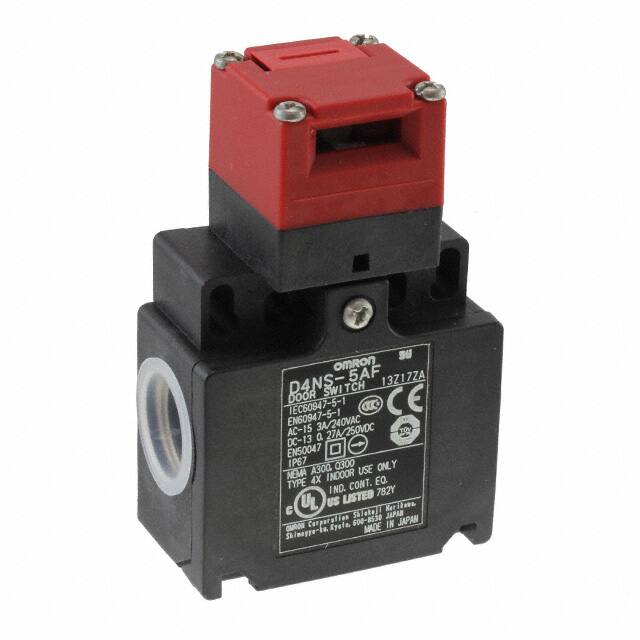

D4NS-5AFINTERLOCK NON-LOCKING DPST |
3,950 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

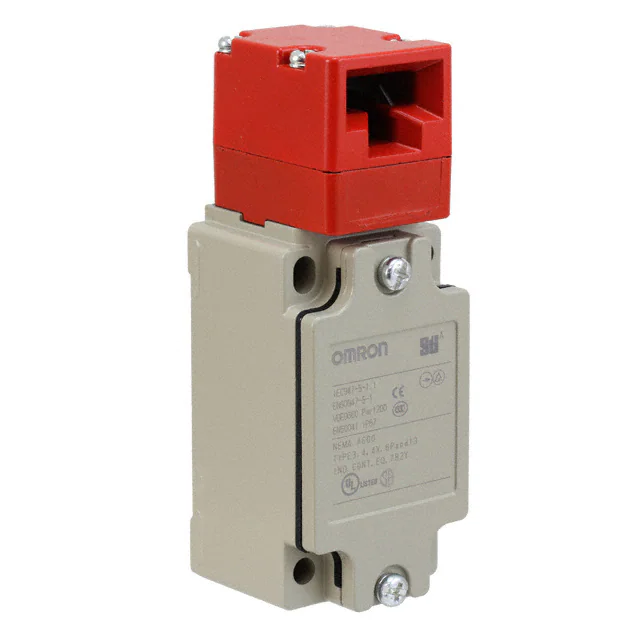

D4BS-1AFSINTERLOCK NON-LOCKING DPST |
1,741 |
|
Datasheet |
D4BS | Bulk | Active | Non-Locking | DPST-NC | 120VAC | - | 2kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -40°C ~ 80°C |
|
D4NS-4DDINTERLOCK NON-LOCKING 3PST |
3,853 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

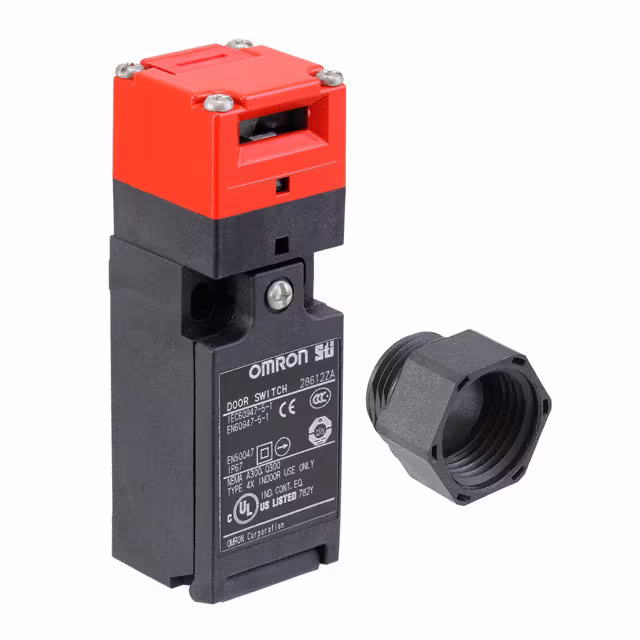

D4NS-4AD-NPTINTERLOCK NON-LOCKING DPST |
4,326 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

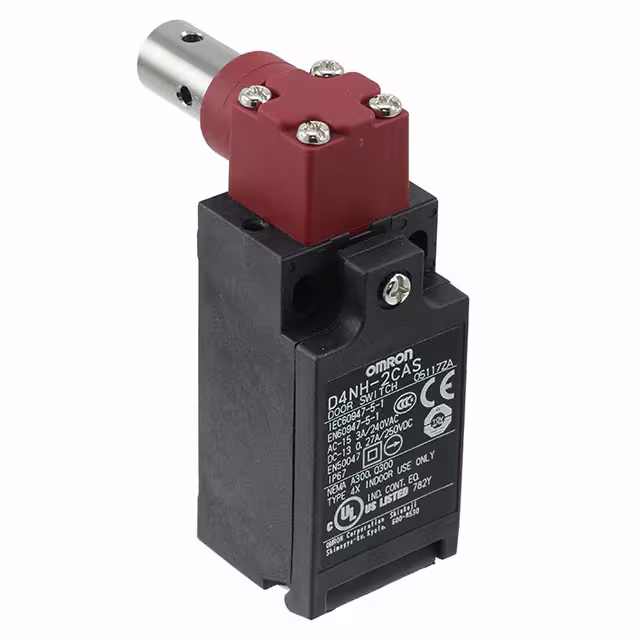

D4NH-2CASINTERLOCK HINGE 3PST |
1,880 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-2DASINTERLOCK HINGE 3PST |
3,295 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NS-6DFINTERLOCK NON-LOCKING 3PST |
1,042 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

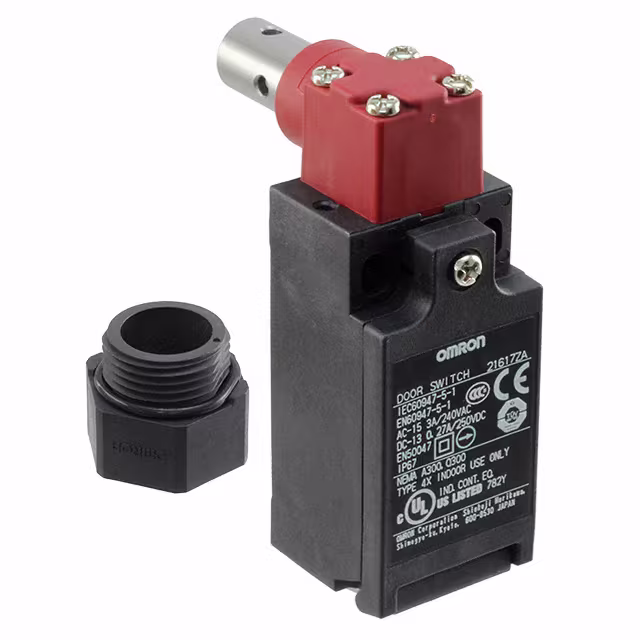

D4NH-4DAS-NPTINTERLOCK HINGE 3PST |
4,389 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-1DASINTERLOCK HINGE 3PST |
3,573 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

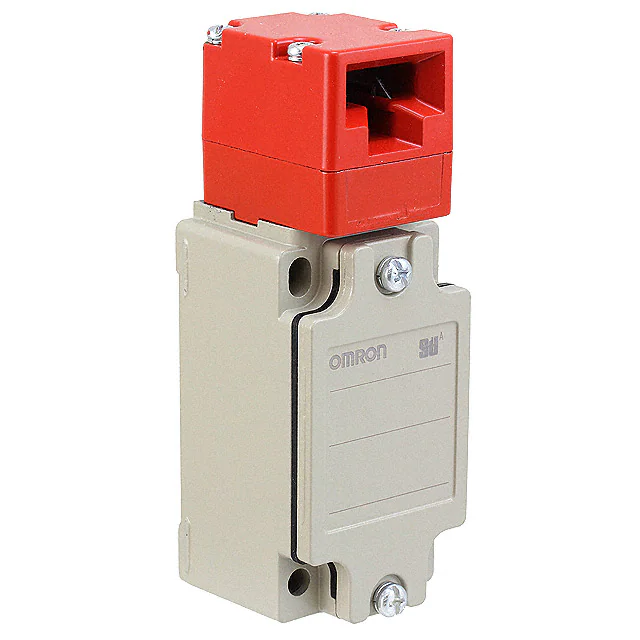

D4BS-2AFSINTERLOCK NON-LOCKING DPST |
2,703 |
|
Datasheet |
D4BS | Bulk | Active | Non-Locking | DPST-NC | 120VAC | - | 2kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | G1/2 | IP67 - Dust Tight, Waterproof | -40°C ~ 80°C |
