Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4SL-N2NFA-DNINTERLOCK SOLENOID RELEASE 3PST |
3,719 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 120VAC, 125VDC | - | 133kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N2HFG-DINTERLOCK SOLENOID LOCKING 3PST |
4,272 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-NC + DPST-NC | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cURus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
SI-LS42DMSGFINTERLOCK SOLENOID RELEASE DPST |
3,270 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC x 2 | 24VAC | 24VAC/DC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D4SL-N4RDA-DINTERLOCK SOLENOID RELEASE 3PST |
1,202 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-NC x 2 | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cURus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
SI-LS42WSGINTERLOCK SOLENOID RELEASE DPST |
2,236 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC x 2 | 24VAC | 110/230VAC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|

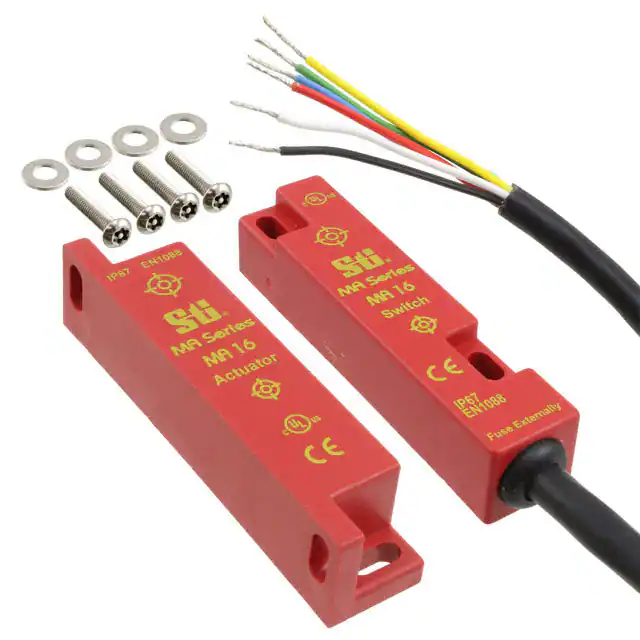

MA16DP21C3INTERLOCK MAGNETIC 3PST |
2,457 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 30VDC | - | - | 1A (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SI-LS42DMSIFINTERLOCK SOLENOID LOCKING 3PST |
1,101 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + SPST-NC | 24VAC | 24VAC/DC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D4SL-N3NFG-DINTERLOCK SOLENOID LOCKING 3PST |
4,197 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO x 2 | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cURus, TUV | 1/2" NPT | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
6025060INTERLOCK SOLENOID RELEASE 3PST |
4,380 |
|
Datasheet |
i14 Lock | Bulk | Active | Solenoid Release | 3PST-2NC/1NO | 240VAC, 24VDC | 20.4 ~ 26.4VDC | 102kgf | 3A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M20 | IP65 - Dust Tight, Water Resistant | -20°C ~ 60°C |
|
|
6070817INTERLOCK SWITCH RFID |
4,763 |
|
Datasheet |
TR4 | Box | Active | RFID | - | - | 24VDC | - | - | Non-Contact | Cable with Connector (M12) | - | 15mm | 25mm | CE, cULus | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 70°C |
|
|
6022585INTERLOCK SOLENOID LOCKING 4PST |
3,286 |
|
Datasheet |
i10 Lock | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO | 230VAC, 24VDC | 24VDC | 133kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|

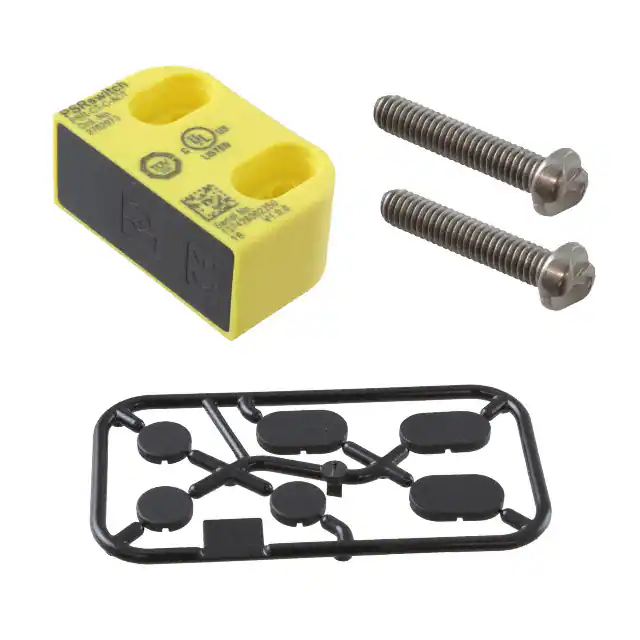

2702973INTERLOCK SWITCH RFID PROX |
4,762 |
|
Datasheet |
PSR-CT | Box | Active | RFID | - | 24VDC | 24VDC | - | 150mA (DC) | Non-Contact | Connector (M12) | Status Indicator | 13mm | 20mm | - | - | - | -25°C ~ 55°C |
|
PSA60010INTERLOCK MAGNETIC SPST |
3,560 |
|
Datasheet |
PSA | Box | Active | Magnetic | SPST-NO | 440VAC | - | - | 3A (AC) | Non-Contact | Cable Leads | - | 15mm | - | CE, cURus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
D4NH-2AASINTERLOCK HINGE DPST |
1,623 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-1BASINTERLOCK HINGE DPST |
4,310 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NS-2FFINTERLOCK NON-LOCKING 3PST |
4,449 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-2NC/1NO (MBB) | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-2BBCINTERLOCK HINGE DPST |
3,056 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
SI-LS100FINTERLOCK NON-LOCKING 3PST |
1,842 |
|
Datasheet |
SI-LS100 | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 110VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
|
D4NS-5BFINTERLOCK NON-LOCKING DPST |
4,293 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
SI-LS83SRADINTERLOCK NON-LOCKING DPST |
1,944 |
|
Datasheet |
SI-LS83 | Bulk | Active | Non-Locking | DPST-NO/NC | 110VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M16 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
