Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

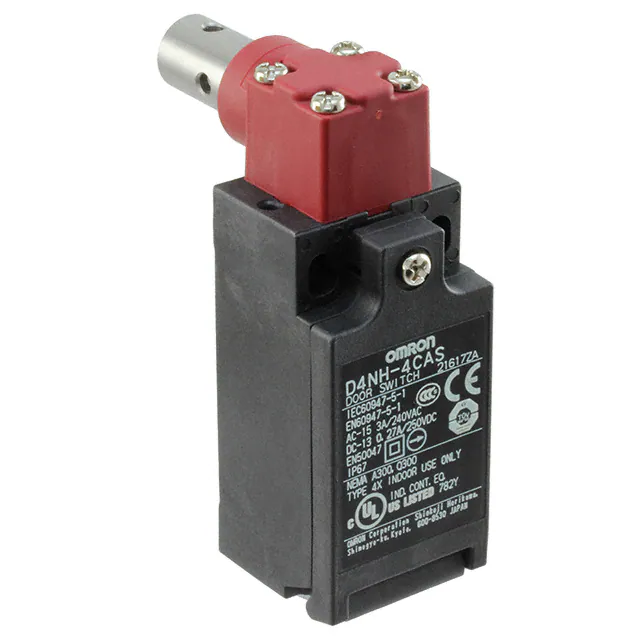

D4NH-4CASINTERLOCK HINGE 3PST |
1,256 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

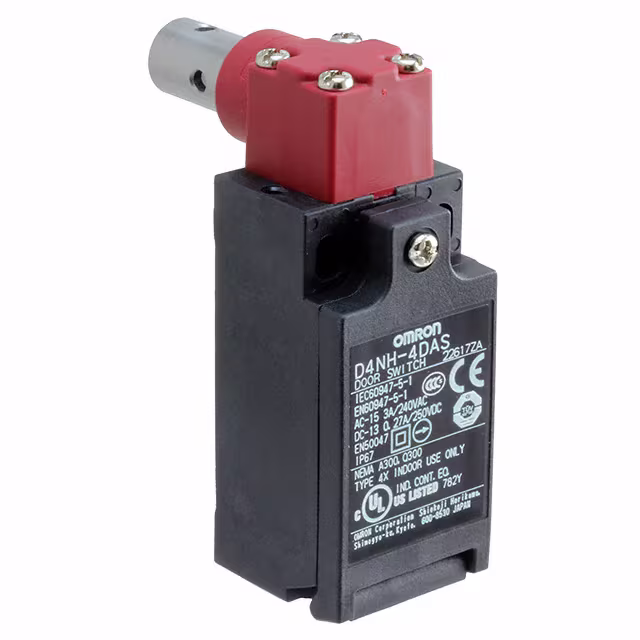

D4NH-4DASINTERLOCK HINGE 3PST |
1,757 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-4DBCINTERLOCK HINGE 3PST |
2,906 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

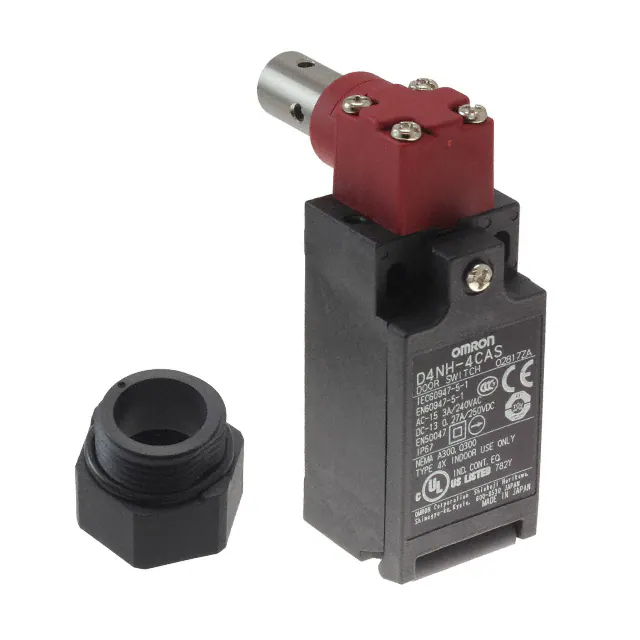

D4NH-4CAS-NPTINTERLOCK HINGE 3PST |
4,411 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
2702972INTERLOCK SWITCH RFID PROX |
1,835 |
|
Datasheet |
PSR-CT | Box | Active | RFID | - | 24VDC | 24VDC | - | 150mA (DC) | Non-Contact | Connector (M12) | Status Indicator | 13mm | 20mm | - | - | - | -25°C ~ 55°C |
|
XCSDMR5912INTERLOCK MAGNETIC DPST |
4,652 |
|
Datasheet |
XCSD | Box | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 100mA (DC) | - | Cable Leads | - | 8mm | 20mm | CSA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
XCSDMP7012INTERLOCK MAGNETIC 3PST |
4,259 |
|
Datasheet |
XCSDMP | Box | Active | Magnetic | 3PST-2NC/1NO | 24VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CSA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
XCSDMP5002INTERLOCK MAGNETIC 3PST |
3,538 |
|
Datasheet |
XCSDMP | Box | Active | Magnetic | 3PST-2NO/1NC | 24VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CSA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|

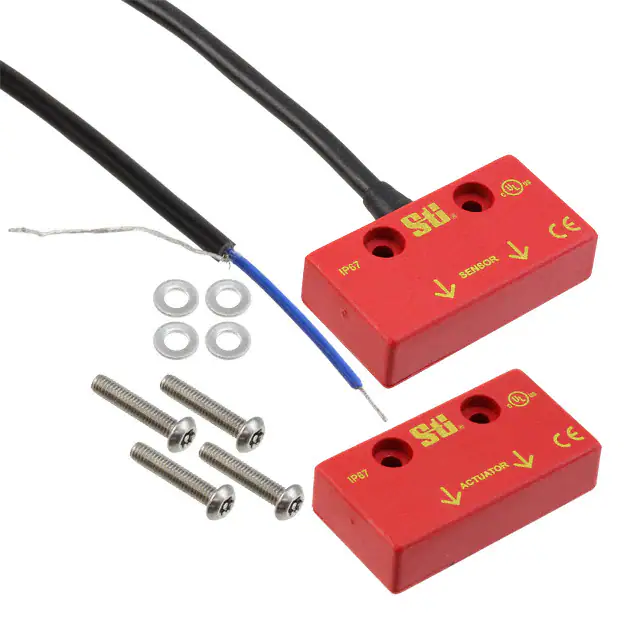

CM-S11PC3INTERLOCK MAGNETIC 3M CABLE |
3,448 |
|
Datasheet |
CM | Bulk | Active | Magnetic | - | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 5 ~ 7mm | 8 ~ 12mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
HS5L-VJ44M-GINTERLOCK SOLENOID RELEASE 3PST |
1,380 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + SPST-NC | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
SI-RFSL-LP8INTERLOCK SWITCH RFID |
4,572 |
|
Datasheet |
SI-RF | Bulk | Active | RFID | - | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Manual Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|

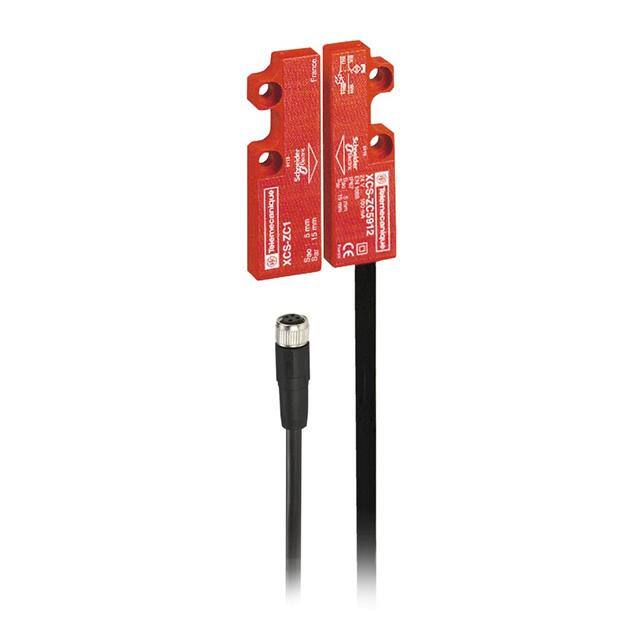

XCSDMC590L01M8INTERLOCK MAGNETIC DPST |
1,288 |
|
Datasheet |
XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 100mA (DC) | Non-Contact | Connector (M8) | - | - | - | CSA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
MC-S2XCPC3INTERLOCK MAGNETIC 3PST |
2,290 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable Leads | - | 9mm | 12mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D4GS-N4TINTERLOCK NON-LOCKING 3PST |
3,134 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4GS-N4RINTERLOCK NON-LOCKING 3PST |
4,946 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
1202570000INTERLOCK MAGNETIC DPST |
3,577 |
|
Datasheet |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable with Connector (M12) | - | 4mm | 10mm | TUV, UL | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 80°C |
|

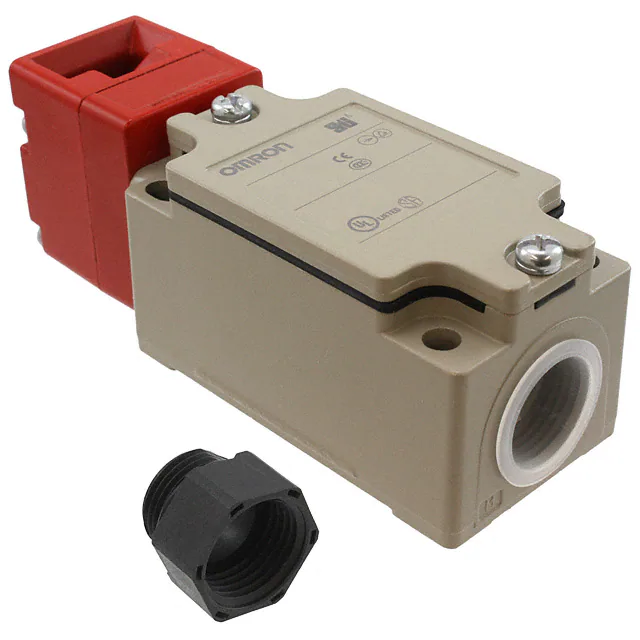

D4BS-4AFSNPTINTERLOCK NON-LOCKING DPST |
4,861 |
|
Datasheet |
D4BS | Bulk | Active | Non-Locking | DPST-NC | 120VAC | - | 2kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 | IP67 - Dust Tight, Waterproof | -40°C ~ 80°C |
|
|
D4GS-N3R-3INTERLOCK NON-LOCKING 3PST |
3,696 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

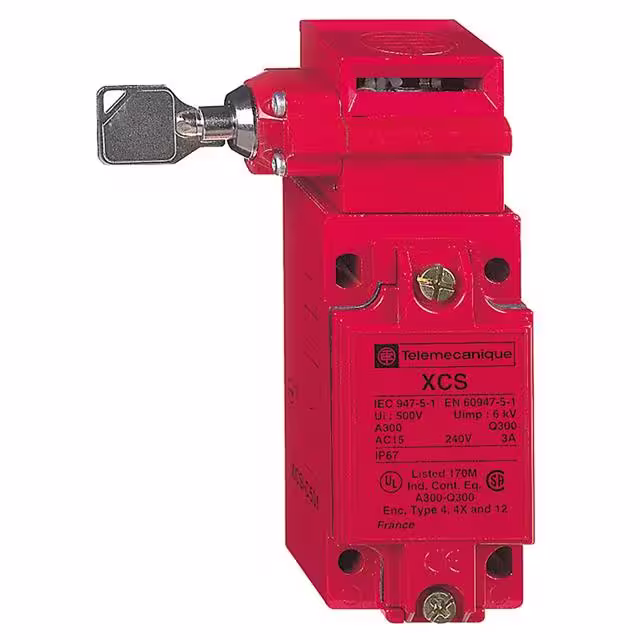

XCSC703INTERLOCK KEY LOCKING 3PST |
4,467 |
|
Datasheet |
XCSC | Box | Active | Key Locking | 3PST-2NC/1NO | 240VAC, 250VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
XCSA803INTERLOCK NON-LOCKING 3PST |
4,716 |
|
Datasheet |
XCSA | Box | Active | Non-Locking | 3PST-NC | 240VAC, 250VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
