Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA-2DPC15INTERLOCK MAGNETIC DPST |
3,365 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 30VDC | - | - | 1A (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
SI-LS42WMSGINTERLOCK SOLENOID LOCKING DPST |
3,753 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 24VAC | 110/230VAC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|

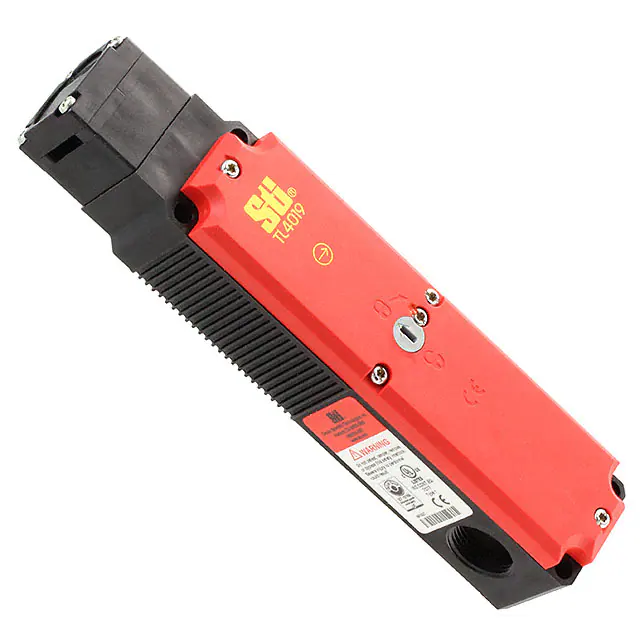

TL4019-40242INTERLOCK SOLENOID LOCKING 4PST |
2,200 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
6027388INTERLOCK INDUCTIVE |
3,668 |
|
Datasheet |
IN4000 | Bulk | Active | Inductive | - | - | 24VDC | - | - | Non-Contact | Connector (M12) | Staus Indicator | 10 ~ 15mm | 30mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|

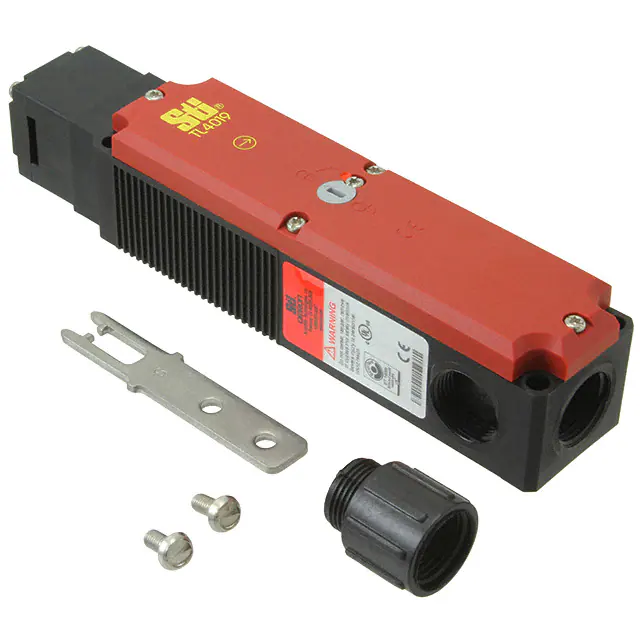

TL4019-20241TMINTERLOCK SOLENOID LOCKING 4PST |
2,083 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
SI-LS42WMMIFINTERLOCK SOLENOID LOCKING 3PST |
1,821 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + SPST-NC | 24VAC | 110/230VAC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
SI-LS42WMSIFINTERLOCK SOLENOID RELEASE 3PST |
2,412 |
|
Datasheet |
SI-LS42 | Box | Active | Solenoid Release | 3PST-2NC/1NO + SPST-NC | 24VAC | 110/230VAC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D4BL-1CRG-AINTERLOCK SOLENOID LOCKING DPST |
4,810 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Locking | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 115VAC | 24VDC | 71kgf | 6A (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

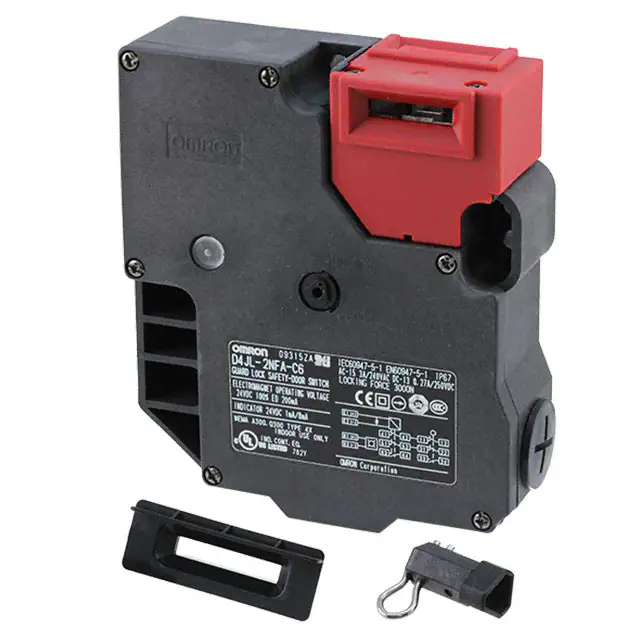

D4JL-2NFA-C6INTERLOCK SOLENOID RELEASE 3PST |
3,078 |
|
Datasheet |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 240VAC, 250VDC | 24VDC | 306kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
6029934INTERLOCK SOLENOID RELEASE DPST |
3,815 |
|
Datasheet |
i10 Lock | Bulk | Active | Solenoid Release | DPST-NC | 230VAC, 24VDC | 24VDC | 133kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
TL4019-40242TMINTERLOCK SOLENOID LOCKING 4PST |
1,506 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|

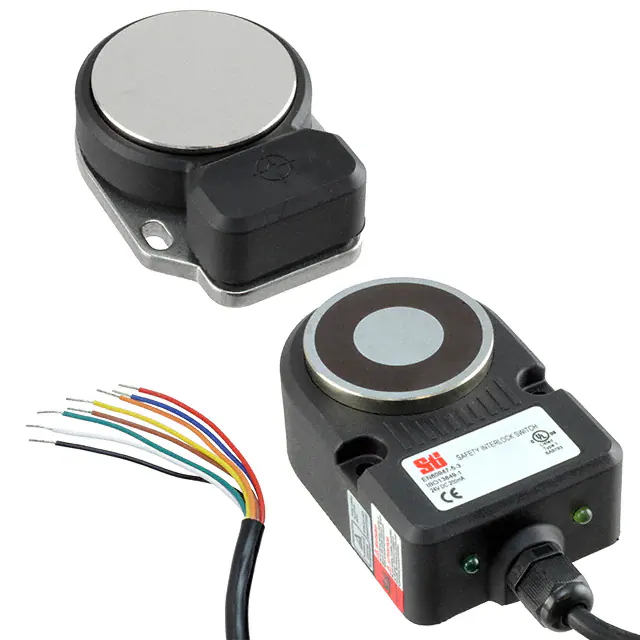

D40ML-P2-U-5MINTERLOCK RFID DPST |
1,070 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | 91kgf | 200mA (DC) | Non-Contact | Cable Leads | Status Indicator, Magnetic Latching | 1mm | 10mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|

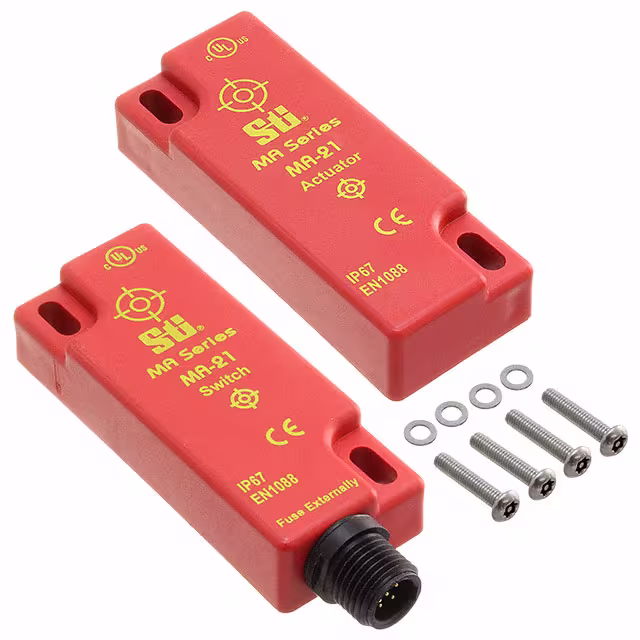

MA-20DPCCINTERLOCK MAGNETIC DPST |
3,829 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NC | 30VDC | - | - | 1A (DC) | Non-Contact | Connector (Micro AC) | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D40ML-M2-U-5MINTERLOCK RFID DPST |
2,939 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | 91kgf | 200mA (DC) | Non-Contact | Cable Leads | Status Indicator, Magnetic Latching | 1mm | 10mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|

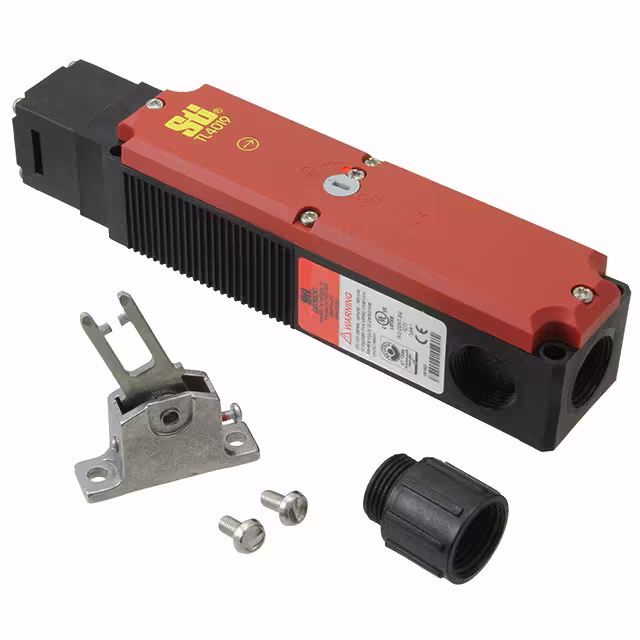

TL4019-40241F1MINTERLOCK SOLENOID LOCKING 4PST |
4,580 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
XCSE5311INTERLOCK SOLENOID LOCKING 3PST |
2,206 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NO/1NC | 120VAC, 125VDC | - | 2kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
|
XCSE5333INTERLOCK SOLENOID LOCKING 3PST |
1,213 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NO/1NC | 120VAC, 125VDC | - | 2kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
|
XCSE7333INTERLOCK SOLENOID LOCKING 3PST |
3,647 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | 2kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
|
XCSE5513INTERLOCK SOLENOID LOCKING 3PST |
1,790 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NO/1NC | 120VAC, 125VDC | - | 2kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|

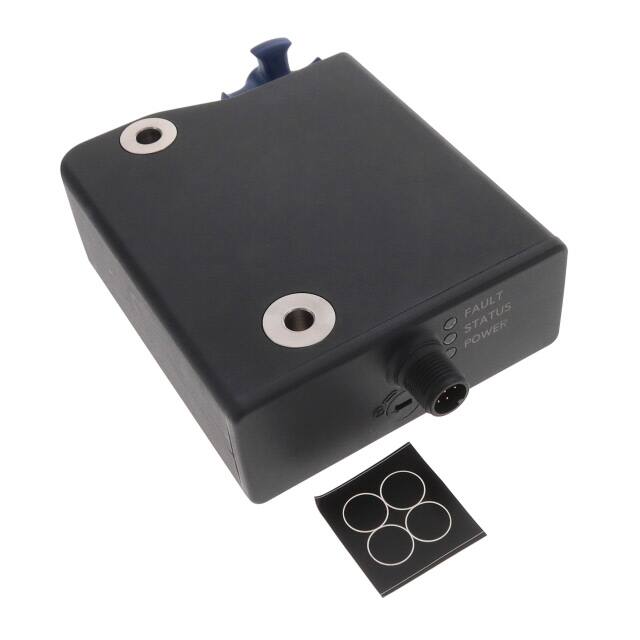

D41L2YDGN2INTERLOCK RFID SOLENOID LOCKING |
1,008 |
|
Datasheet |
D41L | Box | Active | RFID, Solenoid Locking | - | 24VDC | 24VDC | 117kgf | 250mA (DC) | Panel Disconnect | Connector (M12) | Manual Override | - | - | CE, cULus | - | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | 0°C ~ 60°C |
