Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D41L1ZDAN2INTERLOCK RFID SOLENOID RELEASE |
3,045 |
|
Datasheet |
D41L | Box | Active | RFID, Solenoid Release | - | 24VDC | 24VDC | 117kgf | 250mA (DC) | Panel Disconnect | Connector (M12) | Manual Override | - | - | CE, cULus | - | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | 0°C ~ 60°C |
|
XCSE7533INTERLOCK SOLENOID LOCKING 3PST |
2,447 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-1NO/2NC | 120VAC, 125VDC | - | 2kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
D40ML-SS1-U-5MINTERLOCK RFID DPST |
4,462 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | 97kgf | 200mA (DC) | Non-Contact | Cable Leads | Status Indicator, Magnetic Latching | 1mm | 10mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 40°C |
|
D41G2ZDGN2INTERLOCK RFID SOLENOID LOCKING |
4,992 |
|
Datasheet |
D41G | Box | Active | RFID, Solenoid Locking | - | 24VDC | 24VDC | 204kgf | 250mA (DC) | Panel Disconnect | Connector (M12) | Manual Override | - | - | CE, cULus | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C |
|
|
D41G2YDGN2INTERLOCK RFID SOLENOID LOCKING |
3,599 |
|
Datasheet |
D41G | Box | Active | RFID, Solenoid Locking | - | 24VDC | 24VDC | 204kgf | 250mA (DC) | Panel Disconnect | Connector (M12) | Manual Override | - | - | CE, cULus | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C |
|

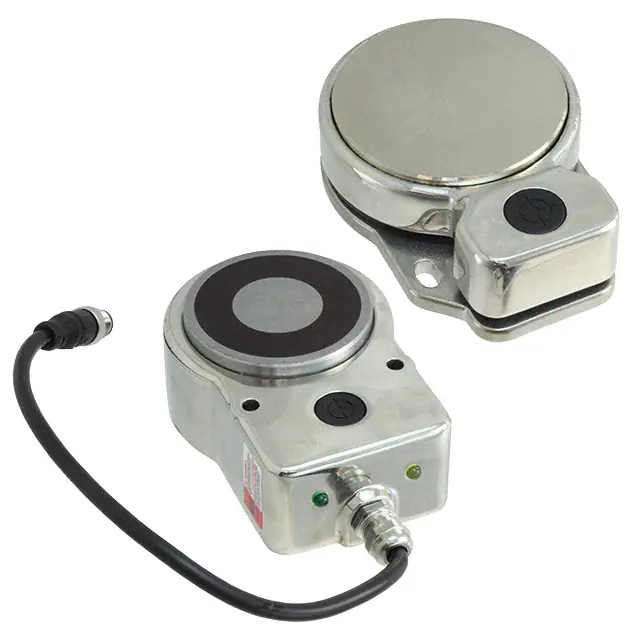

D40ML-SS1-U-M12INTERLOCK RFID DPST |
2,671 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | 97kgf | 200mA (DC) | Non-Contact | Cable with Connector (M12) | Status Indicator, Magnetic Latching | 1mm | 10mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 40°C |
|
D4NH-1CASINTERLOCK HINGE 3PST |
1,722 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-2FBCINTERLOCK HINGE 3PST |
1,655 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO (MBB) | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

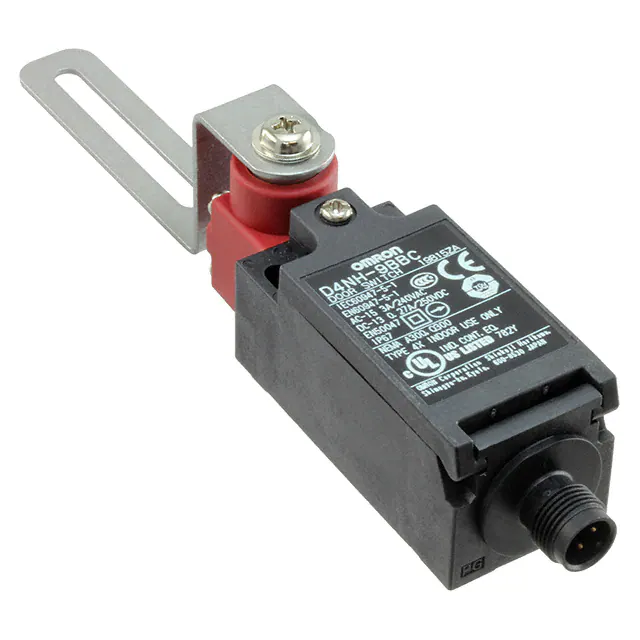

D4NH-9BBCINTERLOCK HINGE DPST |
4,477 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | M12 Connector | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
1202570006INTERLOCK MAGNETIC DPST |
1,332 |
|
Datasheet |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable with Connector (M12) | - | 8mm | 17mm | TUV, UL | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 80°C |
|
GKMB33INTERLOCK NON-LOCKING DPST |
2,826 |
|
Datasheet |
GKM | Bulk | Active | Non-Locking | DPST-NO/NC | 120VAC, 125VDC | - | - | 3A (AC), 550mA (DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
PXS79020INTERLOCK MAGNETIC DPST 2M |
3,787 |
|
Datasheet |
PXS | Box | Active | Magnetic | DPST-NC | 24VDC | - | - | 10mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CE, cURus | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
|
PXS59150INTERLOCK MAGNETIC DPST 5M |
4,547 |
|
Datasheet |
PXS | Box | Active | Magnetic | DPST-NO/NC | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable Leads | Status Indicator | 8mm | 20mm | CE, cURus | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
D4NH-1AASINTERLOCK HINGE DPST |
1,648 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
PXS79150INTERLOCK MAGNETIC DPST 5M |
4,422 |
|
Datasheet |
PXS | Box | Active | Magnetic | DPST-NC | 24VDC | 24VDC | - | 10mA (DC) | Non-Contact | Cable Leads | Status Indicator | 8mm | 20mm | CE, cURus | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
|
PXS59010INTERLOCK MAGNETIC DPST 10M |
3,055 |
|
Datasheet |
PXS | Box | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CE, cURus | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
|
PXS79010INTERLOCK MAGNETIC DPST 10M |
2,500 |
|
Datasheet |
PXS | Box | Active | Magnetic | DPST-NC | 24VDC | - | - | 10mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CE, cURus | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
|
3SE52320HU22INTERLOCK HINGE DPST |
3,243 |
|
Datasheet |
3SE5 | Bulk | Active | Hinge | DPST-NO/NC | 120VAC, 24VDC | - | - | 6A (AC), 3A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, CSA, EAC, UKCA, UL | - | IP65 - Dust Tight, Water Resistant | - |
|
|
1202570007INTERLOCK MAGNETIC DPST |
2,271 |
|
Datasheet |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable with Connector (M12) | - | 8mm | 17mm | TUV, UL | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 80°C |
|
1202570001INTERLOCK MAGNETIC DPST |
2,154 |
|
Datasheet |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable Leads | - | 4mm | 10mm | TUV, UL | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 80°C |
