Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KESD-SKU-MC-SETSafety Slide Key Actuator +Inter |
2,000 |
|
Datasheet |
KESD | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO | 120VAC, 125VDC | 24VDC | 6kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
KESD-SKU-MB-SETSafety Slide Key Actuator +Inter |
2,000 |
|
Datasheet |
KESD | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO | 120VAC, 125VDC | 24VDC | 6kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
KESD-SKU-MA-SETSafety Slide Key Actuator +Inter |
2,000 |
|
Datasheet |
KESD | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO x 2 | 120VAC, 125VDC | 24VDC | 6kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
KESD-SKU-MC-L-SETSafety Slide Key Actuator +Inter |
2,000 |
|
Datasheet |
KESD | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO | 120VAC, 125VDC | 24VDC | 6kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
KESD-SKU-MA-L-SETSafety Slide Key Actuator +Inter |
2,000 |
|
Datasheet |
KESD | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO x 2 | 120VAC, 125VDC | 24VDC | 6kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
KESD-SKU-MB-L-SETSafety Slide Key Actuator +Inter |
2,000 |
|
Datasheet |
KESD | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO | 120VAC, 125VDC | 24VDC | 6kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CE, cULus | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
GLS-1INTERLOCK MAGNETIC SPST |
4,198 |
|
Datasheet |
GLS | Box | Active | Magnetic | SPST-NO | 100VDC | - | - | 100mA (DC) | Non-Contact | Screw Terminal | - | 15mm | - | CCC, CE | - | IP40 | -20°C ~ 60°C |
|
XCSDMC5902INTERLOCK MAGNETIC DPST |
4,186 |
|
Datasheet |
XCSDMC | Box | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 100mA (DC) | Non-Contact | Connector (M8) | - | - | - | CSA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
CM-S1PC5INTERLOCK MAGNETIC DPST |
2,600 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 3mm | 8mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

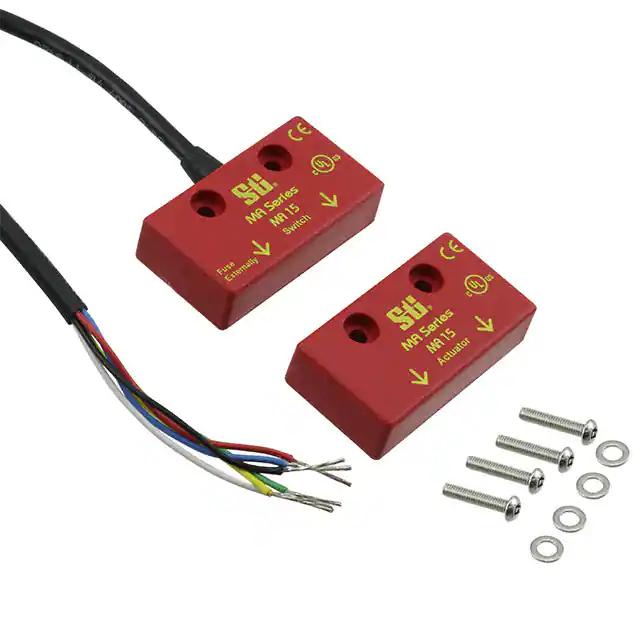

MA-15DP21C5INTERLOCK MAGNETIC 3PST |
3,986 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 30VDC | - | - | 300mA (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

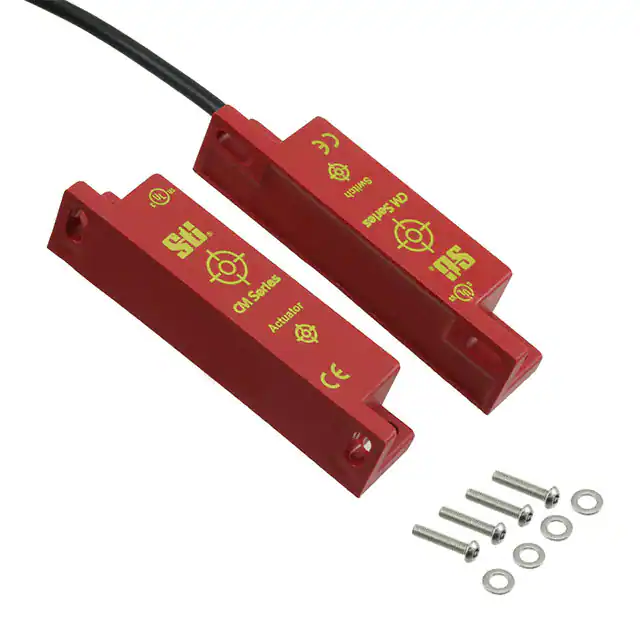

CM-S6PC5INTERLOCK MAGNETIC DPST |
1,112 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 7mm | 10mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

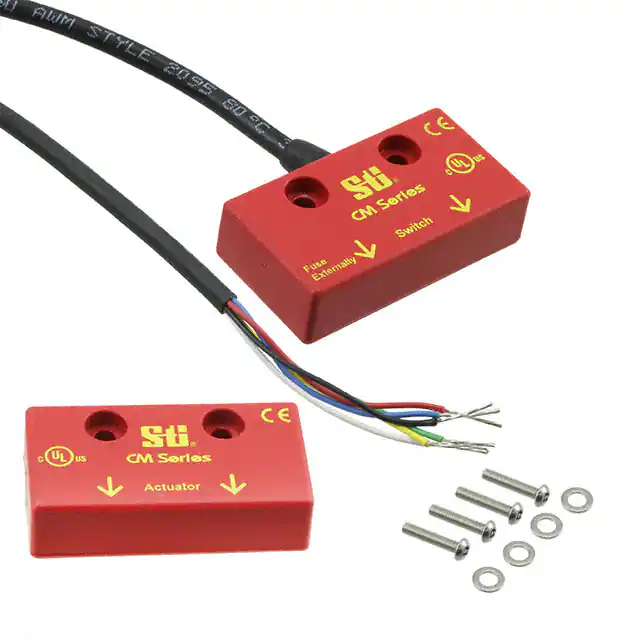

CM-S521PC5INTERLOCK MAGNETIC 3PST |
1,067 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 7mm | 10mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

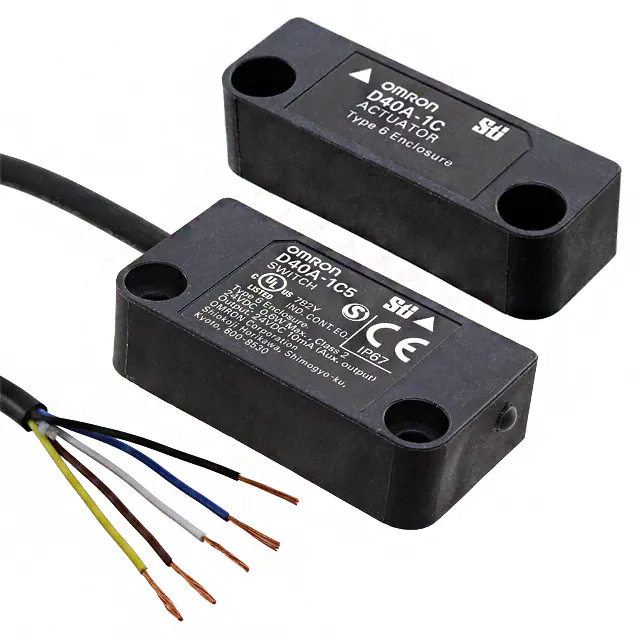

D40A-1C5INTERLOCK MAGNETIC SPST |
3,726 |
|
Datasheet |
D40A | Bulk | Active | Magnetic | SPST-NO | 24VDC | 24VDC | - | 10mA (DC) | Non-Contact | Cable Leads | - | 5mm | 15mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
HS5L-VA44M-GINTERLOCK SOLENOID RELEASE DPST |
2,591 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NO/NC x 2 | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
|
D40A-1C2INTERLOCK MAGNETIC SPST |
3,814 |
|
Datasheet |
D40A | Bulk | Active | Magnetic | SPST-NO | 24VDC | 24VDC | - | 10mA (DC) | Non-Contact | Cable Leads | - | 5mm | 15mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
MC-S2PC10INTERLOCK MAGNETIC DPST |
3,733 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | DPST-NO/NC | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable Leads | - | 9mm | 12mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
HS5L-VD44LM-GINTERLOCK SOLENOID RELEASE DPST |
4,282 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NC x 2 | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|

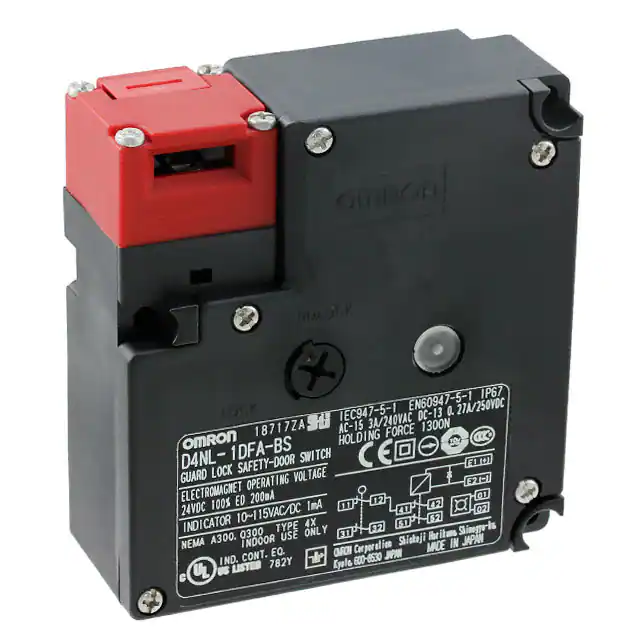

D4NL-1DFA-BSINTERLOCK SOLENOID RELEASE DPST |
2,826 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Release | DPST-NC x 2 | 240VAC, 250VDC | 24VDC | 133kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

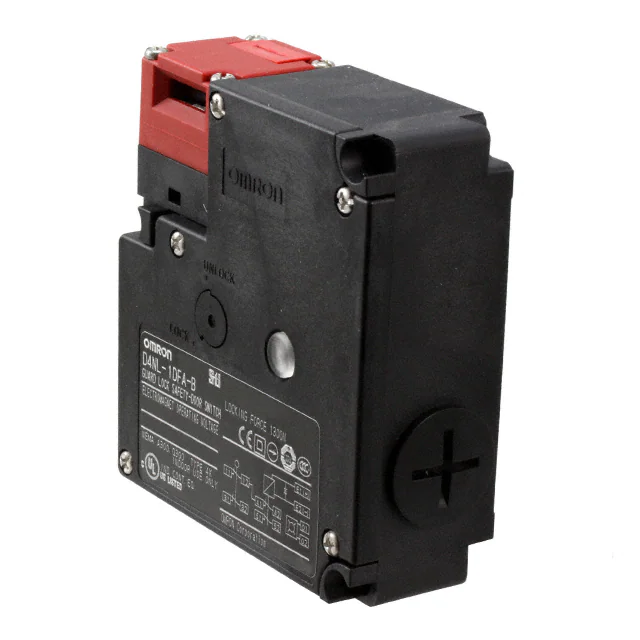

D4NL-1DFA-BINTERLOCK SOLENOID RELEASE DPST |
2,046 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Release | DPST-NC x 2 | 240VAC, 250VDC | 24VDC | 133kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

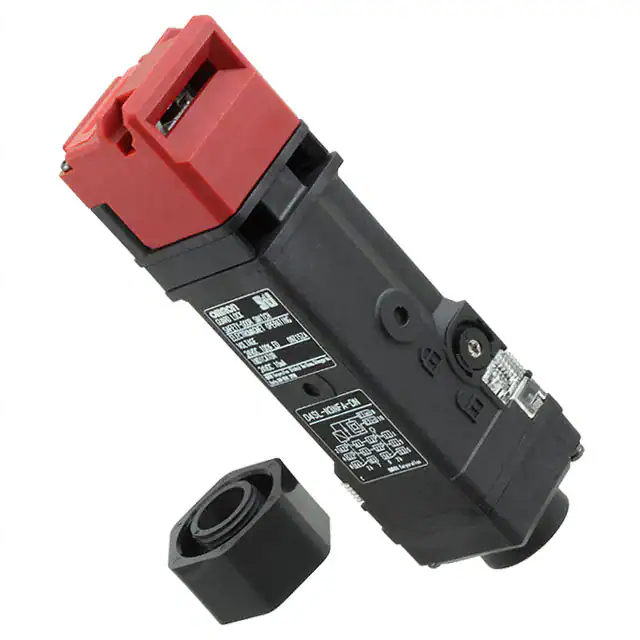

D4SL-N3NFA-DNINTERLOCK SOLENOID RELEASE 3PST |
3,402 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 120VAC, 125VDC | 24VDC | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Connector | Status Indicator | - | - | CCC, CE, cURus, TUV | 1/2" NPT | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
