Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL4019-31101SMINTERLOCK SOLENOID RELEASE 4PST |
2,687 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC (DB/DM) | 230VAC, 24VDC | 110VAC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
SI-LS42WMMHFINTERLOCK SOLENOID LOCKING DPST |
2,230 |
|
Datasheet |
SI-LS42 | Box | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 24VAC | 110/230VAC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
TL4019-11101SMINTERLOCK SOLENOID RELEASE 4PST |
2,993 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC | 230VAC, 24VDC | 110VAC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
TL4019-30242F1MINTERLOCK SOLENOID RELEASE 4PST |
1,903 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|

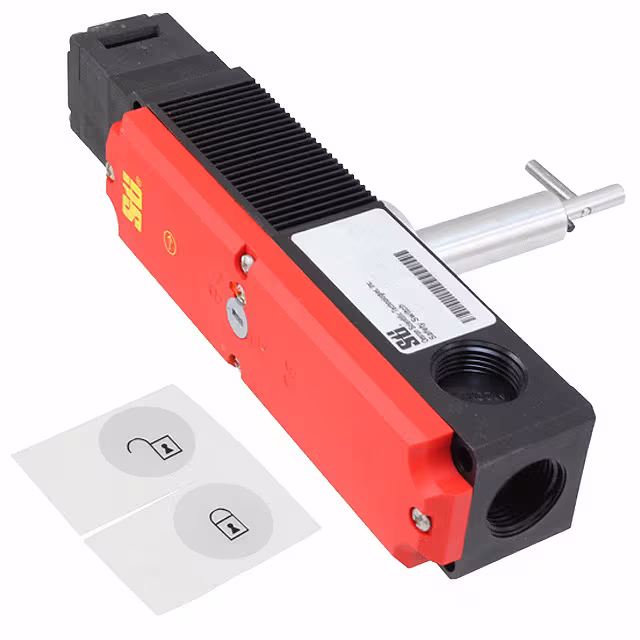

TL4019-30242RRINTERLOCK SOLENOID RELEASE 4PST |
3,536 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
TL4019-10241FIMINTERLOCK SOLENOID RELEASE 4PST |
2,971 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
D40ML-M1-U-M12INTERLOCK RFID DPST |
3,248 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | 153kgf | 200mA (DC) | Non-Contact | Cable with Connector (M12) | Status Indicator, Magnetic Latching | 1mm | 10mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|

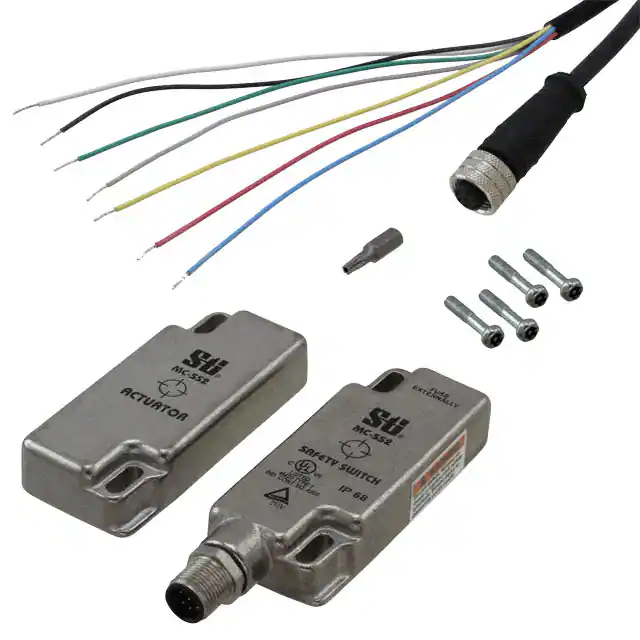

MC-SS2XOSCC5INTERLOCK MAGNETIC 4PST |
2,327 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | 4PST-3NO/1NC | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable with Connector (M12) | - | 10mm | 13mm | CE, cULus | - | IP68 - Dust Tight, Waterproof | -25°C ~ 125°C |
|
MC-SS2XOSC6INTERLOCK MAGNETIC 3PST |
4,891 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | 3PST-2NO/1NC | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable with Connector (M12) | - | 10mm | 13mm | CE, cULus | - | IP68 - Dust Tight, Waterproof | -25°C ~ 125°C |
|

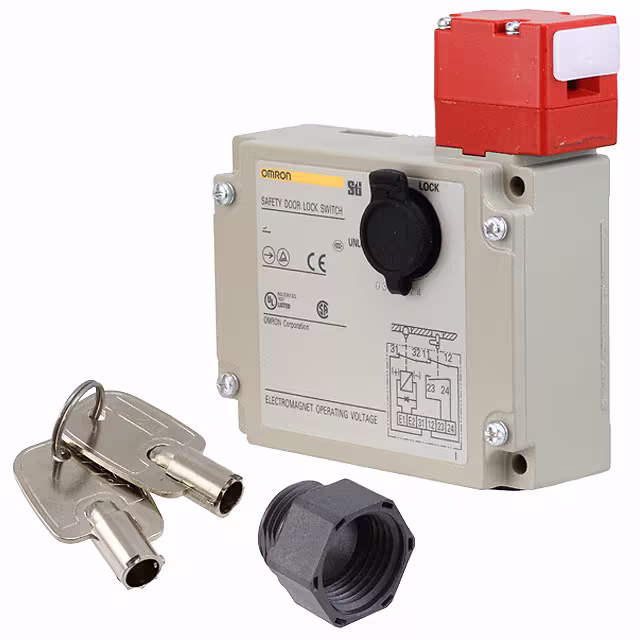

D4BL-4CRA-NPTINTERLOCK SOLENOID RELEASE DPST |
4,475 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 250VAC | 24VDC | 71kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, UL | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D41L1YDGN2INTERLOCK RFID SOLENOID LOCKING |
2,703 |
|
Datasheet |
D41L | Box | Active | RFID, Solenoid Locking | - | 24VDC | 24VDC | 117kgf | 250mA (DC) | Panel Disconnect | Connector (M12) | Manual Override | - | - | CE, cULus | - | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | 0°C ~ 60°C |
|
1202570009INTERLOCK MAGNETIC DPST |
2,442 |
|
Datasheet |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable with Connector (M12) | - | 8mm | 18mm | TUV, UL | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 80°C |
|
1202570003INTERLOCK MAGNETIC DPST |
4,519 |
|
Datasheet |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable Leads | - | 8mm | 17mm | TUV, UL | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 80°C |
|
XCSPA592INTERLOCK NON-LOCKING DPST |
3,092 |
|
Datasheet |
XCSPA | Box | Active | Non-Locking | DPST-NO/NC | 120VAC, 125VDC | - | 1kgf | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | M16 x 1.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
XCSPA792INTERLOCK NON-LOCKING DPST |
2,350 |
|
Datasheet |
XCSPA | Box | Active | Non-Locking | DPST-NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | M16 x 1.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
XCSPA992INTERLOCK KEY LOCKING 3PST |
1,475 |
|
Datasheet |
XCSPA | Box | Active | Key Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | M16 x 1.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
XCSDMR7902INTERLOCK MAGNETIC DPST |
3,325 |
|
Datasheet |
XCSDMR | Box | Active | Magnetic | DPST-NC | 24VDC | - | - | 100mA (DC) | - | Cable Leads | - | 8mm | 20mm | CSA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|
|
XCSPL581INTERLOCK NON-LOCKING DPST |
3,200 |
|
Datasheet |
XCSPL | Box | Active | Non-Locking | DPST-NO/NC | - | - | - | - | Arm Lever | Screw Terminal | - | - | - | BG, CSA, UL | PG11 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
1105317MAGN SAFETY SENSOR |
1,026 |
|
Datasheet |
RE1 | Bulk | Active | Magnetic | DPST-NO/NC | 30VDC | - | - | 100mA (DC) | Non-Contact | Cable with Connector (M8) | - | 7mm | 20mm | CE, cULus, EAC, TUV | M8 | IP67 - Dust Tight, Waterproof | -30°C ~ 60°C |
|
XCSDMP7015INTERLOCK MAGNETIC 3PST |
2,531 |
|
Datasheet |
XCSDMP | Box | Active | Magnetic | 3PST-2NC/1NO | 24VDC | - | - | 100mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CSA, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
