Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-LS42WSHINTERLOCK SOLENOID RELEASE DPST |
2,460 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 24VAC | 110/230VAC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D4NL-4GDA-B4-NPTINTERLOCK SOLENOID RELEASE 3PST |
3,617 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Release | 3PST-NC + DPST-NO/NC | 240VAC, 250VDC | 24VDC | 133kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
6025115INTERLOCK SOLENOID RELEASE 5PST |
1,708 |
|
Datasheet |
i200 Lock | Bulk | Active | Solenoid Release | 5PST-4NC/1NO | 240VAC, 24VDC | 20.4 ~ 26.4VDC | 265kgf | 3A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M20 x3 | IP65 - Dust Tight, Water Resistant | -20°C ~ 60°C |
|

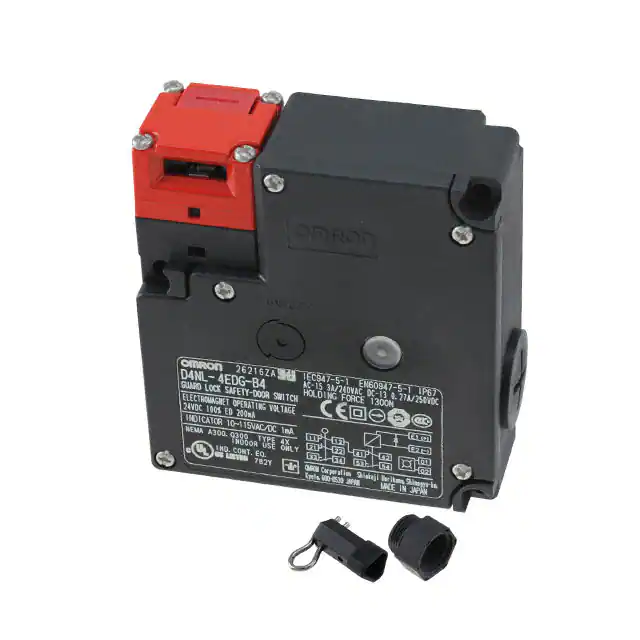

D4NL-4EDG-B4-NPTINTERLOCK SOLENOID LOCKING 3PST |
4,689 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + DPST-NO/NC | 240VAC, 250VDC | 24VDC | 133kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D4SL-N3VFAINTERLOCK SOLENOID RELEASE DPST |
1,197 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Release | DPST-NC x 2 | 120VAC, 125VDC | - | 6kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus, TUV | 1/2" NPT | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
MA-21DPC4INTERLOCK MAGNETIC 3PST |
1,321 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 30VDC | - | - | 1A (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
MA-21APC4INTERLOCK MAGNETIC 3PST |
4,978 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 230VAC | - | - | 2A (AC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

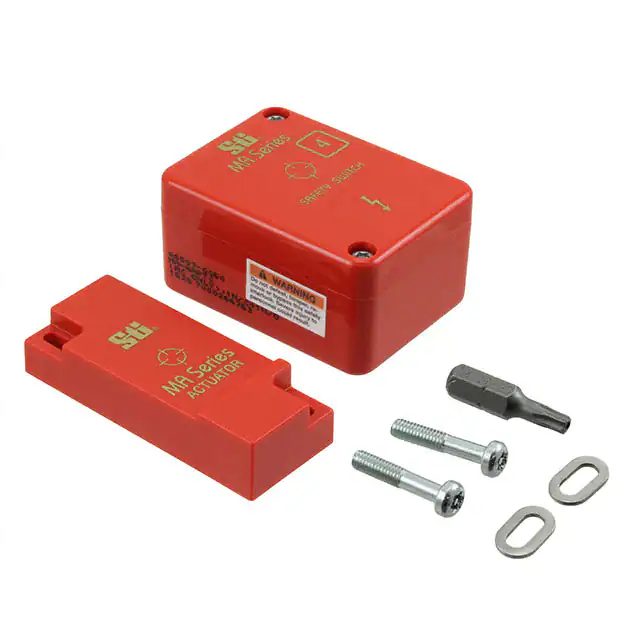

MA-4APTCINTERLOCK MAGNETIC DPST |
3,537 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 230VAC | - | - | 2A (AC) | Non-Contact | Screw Terminal | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP65 - Dust Tight, Water Resistant | -10°C ~ 65°C |
|

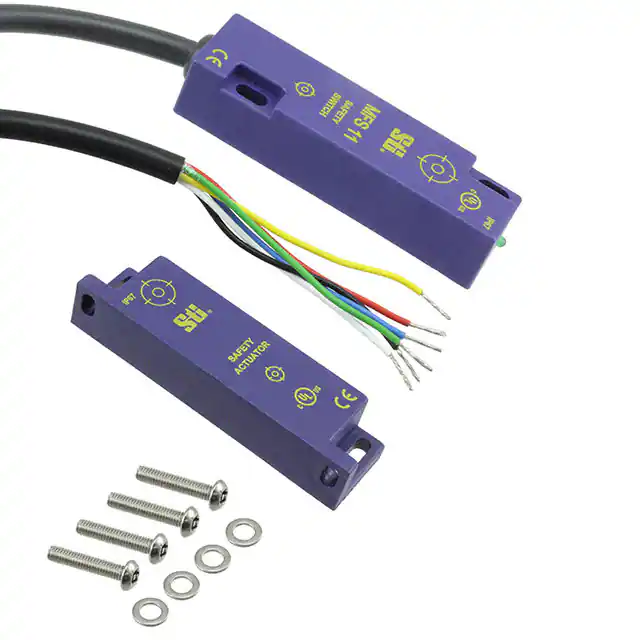

MFS-11P11C3INTERLOCK MAGNETIC DPST |
4,726 |
|
Datasheet |
MFS-STI | Bulk | Active | Magnetic | DPST-NO/NC | 230VAC, 30VDC | 24VDC | - | 2A (AC/DC) | Non-Contact | Cable Leads | Status Indicator | 6 ~ 9mm | 10 ~ 12mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
MFS-11P11C6INTERLOCK MAGNETIC DPST |
4,017 |
|
Datasheet |
MFS-STI | Bulk | Active | Magnetic | DPST-NO/NC | 230VAC, 30VDC | 24VDC | - | 2A (AC/DC) | Non-Contact | Cable Leads | Status Indicator | 6 ~ 9mm | 10 ~ 12mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
MA-13DP21C3INTERLOCK MAGNETIC 3PST |
4,297 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 30VDC | - | - | 1A (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
MA16AP20C3INTERLOCK MAGNETIC DPST |
4,906 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NC | 230VAC | - | - | 2A (AC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
SI-LS42WMMGFINTERLOCK SOLENOID LOCKING DPST |
3,482 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 24VAC | 110/230VAC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
MFS-11P20CCINTERLOCK MAGNETIC DPST |
1,693 |
|
Datasheet |
MFS-STI | Bulk | Active | Magnetic | DPST-NC | 230VAC, 30VDC | 24VDC | - | 2A (AC/DC) | Non-Contact | Connector (Micro 1/2"-20) | Status Indicator | 6 ~ 9mm | 10 ~ 12mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
TL4019-10241TMINTERLOCK SOLENOID RELEASE 4PST |
1,020 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
TL4019-10241INTERLOCK SOLENOID RELEASE 4PST |
3,021 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|

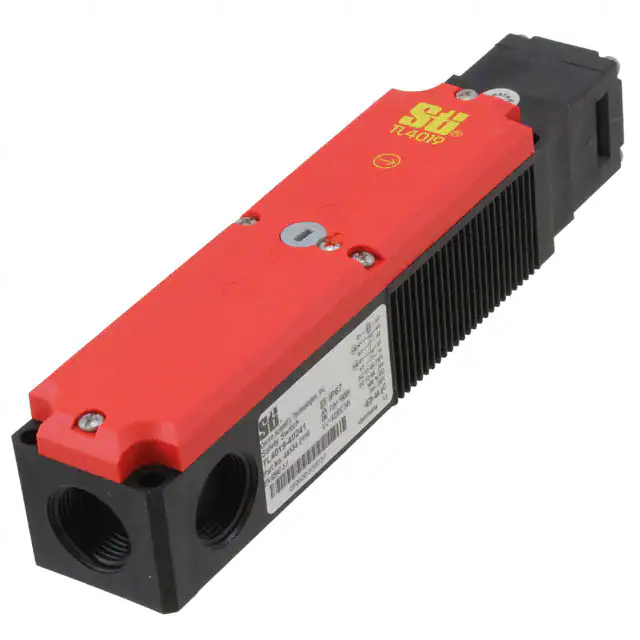

TL4019-40241SMINTERLOCK SOLENOID LOCKING 4PST |
3,045 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
XCSL766B3INTERLOCK KEY LOCKING 3PST |
1,165 |
|
Datasheet |
XCSL | Box | Active | Key Locking | 3PST-1NO/2NC | 24VDC | - | - | 10A (DC) | Panel Disconnect | Screw Terminal | - | - | - | - | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
TL4019-40241INTERLOCK SOLENOID LOCKING 4PST |
3,687 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
XCSE7311INTERLOCK SOLENOID LOCKING 3PST |
1,941 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | 2kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
