Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL4019-30241TMINTERLOCK SOLENOID RELEASE 4PST |
1,643 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
TL4019-30242TMINTERLOCK SOLENOID RELEASE 4PST |
1,550 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
TL4024-10242TMINTERLOCK SOLENOID RELEASE 4PST |
1,395 |
|
Datasheet |
TL4024 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 153kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | 1/2" NPT x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|

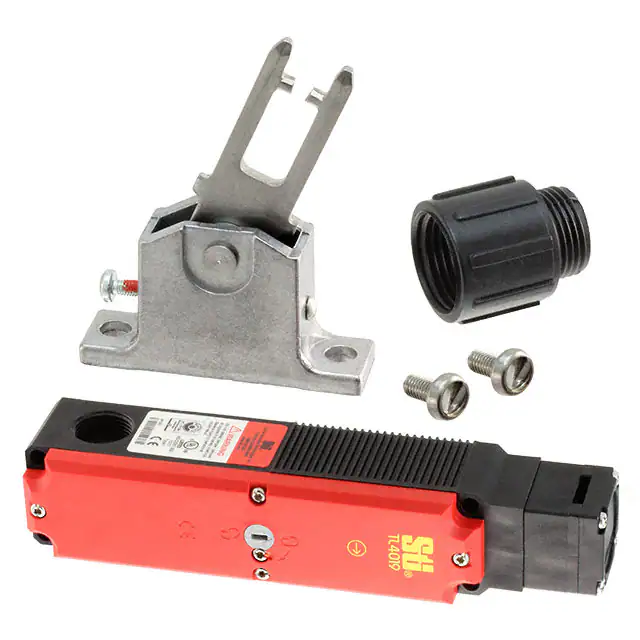

TL4019-20241F1MINTERLOCK SOLENOID LOCKING 4PST |
1,862 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
TL4019-40242F1MINTERLOCK SOLENOID LOCKING 4PST |
1,047 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
XCSL764F3INTERLOCK KEY LOCKING 3PST |
3,659 |
|
Datasheet |
XCSL | Box | Active | Key Locking | 3PST-1NO/2NC | 110VAC | - | - | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | - | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
MFS-12P21CC5INTERLOCK MAGNETIC 3PST |
4,052 |
|
Datasheet |
MFS-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 230VAC, 30VDC | 24VDC | - | 2A (AC/DC) | Non-Contact | Connector (M12) | Status Indicator | 6 ~ 9mm | 10 ~ 12mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

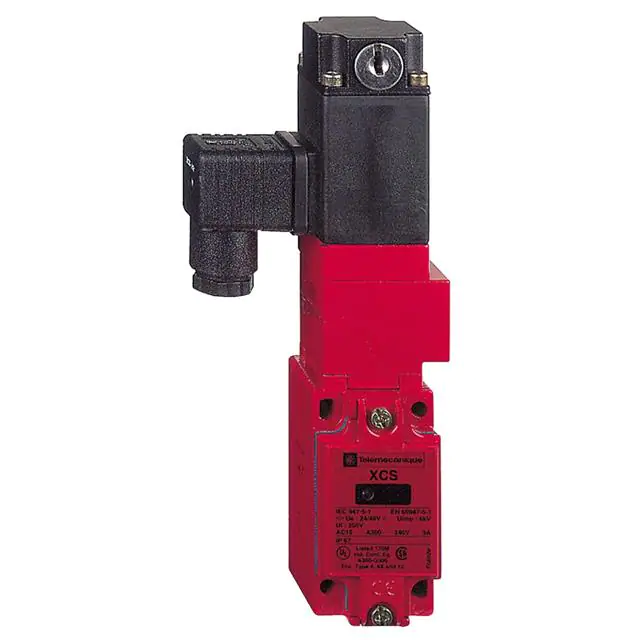

XCSL764B3INTERLOCK KEY LOCKING 3PST |
4,117 |
|
Datasheet |
XCSL | Box | Active | Key Locking | 3PST-1NO/2NC | 24VDC | - | - | 10A (DC) | Panel Disconnect | Screw Terminal | - | - | - | - | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
XCSE7313INTERLOCK SOLENOID LOCKING 3PST |
3,428 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | 2kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
6053945INTERLOCK SOLENOID LOCKING SPST |
3,791 |
|
Datasheet |
i110 Lock | Bulk | Active | Solenoid Locking | SPST-NC | 24VAC/DC | 24VAC/DC | 255kgf | 1A (AC/DC) | Panel Disconnect | Connector (M12) | - | - | - | CCC, CE, cULus | - | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
TL4024-10242INTERLOCK SOLENOID RELEASE 4PST |
3,673 |
|
Datasheet |
TL4024 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 153kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | 1/2" NPT x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|

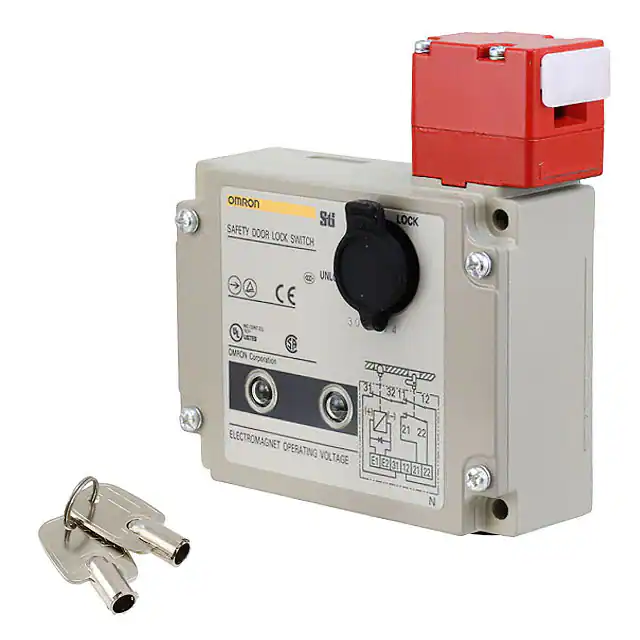

D4BL-4DRA-AINTERLOCK SOLENOID RELEASE DPST |
3,709 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Release | DPST-NC (DB) + SPST-NC (DB) | 115VAC | 24VDC | 71kgf | 6A (AC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, CSA, UL | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D40ML-P2-B-5MINTERLOCK RFID DPST |
2,569 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | 91kgf | 200mA (DC) | Non-Contact | Cable Leads | Status Indicator, Magnetic Latching | 1mm | 10mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
|
D40ML-M2-B-5MINTERLOCK RFID DPST |
4,720 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | 91kgf | 200mA (DC) | Non-Contact | Cable Leads | Status Indicator, Magnetic Latching | 1mm | 10mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
|
XCSE7511INTERLOCK SOLENOID LOCKING 3PST |
1,992 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | 2kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
D40ML-SS2-U-M12INTERLOCK RFID DPST |
2,892 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | 61kgf | 200mA (DC) | Non-Contact | Cable with Connector (M12) | Status Indicator, Magnetic Latching | 1mm | 10mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 40°C |
|
D41G2YDAN2INTERLOCK RFID SOLENOID RELEASE |
1,941 |
|
Datasheet |
D41G | Box | Active | RFID, Solenoid Release | - | 24VDC | 24VDC | 204kgf | 250mA (DC) | Panel Disconnect | Connector (M12) | Manual Override | - | - | CE, cULus | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -10°C ~ 55°C |
|

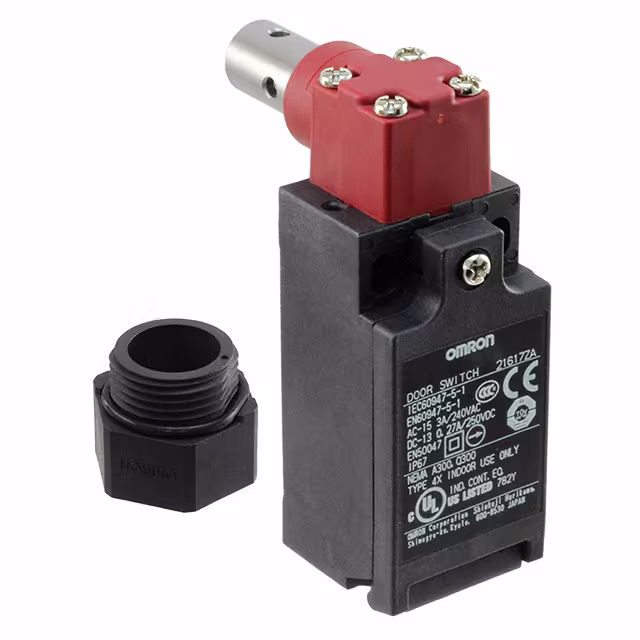

D4NH-4AAS-NPTINTERLOCK HINGE DPST |
2,728 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-4FASINTERLOCK HINGE 3PST |
2,819 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO (MBB) | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
1202570005INTERLOCK MAGNETIC DPST |
4,909 |
|
Datasheet |
120257 | Bulk | Active | Magnetic | DPST-NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable with Connector (M12) | - | 4mm | 10mm | TUV, UL | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | -25°C ~ 80°C |
