Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6025073INTERLOCK NON-LOCKING 4PST |
2,320 |
|
Datasheet |
i110S | Bulk | Active | Non-Locking | 4PST-3NC/1NO | 240VAC, 24VDC | - | 1kgf | 3A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
XCSA501INTERLOCK NON-LOCKING 3PST |
3,305 |
|
Datasheet |
XCSA | Box | Active | Non-Locking | 3PST-2NO/1NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
XCSA801INTERLOCK NON-LOCKING 3PST |
4,563 |
|
Datasheet |
XCSA | Box | Active | Non-Locking | 3PST-NC | 240VAC, 250VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|

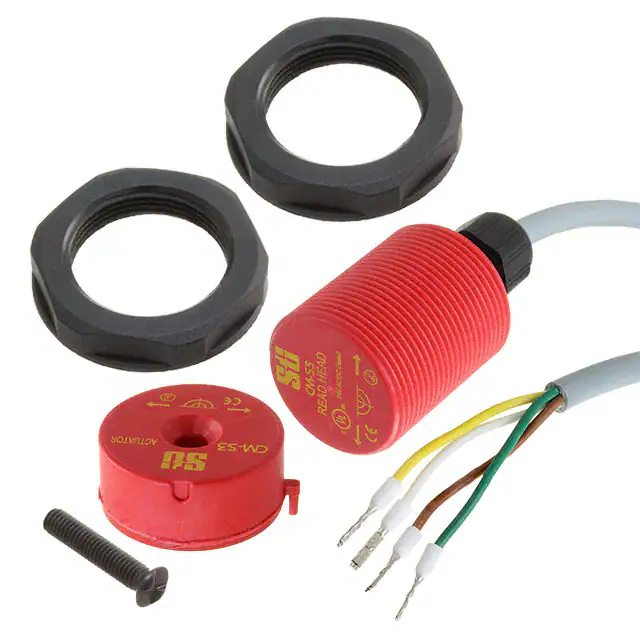

CM-S3PC5INTERLOCK MAGNETIC DPST |
3,900 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 6mm | 13mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D4GS-N4R-3INTERLOCK NON-LOCKING 3PST |
4,812 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

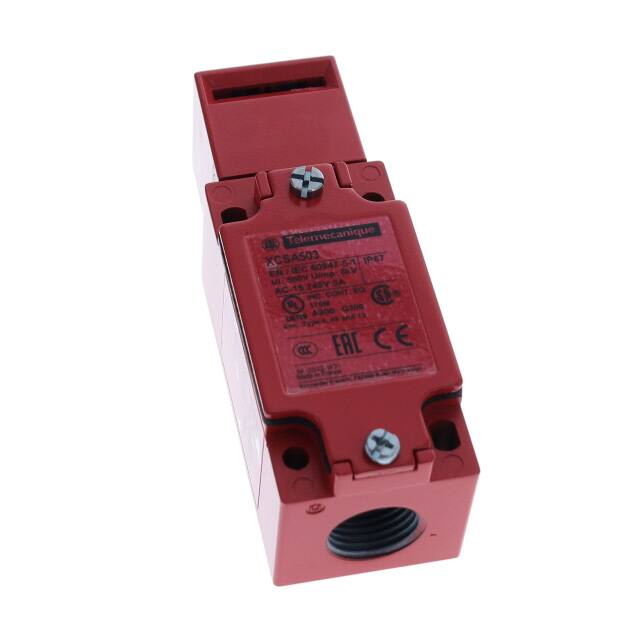

XCSA503INTERLOCK NON-LOCKING 3PST |
3,360 |
|
Datasheet |
XCSA | Box | Active | Non-Locking | 3PST-2NO/1NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
MA16DP11C3INTERLOCK MAGNETIC DPST |
1,676 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 30VDC | - | - | 1A (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

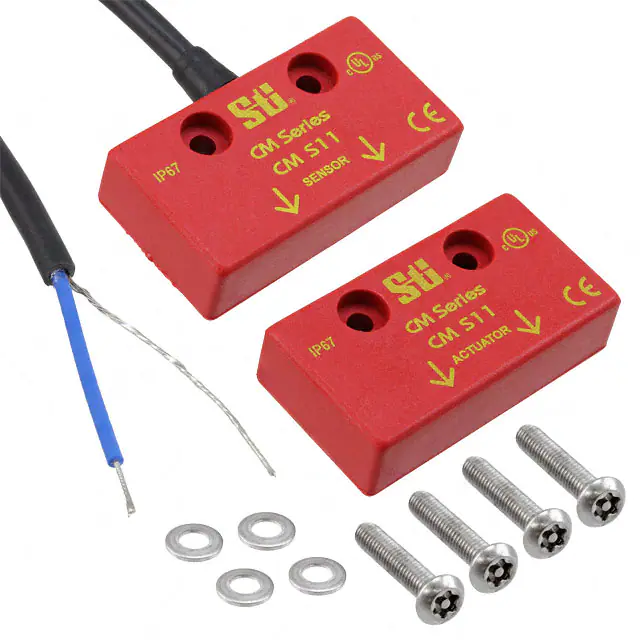

CM-S11PC10INTERLOCK MAGNETIC 10M CBL |
1,364 |
|
Datasheet |
CM | Bulk | Active | Magnetic | - | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 5 ~ 7mm | 8 ~ 12mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
3SE51120QV10INTERLOCK NON-LOCKING 3PST |
3,742 |
|
Datasheet |
3SE5 | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 24VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CSA, EAC, UL | - | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 85°C |
|

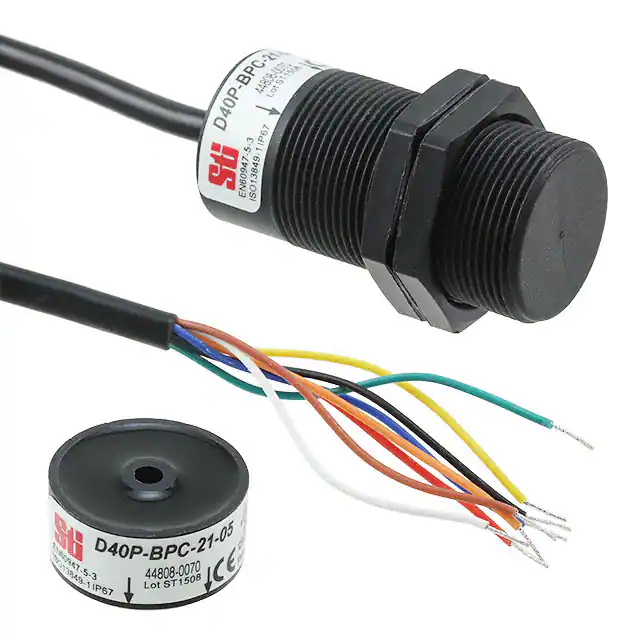

D40P-BPC-21-05INTERLOCK MAGNETIC 3PST 5M |
1,617 |
|
Datasheet |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 80°C |
|
MFS-12P21C6INTERLOCK MAGNETIC 3PST |
3,861 |
|
Datasheet |
MFS-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 230VAC, 30VDC | 24VDC | - | 2A (AC/DC) | Non-Contact | Cable Leads | Status Indicator | 6 ~ 9mm | 10 ~ 12mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
MA-15DP21CCINTERLOCK MAGNETIC 3PST |
1,453 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 30VDC | - | - | 300mA (DC) | Non-Contact | Connector (M12) | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

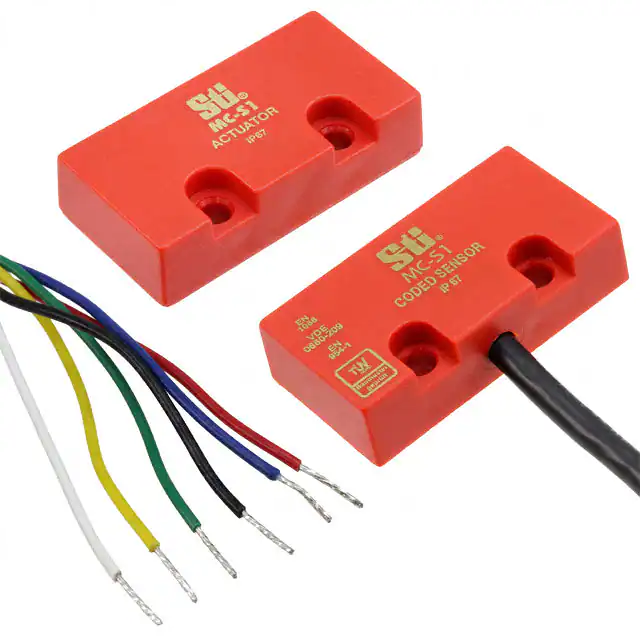

MC-S1XCPC3INTERLOCK MAGNETIC 4PST |
2,684 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | 4PST-3NC/1NO | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable Leads | - | 5mm | 11mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D40P-SPC-21-10INTERLOCK MAGNETIC 3PST |
4,060 |
|
Datasheet |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 80°C |
|
MC-S1PC10INTERLOCK MAGNETIC DPST |
1,117 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | DPST-NO/NC | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable Leads | - | 5mm | 11mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

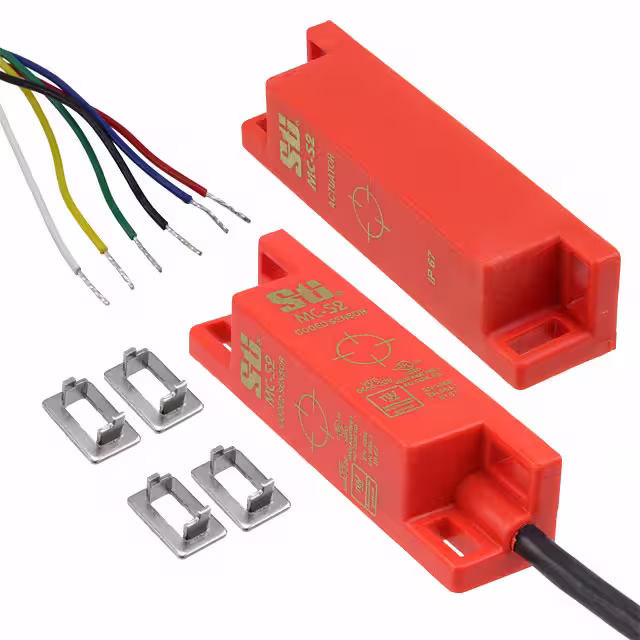

MC-S2XOPC3INTERLOCK MAGNETIC 3PST |
3,251 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | 3PST-2NO/1NC | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable Leads | - | 9mm | 12mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
CM-S521PC10INTERLOCK MAGNETIC 3PST |
3,557 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 7mm | 10mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
XCSA713INTERLOCK NON-LOCKING 3PST |
3,073 |
|
Datasheet |
XCSA | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | - | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D40P-MPC-21-05RINTERLOCK MAGNETIC 3PST 5M R CBL |
4,614 |
|
Datasheet |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 80°C |
|
MC-S1XCPC10INTERLOCK MAGNETIC 4PST |
4,852 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | 4PST-3NC/1NO | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable Leads | - | 5mm | 11mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
