Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4NS-4FFINTERLOCK NON-LOCKING 3PST |
4,379 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-2NC/1NO (MBB) | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-4AASINTERLOCK HINGE DPST |
4,144 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
6025057INTERLOCK NON-LOCKING DPST |
2,584 |
|
Datasheet |
i12S | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC, 24VDC | - | 612gf | 3A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M16 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
D4NS-4CDINTERLOCK NON-LOCKING 3PST |
3,488 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

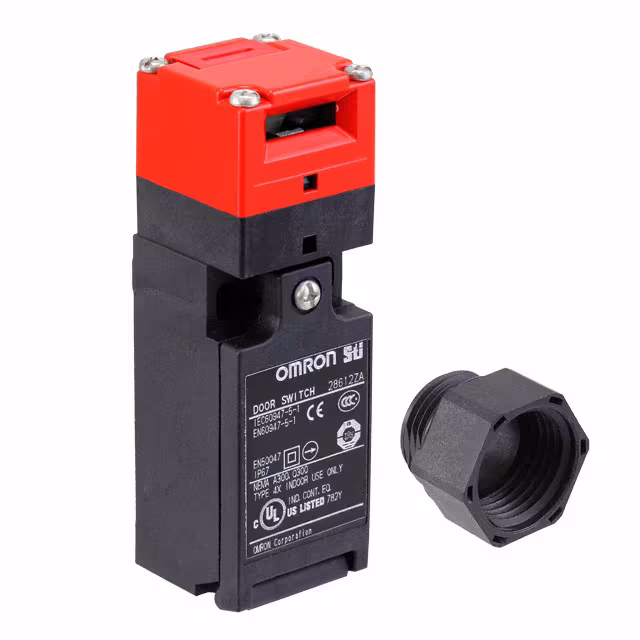

D4NS-4CF-NPTINTERLOCK NON-LOCKING 3PST |
3,704 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-2DBCINTERLOCK HINGE 3PST |
4,689 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-4ABCINTERLOCK HINGE DPST |
3,981 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

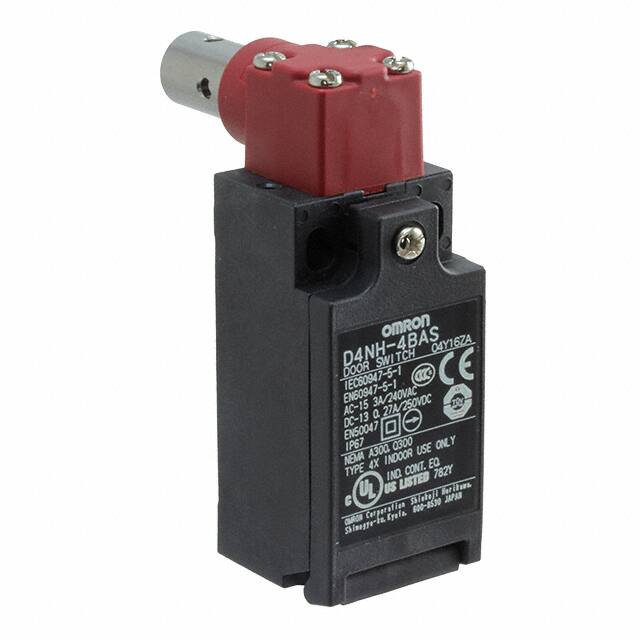

D4NH-4BASINTERLOCK HINGE DPST |
4,838 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-2CBCINTERLOCK HINGE 3PST |
1,369 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NS-6CFINTERLOCK NON-LOCKING 3PST |
3,247 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NS-8BFINTERLOCK NON-LOCKING DPST |
2,734 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4BS-15FSINTERLOCK NON-LOCKING DPST |
4,720 |
|
Datasheet |
D4BS | Bulk | Active | Non-Locking | DPST-NO/NC | 120VAC | - | 2kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -40°C ~ 80°C |
|
|
6022583INTERLOCK NON-LOCKING 3PST |
4,861 |
|
Datasheet |
i11S | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 230VAC, 24VDC | - | 1kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M16 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
2702976INTERLOCK SWITCH RFID PROX |
4,565 |
|
Datasheet |
PSR-CT | Box | Active | RFID | - | 24VDC | 24VDC | - | 150mA (DC) | Non-Contact | Connector (M12) | Status Indicator | 13mm | 20mm | - | - | - | -25°C ~ 55°C |
|
D4NH-4CBCINTERLOCK HINGE 3PST |
1,146 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-4FBCINTERLOCK HINGE 3PST |
2,147 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | 3PST-2NC/1NO (MBB) | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NH-4ABC-NPTINTERLOCK HINGE DPST |
2,298 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

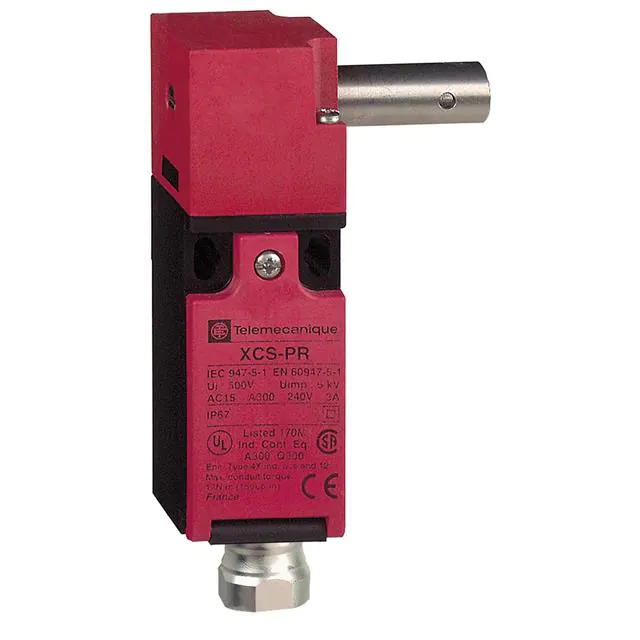

XCSPR753INTERLOCK NON-LOCKING DPST |
4,049 |
|
Datasheet |
XCSP | Box | Active | Non-Locking | DPST-NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Shaft | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D4GS-N3RINTERLOCK NON-LOCKING 3PST |
4,352 |
|
Datasheet |
D4GS-N | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 750mA (AC) | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
SI-LS100MRFFINTERLOCK NON-LOCKING 3PST |
4,613 |
|
Datasheet |
SI-LS100 | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 110VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
