Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

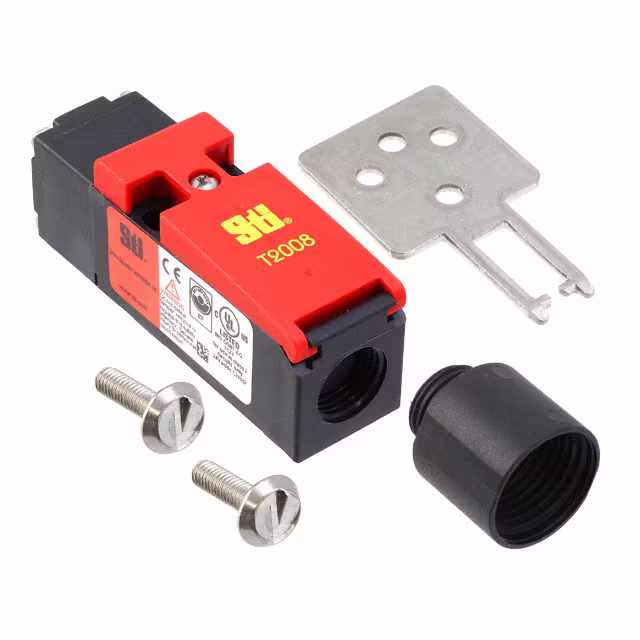

T2008-11TMINTERLOCK NON-LOCKING DPST |
3,042 |
|
Datasheet |
T2008 | Bulk | Obsolete | Non-Locking | DPST-NO/NC | 230VAC, 24VDC | - | 612gf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M16 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|

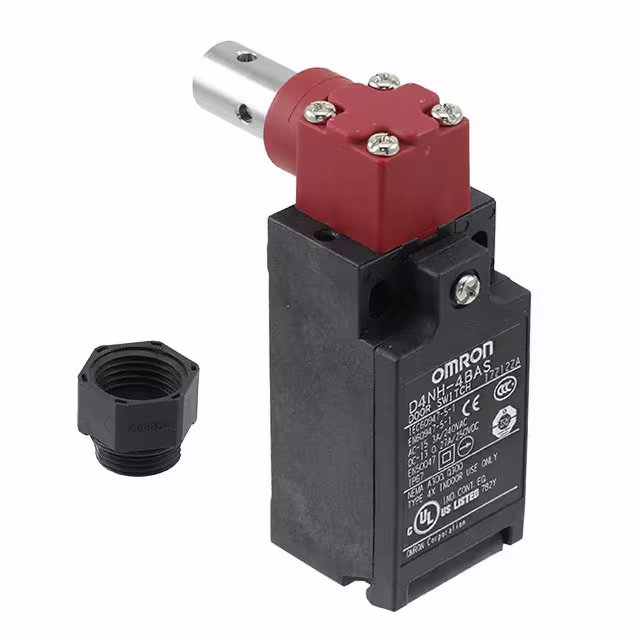

D4NH-4BASNPTINTERLOCK HINGE DPST |
3,553 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Shaft | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NS-4CF-K2INTERLOCK NON-LOCKING 3PST |
3,637 |
|
Datasheet |
D4NS | Box | Discontinued | Non-Locking | 3PST-2NC/1NO | 120VAC | - | 6kgf | 10A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
SFN-M-WINTERLOCK MAGNETIC M12 |
1,260 |
|
Datasheet |
SFN | Bulk | Active | Magnetic | - | - | 24VDC | - | - | Non-Contact | Cable with Connector (M12) | - | 5mm | 15mm | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

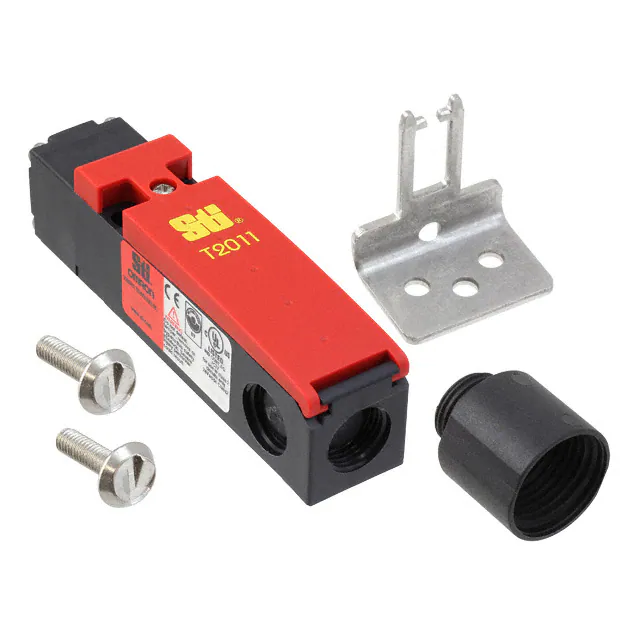

T2011-021SMINTERLOCK NON-LOCKING DPST |
3,624 |
|
Datasheet |
T2011 | Bulk | Obsolete | Non-Locking | DPST-NC + SPST-NO | 230VAC, 24VDC | - | 612gf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M16 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
GKMB23INTERLOCK NON-LOCKING DPST |
4,928 |
|
Datasheet |
GKM | Bulk | Active | Non-Locking | DPST-NO/NC | 120VAC, 125VDC | - | - | 3A (AC), 550mA (DC) | Panel Disconnect | Cable Leads | Cable Length 2m | - | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
|
GKMB39INTERLOCK NON-LOCKING DPST |
3,509 |
|
Datasheet |
GKM | Bulk | Active | Non-Locking | DPST-NO/NC | 50VAC/DC | - | - | 100mA (AC/DC) | Panel Disconnect | Cable Leads | Cable Length 3m | - | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|
|
SI-RFDL-LP8INTERLOCK SWITCH RFID DPST |
3,552 |
|
Datasheet |
SI-RF | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | - | 100mA (DC) | Non-Contact | Cable with Connector (M12) | Manual Reset | 10mm | 25mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 70°C |
|

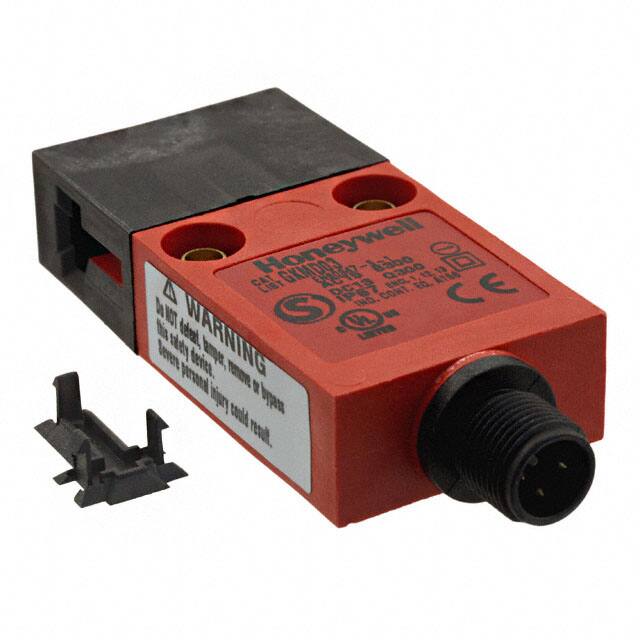

GKMD03INTERLOCK NON-LOCKING DPST |
1,761 |
|
Datasheet |
GKM | Bulk | Active | Non-Locking | DPST-NO/NC | 120VAC, 125VDC | - | - | 3A (AC), 550mA (DC) | Panel Disconnect | Connector (M12) | - | - | - | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 85°C |
|

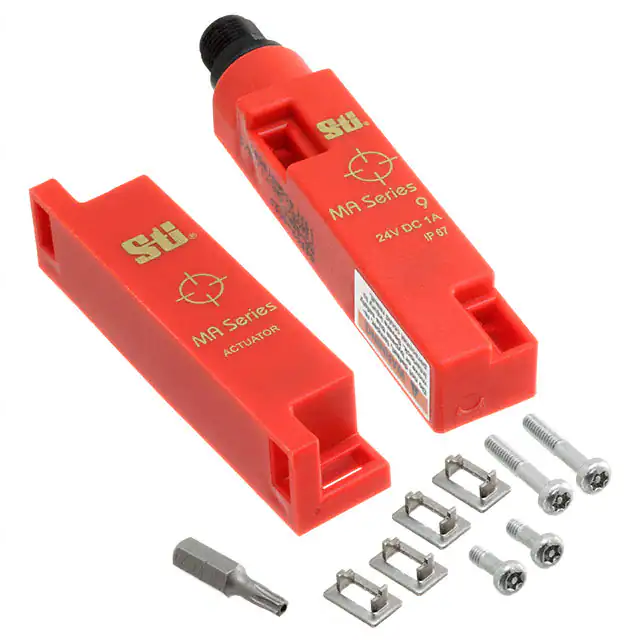

MA-9DPCCINTERLOCK MAGNETIC SPST |
2,528 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 30VDC | - | - | 1A (DC) | Non-Contact | Connector (Micro AC) | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
D4SL-N3NDG-DNINTERLOCK SOLENOID LOCKING 3PST |
3,287 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO x 2 | 120VAC, 125VDC | - | 133kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cURus, TUV | 1/2" NPT | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
MA-13AP20C3INTERLOCK MAGNETIC DPST |
4,731 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NC | 230VAC | - | - | 2A (AC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

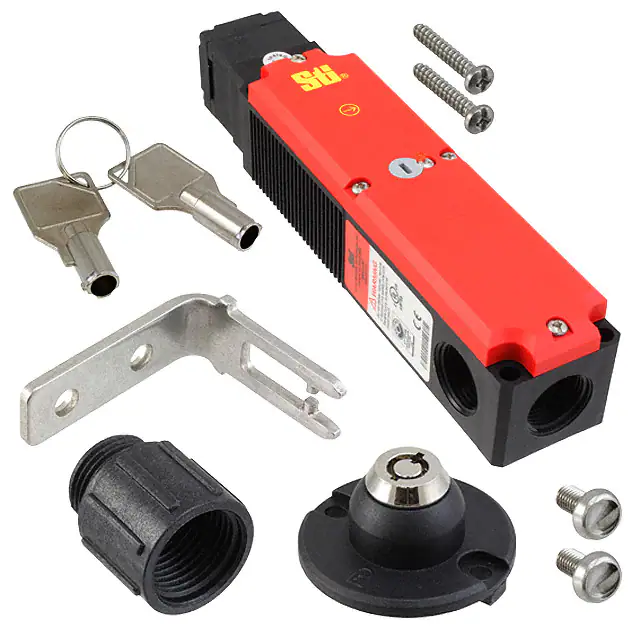

TL4019-30242SKMINTERLOCK SOLENOID RELEASE 4PST |
2,904 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
SFD-A2B-2M20INTERLOCK NON-LOCKING 3PST |
1,968 |
|
Datasheet |
SFD | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 250VAC/VDC | - | 8kgf | 6A (AC), 600mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
SFD-M2B-2G1/2INTERLOCK NON-LOCKING DPST METAL |
4,569 |
|
Datasheet |
SFD | Bulk | Active | Non-Locking | DPST-NC | 250VAC/VDC | - | 8kgf | 6A (AC), 600mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
|
SFDL-MA-M20KINTERLOCK SOLENOID RELEASE 4PST |
3,276 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Release | 4PST-2NC/2NO | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SFDL-MCA-M20KINTERLOCK SOLENOID RELEASE 4PST |
2,926 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Release | 4PST-3NC/1NO | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SFDL-MA-M20INTERLOCK SOLENOID RELEASE 4PST |
3,070 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Release | 4PST-2NC/2NO | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SFDL-MD-M20INTERLOCK SOLENOID RELEASE 4PST |
1,798 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Release | 4PST-4NC | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SFDL-MCA-M20INTERLOCK SOLENOID RELEASE 4PST |
2,281 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Release | 4PST-3NC/1NO | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
