Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA-16AP10C3INTERLOCK MAGNETIC SPST |
2,247 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 230VAC | - | - | 2A (AC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D4NL-4DFA-BINTERLOCK SOLENOID RELEASE DPST |
1,917 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Release | DPST-NC x 2 | 240VAC, 250VDC | 24VDC | 133kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D4NL-4CFA-BINTERLOCK SOLENOID RELEASE DPST |
1,849 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 240VAC, 250VDC | 24VDC | 133kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D40P-LPC-21-M12INTERLOCK MAGNETIC 3PST |
2,494 |
|
Datasheet |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable with Connector (M12) | - | 8mm | 20mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 80°C |
|
D4NL-2HFG-BINTERLOCK SOLENOID LOCKING 3PST |
1,159 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Locking | 3PST-NC + DPST-NC | 240VAC, 250VDC | 24VDC | 133kgf | 3A (AC), 270mA (DC) | Panel Disconnect | Screw Terminal | Status Indicator | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

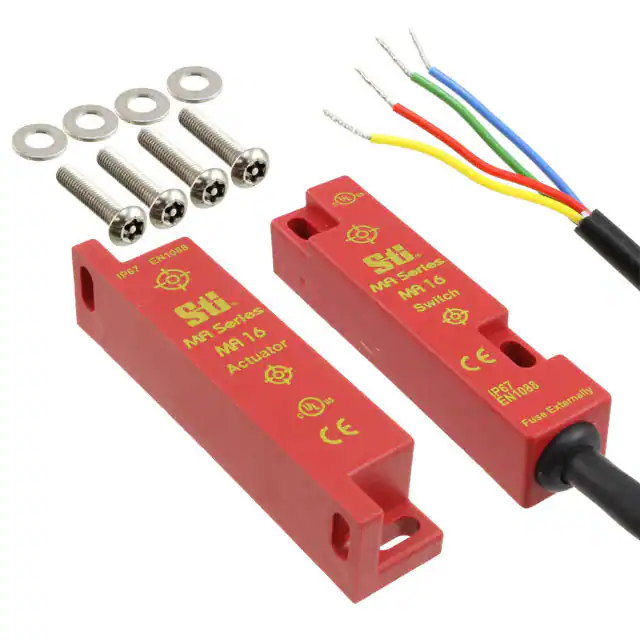

MA16DP11C6INTERLOCK MAGNETIC DPST |
1,923 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 30VDC | - | - | 1A (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
MA16AP10C6INTERLOCK MAGNETIC SPST |
1,134 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 230VAC | - | - | 2A (AC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
XCSTE5311INTERLOCK SOLENOID LOCKING DPST |
2,901 |
|
Datasheet |
XCSTE | Box | Active | Solenoid Locking | DPST-NO/NC | 120VAC, 125VDC | - | 1.5kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG11 | IP67 - Dust Tight, Waterproof | -25°C ~ 60°C |
|
XCSTE7312INTERLOCK SOLENOID LOCKING DPST |
2,102 |
|
Datasheet |
XCSTE | Box | Active | Solenoid Locking | DPST-NC | 120VAC, 125VDC | - | - | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | M16 x 1.5 | IP67 - Dust Tight, Waterproof | -25°C ~ 60°C |
|
SI-LS42DMMGINTERLOCK SOLENOID LOCKING DPST |
4,807 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 24VAC | 24VAC/DC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
MA-2APC4INTERLOCK MAGNETIC DPST |
2,056 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NO/NC | 230VAC | - | - | 2A (AC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
D4SL-N2HFA-DINTERLOCK SOLENOID RELEASE 3PST |
1,803 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-NC + DPST-NC | 120VAC, 125VDC | - | 133kgf | 1.5A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cURus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
SI-LS42WMSHINTERLOCK SOLENOID RELEASE DPST |
1,849 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC + DPST-NC | 24VAC | 110/230VAC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
|
6022580INTERLOCK SOLENOID RELEASE 3PST |
2,835 |
|
Datasheet |
i10 Lock | Bulk | Active | Solenoid Release | 3PST-2NC/1NO | 230VAC, 24VDC | 24VDC | 133kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
TL4019-20241INTERLOCK SOLENOID LOCKING 4PST |
4,731 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-2NO/2NC | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
TL4019-30242INTERLOCK SOLENOID RELEASE 4PST |
4,234 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
TL4019-30241INTERLOCK SOLENOID RELEASE 4PST |
3,629 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC (DB/DM) | 230VAC, 24VDC | 24VAC/DC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
TL4019-41102TMINTERLOCK SOLENOID LOCKING 4PST |
4,638 |
|
Datasheet |
TL4019 | Bulk | Active | Solenoid Locking | 4PST-3NC/1NO (DB/DM) | 230VAC, 24VDC | 110VAC | 122kgf | 4A (AC/DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 55°C |
|
|
3SE53220SD21INTERLOCK SW,MECH LOCK_SOL UNLOC |
1,980 |
|
Datasheet |
- | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 24VDC | 24VDC | 133kgf | 6A (AC), 3A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, EAC | M20 x 1.5 | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | -25°C ~ 60°C |
|
|
D4BL-1CRAINTERLOCK SOLENOID RELEASE DPST |
4,196 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 250VAC | 24VDC | 71kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, UL | PG13.5 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
