Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

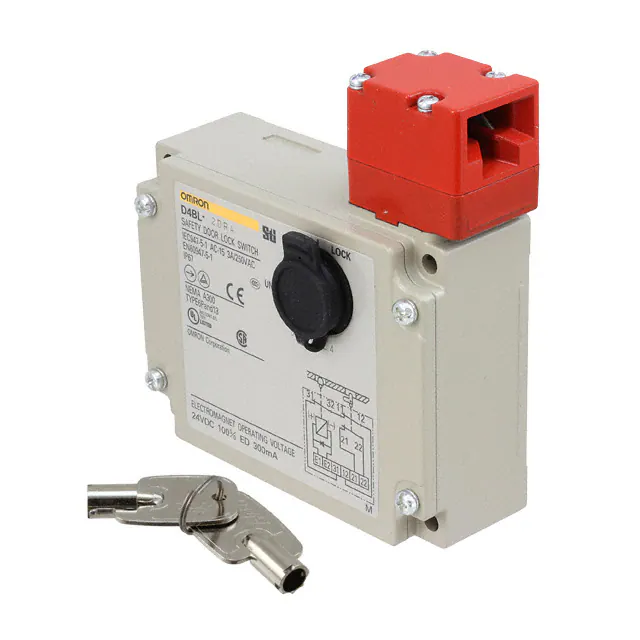

D4BL-2DRAINTERLOCK SOLENOID RELEASE DPST |
2,041 |
|
Datasheet |
D4BL | Bulk | Active | Solenoid Release | DPST-NC (DB) + SPST-NC (DB) | 250VAC | 24VDC | 71kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, CSA, UL | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
XCSE7513INTERLOCK SOLENOID LOCKING 3PST |
3,307 |
|
Datasheet |
XCSE | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | 2kgf | 3A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 40°C |
|
D4NS-2AF-SJINTERLOCK NON-LOCKING DPST |
4,618 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 8kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
D4NS-4DF-NPTINTERLOCK NON-LOCKING 3PST |
1,621 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
SI-LS83SEINTERLOCK NON-LOCKING DPST |
3,969 |
|
Datasheet |
SI-LS83 | Bulk | Active | Non-Locking | DPST-NC | 110VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M16 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
|
|
SI-LS83SRAEINTERLOCK NON-LOCKING DPST |
4,991 |
|
Datasheet |
SI-LS83 | Bulk | Active | Non-Locking | DPST-NC | 110VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M16 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
|

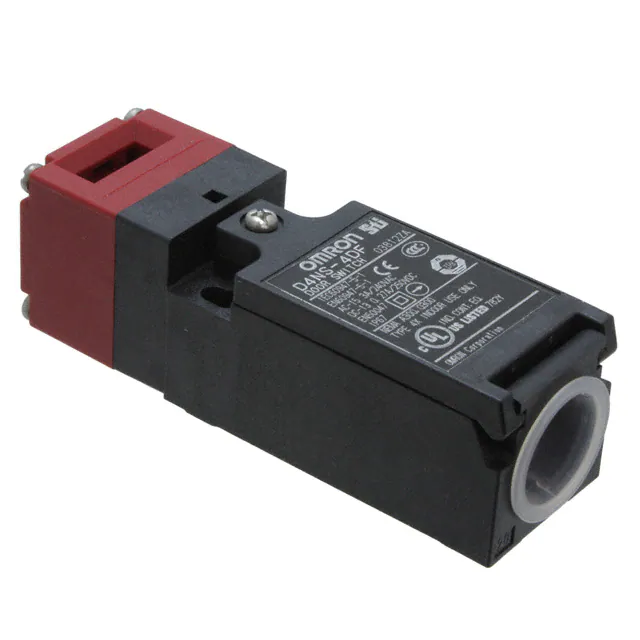

D4NS-4DFINTERLOCK NON-LOCKING 3PST |
1,182 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

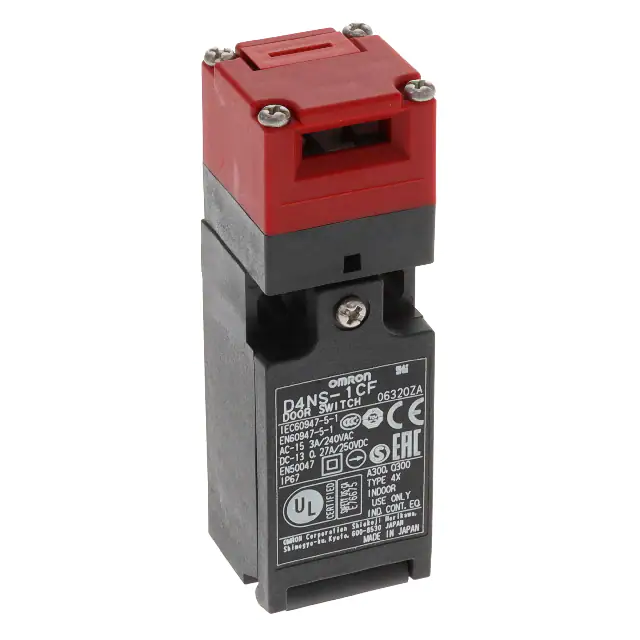

D4NS-1CFINTERLOCK NON-LOCKING 3PST |
4,049 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

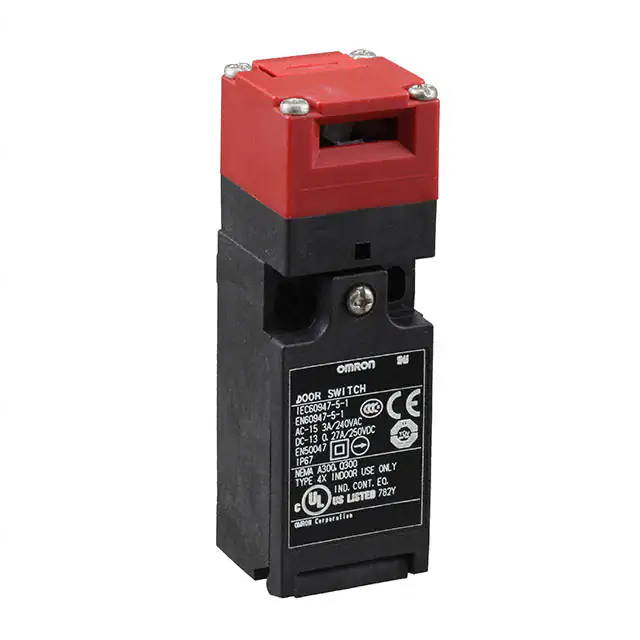

D4NS-1EFINTERLOCK NON-LOCKING DPST |
4,270 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC (MBB) | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
PS21S-NT1109-T00INTERLOCK NON-LOCKING DPST |
4,204 |
|
Datasheet |
PS21S | Bulk | Active | Non-Locking | DPST-NO/NC | 130VAC, 24VDC | - | 2kgf | 5.5A (AC), 2.8A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | 1/2" NPT | IP65 - Dust Tight, Water Resistant | -25°C ~ 70°C |
|
6025065INTERLOCK NON-LOCKING DPST |
3,213 |
|
Datasheet |
i16S | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC, 24VDC | - | 3kgf | 3A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|
|
6025063INTERLOCK NON-LOCKING DPST |
2,453 |
|
Datasheet |
i16S | Bulk | Active | Non-Locking | DPST-NC | 240VAC, 24VDC | - | 3kgf | 3A (AC), 2A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus | M20 x3 | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C |
|

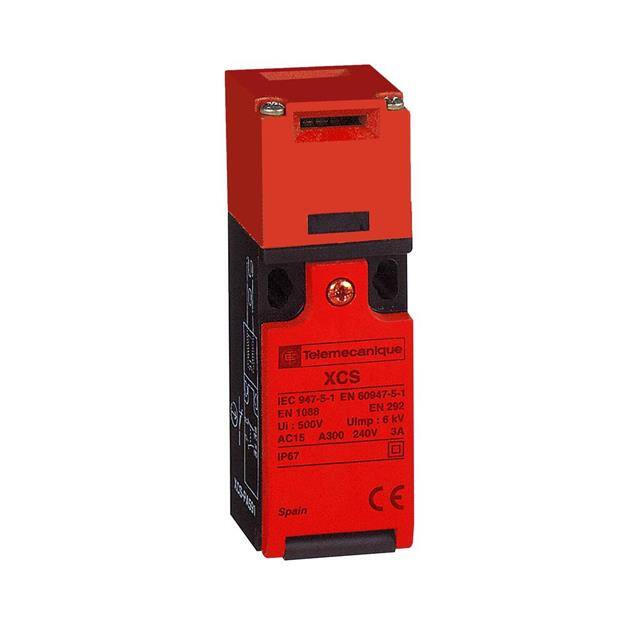

XCSPA591INTERLOCK NON-LOCKING DPST |
1,625 |
|
Datasheet |
XCSP | Box | Active | Non-Locking | DPST-NO/NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG11 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
XCSPA791INTERLOCK NON-LOCKING DPST |
3,767 |
|
Datasheet |
XCSP | Box | Active | Non-Locking | DPST-NC | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | PG11 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
XCSTA793INTERLOCK NON-LOCKING 3PST |
4,960 |
|
Datasheet |
XCST | Box | Active | Non-Locking | 3PST-2NC/1NO | 120VAC, 125VDC | - | - | 6A (AC), 550mA (DC) | Panel Disconnect | Screw Terminal | - | - | - | CSA, UL | 1/2" NPT | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D4NS-4BF-NPTINTERLOCK NON-LOCKING DPST |
4,050 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
SI-LS100SFINTERLOCK NON-LOCKING 3PST |
4,501 |
|
Datasheet |
SI-LS100 | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 110VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
|
SI-LS100SRAFINTERLOCK NON-LOCKING 3PST |
2,626 |
|
Datasheet |
SI-LS100 | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 110VAC, 24VDC | - | - | 10A (AC), 6A (DC) | Panel Disconnect | Screw Terminal | - | - | - | CE, CSA, UL | M20 | IP65 - Dust Tight, Water Resistant | -30°C ~ 80°C |
|
D4NH-1ABCINTERLOCK HINGE DPST |
2,626 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | PG13.5 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

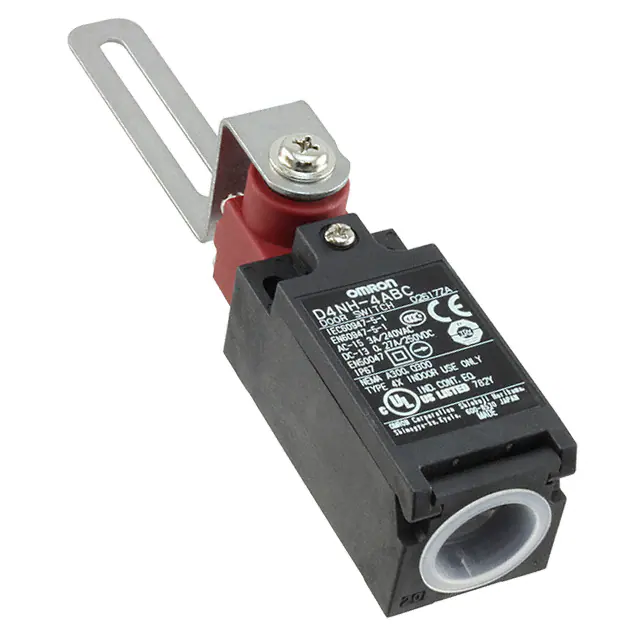

D4NH-2ABCINTERLOCK HINGE DPST |
4,251 |
|
Datasheet |
D4NH | Bulk | Active | Hinge | DPST-NO/NC | 120VAC, 125VDC | - | - | 10A (AC), 2.5A (DC) | Arm Lever | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
