Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Type | Circuit | Voltage Rating | Voltage - Supply | Holding Force | Current Rating (Amps) | Actuator Type | Termination Style | Features | Must Operate | Must Release | Approval Agency | Conduit Thread Size | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFDL-MB-M20INTERLOCK SOLENOID RELEASE 4PST |
1,012 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Release | 4PST-3NC/1NO | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SFDL-S6C-CG1/2KINTERLOCK SOLENOID LOCKING 6PST |
1,621 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Locking | 6PST-5NC/1NO | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Connector | Manual Override | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SFDL-S5D-G1/2INTERLOCK SOLENOID LOCKING 5PST |
3,178 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Locking | 5PST-5NC | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CCC, CE, cULus, TUV | G1/2 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SFDL-M6A-CM20INTERLOCK SOLENOID RELEASE 6PST |
3,886 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Release | 6PST-4NC/2NO | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Connector | Manual Override | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SFDL-M6C-CG1/2KINTERLOCK SOLENOID RELEASE 6PST |
4,894 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Release | 6PST-5NC/1NO | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Connector | Manual Override | - | - | CCC, CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
|
SFDL-S6A-M20INTERLOCK SOLENOID LOCKING 6PST |
3,804 |
|
Datasheet |
SFDL | Bulk | Active | Solenoid Locking | 6PST-4NC/2NO | 120VAC, 125VDC | 24VDC | 8kgf | 1A (AC), 220mA (DC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
SI-LS42DMJINTERLOCK SOLENOID LOCKING 3PST |
1,281 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-NC + SPST-NC | 24VAC | 24VAC/DC | 153kgf | 1A (AC) | Panel Disconnect | Screw Terminal | Manual Override | - | - | CE, cULus | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 70°C |
|
D40Z-1C5INTERLOCK MAGNETIC SPST |
4,119 |
|
Datasheet |
D40Z | Bulk | Active | Magnetic | SPST-NO | 24VDC | 24VDC | - | 10mA (DC) | Non-Contact | Cable Leads | - | 5mm | 15mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 65°C |
|

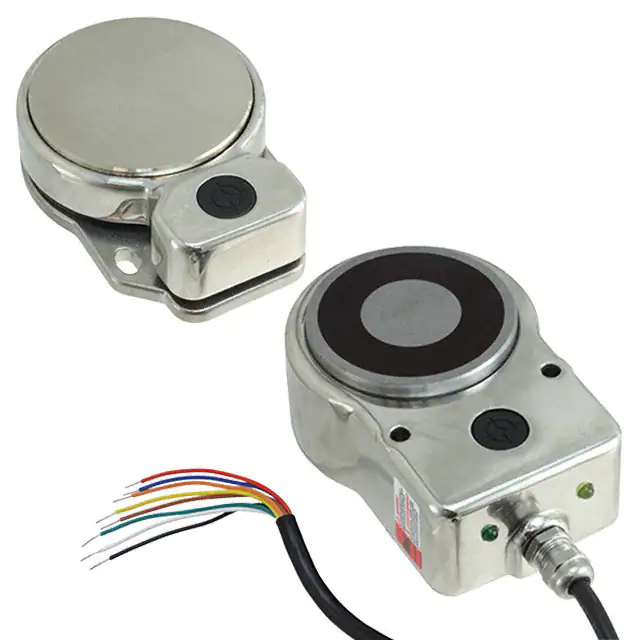

D40ML-SS2-U-5MINTERLOCK RFID DPST |
3,756 |
|
Datasheet |
D40ML | Bulk | Active | RFID | DPST-NC | 24VDC | 24VDC | 61kgf | 200mA (DC) | Non-Contact | Cable Leads | Status Indicator, Magnetic Latching | 1mm | 10mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 40°C |
|
D4NS-4BFINTERLOCK NON-LOCKING DPST |
1,422 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|

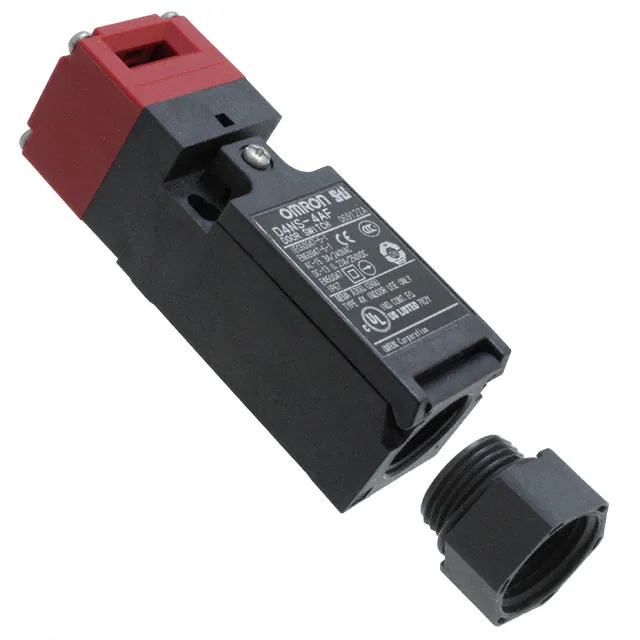

D4NS-4AF-NPTINTERLOCK NON-LOCKING DPST |
1,018 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
2702975INTERLOCK SWITCH RFID PROX |
2,842 |
|
Datasheet |
PSR-CT | Box | Active | RFID | - | 24VDC | 24VDC | - | 150mA (DC) | Non-Contact | Connector (M12) | Status Indicator | 13mm | 20mm | - | - | - | -25°C ~ 55°C |
|

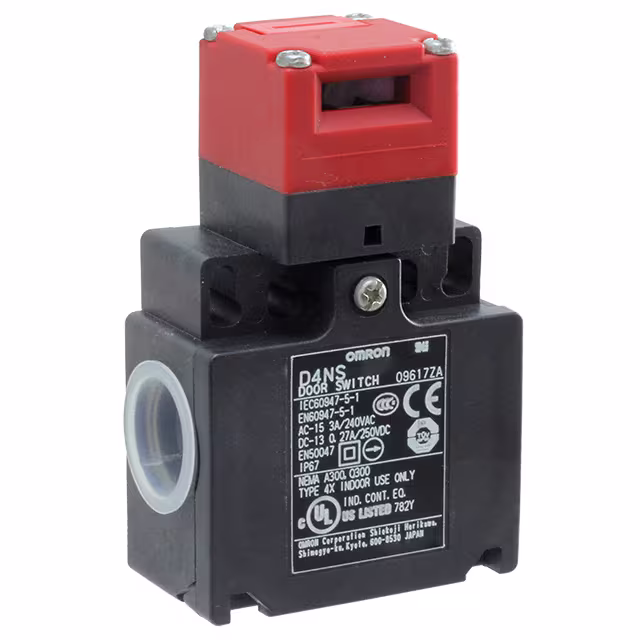

D4NS-8CFINTERLOCK NON-LOCKING 3PST |
2,327 |
|
Datasheet |
D4NS | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 240VAC | - | 6kgf | 3A (AC) | Panel Disconnect | Screw Terminal | - | - | - | CCC, CE, cULus, TUV | M20 x2 | IP67 - Dust Tight, Waterproof | -30°C ~ 70°C |
|
CM-S5PC5INTERLOCK MAGNETIC DPST |
4,944 |
|
Datasheet |
CM-STI | Bulk | Active | Magnetic | DPST-NO/NC | 24VDC | - | - | 500mA (DC) | Non-Contact | Cable Leads | - | 7mm | 10mm | CE, cULus, TUV | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

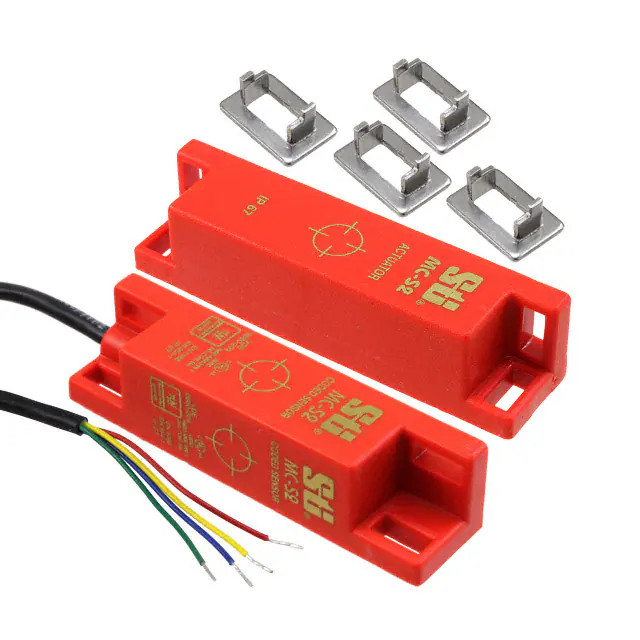

MC-S2PC3INTERLOCK MAGNETIC DPST |
3,196 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | DPST-NO/NC | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable Leads | - | 9mm | 12mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|
HS5L-DD44M-GINTERLOCK SOLENOID RELEASE DPST |
3,580 |
|
Datasheet |
HS5L | Bulk | Active | Solenoid Release | DPST-NC x 2 | 125VAC, 30VDC | 24VDC | 143kgf | 2.5A (AC/DC) | Panel Disconnect | Spring Terminal | - | - | - | CCC, CE, TUV, UL | M20 | IP67 - Dust Tight, Waterproof | -25°C ~ 55°C |
|
D40R-SPU-21-05INTERLOCK RFID 3PST MINI 5M |
4,147 |
|
Datasheet |
D40R | Box | Active | RFID | 3PST-2NC/1NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable Leads | - | 10mm | 13mm | CE, cULus | - | IP69K - Dust Tight, High Temp Water Jets, Waterproof | -25°C ~ 80°C |
|

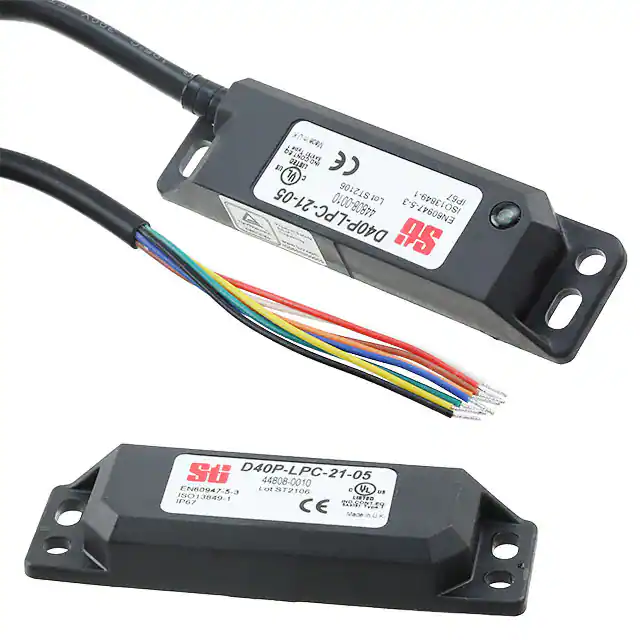

D40P-LPC-21-05INTERLOCK MAGNETIC 3PST 5M CBL |
2,146 |
|
Datasheet |
D40P | Box | Active | Magnetic | 3PST-2NC/1NO | 24VDC | 24VDC | - | 200mA (DC) | Non-Contact | Cable Leads | - | 8mm | 20mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -25°C ~ 80°C |
|

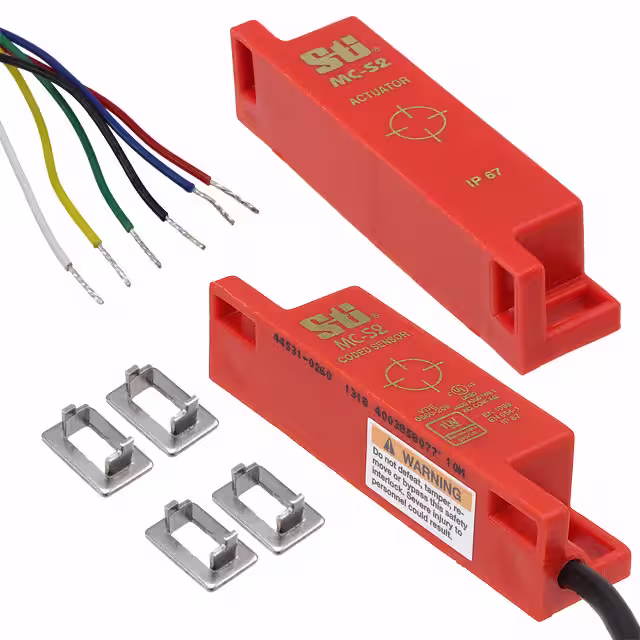

MC-S2SXCPC10INTERLOCK MAGNETIC 3PST |
1,293 |
|
Datasheet |
MC-S-STI | Bulk | Active | Magnetic | 3PST-2NC/1NO | 230VAC, 24VDC | - | - | 100mA (AC/DC) | Non-Contact | Cable Leads | - | 9mm | 12mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
|

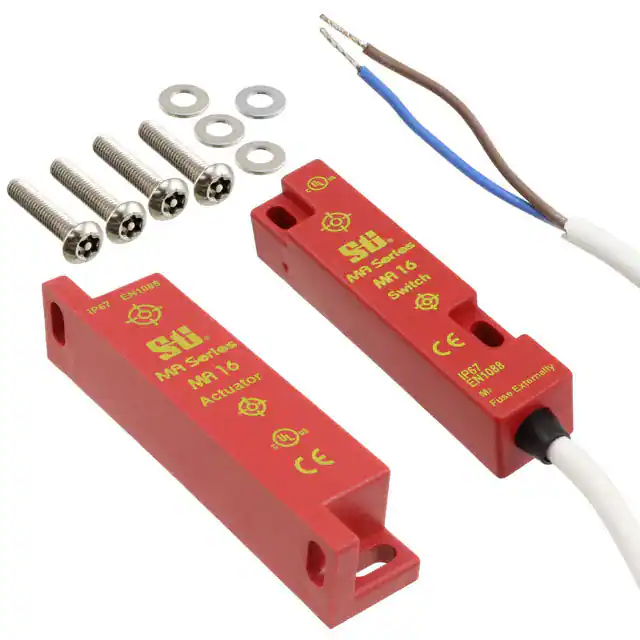

MA16DP10C3INTERLOCK MAGNETIC SPST |
3,025 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 30VDC | - | - | 1A (DC) | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | CE, cULus | - | IP67 - Dust Tight, Waterproof | -10°C ~ 55°C |
