Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

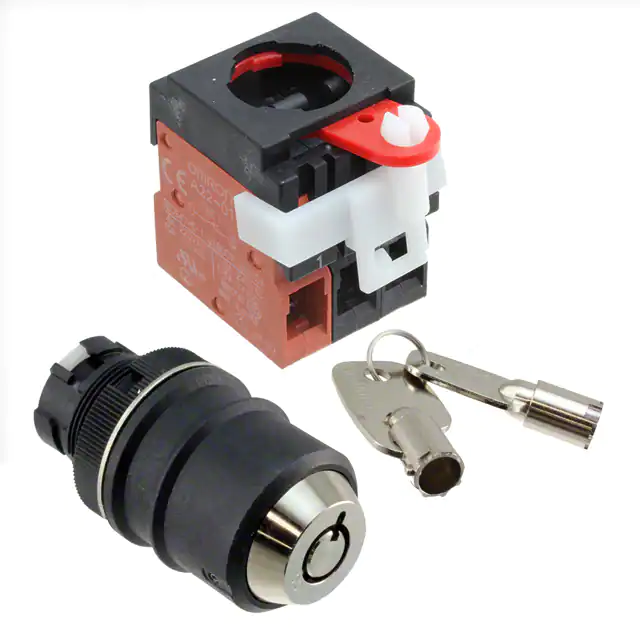

A22TK-2LL-21-K01SWITCH KEYLCK 2POS DPST 10A 110V |
1,450 |
|
Datasheet |
A22TK | Bulk | Active | DPST-NO + SPST-NC | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off, Off-On | 24 V | Tubular Key | Left | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
SW-R-K10-ASWITCH KEYLOCK 2POS SPST 4A 125V |
4,737 |
|
Datasheet |
SW | Bag | Active | SPST | 2 | Not Specified | 4A (AC/DC) | 125 V | Off-On | 28 V | Flat Key | All | - | - | Circular - 19.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | - | -20°C ~ 85°C |
|
CKL12BFW01-006SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,024 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-009SWITCH KEYLOCK 2POS SPDT 3A 250V |
1,277 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12BTW01-009SWITCH KEYLOCK 2POS SPDT 3A 250V |
3,618 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-003SWITCH KEYLOCK 2POS SPDT 3A 250V |
3,654 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

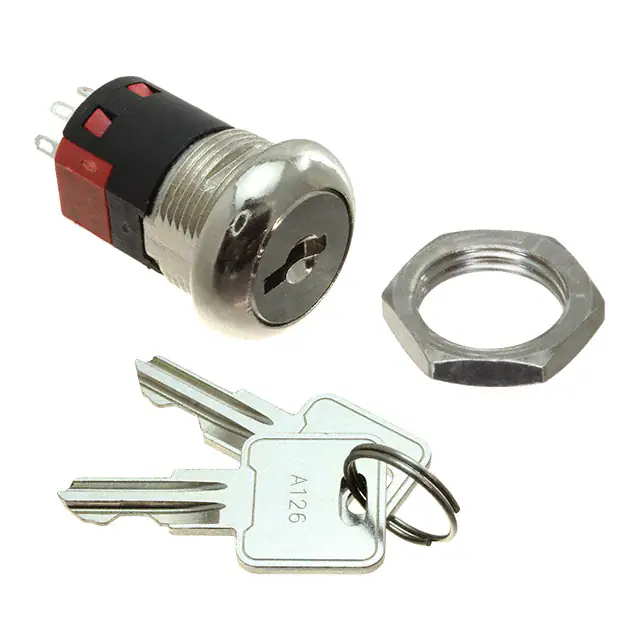

Y2011C2C203NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
4,022 |
|
Datasheet |
Y | Tray | Active | DPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | 2 only | 90° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
CKL13ETW01SWITCH KEYLOCK 3POS SPDT 3A 250V |
4,187 |
|
Datasheet |
CK | Bulk | Active | SPDT | 3 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-Off-On | - | Tubular Key | 2 only | 45° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
Y100AA2C203NQESWITCH KEYLOCK 3POS SP3T 4A 125V |
3,717 |
|
Datasheet |
Y | Tray | Active | SP3T | 3 | Not Specified | 4A (AC/DC) | 125 V | On-On-On | 28 V | Flat Key | All | 45° | Copper | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | - |
|
CKM12ATW01-012SWITCH KEYLOCK 2POS SPDT 3A 250V |
3,296 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | All | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BTW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,813 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | 1 only | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01-009SWITCH KEYLOCK 2POS SPDT 3A 250V |
4,668 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,042 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

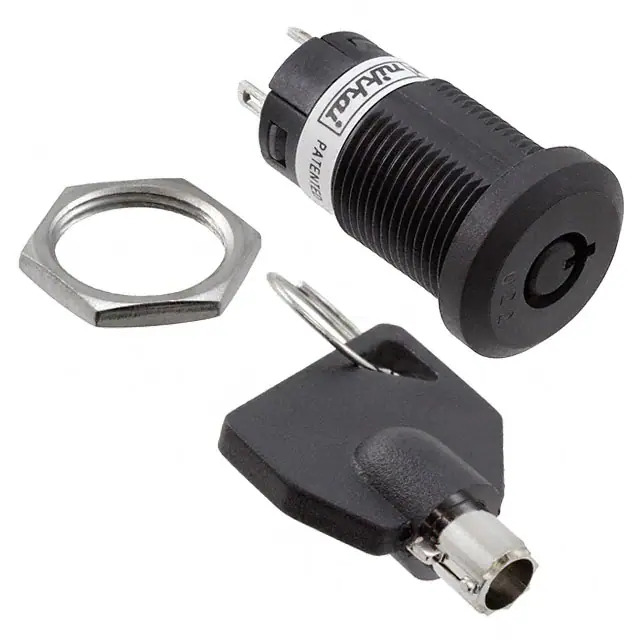

CKM12BTW01-022SWITCH KEYLOCK 2POS SPDT 3A 250V |
4,943 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | 1 only | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKM12ATW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
4,566 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | All | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01-008SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,293 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12ATW01-021SWITCH KEYLOCK 2POS SPDT 3A 250V |
3,601 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | All | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12BTW01-011SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,826 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12AFW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,281 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | All | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-004SWITCH KEYLOCK 2POS SPDT 3A 250V |
4,161 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
