Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
51-155.025DSWITCH KEYLOCK 2POS DPST 5A 250V |
4,241 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 5A (AC) | 250 V | On-Off, Off-On | - | Flat Key | All | 90° | - | Circular - 16.00mm Dia | - | Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|

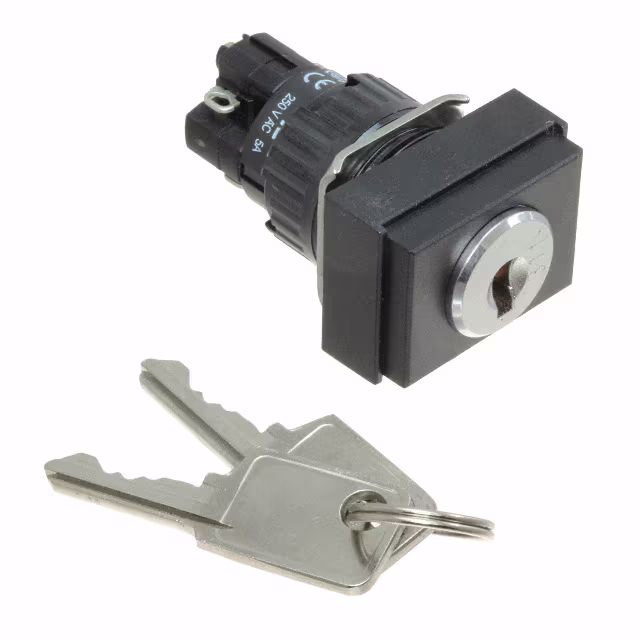

51-295.025DSWITCH KEYLOCK 2POS DPST 5A 250V |
2,134 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 5A (AC) | 250 V | On-Off, Off-On | - | Flat Key | 1 only | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65 | -25°C ~ 55°C |
|
A165K-T3ML-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
1,867 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 3 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On-On | 30 V | Flat Key | Left | 45° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
51-235.022DSWITCH KEYLOCK 2POS DPST 5A 250V |
3,690 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 5A (AC) | 250 V | On-Off, Off-On | - | Flat Key | 1 only | 90° | - | Circular - 16.00mm Dia | - | Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
51-255.022DSWITCH KEYLOCK 2POS DPST 5A 250V |
3,949 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 5A (AC) | 250 V | On-Off, Off-On | - | Flat Key | 1 only | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65 | -25°C ~ 55°C |
|

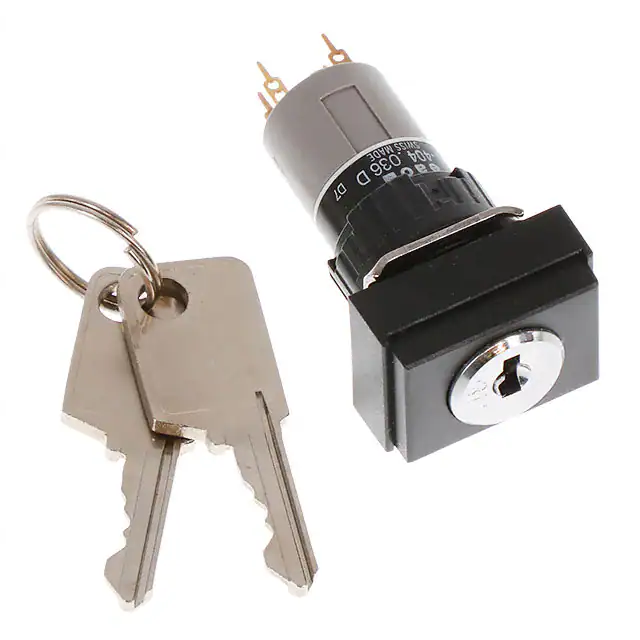

51-404.036DSWITCH KEYLK 2POS DPST 100MA 42V |
2,327 |
|
Datasheet |
51 | Bulk | Active | DPST-NO | 2 | Not Specified | 100mA (AC/DC) | 42 V | Off-On | 42 V | Flat Key | 1 only | 90° | - | Circular - 16.00mm Dia | - | PC Pin, Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
A165K-J2ML-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
3,723 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On | 30 V | Flat Key | Left | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
51-145.022DSWITCH KEYLOCK 2POS DPST 5A 250V |
1,187 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 5A (AC) | 250 V | On-Mom, Off-Mom | - | Flat Key | 1 only | 42° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65 | -25°C ~ 55°C |
|
A165K-A2MR-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
4,378 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On | 30 V | Flat Key | Right | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-J3M-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
4,450 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 3 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On-On | 30 V | Flat Key | All | 45° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
|
A165K-T3MR-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
2,310 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 3 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On-On | 30 V | Flat Key | Right | 45° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
|
A165K-T2AL-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
3,212 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-Mom | 30 V | Flat Key | Left | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-A3MR-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
4,015 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 3 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On-On | 30 V | Flat Key | Right | 45° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|

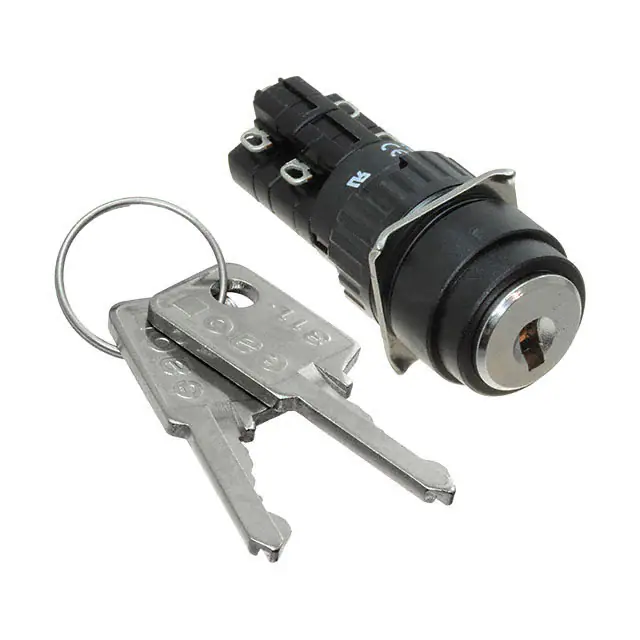

51-136.025DSWITCH KEYLOCK 2POS 4PST 5A 250V |
3,937 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 2 | Not Specified | 5A (AC) | 250 V | On-Off, Off-On | - | Flat Key | All | 90° | - | Circular - 16.00mm Dia | - | Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
|
51-196.025DSWITCH KEYLOCK 2POS 4PST 5A 250V |
4,641 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 2 | Not Specified | 5A (AC) | 250 V | On-Off, Off-On | - | Flat Key | All | 90° | - | Circular - 16.00mm Dia | - | Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
|
51-296.025DSWITCH KEYLOCK 2POS 4PST 5A 250V |
4,570 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 2 | Not Specified | 5A (AC) | 250 V | On-Off, Off-On | - | Flat Key | 1 only | 90° | - | Circular - 16.00mm Dia | - | Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
|
A165K-A3M-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
1,403 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 3 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On-On | 30 V | Flat Key | All | 45° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
|
A165K-T2MR-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
3,906 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On | 30 V | Flat Key | Right | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
|
A165K-T3M-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
4,667 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 3 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On-On | 30 V | Flat Key | All | 45° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-J3ML-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
2,487 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 3 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On-On | 30 V | Flat Key | Left | 45° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
