Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A165K-T2M-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
3,715 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On | 30 V | Flat Key | All | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|

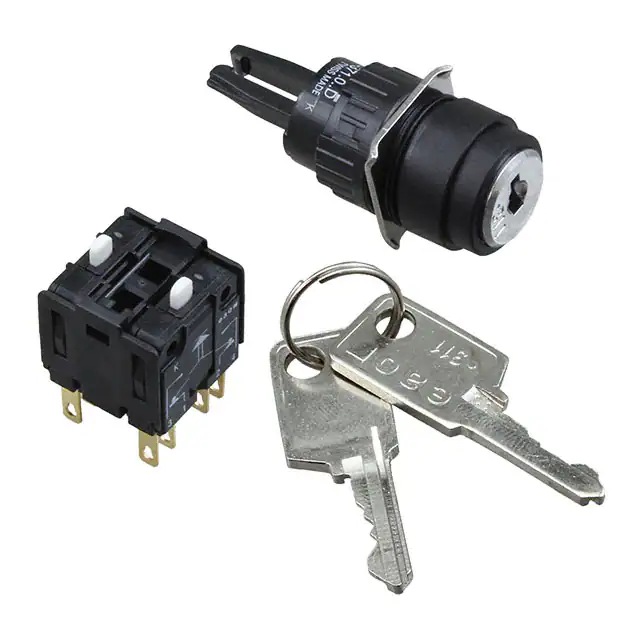

51-371.F22DSWITCH KEYLOCK 3POS 4PST 5A 250V |
2,117 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | Not Specified | 5A (AC) | 250 V | On-Off-On | - | Flat Key | Center | 90° | Silver (Ag) | Circular - 16.20mm Dia | Gold | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65 | -25°C ~ 55°C |
|
14-236.025KSWITCH KEYLOCK 2POS 4PST 5A 250V |
2,440 |
|
Datasheet |
14 | Bulk | Active | 4PST-2NO/2NC | 2 | Not Specified | 5A (AC) | 250 V | On-Off, Off-On | - | Flat Key | 1 only | 90° | - | Circular - 22.30mm Dia | - | Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
45-190F.1000.113.108SWITCH KEYLCK 3POS DPST 10A 500V |
4,851 |
|
Datasheet |
45 | Bulk | Active | DPST-NO | 3 | Not Specified | 10A (AC/DC) | 500 V | On-Off-On | 500 V | Flat Key | All | 45° | Silver (Ag) | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP66, IP67, IP69K | -25°C ~ 70°C |
|

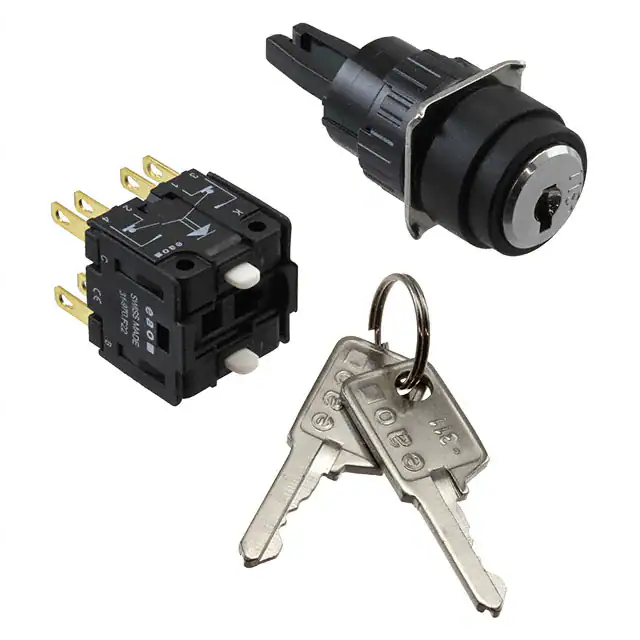

51-372.F22DSWITCH KEYLOCK 3POS 4PST 5A 250V |
2,125 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | Not Specified | 5A (AC) | 250 V | On-Off-Off, On-On-Off | - | Flat Key | All | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65 | -25°C ~ 55°C |
|
A22TK-2RR-01-K01SWITCH KEYLCK 2POS SPST 10A 110V |
3,625 |
|
Datasheet |
A22TK | Bulk | Active | SPST-NC | 2 | Not Specified | 10A (AC/DC) | 110 V | Off-On | 24 V | Tubular Key | Right | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|

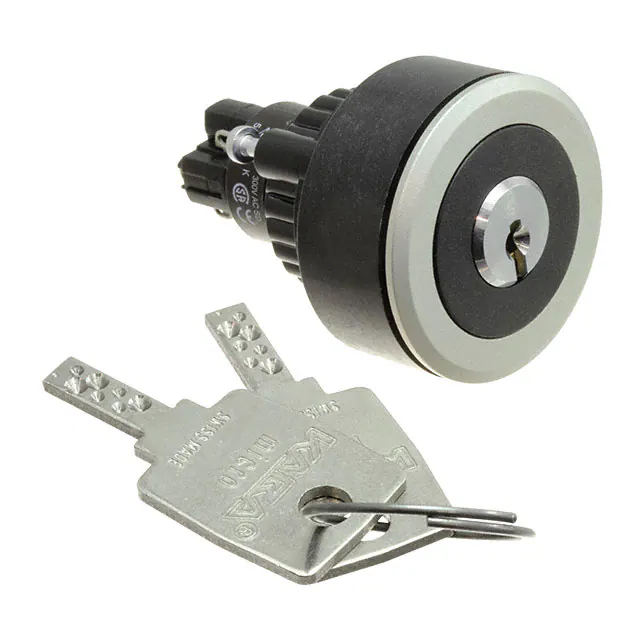

K14-135.22200SWITCH KEYLOCK 2POS DPST 5A 250V |
3,935 |
|
Datasheet |
14 | Box | Active | DPST-NO/NC | 2 | Not Specified | 5A (AC) | 250 V | Off-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 30.50mm Dia | Gold | Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
K14-141.22100SWITCH KEYLOCK 2POS DPST 5A 250V |
4,122 |
|
Datasheet |
14 | Box | Active | DPST-NO/NC | 2 | Not Specified | 5A (AC) | 250 V | Off-Mom | - | Flat Key | 1 only | 42° | Silver (Ag) | Circular - 30.50mm Dia | Gold | Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
A22TK-2LR-11-K02SWITCH KEYLCK 2POS DPST 10A 110V |
4,945 |
|
Datasheet |
A22TK | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off, Off-On | 24 V | Tubular Key | Left | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
A22TK-2RR-21-K05SWITCH KEYLCK 2POS DPST 10A 110V |
3,928 |
|
Datasheet |
A22TK | Tray | Active | DPST-NO + SPST-NC | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off, Off-On | 24 V | Tubular Key | Right | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
A22TK-2LR-11-K04SWITCH KEYLCK 2POS DPST 10A 110V |
2,751 |
|
Datasheet |
A22TK | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off, Off-On | 24 V | Tubular Key | Left | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
A22TK-2RL-02-K01SWITCH KEYLCK 2POS DPST 10A 110V |
2,858 |
|
Datasheet |
A22TK | Bulk | Active | DPST-NC | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off | 24 V | Tubular Key | Right | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
A22TK-2LL-03-K01SWITCH KEYLCK 2POS 3PST 10A 110V |
1,881 |
|
Datasheet |
A22TK | Bulk | Active | 3PST-NC | 2 | Not Specified | 10A (AC/DC) | 110 V | On-Off | 24 V | Tubular Key | Left | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
A22TK-2LR-03-K03SWITCH KEYLCK 2POS 3PST 10A 110V |
1,394 |
|
Datasheet |
A22TK | Bulk | Active | 3PST-NC | 2 | Not Specified | 10A (AC/DC) | 110 V | Off-On | 24 V | Tubular Key | Left | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | IP65 | -20°C ~ 70°C |
|
A22LK-2RLB-22-K01-SJSWITCH KEYLOCK 2POS DPST 3A 240V |
1,327 |
|
Datasheet |
A22LK | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 3A (AC), 270mA (DC) | 240 V | On-Off, Off-On | 250 V | Tubular Key | Right | 90° | - | Circular - 22.30mm Dia | - | Screw Terminal | Panel Mount | - | -10°C ~ 55°C |
|
SW-R-K11B-ASWITCH KEYLOCK 2POS SPDT 4A 125V |
2,727 |
|
Datasheet |
SW | Bag | Active | SPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | All | - | - | Circular - 19.00mm Dia | - | Solder Lug | Panel Mount | - | -20°C ~ 85°C |
|
SW-R-K13A-ASWITCH KEYLOCK 2POS SPDT 4A 125V |
1,686 |
|
Datasheet |
SW | Bag | Active | SPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-On | 28 V | Flat Key | All | 45° | - | Circular - 19.00mm Dia | - | Solder Lug | Panel Mount | - | -20°C ~ 85°C |
|
CKL12BFW01-014SWITCH KEYLOCK 2POS SPDT 3A 250V |
1,400 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BFW01-012SWITCH KEYLOCK 2POS SPDT 3A 250V |
1,858 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
G3PK003SWITCH KEYLOCK |
2,434 |
|
Datasheet |
- | Bulk | Active | - | - | Not Specified | - | - | - | - | Flat Key | - | - | - | - | - | - | - | - | - |
