Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRK 286 B-2KEY SWITCH, ON-ON |
100 |
|
Datasheet |
MRK | Box | Active | SPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | 2 only | 90° | - | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 70°C |
|
|
MRK 286 B-1KEY SWITCH, ON-ON |
100 |
|
Datasheet |
MRK | Box | Active | SPDT | 1 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | 1 only | 90° | - | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 70°C |
|
|
MRK 286 A-1KEY SWITCH, OFF-ON |
2,717 |
|
Datasheet |
MRK | Box | Active | SPST | 1 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | - | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 70°C |
|
|
MRK 202-1KEY SWITCH, OFF-ON |
100 |
|
Datasheet |
MRK | Box | Active | SPST | 1 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 1 only | 90° | - | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 70°C |
|
|
MRK 202-2KEY SWITCH, OFF-ON |
1,546 |
|
Datasheet |
MRK | Box | Active | SPST | 2 | Not Specified | 4A (AC) | 125 V | Off-On | - | Flat Key | 2 only | 90° | - | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 70°C |
|
|
MRK 202-AKEY SWITCH, OFF-MOM |
1,871 |
|
Datasheet |
MRK | Box | Active | SPST-NO | 1 | Not Specified | 4A (AC) | 125 V | Off-Mom | - | Flat Key | 2 only | 90° | - | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 70°C |
|
|
MRK 202-DAKEY SWITCH, ON-MOM |
100 |
|
Datasheet |
MRK | Box | Active | SPST-NC | 1 | Not Specified | 4A (AC) | 125 V | On-Mom | - | Flat Key | 2 only | 90° | - | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | - | -20°C ~ 70°C |
|
|
MRK 2021 RKEY SWITCH, ON-ON, GOLD PLATED |
1,584 |
|
Datasheet |
MRK | Box | Active | SPDT | 2 | Not Specified | 4A (AC) | 125 V | On-On | - | Flat Key | Right | 90° | - | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -20°C ~ 70°C |
|
|
K1-101S1S1N2 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
3,733 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | Not Specified | 4A (AC/DC) | 125 V | On-On-On | 28 V | Flat Key | 1 only | 90° | Copper | Circular - 19.18mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
CKL12AFW01-005SWITCH KEYLOCK 2POS SPDT 3A 250V |
3,272 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | All | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
K1-100S1S1N2 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
3,667 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | Not Specified | 4A (AC/DC) | 125 V | On-On-On | 28 V | Flat Key | 1 and 3 | 90° | Copper | Circular - 19.18mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
|
K1-101S1S1N1 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
4,532 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | Not Specified | 4A (AC/DC) | 125 V | On-On-On | 28 V | Flat Key | 1 only | 90° | Copper | Circular - 19.18mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
CKM12BFW01-002SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,945 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01-010SWITCH KEYLOCK 2POS SPDT 3A 250V |
1,176 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM12BFW01-005SWITCH KEYLOCK 2POS SPDT 3A 250V |
3,367 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 16.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

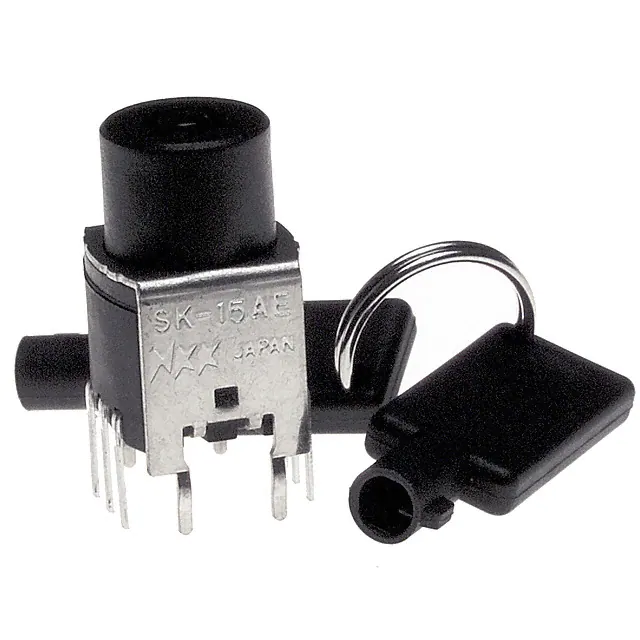

SK15AEG13SWITCH KEYLK 5POS SP5T 0.4VA 28V |
3,081 |
|
Datasheet |
SK | Bulk | Active | SP5T | 5 | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | On-On-On-On-On | 28 V | Tubular Key | All | 45° | Beryllium Copper | - | Gold | PC Pin | Through Hole | Antistatic, Process Sealed | -25°C ~ 70°C |
|
CKL12AFW01-003SWITCH KEYLOCK 2POS SPDT 3A 250V |
1,410 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | All | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12AFW01-007SWITCH KEYLOCK 2POS SPDT 3A 250V |
1,314 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | All | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12BFW01-016SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,076 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Flat Key | 1 only | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKL12ATW01-037SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,219 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | All | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
