Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CKL12ATW01-010SWITCH KEYLOCK 2POS SPDT 3A 250V |
2,206 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-On | - | Tubular Key | All | 90° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|

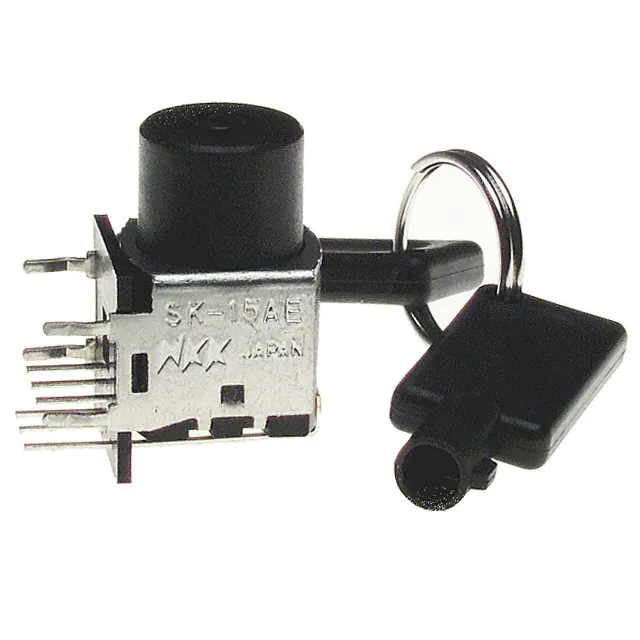

SK15AEG30SWITCH KEYLK 5POS SP5T 0.4VA 28V |
1,083 |
|
Datasheet |
SK | Bulk | Active | SP5T | 5 | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | On-On-On-On-On | 28 V | Tubular Key | All | 45° | Beryllium Copper | - | Gold | PC Pin | Through Hole | Antistatic, Process Sealed | -25°C ~ 70°C |
|
SK14DG30SWITCH KEYLK 3POS SP3T 0.4VA 28V |
2,229 |
|
Datasheet |
SK | Bulk | Active | SP3T | 3 | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | On-On-On | 28 V | Flat Key | All | 45° | Beryllium Copper | - | Gold | PC Pin | Through Hole, Right Angle | Process Sealed | -25°C ~ 70°C |
|
K1-100S1S1N1 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
2,747 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | Not Specified | 4A (AC/DC) | 125 V | On-On-On | 28 V | Flat Key | 1 and 3 | 90° | Copper | Circular - 19.18mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
CKL13EFW01-001SWITCH KEYLOCK 3POS SPDT 3A 250V |
3,341 |
|
Datasheet |
CK | Box | Active | SPDT | 3 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-Off-On | - | Flat Key | 2 only | 45° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
K1-206S1S1N1 01SWITCH KEYLOCK 4POS DP4T 8A 125V |
2,475 |
|
Datasheet |
K | Tray | Active | DP4T | 4 | Not Specified | 8A (AC/DC) | 125 V | On-On-On-On | 28 V | Flat Key | 1 only | 45° | Copper | Circular - 19.18mm Dia | Silver | Solder Lug | Panel Mount | - | - |
|
9577SWITCH KEYLOCK 2POS 5A 12V |
1,705 |
|
Datasheet |
95 | Bulk | Active | - | 2 | Not Specified | 5A (DC) | - | Off-Mom | 12 V | Flat Key | 1 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
|
95612-BXSWITCH KEYLOCK 3POS 20A |
2,654 |
|
Datasheet |
95 | Bulk | Active | - | 3 | Not Specified | 20A (AC) | - | Off-On-Mom | 12 V | Flat Key | 1 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
95061-07SWITCH KEYLOCK 3POS 3PDT 5A 24V |
3,426 |
|
Datasheet |
95060 | Bulk | Active | 3PDT | 3 | Not Specified | 5A (DC) | - | Mom-Off-Mom | 24 V | Flat Key | All | - | - | - | - | Wire Leads | Panel Mount | - | - |
|
95539SWITCH KEYLOCK 3POS 5A 12V |
4,820 |
|
Datasheet |
95 | Bulk | Active | - | 3 | Not Specified | 5A (DC) | - | Off-On-Mom | 12 V | Flat Key | 1 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
95524-ASWITCH KEYLOCK 3POS 5A 12V |
100 |
|
Datasheet |
95 | Bulk | Active | - | 3 | Not Specified | 5A (DC) | - | Off-On-Mom | 12 V | Flat Key | 1 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
|
9579SWITCH KEYLOCK 4POS 5A 12V |
1,112 |
|
Datasheet |
95 | Bulk | Active | - | 4 | Not Specified | 5A (DC) | - | On-Off-On-Mom | 12 V | Flat Key | 2 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
95060-36SWITCH KEYLOCK 3POS 3PDT 5A 24V |
4,802 |
|
Datasheet |
95060 | Box | Active | 3PDT | 3 | Not Specified | 5A (DC) | - | Mom-Off-Mom | 24 V | Flat Key | All | - | - | Circular - 21.84mm Dia | - | Wire Leads | Panel Mount | - | - |
|
956-9100SWITCH KEYLOCK 4POS 5A 12V |
3,871 |
|
Datasheet |
956 | Bulk | Active | - | 4 | Not Specified | 5A (DC) | - | On-Off-On-Mom | 12 V | Flat Key | 2 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
|
95582SWITCH KEYLOCK 3POS 5A 12V |
4,250 |
|
Datasheet |
95 | Bulk | Active | - | 3 | Not Specified | 5A (DC) | - | Off-On-Mom | 12 V | Flat Key | 1 only | - | Bronze | - | - | Screw Terminal | Panel Mount | - | - |
|
|
M-550-BPSWITCH KEYLOCK 3POS 5A 36V |
2,837 |
|
Datasheet |
- | Bulk | Active | - | 3 | Not Specified | 5A (DC) | - | - | 36 V | Flat Key | 1 only | - | - | - | - | Screw Terminal | Panel Mount | - | - |
|
|
956-5124SWITCH KEYLOCK 4POS 10A 12V |
3,985 |
|
Datasheet |
956 | Bulk | Active | - | 4 | Not Specified | 10A (DC) | - | On-Off-On-Mom | 12 V | Flat Key | 2 only | - | - | - | - | Screw Terminal | Panel Mount | - | - |
|
|
51-445.036DSWITCH KEYLK 2POS DPST 100MA 42V |
1,667 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 100mA (AC/DC) | 42 V | On-Off, Off-On | 42 V | Flat Key | 1 only | 90° | - | Circular - 16.00mm Dia | - | PC Pin, Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
51-145.025DSWITCH KEYLOCK 2POS DPST 5A 250V |
2,798 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 5A (AC) | 250 V | On-Mom, Off-Mom | - | Flat Key | 1 only | 42° | - | Circular - 16.00mm Dia | - | Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
|
51-411.036DSWITCH KEYLK 2POS DPST 100MA 42V |
1,008 |
|
Datasheet |
51 | Bulk | Active | DPST-NO | 2 | Not Specified | 100mA (AC/DC) | 42 V | Off-On | 42 V | Flat Key | All | 90° | - | Circular - 16.00mm Dia | - | PC Pin, Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
