Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Switch Function | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Panel Cutout Dimensions | Contact Finish | Termination Style | Mounting Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CKL13EFW01-013SWITCH KEYLOCK 3POS SPDT 3A 250V |
2,893 |
|
Datasheet |
CK | Box | Active | SPDT | 3 | Non-Shorting (BBM) | 3A (AC) | 250 V | On-Off-On | - | Flat Key | 2 only | 45° | Silver (Ag) | Circular - 19.00mm Dia | Silver | Solder Lug | Panel Mount | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
LK6FNB126N3SWITCH KEYLOCK 3POS DP3T 4A 125V |
3,087 |
|
Datasheet |
LK | Tray | Active | DP3T | 3 | Not Specified | 4A (AC/DC) | 125 V | On-On-On | 28 V | Flat Key | 1 and 3 | 45° | Copper Alloy | Circular - 19.00mm Dia | Gold | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
G3PK001SWITCH KEYLOCK |
2,137 |
|
Datasheet |
- | Bulk | Active | - | - | Not Specified | - | - | - | - | Flat Key | - | - | - | - | - | - | - | - | - |
|
SK24DG13SWITCH KEYLK 3POS DP3T 0.4VA 28V |
2,719 |
|
Datasheet |
SK | Bulk | Active | DP3T | 3 | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | On-On-On | 28 V | Flat Key | All | 45° | Beryllium Copper | - | Gold | PC Pin | Through Hole | Process Sealed | -25°C ~ 70°C |
|
A421122A1NZRQSWITCH KEYLK 2POS 4PDT 2.5A 125V |
1,946 |
|
Datasheet |
A | Tray | Active | 4PDT | 2 | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | On-On | 125 V | Flat Key | 1 only | 45° | Silver (Ag) | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
A3151U2A8SZRQSWITCH KEYLK 3POS 3P3T 2.5A 125V |
4,924 |
|
Datasheet |
A | Tray | Active | 3P3T | 3 | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | On-On-On | 125 V | Flat Key | 1 and 3 | 45° | Silver (Ag) | Circular - 19.30mm Dia | Silver | Solder Lug | Panel Mount | - | -30°C ~ 85°C |
|
Y108122A2WCNQESWITCH KEYLOCK 2POS SPDT 4A 125V |
4,502 |
|
Datasheet |
Y | Bulk | Active | SPDT | 2 | Not Specified | 4A (AC/DC) | 125 V | On-Mom | 28 V | Flat Key | 1 only | 45° | Copper | Circular - 19.30mm Dia | Silver | Wire Leads | Panel Mount | Epoxy Sealed Terminals | - |
|
51-438.036DSWITCH KEYLK 2POS DPST 100MA 42V |
2,362 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | Not Specified | 100mA (AC/DC) | 42 V | On-Mom, Off-Mom | 42 V | Flat Key | 1 only | 42° | - | Circular - 16.00mm Dia | - | PC Pin, Solder Lug | Panel Mount | IP65 | -25°C ~ 55°C |
|
51-388.F22DSWITCH KEYLOCK 3POS 4PST 5A 250V |
1,478 |
|
Datasheet |
51 | Bulk | Active | 4PST-2NO/2NC | 3 | Not Specified | 5A (AC) | 250 V | On-Off-Mom | - | Flat Key | Left and Center | 42°, 90° | Silver (Ag) | Circular - 16.20mm Dia | Gold | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65 | -25°C ~ 55°C |
|

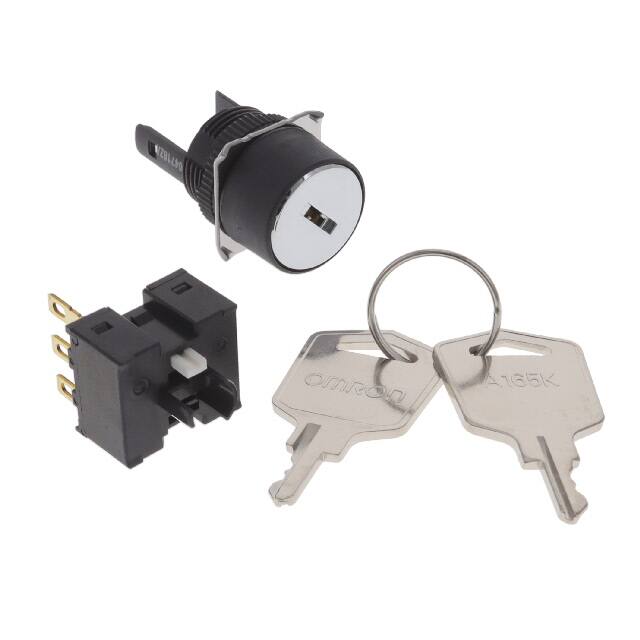

A165K-T2MR-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
3,580 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On | 30 V | Flat Key | Right | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-J2ML-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
3,495 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On | 30 V | Flat Key | Left | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-T2AL-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
4,719 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-Mom | 30 V | Flat Key | Left | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-J2M-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
4,930 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On | 30 V | Flat Key | All | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-A2AL-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
3,807 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-Mom | 30 V | Flat Key | Left | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|

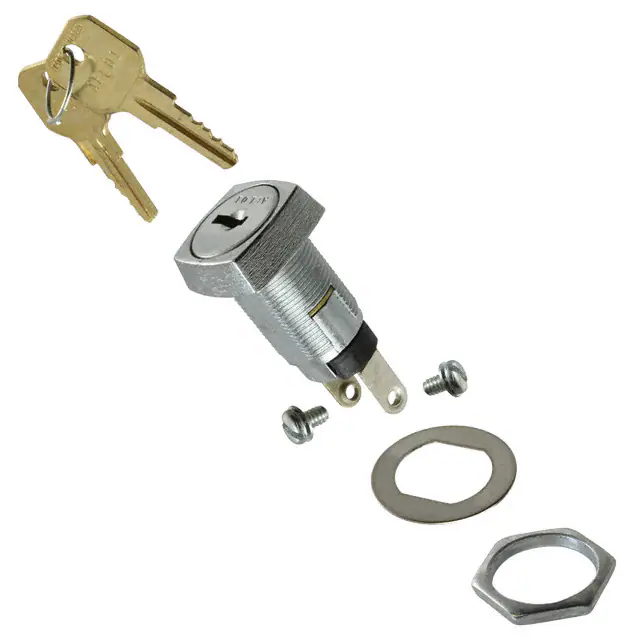

2SKF132AEL01SWITCH KEYLOCK 2POS SPST 1A 120V |
4,151 |
|
Datasheet |
SKF | Bulk | Active | SPST | 2 | Non-Shorting (BBM) | 1A (AC) | 120 V | Off-On | - | Flat Key | All | 90° | Silver (Ag) | Circular - 19.20mm Dia | - | Screw Terminal | Panel Mount | - | -30°C ~ 85°C |
|
1.15.108.852/0000SWITCH KEYLOCK 2POS 4PST 4A 250V |
2,114 |
|
Datasheet |
LUMOTAST 75 | Box | Active | 4PST-2NO/2NC | 2 | Not Specified | 4A (AC), 200mA (DC) | 250 V | On-Off, Off-On | 230 V | Flat Key | Center | 90° | Silver (Ag) | Circular - 16.20mm Dia | - | Solder Lug | Panel Mount | IP40 | -25°C ~ 70°C |
|
XB7NG21SWITCH KEY 2POS SPST 600MA 120V |
3,753 |
|
Datasheet |
Harmony XB7 | Box | Active | SPST-NO | 2 | Not Specified | 600mA (AC), 220mA (DC) | 120 V | Off-On | 125 V | Flat Key | Left and Right | 90° | - | Circular - 22.00mm Dia | - | Screw Terminal | Panel Mount | - | -40°C ~ 70°C |
|
A165K-J3MC-2SWITCH KEYLOCK 3POS DPDT 5A 125V |
2,235 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 3 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-On-On | 30 V | Flat Key | Center | 45° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-J2AL-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
3,866 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | Not Specified | 5A (AC), 3A (DC) | 125 V | On-Mom | 30 V | Flat Key | Left | 90° | - | Circular - 16.00mm Dia | - | Solder, Quick Connect - 0.110" (2.8mm) | Panel Mount | IP65, Oil-Resistant | -10°C ~ 55°C |
|

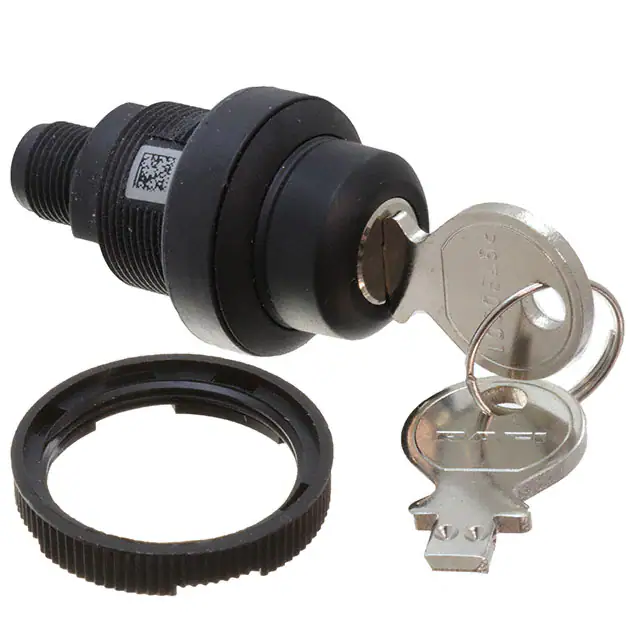

1.10.051.005/0001SWITCH KEYLK 3POS SPDT 100MA 32V |
2,606 |
|
Datasheet |
RAMO 22 K | Bulk | Active | SPDT | 3 | Not Specified | 100mA (DC) | - | On-Off-On | 32 V | Flat Key | Center | 90° | Gold (Au) | Circular - 22.30mm Dia | - | Connector | Panel Mount | IP65 | -40°C ~ 85°C |
