Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature

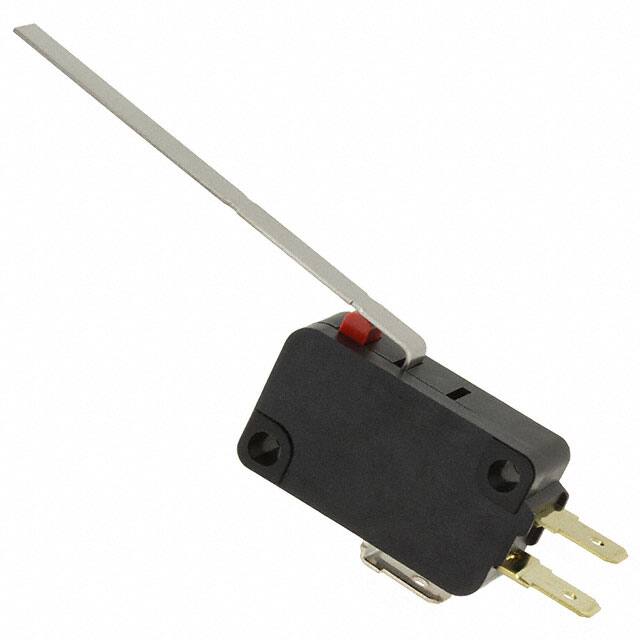

VX-013K-1C23 SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	3,649	-	RFQ Sell Excess Inventory	Datasheet	VX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	10gf	0.150" (3.8mm)	-	0.591" (15.0mm)	0.600" (15.2mm)	0.158" (4.0mm)	-25°C ~ 80°C
D3V-21G4M-1C4A BY OMI SWITCH SNAP ACTION SPDT 21A 250V Omron Electronics Inc-EMC Div	4,393	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Obsolete	SPDT	On-Mom	250 V	125 V	Lever, Roller	21A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	85gf	0.055" (1.4mm)	7.000gf	0.157" (4.0mm)	0.736" (18.7mm)	0.063" (1.6mm)	-25°C ~ 85°C
D3V-21G-1F4A-E SWITCH DETECTOR SPDT 21A 250V Omron Electronics Inc-EMC Div	2,019	-	RFQ Sell Excess Inventory	Datasheet	D3V	Bulk	Obsolete	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	21A (AC), 600mA (DC)	Chassis Mount	Solder Lug	IP40	-	125gf	0.012" (0.3mm)	20gf	0.047" (1.2mm)	0.579" (14.7mm)	0.039" (1.0mm)	-25°C ~ 85°C
ZX40E10C01-T SWITCH BASIC Honeywell Sensing and Productivity Solutions	3,918	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
G00987225 Linear IC's C&K	4,531	-	RFQ Sell Excess Inventory	Datasheet	ZMV	Bulk	Active	SPST-NO	Off-Mom	125 V	24 V	Round (Pin Plunger)	3A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	150gf	0.010" (0.25mm)	20gf	-	0.250" (6.4mm)	0.045" (1.1mm)	-40°C ~ 85°C
G00987240 Linear IC's C&K	1,901	-	RFQ Sell Excess Inventory	Datasheet	ZMV	Bulk	Active	SPST-NO	Off-Mom	125 V	24 V	Round (Pin Plunger)	3A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	150gf	0.010" (0.25mm)	20gf	-	0.250" (6.4mm)	0.045" (1.1mm)	-40°C ~ 85°C
V-103-4A5-T SWITCH SNAP ACTION SPDT 10A 250V Omron Electronics Inc-EMC Div	2,912	-	RFQ Sell Excess Inventory	Datasheet	V	Bulk	Obsolete	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	10A (AC), 600mA (DC)	Chassis Mount	Solder Lug	IP40	-	200gf	0.016" (0.4mm)	20gf	0.047" (1.2mm)	0.579" (14.7mm)	0.039" (1.0mm)	-25°C ~ 150°C
C0056RB SWITCH SNP ACT SPST-NC 0.2A 250V Bulgin	3,860	-	RFQ Sell Excess Inventory	Datasheet	0055	Bulk	Active	SPST-NC	On-Mom	250 V	-	Round (Pin Plunger)	200mA (AC)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-

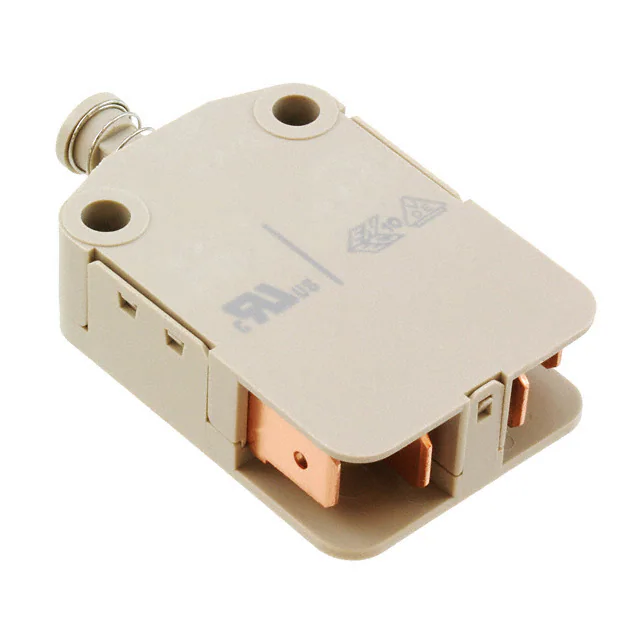

AV15653F SWITCH SNAP ACT SPST-NC 10A 125V Panasonic Electric Works	1,562	-	RFQ Sell Excess Inventory	Datasheet	AV1	Bulk	Obsolete	SPST-NC	On-Mom	125 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	295gf	-	-	-	0.587" (14.9mm)	0.168" (4.3mm)	-25°C ~ 85°C
H3141AAKBB SWITCH DETECTOR DPDT 5A 250V Bulgin	3,232	-	RFQ Sell Excess Inventory	Datasheet	3140	Bulk	Active	DPDT	On-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	Splash Proof	-	-	-	-	-	-	-	-
V15S05-EZ200A06-A SWITCH MICRO Honeywell Sensing and Productivity Solutions	2,475	-	RFQ Sell Excess Inventory	Datasheet	*	Tray	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
LCS052T43PDC SWITCH SNAP ACTION SPDT 5A 125V C&K	1,677	-	RFQ Sell Excess Inventory	Datasheet	LCS	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	5A (AC)	Through Hole	PC Pin	IP67 - Dust Tight, Waterproof	-	33gf	0.140" (3.56mm)	7.000gf	0.535" (13.6mm)	0.346" (8.80mm)	0.115" (2.9mm)	-40°C ~ 120°C
ZD30S60A05-Z SWITCH SNAP ACT SPDT 100MA 125V Honeywell Sensing and Productivity Solutions	3,963	-	RFQ Sell Excess Inventory	Datasheet	ZD	Tray	Obsolete	SPDT	On-Mom	125 V	12 V	Round (Pin Plunger)	100mA (AC), 3A (DC)	Through Hole, Right Angle	PC Pin	IP00	Support Posts	130gf	0.008" (0.2mm)	13gf	0.030" (0.8mm)	0.270" (6.85mm)	0.030" (0.76mm)	-40°C ~ 120°C

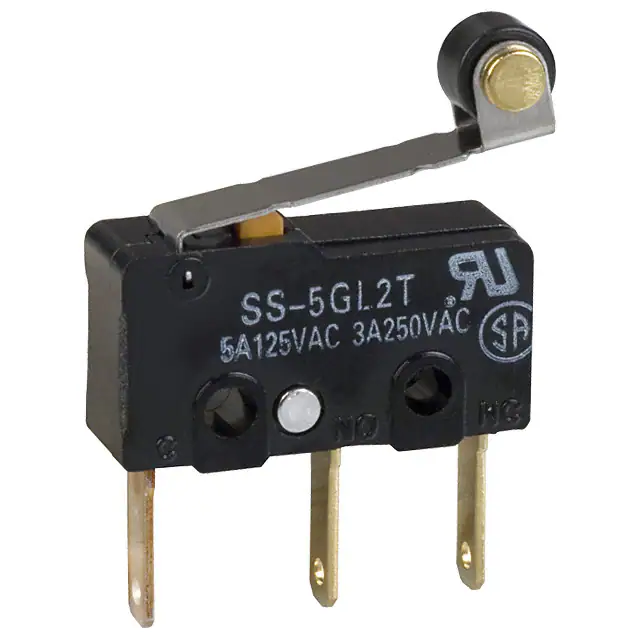

SS-01GL02-T SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	1,784	-	RFQ Sell Excess Inventory	Datasheet	SS	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Solder Lug	IP40	-	-	-	-	-	-	-	-25°C ~ 85°C
83161058 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	4,033	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Solder Lug	-	-	306gf	0.014" (0.35mm)	102gf	-	0.579" (14.7mm)	0.045" (1.1mm)	-20°C ~ 125°C
83161165 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	1,813	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	306gf	0.014" (0.35mm)	102gf	-	0.579" (14.7mm)	0.045" (1.1mm)	-20°C ~ 125°C
83161182 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	3,967	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	306gf	0.014" (0.35mm)	102gf	-	0.579" (14.7mm)	0.045" (1.1mm)	-20°C ~ 125°C
83161118 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	1,397	-	RFQ Sell Excess Inventory	Datasheet	83161	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	306gf	0.014" (0.35mm)	102gf	-	0.579" (14.7mm)	0.045" (1.1mm)	-20°C ~ 125°C
AGL4020 SWITCH SNAP ACT DPST-NO 5A 250V Panasonic Electric Works	2,084	-	RFQ Sell Excess Inventory	Datasheet	AGL	Bulk	Active	DPST-NO	Off-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC), 6A (DC)	Through Hole, Right Angle	PC Pin	-	-	329gf	-	-	-	0.256" (6.5mm)	0.030" (0.76mm)	-25°C ~ 60°C
D2QW-C072D SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	1,230	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
