Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
HK3141DAPAEX SWITCH DETECTOR SPDT 5A 250V Bulgin	3,781	-	RFQ Sell Excess Inventory	Datasheet	3140	Bulk	Active	SPDT	On-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.110" (2.8mm)	Splash Proof	-	-	-	-	-	-	-	-
HK3141DABAEX SWITCH DETECTOR SPDT 5A 250V Bulgin	2,342	-	RFQ Sell Excess Inventory	Datasheet	3140	Bulk	Active	SPDT	On-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.110" (2.8mm)	Splash Proof	-	-	-	-	-	-	-	-
HK3141AABAEX SWITCH DETECTOR SPDT 5A 250V Bulgin	3,367	-	RFQ Sell Excess Inventory	Datasheet	3140	Bulk	Active	SPDT	On-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.110" (2.8mm)	Splash Proof	-	-	-	-	-	-	-	-
HK3141CAPAEX SWITCH DETECTOR SPDT 5A 250V Bulgin	4,812	-	RFQ Sell Excess Inventory	Datasheet	3140	Bulk	Active	SPDT	On-Mom	250 V	-	Angled Toggle (Detector)	5A (AC)	Panel Mount, Snap-In	Quick Connect - 0.110" (2.8mm)	Splash Proof	-	-	-	-	-	-	-	-
ASKHF3BB4AC SWITCH SNAP ACTION SPDT 25A 125V C&K	4,956	-	RFQ Sell Excess Inventory	Datasheet	A	Tray	Active	SPDT	On-Mom	125 V	24 V	Round (Pin Plunger)	25A (AC), 2A (DC)	Panel Mount	Quick Connect - 0.250" (6.3mm)	-	Large Red Button	567gf	-	85gf	0.050" (1.27mm)	-	0.050" (1.27mm)	-55°C ~ 85°C
D2HW-BR272MS SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	1,345	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
11SM866 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	2,859	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	198gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
D2FW-G282M SWITCH SNAP ACT SPST-NC 1A 30V Omron Electronics Inc-EMC Div	1,260	-	RFQ Sell Excess Inventory	Datasheet	D2FW-G	Tray	Active	SPST-NC	On-Mom	-	30 V	Lever, Leaf	1A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	300gf	0.040" (1.0mm)	60gf	-	0.472" (12.0mm)	0.040" (1.0mm)	-40°C ~ 85°C
V15W-WP200A06-W2 SWITCH SNAP ACT SPST-NO 5A 125V Honeywell Sensing and Productivity Solutions	4,722	-	RFQ Sell Excess Inventory	Datasheet	V15W	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Roller	5A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	120gf	0.047" (1.2mm)	20gf	0.125" (3.2mm)	0.812" (20.6mm)	0.051" (1.3mm)	-40°C ~ 85°C
10BS108 LARGE BASIC SWITCH Honeywell Sensing and Productivity Solutions	2,831	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2FW-G272M(D) SWITCH SNAP ACT SPST-NC 1A 30V Omron Electronics Inc-EMC Div	2,992	-	RFQ Sell Excess Inventory	Datasheet	D2FW-G	Tray	Active	SPST-NC	On-Mom	-	30 V	Lever, Leaf	1A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	250gf	0.040" (1.0mm)	30gf	-	0.453" (11.5mm)	0.040" (1.0mm)	-40°C ~ 85°C
D2HW-BL243MR SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	1,465	-	RFQ Sell Excess Inventory	Datasheet	D2HW	Bulk	Active	SPST-NO	Off-Mom	125 V	12 V	Lever, Roller	100mA (AC), 2A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Support Posts	66gf	0.025" (0.6mm)	3.059gf	-	0.551" (14.0mm)	0.075" (1.9mm)	-40°C ~ 85°C
LCGGV6P00ECU SWITCH SNAP ACTION SPDT 5A 125V C&K	1,351	-	RFQ Sell Excess Inventory	Datasheet	LC	Bulk	Not For New Designs	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Solder Lug	-	-	142gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.010" (0.25mm)	-25°C ~ 85°C

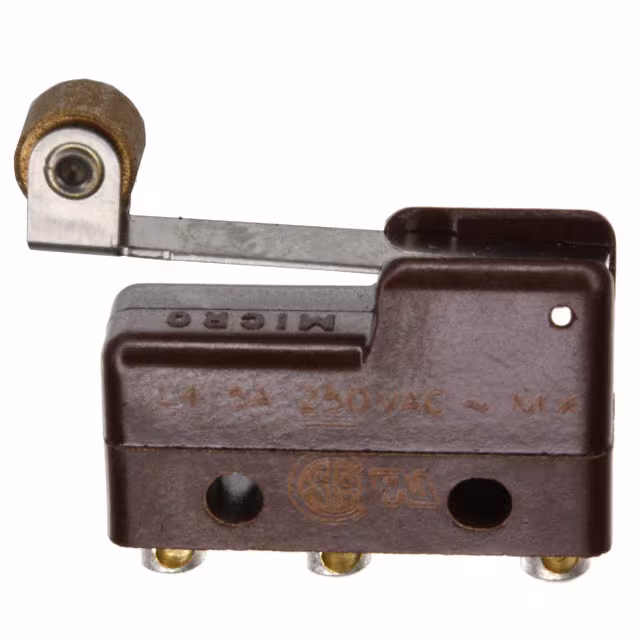

311SM6 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,360	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Roller	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	40gf	0.020" (0.5mm)	7.138gf	0.085" (2.16mm)	0.560" (14.2mm)	0.018" (0.45mm)	-55°C ~ 125°C
11SM1077-H4 SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	1,748	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
TFCJJ6ST145AC SWITCH SNAP ACTION SPDT 15A 227V C&K	3,660	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	227 V	125 V	Lever, Simulated Roller	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	90gf	0.030" (0.76mm)	10gf	0.100" (2.54mm)	0.730" (18.5mm)	0.060" (1.5mm)	-40°C ~ 85°C
ZW10F90AW1 SWITCH SNAP ACT SPDT 100MA 125V Honeywell Sensing and Productivity Solutions	4,056	-	RFQ Sell Excess Inventory	Datasheet	ZW	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	100mA (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	203gf	0.008" (0.2mm)	50gf	0.047" (1.2mm)	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 105°C
831830CFD0.0 SWITCH SNAP ACTION SPDT 3A 250V Crouzet	4,300	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	3A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 105°C
D2FW-G081M(D) SWITCH SNAP ACTION SPDT 0.1A 30V Omron Electronics Inc-EMC Div	4,333	-	RFQ Sell Excess Inventory	Datasheet	D2FW-G	Tray	Active	SPDT	On-Mom	-	30 V	Lever, Leaf	100mA (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	300gf	0.040" (1.0mm)	60gf	-	0.472" (12.0mm)	0.040" (1.0mm)	-40°C ~ 85°C
BZ-R1692 SWITCH BASIC Honeywell Sensing and Productivity Solutions	3,764	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
