Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
LCGGV6P00ECUE SWITCH SNAP ACTION SPDT 5A 125V C&K	3,915	-	RFQ Sell Excess Inventory	Datasheet	LC	Bulk	Not For New Designs	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Solder Lug	-	Epoxy Sealed Terminals	142gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.010" (0.25mm)	-25°C ~ 85°C
21SX39-T2 SWITCH SNAP ACTION SPDT 7A 115V Honeywell Sensing and Productivity Solutions	3,658	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C

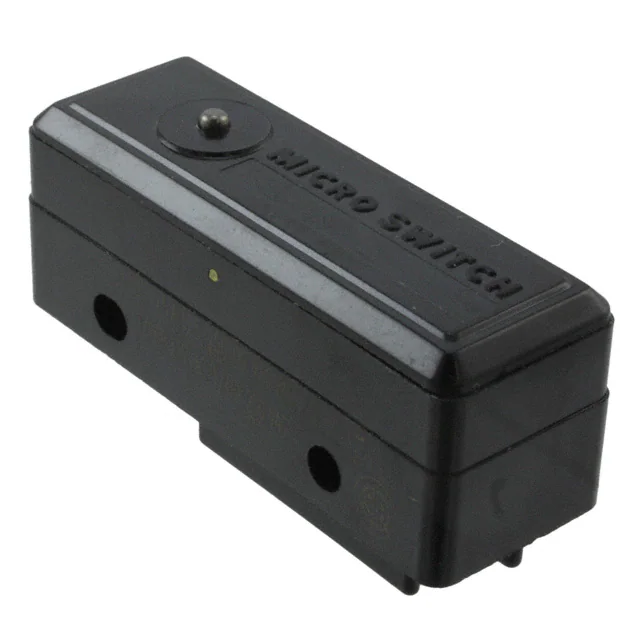

BZ-R SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,544	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Solder Lug	-	-	198 ~ 255gf	0.0003" (0.008mm)	113gf	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
F79-30A SWITCH SNAP ACTION DPDT 10A 125V ZF Electronics	3,746	-	RFQ Sell Excess Inventory	Datasheet	E	Bulk	Active	DPDT	On-Mom	125 V	-	Push-Pull Plunger	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	Pull On Lock	757gf	0.075" (1.9mm)	-	0.125" (3.2mm)	0.610" (15.5mm)	0.100" (2.54mm)	-40°C ~ 85°C
VM3SCGF3003L06 SWITCH LIMIT SPDT 10A 125V CIT Relay and Switch	1,101	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPDT	On-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	380gf	0.040" (1.0mm)	160gf	0.067" (1.7mm)	0.799" (20.3mm)	0.012" (0.3mm)	-40°C ~ 120°C

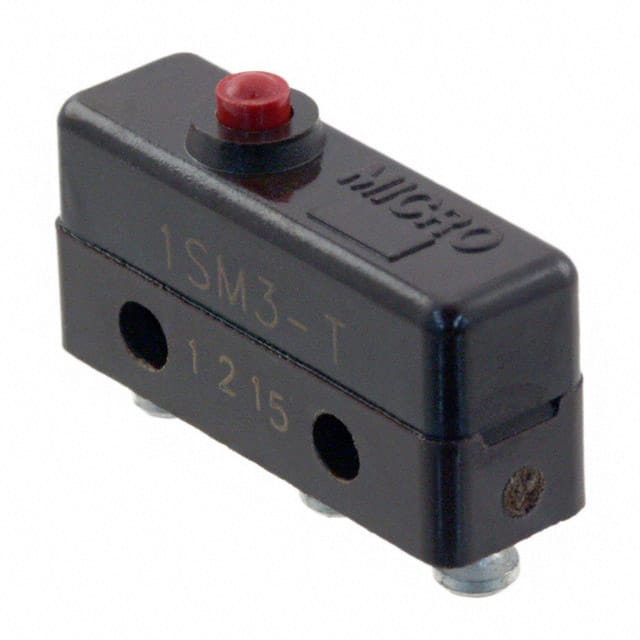

1SM3-T SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,265	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
83160067 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	2,023	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	204gf	0.025" (0.6mm)	41gf	0.100" (2.5mm)	-	0.051" (1.3mm)	-20°C ~ 125°C
926AS4 SWITCH SPRING LVR SPST 0.1A QC Honeywell Sensing and Productivity Solutions	1,322	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Discontinued	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

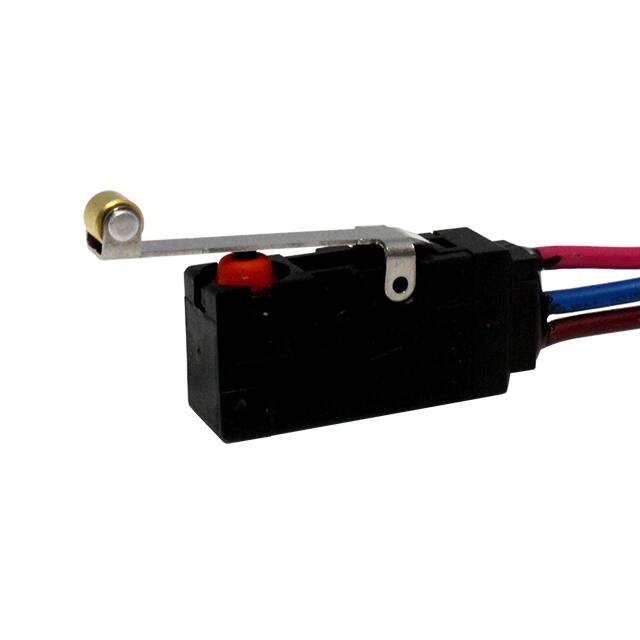

VM3SCGF3003L01 SWITCH LIMIT SPDT 10A 125V CIT Relay and Switch	3,541	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPDT	On-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	210gf	0.050" (1.3mm)	100gf	0.118" (3.0mm)	0.795" (20.2mm)	0.031" (0.8mm)	-40°C ~ 120°C
1520076-3 SWITCH SNAP ACTION DPST 6A 125V TE Connectivity ALCOSWITCH Switches	4,739	-	RFQ Sell Excess Inventory	Datasheet	8907	Bulk	Obsolete	DPST-NO	On-Off	125 V	-	-	6A (AC)	Chassis Mount	-	-	-	-	-	-	-	-	-	-
111SM2410 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	4,073	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Lever, Roller	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	170gf	0.055" (1.4mm)	14gf	0.218" (5.5mm)	0.562" (14.3mm)	0.030" (0.76mm)	-55°C ~ 125°C
11SM701-H2 SWITCH SNAP ACTION SPDT 4A 250V Honeywell Sensing and Productivity Solutions	1,149	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	4A (AC), 5A (DC)	Through Hole	PC Pin	-	-	56gf	0.002" (0.05mm)	14gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
VM3SAGF3003L00 SWITCH LIMIT SPST-NO 10A 125V CIT Relay and Switch	4,525	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NO	Off-Mom	125 V	36 V	Round (Pin Plunger)	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	320gf	0.031" (0.80mm)	250gf	0.080" (2.0mm)	0.581" (14.75mm)	0.024" (0.6mm)	-40°C ~ 120°C

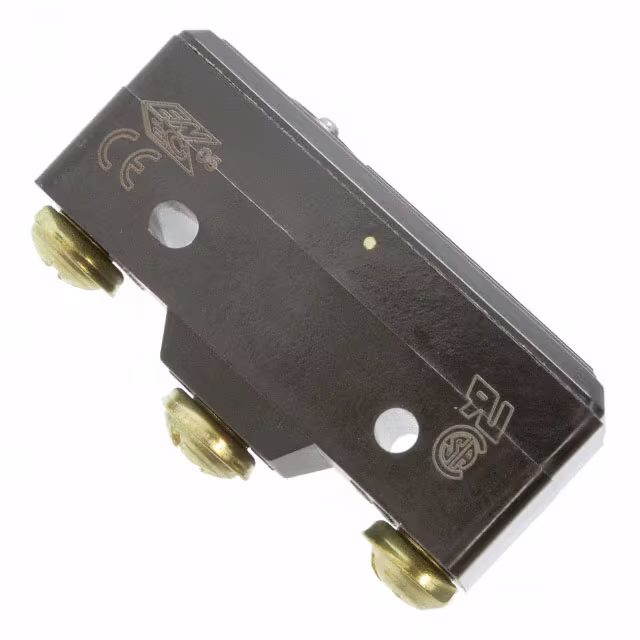

BM-1R-A4 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	2,180	-	RFQ Sell Excess Inventory	Datasheet	BM	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Screw Terminal	-	-	198gf	0.001" (0.025mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
83160601 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	4,324	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	510gf	0.060" (1.5mm)	77gf	0.125" (3.2mm)	-	0.051" (1.3mm)	-20°C ~ 125°C
83290001 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	2,083	-	RFQ Sell Excess Inventory	Datasheet	V3DS	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight, Waterproof	-	459gf	0.020" (0.5mm)	82gf	-	0.579" (14.7mm)	0.040" (1.0mm)	-40°C ~ 85°C
83186005 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	4,443	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 105°C
1DM171 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,968	-	RFQ Sell Excess Inventory	Datasheet	DM	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	-	-	680gf	0.045" (1.1mm)	283gf	-	0.750" (19.1mm)	0.375" (9.5mm)	-37°C ~ 82°C
1SM36-H2 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	4,508	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Through Hole	PC Pin	-	-	113gf	0.002" (0.05mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.011" (0.3mm)	-55°C ~ 125°C
VM3SBGF3003L00 SWITCH LIMIT SPST-NC 10A 125V CIT Relay and Switch	4,639	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NC	On-Mom	125 V	36 V	Round (Pin Plunger)	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	320gf	0.031" (0.80mm)	250gf	0.080" (2.0mm)	0.581" (14.75mm)	0.024" (0.6mm)	-40°C ~ 120°C
