Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
V3-1078 SWITCH PLUNGER SPST 1A SCREW Honeywell Sensing and Productivity Solutions	4,040	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2R389-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,455	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	227 ~ 368gf	0.002" (0.05mm)	43 ~ 99gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
311SM8092-T SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	4,155	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Lever, Simulated Roller	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	22gf	0.013" (0.33mm)	6.118gf	0.100" (2.5mm)	0.560" (14.2mm)	0.020" (0.5mm)	-55°C ~ 125°C
1DM181 SWITCH SNAP ACTION 10A 125V Honeywell Sensing and Productivity Solutions	1,411	-	RFQ Sell Excess Inventory	Datasheet	DM	Bulk	Active	-	-	125 V	-	Round (Pin Plunger)	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	-	425gf	-	-	-	-	-	-37°C ~ 82°C
21SM157-T SWITCH SNAP ACTION SPDT 10A 30V Honeywell Sensing and Productivity Solutions	1,591	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	-	30 V	Round (Pin Plunger)	10A (DC)	Chassis Mount	Solder Turret	-	-	198gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C

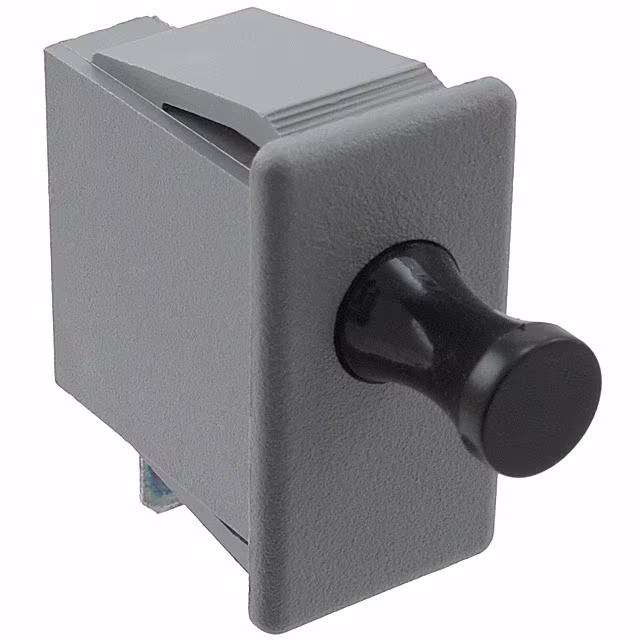

1DM301 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,723	-	RFQ Sell Excess Inventory	Datasheet	DM	Bulk	Obsolete	SPDT	On-On	125 V	-	Push-Pull Plunger	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	-	425gf	-	-	-	-	0.625" (15.9mm)	-37°C ~ 82°C
AP-HCM04 SWITCH AUX MINI CONTACTOR Altech Corporation	3,843	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AP-HCM13 SWITCH AUX MINI CONTACTOR Altech Corporation	2,047	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AP-HCM22 SWITCH AUX MINI CONTACTOR Altech Corporation	1,707	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AP-HCM31 SWITCH AUX MINI CONTACTOR Altech Corporation	1,394	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AP-HCM40 SWITCH AUX MINI CONTACTOR Altech Corporation	4,849	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2R53-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,062	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
HBS1KAB4SP055C SWITCH SNAP ACTION SPDT 20A 125V C&K	3,765	-	RFQ Sell Excess Inventory	Datasheet	HB	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	255gf	0.0005" (0.013mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 150°C

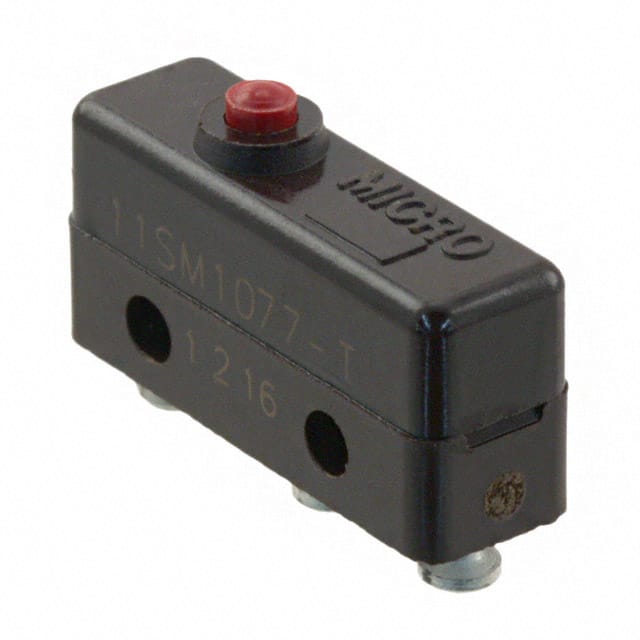

11SM1077-T SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	4,638	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
83181005 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	2,895	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 105°C
83181004 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	3,563	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	6A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	255gf	0.004" (0.1mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 105°C

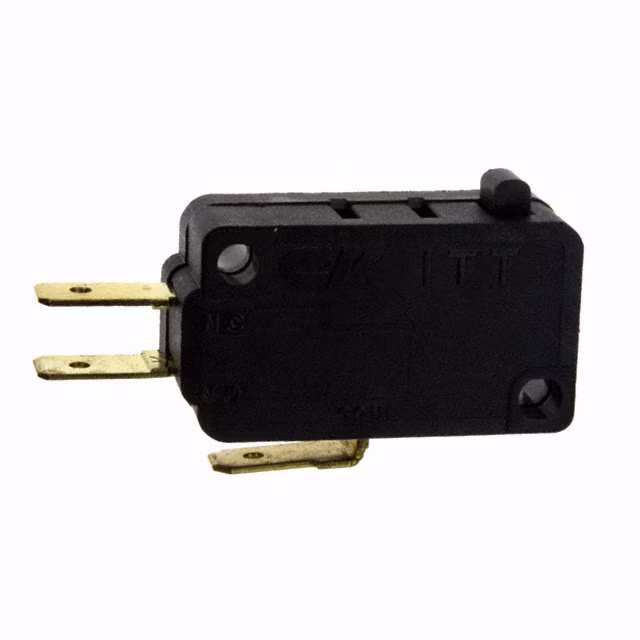

TFCGF5SP0040C SWITCH SNAP ACTION SPDT 1A 125V C&K	4,131	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	75gf	0.010" (0.25mm)	15gf	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
21SX39-H391 SWITCH SNAP ACTION SPDT 7A 115V Honeywell Sensing and Productivity Solutions	4,966	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Through Hole, Right Angle	PC Pin	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
D2SW-3MS-0 SWITCH SNAP ACTION SPDT 3A 125V Omron Electronics Inc-EMC Div	3,436	-	RFQ Sell Excess Inventory	Datasheet	D2SW	Tray	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	3A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	180gf	0.004" (0.1mm)	30gf	0.024" (0.6mm)	0.330" (8.4mm)	0.020" (0.5mm)	-40°C ~ 85°C

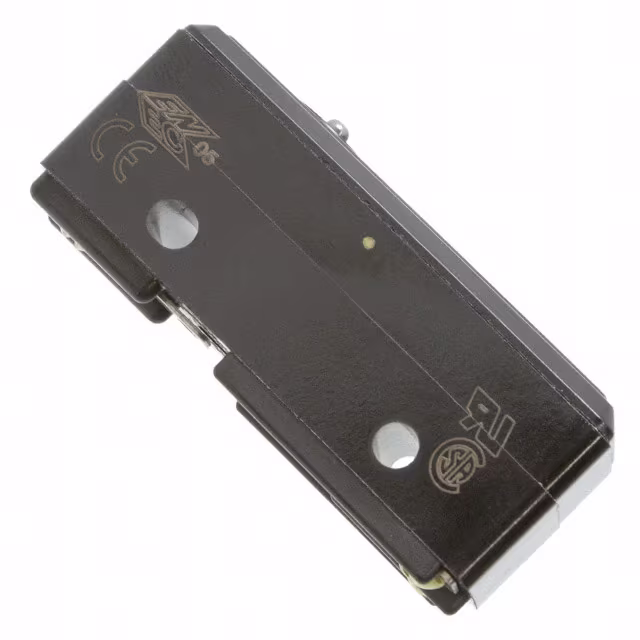

BM-1R373 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	1,282	-	RFQ Sell Excess Inventory	Datasheet	BM	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Solder Lug	-	-	198 ~ 283gf	0.001" (0.025mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
