Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature

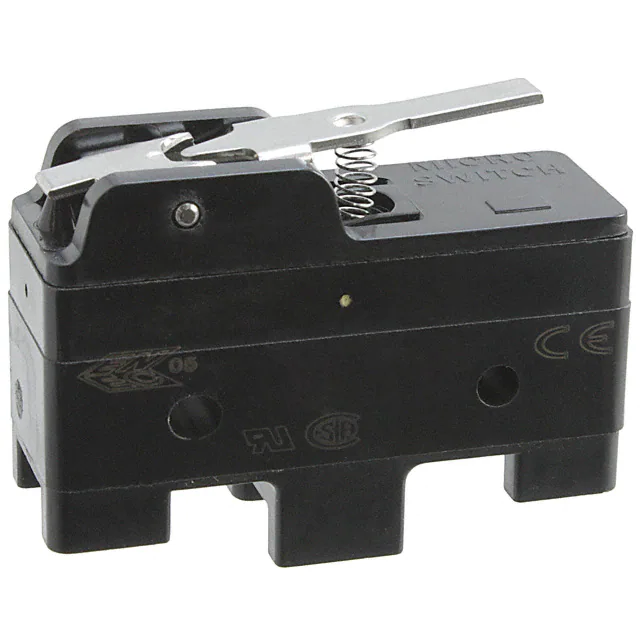

BZ-2RW876-PC2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,824	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	170gf	0.025" (0.6mm)	43gf	-	0.750" (19.1mm)	0.141" (3.6mm)	-55°C ~ 85°C

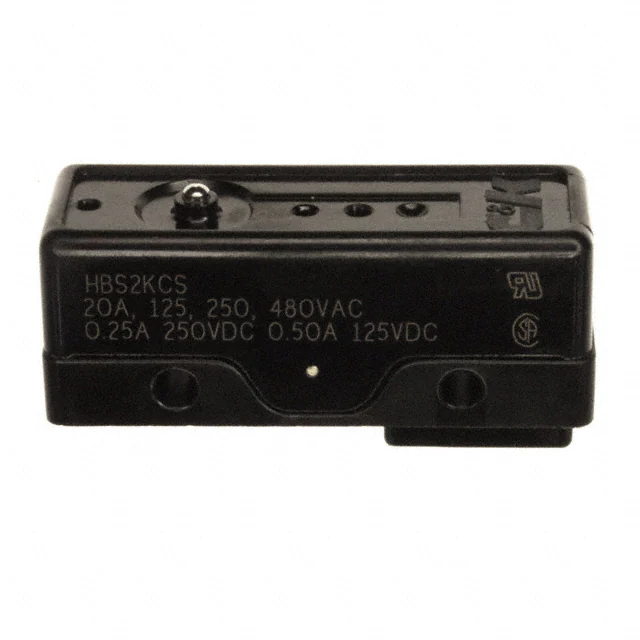

HBS2KCB4SP011C SWITCH SNAP ACTION SPDT 20A 125V C&K	1,094	-	RFQ Sell Excess Inventory	Datasheet	HB	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	20A (AC), 500mA (DC)	Chassis Mount	Solder Lug	IP65 - Dust Tight, Water Resistant	-	368gf	0.002" (0.05mm)	113gf	0.020" (0.5mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 150°C
83160029 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	4,000	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	408gf	0.012" (0.3mm)	102gf	0.047" (1.2mm)	-	0.051" (1.3mm)	-20°C ~ 125°C
41SM301-T2 SWITCH SNAP ACTION SPDT 11A 250V Honeywell Sensing and Productivity Solutions	3,719	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	11A (AC), 5A (DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
WZ-2R-A2 SWITCH SNAP ACT SPST-NC 15A 125V Honeywell Sensing and Productivity Solutions	1,593	-	RFQ Sell Excess Inventory	Datasheet	WZ	Bulk	Obsolete	SPST-NC	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BA-2R24-A2 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	3,810	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.002" (0.05mm)	283gf	0.050" (1.27mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 121°C

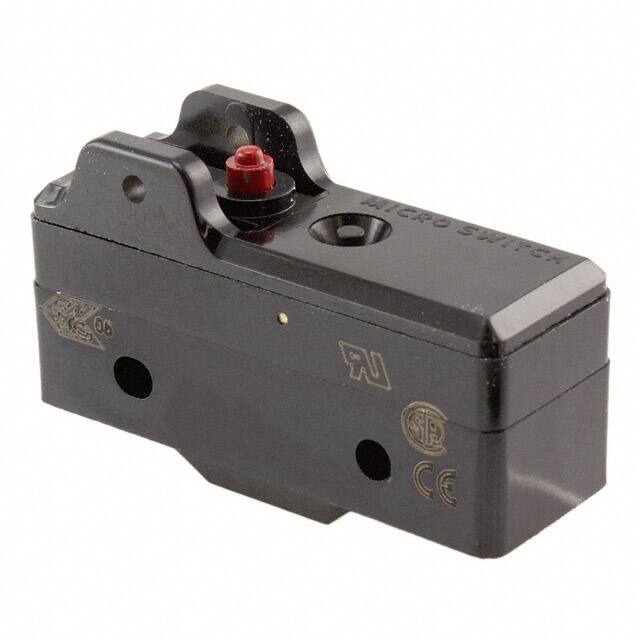

WA-2RV313-A22 SWITCH SNAP ACT SPST-NC 20A 125V Honeywell Sensing and Productivity Solutions	1,271	-	RFQ Sell Excess Inventory	Datasheet	WA	Bulk	Obsolete	SPST-NC	On-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.007" (0.18mm)	283gf	-	0.710" (18.0mm)	0.010" (0.25mm)	-55°C ~ 85°C
83181073 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	1,924	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Lever, Simulated Roller	6A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	170gf	0.006" (0.15mm)	54gf	-	0.472" (12.0mm)	0.035" (0.9mm)	-40°C ~ 105°C
V15W-WZ200A02-AW1 SWITCH SNAP ACT SPDT 100MA 125V Honeywell Sensing and Productivity Solutions	4,809	-	RFQ Sell Excess Inventory	Datasheet	V15W	Tray	Active	SPDT	On-Mom	125 V	48 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	120gf	0.047" (1.2mm)	10gf	0.125" (3.2mm)	0.602" (15.3mm)	0.051" (1.3mm)	-40°C ~ 85°C
MMGGD1P0L SWITCH SNAP ACTION SPDT 7A 250V C&K	1,275	-	RFQ Sell Excess Inventory	Datasheet	MM	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	7A (AC)	Through Hole, Right Angle	PC Pin	-	-	142gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 135°C
BA-1RV54352411-A21 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,946	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	40gf	0.080" (2.0mm)	7.087gf	-	0.750" (19.1mm)	0.065" (1.7mm)	-55°C ~ 121°C
11SM712-H58 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,907	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	56gf	0.002" (0.05mm)	14gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
V7-1A27D8-636 SWITCH SNAP ACT SPST-NO 5A 125V Honeywell Sensing and Productivity Solutions	3,696	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Active	SPST-NO	Off-Mom	125 V	-	-	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	11gf	0.012" (0.3mm)	-	0.051" (1.3mm)	0.630" (16.0mm)	0.068" (1.73mm)	-40°C ~ 85°C
83133045 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	3,761	-	RFQ Sell Excess Inventory	Datasheet	83133	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Through Hole	PC Pin	-	-	-	-	-	-	-	-	-20°C ~ 125°C
1SX90-T SWITCH SNAP ACT SPST-NO 7A 250V Honeywell Sensing and Productivity Solutions	2,719	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPST-NO	Off-Mom	250 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	Solder Turret	-	-	-	-	-	-	0.320" (8.13mm)	-	-55°C ~ 125°C
111SM601-H4 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,310	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	-	-	198gf	0.030" (0.76mm)	57gf	0.218" (5.5mm)	0.350" (8.9mm)	0.030" (0.76mm)	-55°C ~ 125°C
BZ-2RW822111-A2 BASIC SWITCH Honeywell Sensing and Productivity Solutions	1,392	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

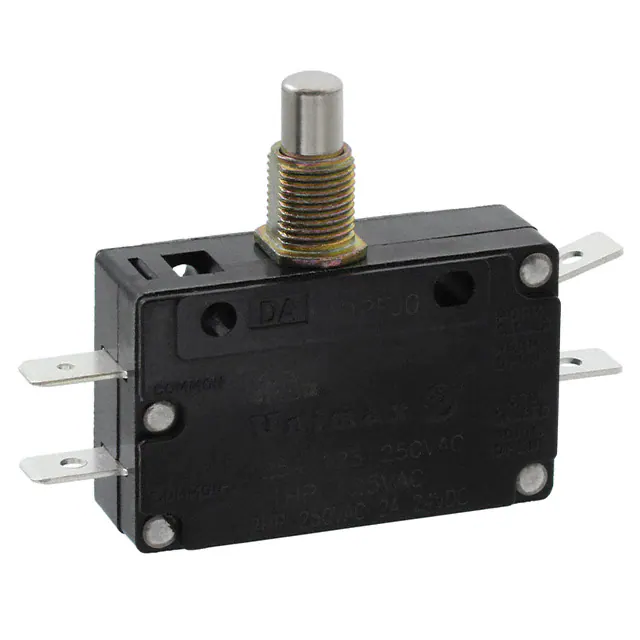

ADPFF3J04AW SWITCH SNAP ACT DPST-NC 25A 125V C&K	4,780	-	RFQ Sell Excess Inventory	Datasheet	A	Tray	Active	DPST-NC	On-Mom	125 V	24 V	Overtravel Plunger	25A (AC), 2A (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	1134gf	-	170gf	0.050" (1.27mm)	-	0.187" (4.75mm)	-55°C ~ 85°C
BZ-2R21-A2 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,034	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	10A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	85 ~ 141gf	0.002" (0.05mm)	71gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BE-2R175-A41 SWITCH BASIC LARGE Honeywell Sensing and Productivity Solutions	4,994	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
