Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
TFCGF5VA1540C SWITCH SNAP ACTION SPDT 1A 125V C&K	2,281	-	RFQ Sell Excess Inventory	Datasheet	TF	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	1A (AC/DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	45gf	0.030" (0.76mm)	5.000gf	0.100" (2.5mm)	0.812" (20.6mm)	0.065" (1.7mm)	-40°C ~ 85°C
21SM284-T2 SWITCH SNAP ACTION SPDT 5A 115V Honeywell Sensing and Productivity Solutions	1,497	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
21SM144-T SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	3,643	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	85gf	0.002" (0.05mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
WZ-2RD19-D1 SWITCH SNAP ACT SPST-NC 15A 125V Honeywell Sensing and Productivity Solutions	4,724	-	RFQ Sell Excess Inventory	Datasheet	WZ	Bulk	Obsolete	SPST-NC	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.835" (21.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
311SM1068-H4 SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	3,691	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	-	-	40gf	0.020" (0.5mm)	7.138gf	0.085" (2.16mm)	0.560" (14.2mm)	0.018" (0.45mm)	-55°C ~ 125°C
WA-1RX43-A41 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	3,283	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
111SM858-H403 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	4,344	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	198gf	0.030" (0.76mm)	57gf	0.218" (5.5mm)	0.350" (8.9mm)	0.030" (0.76mm)	-55°C ~ 125°C
WA-2RV178-A2 SWITCH SNAP ACT SPST-NC 20A 125V Honeywell Sensing and Productivity Solutions	2,870	-	RFQ Sell Excess Inventory	Datasheet	WA	Bulk	Active	SPST-NC	On-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	71gf	0.110" (2.8mm)	14gf	0.625" (15.9mm)	0.750" (19.1mm)	0.079" (2.0mm)	-55°C ~ 85°C

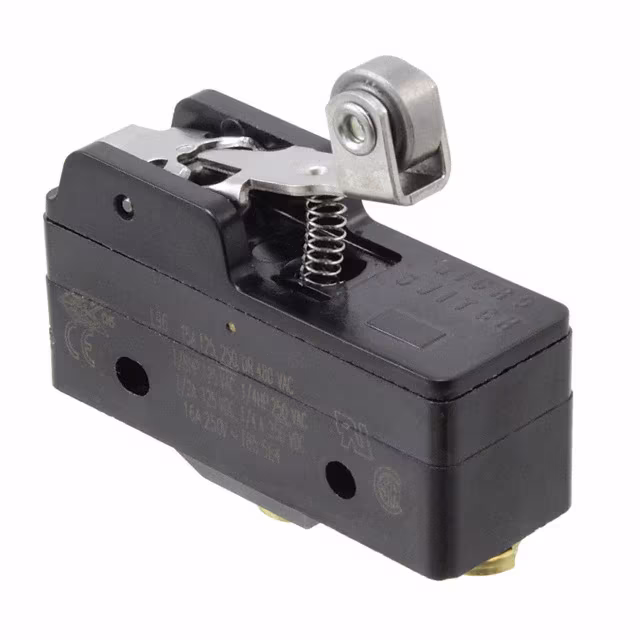

BZ-7RW822-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,318	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	198gf	0.050" (1.3mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-3R208 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	3,983	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
83133038 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	1,960	-	RFQ Sell Excess Inventory	Datasheet	83133	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Through Hole	PC Pin	-	-	-	-	-	-	-	-	-20°C ~ 125°C
83194015 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	4,852	-	RFQ Sell Excess Inventory	Datasheet	V5D	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Simulated Roller	5A (AC)	Chassis Mount	Solder Lug	IP40	-	71gf	0.018" (0.45mm)	9.000gf	-	0.406" (10.3mm)	-	-40°C ~ 85°C

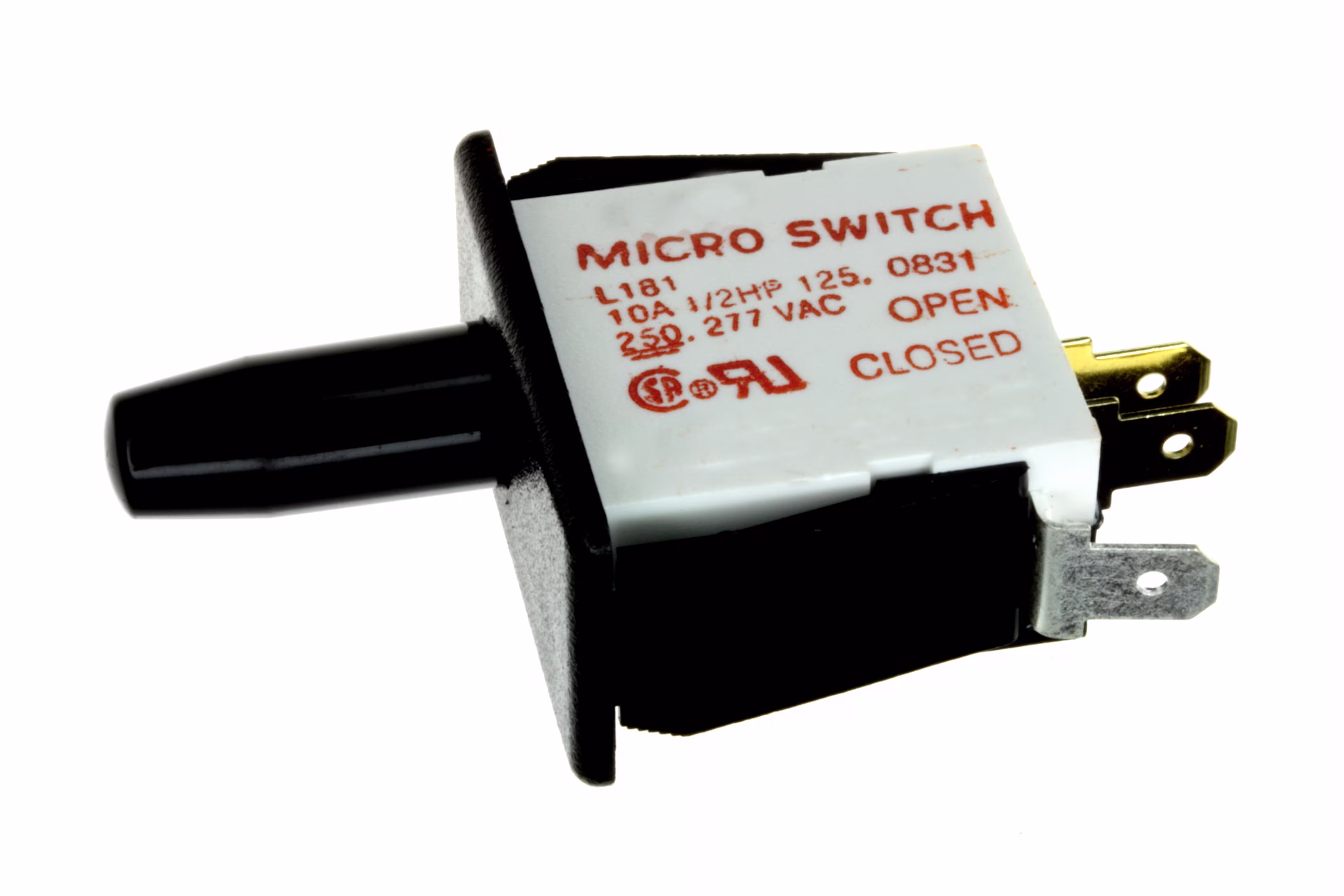

1DM57 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	1,380	-	RFQ Sell Excess Inventory	Datasheet	DM	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	-	425gf	0.045" (1.1mm)	85gf	-	0.750" (19.1mm)	0.375" (9.5mm)	-37°C ~ 82°C
BZ-R309-A2 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	3,346	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

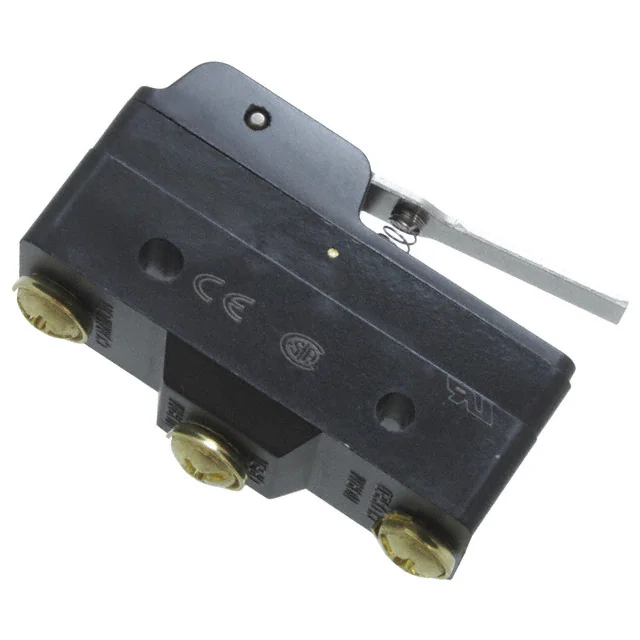

BZ-2RW80282-A2 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	3,591	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	5A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	141gf	0.030" (0.76mm)	21gf	-	0.750" (19.1mm)	0.141" (3.6mm)	-55°C ~ 85°C

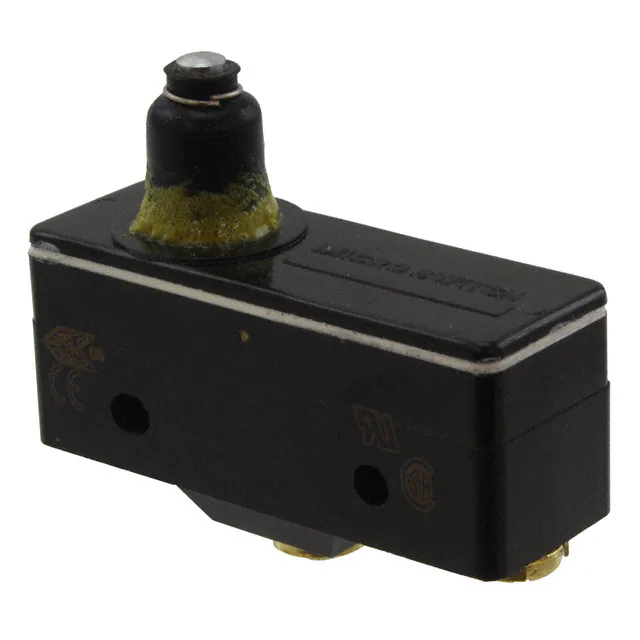

BZ-2RS5551-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,917	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	Steel Plunger	255 ~ 425gf	0.002" (0.05mm)	113gf	-	1.110" (28.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-2R244-A2 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	2,812	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	5A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 204°C
YZ-2RW8227225551D6 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	4,310	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Active	SPST-NO	Off-Mom	-	-	Lever, Leaf	15A	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-55°C ~ 85°C
BM-1R SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	4,115	-	RFQ Sell Excess Inventory	Datasheet	BM	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Solder Lug	-	-	198gf	0.001" (0.025mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-RW8435147-A2 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	2,645	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
